DuctBot

Robosoft Systems

Cleaning-Robots India

IndiaReleased

★Not rated yet

Compare

Sources:

robosoftsystems.co.in

Industries:

Commercial Defence Facilities Cleaning & Facilities

Uses:

Cleaning Filming Inspection Remote

Price:

Not announced

DESCRIPTION

DuctBot is a Cleaning-Robots from Robosoft Systems. It is built for Cleaning, Filming, Inspection. Key figures: 3.2 kg.

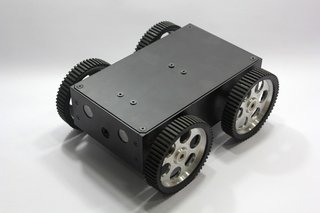

DuctBot is a compact, remote-controlled robot from Robosoft Systems of Mumbai for inspecting and cleaning horizontal HVAC air ducts. Professional duct cleaners and HVAC contractors drive it into the duct on a 30 m cable and watch live video on a hand-held 5-inch digital video recorder, which also stores the footage on a 32 GB SD card as a record of the job. The robot has a four-wheel skid-steer drive with high-torque DC motors, front and rear colour cameras, and three adjustable 3 W LEDs; a wired PS2-style joystick drives it, sets the light intensity and switches cameras. The base robot measures 240 x 190 x 100 mm and weighs 3.2 kg, and the whole system packs into a 20 kg carrying case. Two cleaning versions are offered. The Air-Whip version adds a pneumatic three-tentacle air whip for ducts up to 12 inches, fed by an external compressor. The Rotary Brush version adds a top camera, a pneumatic rotary brush and a linear-actuator lift arm reaching 300 to 600 mm, for ducts of 125 to 600 mm; it weighs 10 kg. Clients named by the maker include Blue Star, EPSCO, Cipla and the Indian Navy.

FEATURES

Compact remote-controlled robot for horizontal HVAC air ducts
Front and rear 1000TVL 1/3-inch CCD colour cameras
Skid steer with 4x4 high-torque DC motor drive
Wired PS2 joystick controls driving, LED intensity and camera switching
Lighting: 2 x 3 W variable LEDs at the front, 1 x 3 W at the rear
5-inch portable digital video recorder with 32 GB SD card and live view
Video output: PAL
30 m cable
Robot size 240 x 190 x 100 mm
robot weight 3.2 kg
Carrying case 610 x 370 x 420 mm (ABS/PP)
total system weight 20 kg
Operating temperature 10-45 C
AC input 220 V / 50 Hz (110 V / 60 Hz on request)

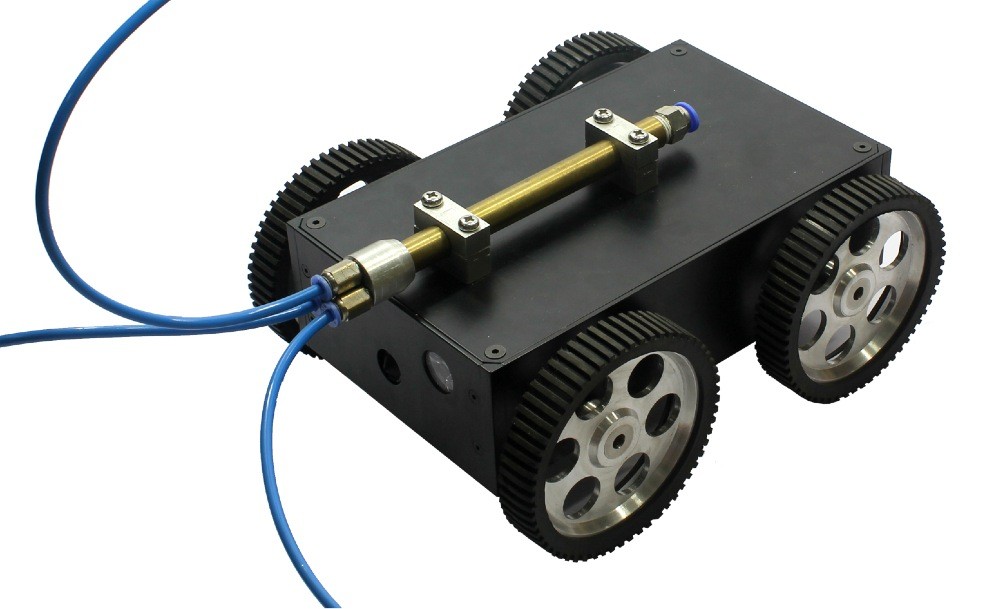

Air-Whip version: pneumatic 3-tentacle air whip with 30 m PU pipe and foot-pedal valve, for ducts up to 12 inches
robot 240 x 190 x 125 mm, 3.5 kg
system 22 kg
air at 8-9 psi from an external compressor

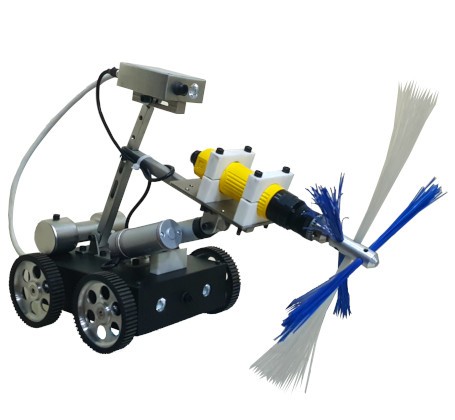

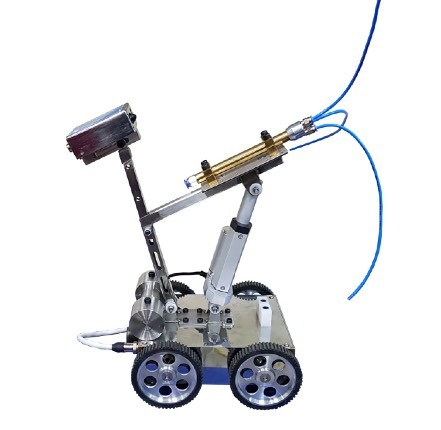

Rotary Brush version: front, rear and top cameras (110-degree 2.8 mm lens)
pneumatic rotary brush with foot-pedal speed control
linear-actuator lift arm reaching 300-600 mm
for ducts 125-600 mm (5-24 inches)
robot 250 x 225 x 100 mm, 10 kg
system 25 kg
Air compressor not included
MIT Technology Review TR35 best innovative product award, 2011 (per maker)

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	3.2 kg
Dimensions	L 240 mm × W 190 mm × H 100 mm
Materials	ABS/PP carrying case
Mobility
Movement Type	Wheeled
Environment	Inside horizontal HVAC air ducts and industrial pipelines, 10°C to 45°C
Actuators	4x4 DC motor skid-steer drive; pneumatic air-whip and rotary-brush attachments
Sensing & Compute
Sensors	Front 1000TVL CCD colour camera, Rear 1000TVL CCD colour camera
Connectivity	Wired, 30 m cable

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	3.2 kg
Dimensions	L 240 mm × W 190 mm × H 100 mm
Materials	ABS/PP carrying case
Mobility
Movement Type	Wheeled
Environment	Inside horizontal HVAC air ducts and industrial pipelines, 10°C to 45°C
Actuators	4x4 DC motor skid-steer drive; pneumatic air-whip and rotary-brush attachments
Sensing & Compute
Sensors	Front 1000TVL CCD colour camera, Rear 1000TVL CCD colour camera
Connectivity	Wired, 30 m cable

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the DuctBot?

DuctBot is a compact, remote-controlled robot from Robosoft Systems of Mumbai for inspecting and cleaning horizontal HVAC air ducts.

Who makes the DuctBot?

The DuctBot is made by Robosoft Systems, a robotics company based in India.

How much does the DuctBot cost?

Robosoft Systems has not publicly announced pricing for the DuctBot. You can enquire through RobotAIGeek for current pricing.

What is the DuctBot used for?

The DuctBot is designed for cleaning, filming, inspection, and remote. It is used in commercial, defence, facilities, and cleaning & facilities settings.
