DESCRIPTION
Crude Oil Sludge Cleaning Robot is a Cleaning-Robots from BetaTANK Robotics. It is built for Cleaning, Inspection, Remote. Key figures: 350 kg.

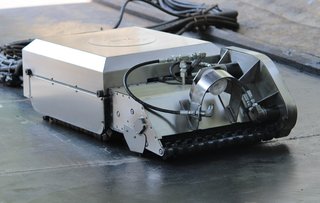

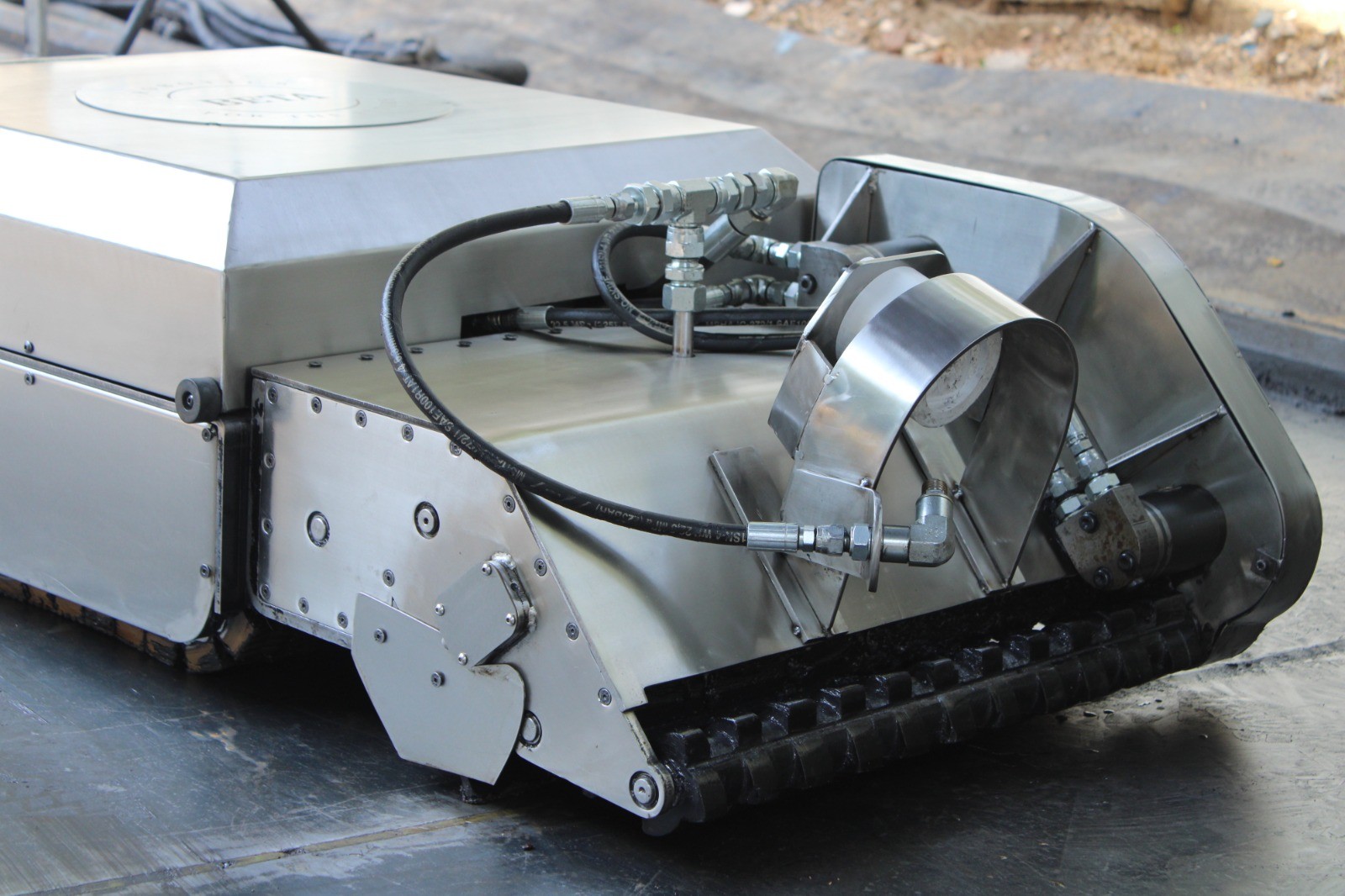

The BetaTANK Crude Oil Sludge Cleaning Robot is a tracked, hydraulically powered robot that enters crude oil and petroleum storage tanks to remove sludge while the operator stays outside. It is certified to IECEx Zone 0, the strictest explosion-safety class, because it uses no electrics inside the tank apart from a Zone 0 certified camera. The robot is deliberately low and heavy: its 370 mm profile lets it pass under the steam heating coils found in most tanks, and its 350 kg operating weight lets it sink through sludge to the tank floor for traction. At the front it picks up, breaks and crushes the sludge and feeds it into a pump mounted on the robot. The pump pushes the sludge out at 5 to 10 bar, which the maker contrasts with vacuum-truck suction systems limited to about 1 bar, and calls this a second-generation design. An umbilical carrying the hydraulic hoses, the sludge discharge hose and the camera cable gives a reach of 60 to 80 m. The operator drives the robot from a control panel in the safe area while watching the camera feed. BetaTANK holds an Indian patent on the technology.
FEATURES
- Tracked, hydraulically powered tank cleaning robot
- IECEx Zone 0 certified for explosive atmospheres
- No electrics inside the tank except a Zone 0 certified camera
- All robotic functions hydraulically controlled and powered
- On-robot pump pushes sludge out at 5-10 bar discharge pressure
- Picks up, breaks and crushes sludge before feeding the pump
- Profile height 370 mm to pass under tank steam heating coils
- Operating weight 350 kg for traction on the tank floor
- Reach 60-80 m via umbilical
- Umbilical carries hydraulic hoses, sludge discharge hose and camera wire
- Operator controls from a panel in the safe area outside the tank
- Patented (Indian patent)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 350 kg |
|---|---|
| Dimensions | H 370 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Crude oil and petroleum storage tanks; explosive (Zone 0) atmospheres; thick sludge |
| Actuators | Hydraulic |
| Sensing & Compute | |
| Sensors | IECEx Zone 0 certified camera |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 350 kg |
|---|---|
| Dimensions | H 370 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Crude oil and petroleum storage tanks; explosive (Zone 0) atmospheres; thick sludge |
| Actuators | Hydraulic |
| Sensing & Compute | |
| Sensors | IECEx Zone 0 certified camera |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Crude Oil Sludge Cleaning Robot?
The BetaTANK Crude Oil Sludge Cleaning Robot is a tracked, hydraulically powered robot that enters crude oil and petroleum storage tanks to remove sludge while the operator stays outside.
Who makes the Crude Oil Sludge Cleaning Robot?
The Crude Oil Sludge Cleaning Robot is made by BetaTANK Robotics, a robotics company based in India.
How much does the Crude Oil Sludge Cleaning Robot cost?
BetaTANK Robotics has not publicly announced pricing for the Crude Oil Sludge Cleaning Robot. You can enquire through RobotAIGeek for current pricing.
What is the Crude Oil Sludge Cleaning Robot used for?
The Crude Oil Sludge Cleaning Robot is designed for cleaning, inspection, and remote. It is used in energy, cleaning & facilities, and manufacturing settings.
How much does the Crude Oil Sludge Cleaning Robot weigh?
The Crude Oil Sludge Cleaning Robot weighs 350 kg.
