DESCRIPTION

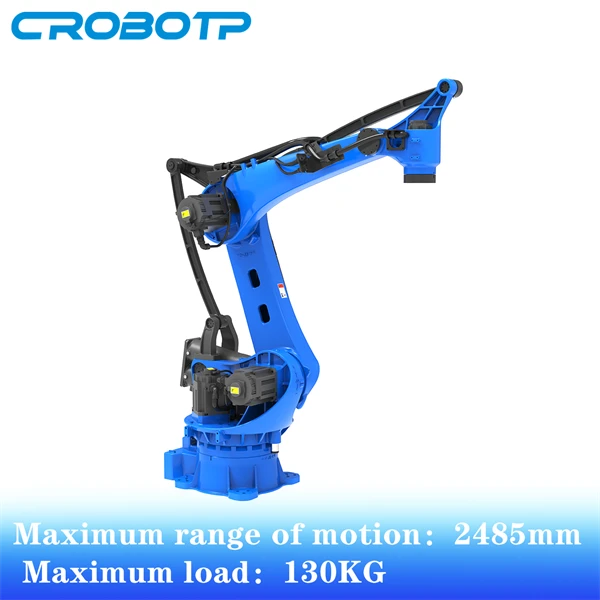

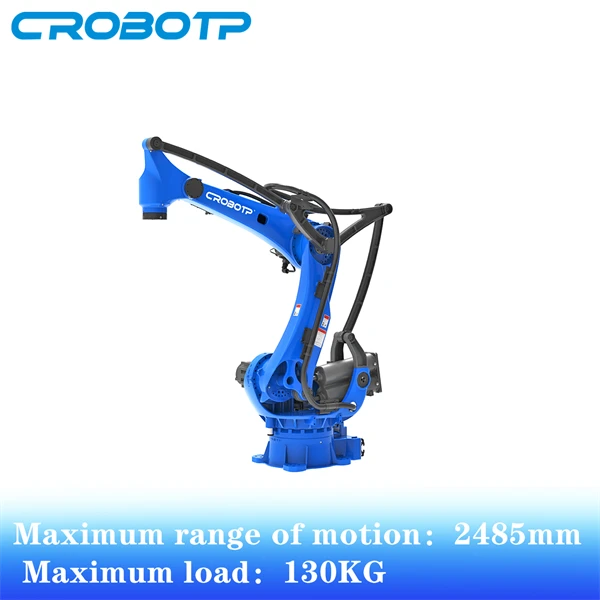

The CRP-RP24-130 is a palletizing robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 130 kg payload to a maximum reach of 2485 mm, with a 820 kg body and 0.2 mm repeatability. CRP builds the arm for continuous duty on a factory floor: the body is rated IP54, with an operating range of 0~45°C. It shares CRP's controller platform with the company's welding line, so the same teaching and I/O conventions apply across a mixed cell.
FEATURES
- With gravity compensation, load adaptive, and S-T functions, the robot has higher precision, smaller impact, shorter cycle time under typical working condition
- With parallel spring cylinder, smaller floor area, lower power consumption, smoother control
- Two-way large-aperture air pipe to meet the requirements of large-load vacuum suction cups
- Arm span（Maximum reaching distance）:2400 mm
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 820 kg |
|---|---|
| Payload | 130 kg |
| Reach | 2.48 m |
| Repeatability | ±0.2 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | IP54, operating temperature 0~45°C |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 820 kg |
|---|---|
| Payload | 130 kg |
| Reach | 2.48 m |
| Repeatability | ±0.2 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | IP54, operating temperature 0~45°C |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRP-RP24-130?
The CRP-RP24-130 is a palletizing robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 130 kg payload to a maximum reach of 2485 mm, with a 820 kg body and 0.2 mm repeatability.
Who makes the CRP-RP24-130?
The CRP-RP24-130 is made by Chengdu CRP Robot Technology, a robotics company based in China.
How much does the CRP-RP24-130 cost?
Chengdu CRP Robot Technology has not publicly announced pricing for the CRP-RP24-130. You can enquire through RobotAIGeek for current pricing.
What is the CRP-RP24-130 used for?
The CRP-RP24-130 is designed for general-automation, loading, material-handling, and palletizing. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the CRP-RP24-130?
The CRP-RP24-130 has a payload capacity of 130 kg and a reach of 2.48 m.
How much does the CRP-RP24-130 weigh?
The CRP-RP24-130 weighs 820 kg.
How many degrees of freedom does the CRP-RP24-130 have?
The CRP-RP24-130 has 4 degrees of freedom.
