DESCRIPTION

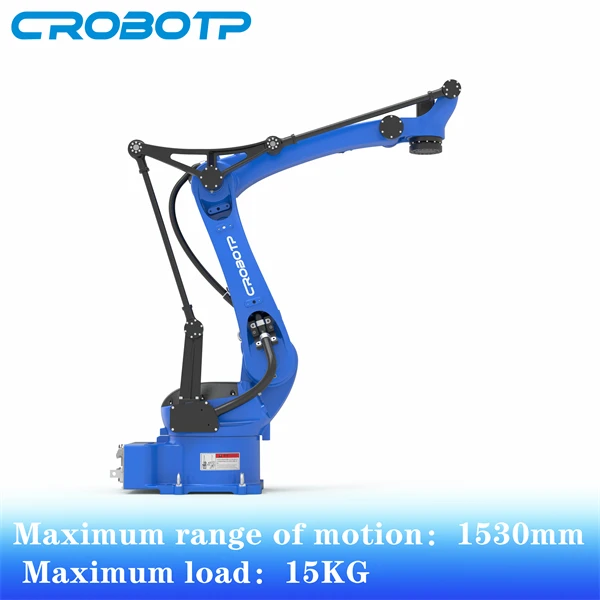

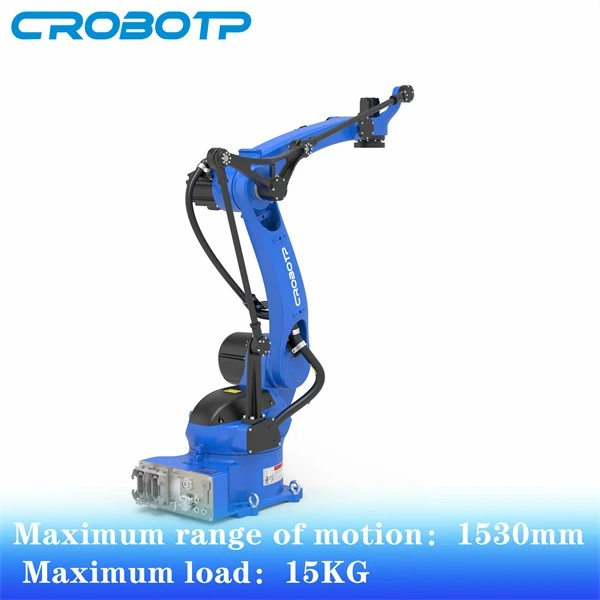

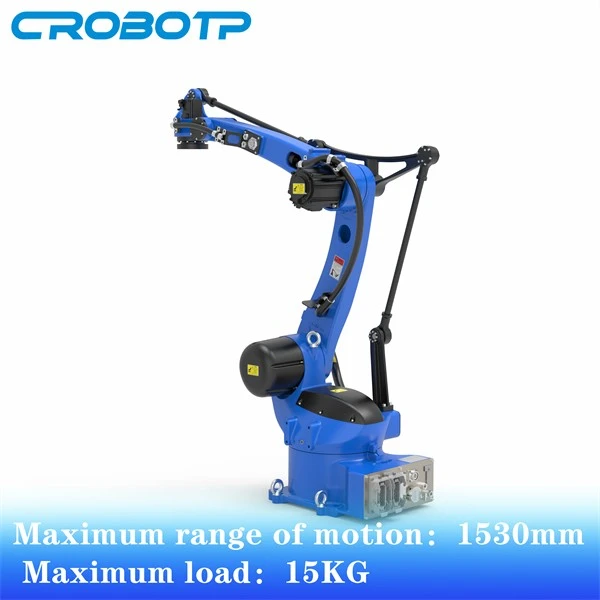

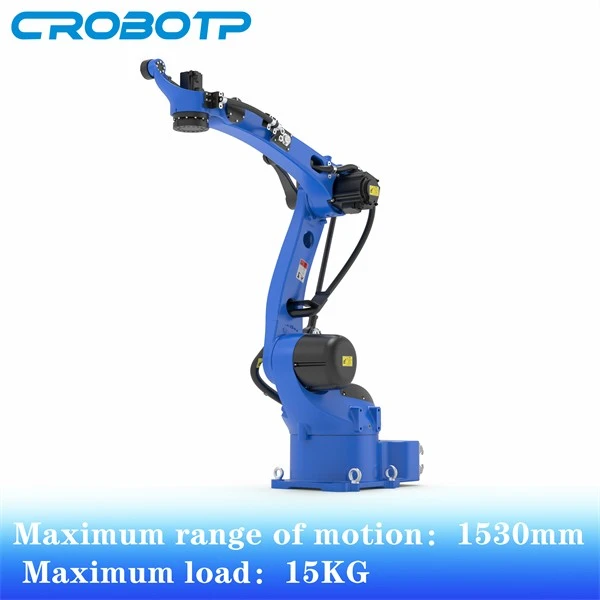

The CRP-RP15-15 is a palletizing robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 15 kg payload to a maximum reach of 1530 mm, with a 155 kg body and 0.05 mm repeatability. CRP builds the arm for continuous duty on a factory floor: the body is rated IP56, with an operating range of 0~45°C. It shares CRP's controller platform with the company's welding line, so the same teaching and I/O conventions apply across a mixed cell.
FEATURES
- With the features of high speed, high precision and high stability, CRP-RP15-15 can be adopted in more application scenarios
- Rod joint adopts high protection design so it has longer life span. And the robot has better performance in waterproof and dustproof with maintenance-free in usage period
- Equipped with special punching and palletizing package, customized interface to make operation be more convenient and easy
- J4 axis adopts higher rigid reducer so the robot has stronger bearing capacity
- The gravity compensation function ensures the accuracy of the robot at any position
- Adaptive acceleration can improve the life span of the robot and ensure reasonable acceleration of arbitrary trajectory to achieve more efficient movement
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 155 kg |
|---|---|
| Payload | 15 kg |
| Reach | 1.53 m |
| Repeatability | ±0.05 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | IP56, operating temperature 0~45°C |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 155 kg |
|---|---|
| Payload | 15 kg |
| Reach | 1.53 m |
| Repeatability | ±0.05 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | IP56, operating temperature 0~45°C |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRP-RP15-15?
The CRP-RP15-15 is a palletizing robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 15 kg payload to a maximum reach of 1530 mm, with a 155 kg body and 0.05 mm repeatability.
Who makes the CRP-RP15-15?
The CRP-RP15-15 is made by Chengdu CRP Robot Technology, a robotics company based in China.
How much does the CRP-RP15-15 cost?
Chengdu CRP Robot Technology has not publicly announced pricing for the CRP-RP15-15. You can enquire through RobotAIGeek for current pricing.
What is the CRP-RP15-15 used for?
The CRP-RP15-15 is designed for general-automation, loading, material-handling, and palletizing. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the CRP-RP15-15?
The CRP-RP15-15 has a payload capacity of 15 kg and a reach of 1.53 m.
How much does the CRP-RP15-15 weigh?
The CRP-RP15-15 weighs 155 kg.
How many degrees of freedom does the CRP-RP15-15 have?
The CRP-RP15-15 has 4 degrees of freedom.
