DESCRIPTION
The CRP-RH20-06-W is a six-axis vertically articulated welding robot from Chengdu CRP Robot Technology, built for arc welding in general fabrication, automotive, electronics and new-energy production. It carries a 6 kg payload to a maximum reach of 2012 mm and repeats to +/-0.08 mm, with a 291 kg body that mounts either on the ground or inverted from a frame. The arm is built around welding rather than adapted to it: the J4 and J6 axes are hollow so a hollow welding gun can pass through them, the user signal line, gas pipe and welding cable are routed inside the casting for a smooth snag-free body, and the first two axes carry dust covers with a fully surrounded torch. CRP rates it Body IP54, wrist IP67 and specifies an operating range of 0~45°C. The robot ships with CRP's own controller cabinet and is sold alongside the company's positioners for coordinated multi-axis welding cells.
FEATURES
- The arm span is nearly 2.0 meters. The design is highly compact and can be flexibly installed on the ground or upside down. With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications. The safety emergency stop board independent of the control system is equipped with,and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.The robot body adopts highly flexible special cable. Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of EMC and EMI. The robot body is with dual-circuit gas pipe to meet the welding demand. The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch.Highly flexible welding cable is built-in
- With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications
- The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop
- The robot body adopts highly flexible special cable
- Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of EMC and EMI
- The robot body is with dual-circuit gas pipe to meet the welding demand
- The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 291 kg |
|---|---|
| Payload | 6 kg |
| Reach | 2.01 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67 protection, operating temperature 0~45°C, relative humidity 20-80% non-condensing, vibration under 0.5 G |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 291 kg |
|---|---|
| Payload | 6 kg |
| Reach | 2.01 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67 protection, operating temperature 0~45°C, relative humidity 20-80% non-condensing, vibration under 0.5 G |

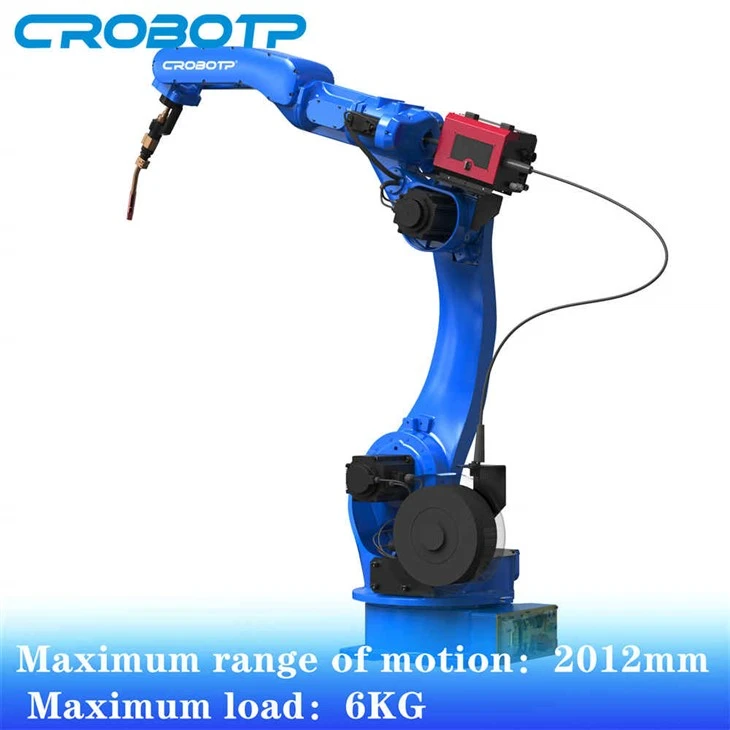

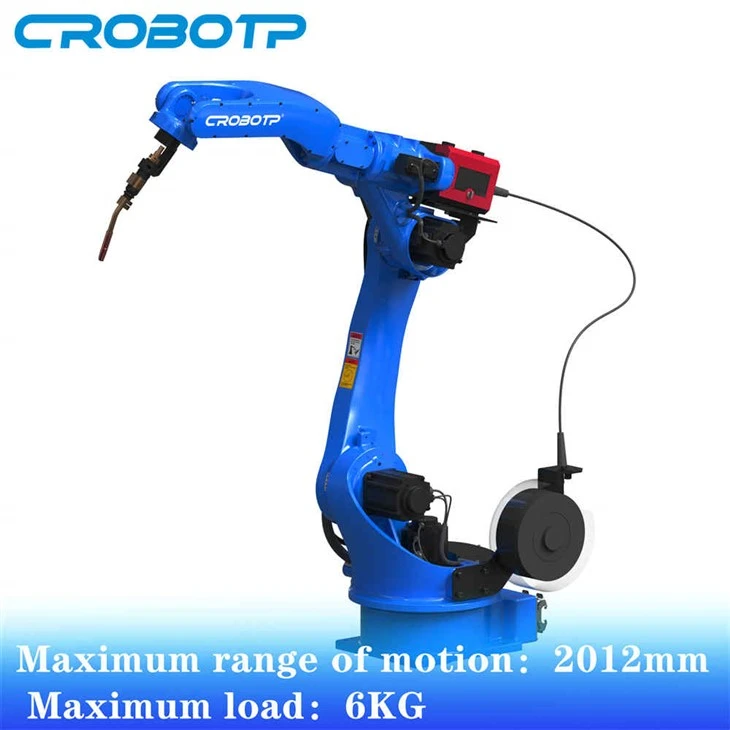

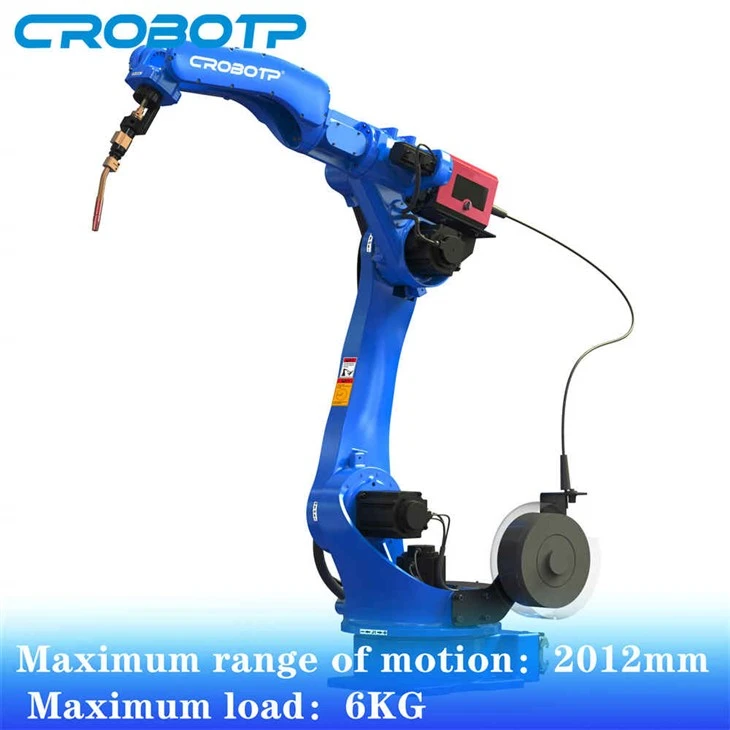

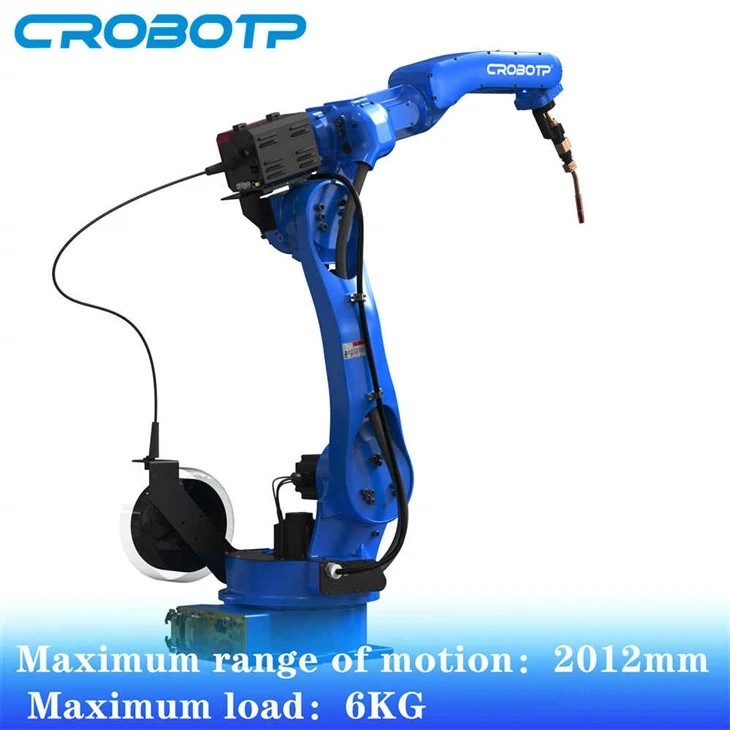

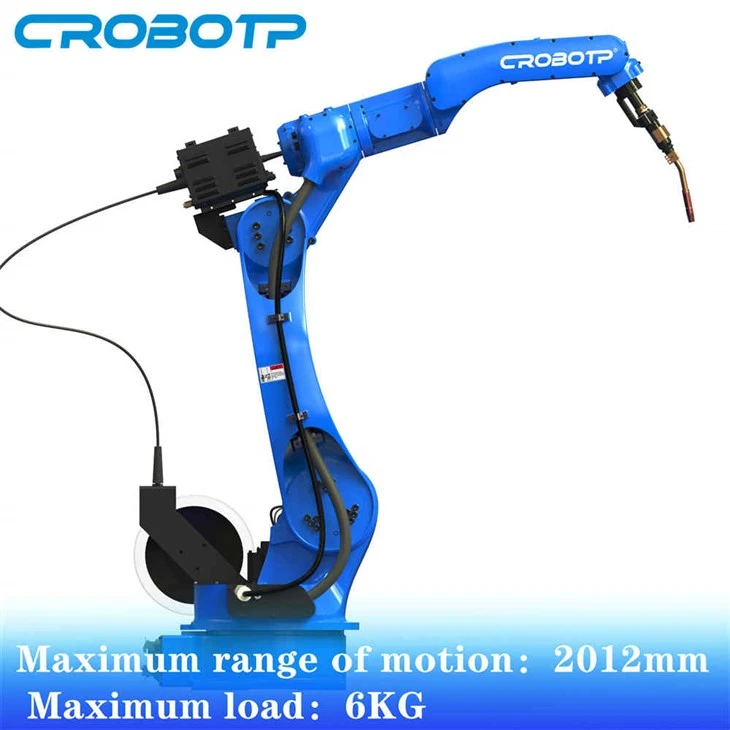

Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRP-RH20-06-W?
The CRP-RH20-06-W is a six-axis vertically articulated welding robot from Chengdu CRP Robot Technology, built for arc welding in general fabrication, automotive, electronics and new-energy production.
Who makes the CRP-RH20-06-W?
The CRP-RH20-06-W is made by Chengdu CRP Robot Technology, a robotics company based in China.
How much does the CRP-RH20-06-W cost?
Chengdu CRP Robot Technology has not publicly announced pricing for the CRP-RH20-06-W. You can enquire through RobotAIGeek for current pricing.
What is the CRP-RH20-06-W used for?
The CRP-RH20-06-W is designed for assembly, general-automation, material-handling, and welding. It is used in automotive, electronics, energy, and manufacturing settings.
What is the payload capacity of the CRP-RH20-06-W?
The CRP-RH20-06-W has a payload capacity of 6 kg and a reach of 2.01 m.
How much does the CRP-RH20-06-W weigh?
The CRP-RH20-06-W weighs 291 kg.
How many degrees of freedom does the CRP-RH20-06-W have?
The CRP-RH20-06-W has 6 degrees of freedom.
