DESCRIPTION

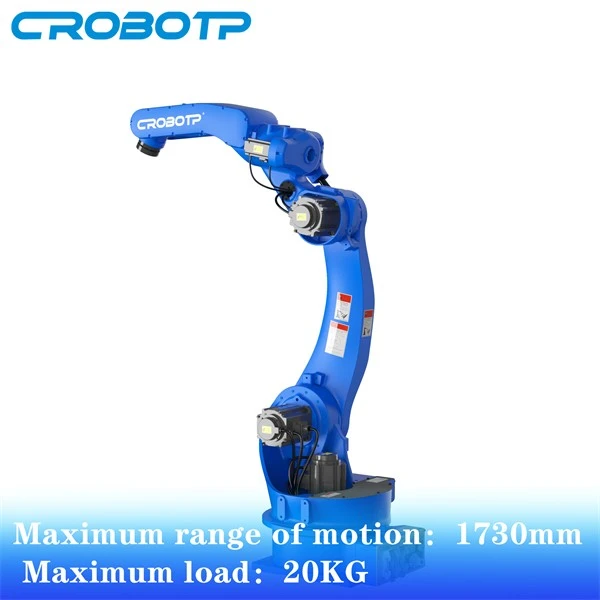

The CRP-RH18-20 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 20 kg payload to a maximum reach of 1730 mm, with a 285 kg body and 0.08 mm repeatability. CRP builds the arm for continuous duty on a factory floor: the body is rated Body IP54, wrist IP67, with an operating range of 0~45°C, and mounts ground, upside down mounting, wall mounting. It shares CRP's controller platform with the company's welding line, so the same teaching and I/O conventions apply across a mixed cell.
FEATURES
- With compact design 20kg payload and about 1.8 meters arm span, it can be installed on the ground or upside down flexibly
- With large working space and fast running speed, it is suitable for welding,spraying,loading and unloading, handling, sorting, assembling and other applications
- The safety emergency stop board is independent of the controller, and the safety relay circuit is adopted to provide double circuit emergency stop to ensure the reliability of emergency stop
- The robot body cables are made of special cables for highly flexible robots
- Built-in three-phase transformer, 380V and 200V isolation, more stable power supply
- Power supply requirements can be customized for different countries. Builtin three phase filter can effectively improve the performance of EMC and EMI
- The robot body is with dual-circuit gas pipe and meets welding and handling requirements
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 285 kg |
|---|---|
| Payload | 20 kg |
| Reach | 1.73 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67, operating temperature 0~45°C |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 285 kg |
|---|---|
| Payload | 20 kg |
| Reach | 1.73 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67, operating temperature 0~45°C |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRP-RH18-20?
The CRP-RH18-20 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 20 kg payload to a maximum reach of 1730 mm, with a 285 kg body and 0.08 mm repeatability.
Who makes the CRP-RH18-20?
The CRP-RH18-20 is made by Chengdu CRP Robot Technology, a robotics company based in China.
How much does the CRP-RH18-20 cost?
Chengdu CRP Robot Technology has not publicly announced pricing for the CRP-RH18-20. You can enquire through RobotAIGeek for current pricing.
What is the CRP-RH18-20 used for?
The CRP-RH18-20 is designed for assembly, general-automation, machine-tending, and material-handling. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the CRP-RH18-20?
The CRP-RH18-20 has a payload capacity of 20 kg and a reach of 1.73 m.
How much does the CRP-RH18-20 weigh?
The CRP-RH18-20 weighs 285 kg.
How many degrees of freedom does the CRP-RH18-20 have?
The CRP-RH18-20 has 6 degrees of freedom.
