DESCRIPTION

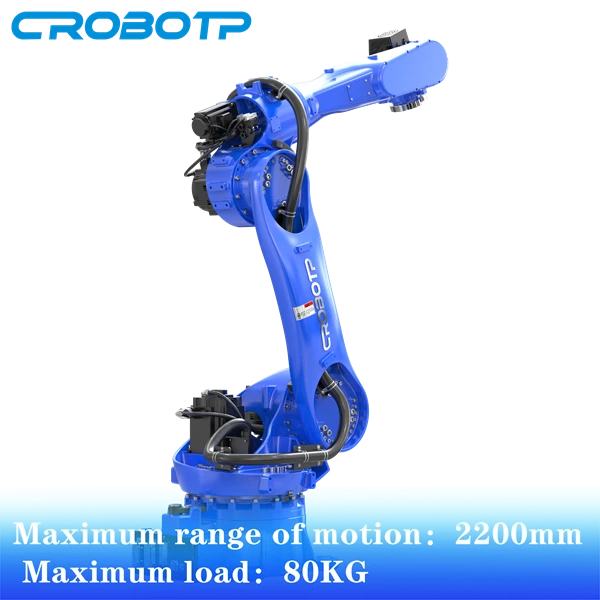

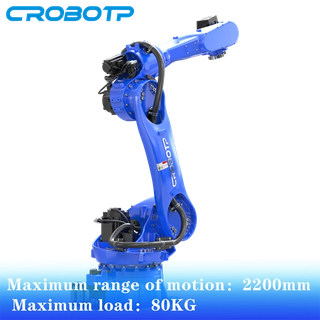

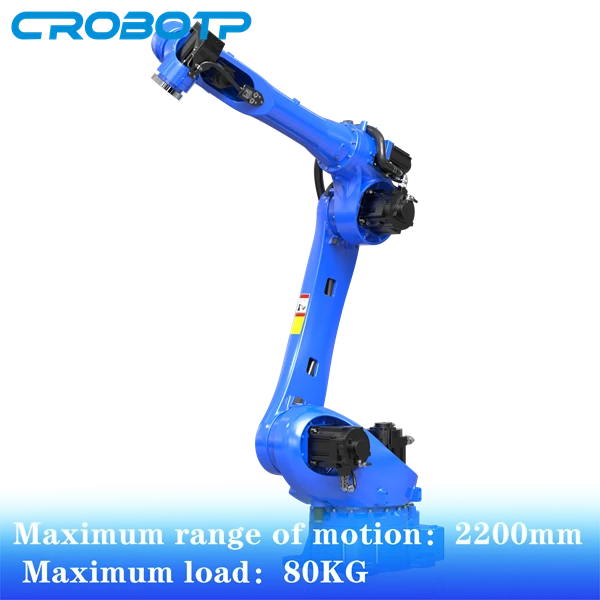

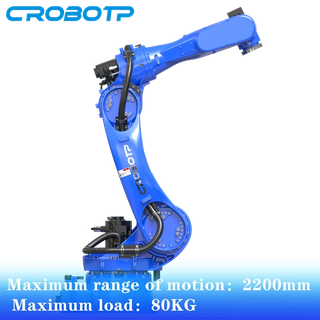

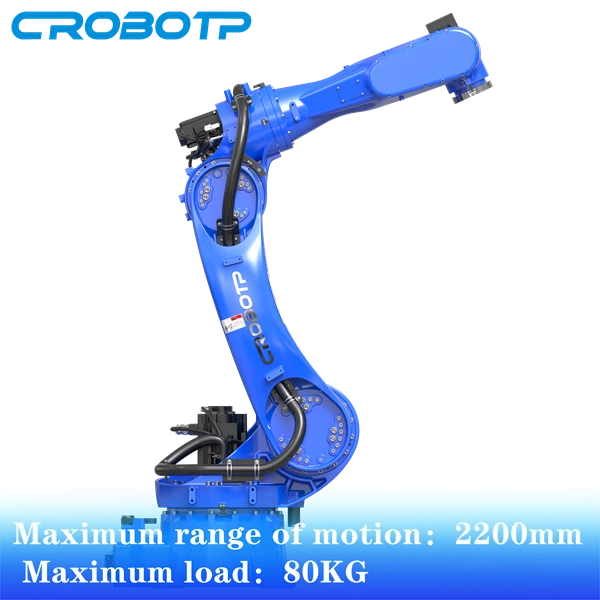

The CRP-RA22-80 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 80 kg payload to a maximum reach of 2200 mm, with a 713 kg body and 0.08 mm repeatability. CRP builds the arm for continuous duty on a factory floor: the body is rated Body IP54, wrist IP67, with an operating range of 0~45°C. It shares CRP's controller platform with the company's welding line, so the same teaching and I/O conventions apply across a mixed cell.
FEATURES
- : The arm span is 2.2 meters. It has strong payload capacity, large working space and high flexibility
- With fast running speed and high repeated positioning accuracy, it has a wide range of applications, such as loading and unloading, handling, sorting, assembly, etc
- Equipped with safety emergency stop board which is independent of the control system, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop
- The robot body adopts highly flexible special cable
- Built-in three-phase filter can effectively improve the performance of EMC and EMI
- The robot body is with ID10 dual-circuit gas pipe to meet the handling demand
- The single cantilever structure is adopted to reduce the terminal weight and improve its flexibility. The selectivity range of manipulators, tools and workpiece shapes is expanded
- Built-in cables and gas pipe. The hollow part is set at the center of the forearm and wrist. The cables and gas pipe are built in from the base of the robot to the end of the wrist, which is more convenient for users and improves work efficiency
- High expansibility, multiple user bracket installation platforms are set on the robot body, which is convenient for users to fix cables and related auxiliary tools
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 713 kg |
|---|---|
| Payload | 80 kg |
| Reach | 2.2 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67, operating temperature 0~45°C |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 713 kg |
|---|---|
| Payload | 80 kg |
| Reach | 2.2 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67, operating temperature 0~45°C |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRP-RA22-80?
The CRP-RA22-80 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 80 kg payload to a maximum reach of 2200 mm, with a 713 kg body and 0.08 mm repeatability.
Who makes the CRP-RA22-80?
The CRP-RA22-80 is made by Chengdu CRP Robot Technology, a robotics company based in China.
How much does the CRP-RA22-80 cost?
Chengdu CRP Robot Technology has not publicly announced pricing for the CRP-RA22-80. You can enquire through RobotAIGeek for current pricing.
What is the CRP-RA22-80 used for?
The CRP-RA22-80 is designed for assembly, general-automation, machine-tending, and material-handling. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the CRP-RA22-80?
The CRP-RA22-80 has a payload capacity of 80 kg and a reach of 2.2 m.
How much does the CRP-RA22-80 weigh?
The CRP-RA22-80 weighs 713 kg.
How many degrees of freedom does the CRP-RA22-80 have?
The CRP-RA22-80 has 6 degrees of freedom.
