DESCRIPTION

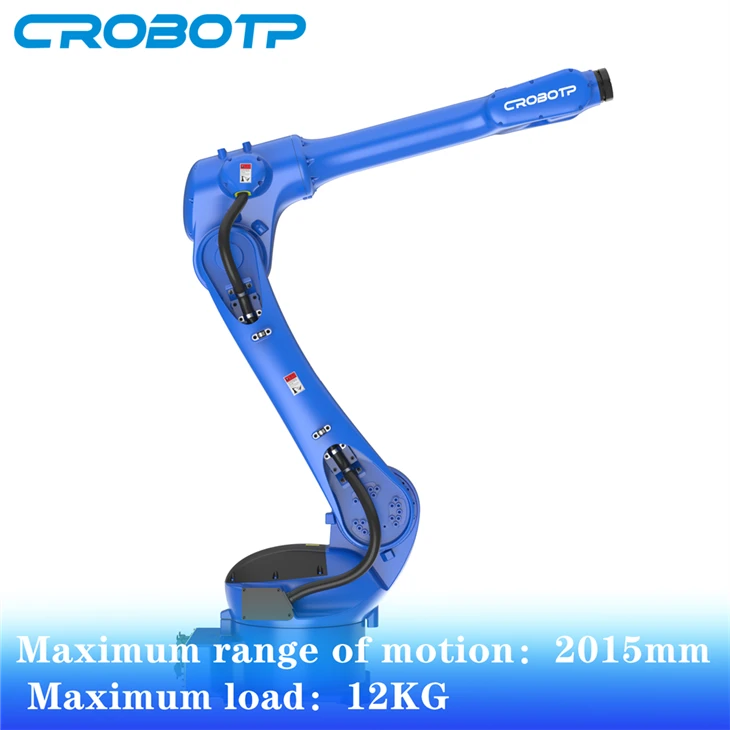

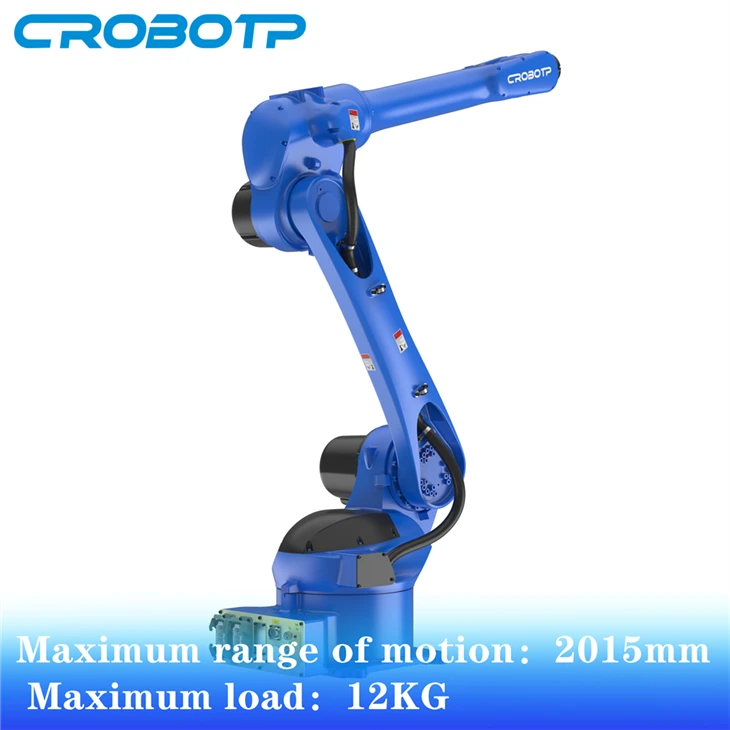

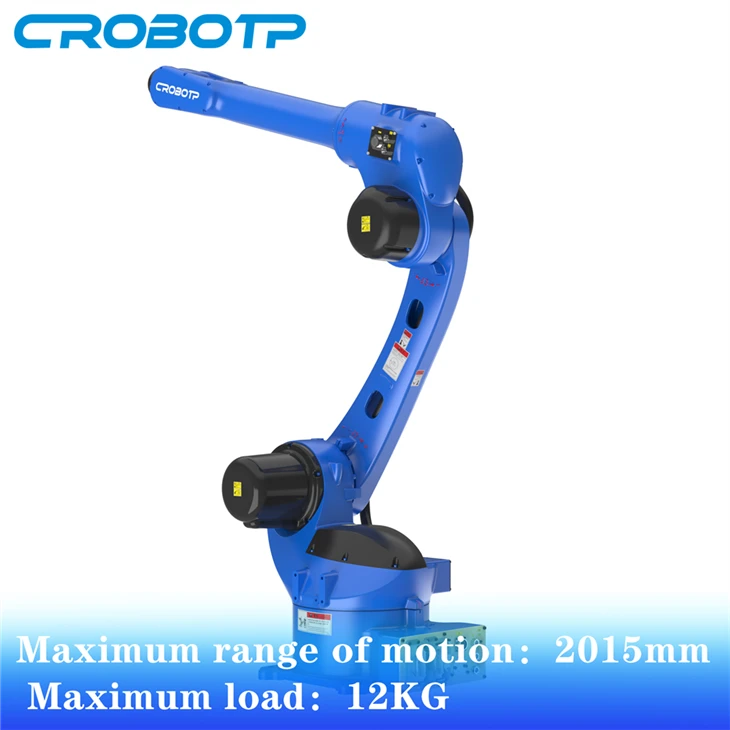

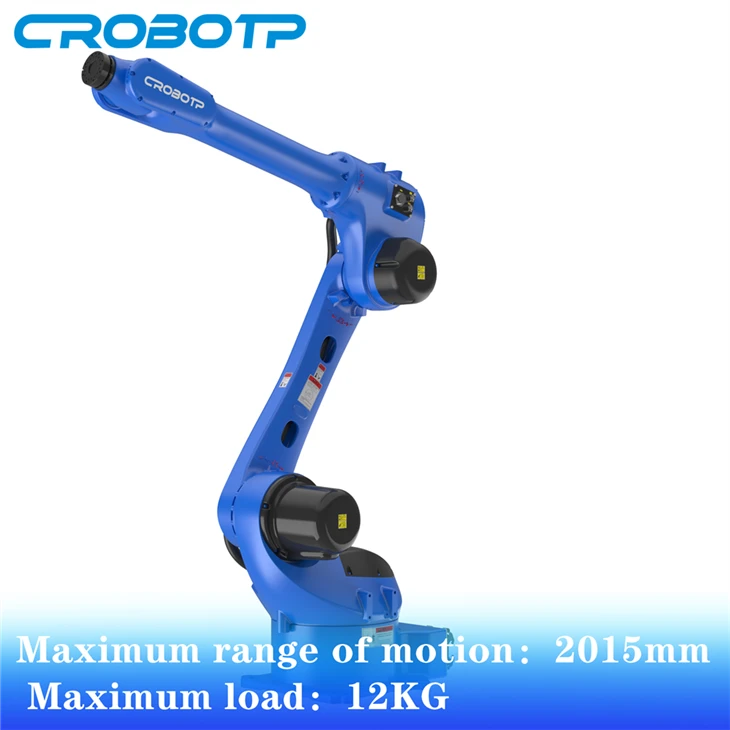

The CRP-RA20-12 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 12 kg payload to a maximum reach of 2015 mm, with a 262 kg body and 0.08 mm repeatability. CRP builds the arm for continuous duty on a factory floor: the body is rated IP67, with an operating range of 0~45°C, and mounts ground, upside down mounting, wall mounting. It shares CRP's controller platform with the company's welding line, so the same teaching and I/O conventions apply across a mixed cell.
FEATURES
- The design of the robot is highly compact, which is more lightweight, especially the wrist is slender, so it can be applied in more scenarios
- Adopt high speed motor, the robot has high rigidity and faster beat
- Adopt leak-proof structure, the protection class of robot is up to IP 67 to adapt harsher working environment
- The robot in the axes of J2 J3 J4 is reserved installation holes to install fixed solenoid valve and other accessories. There are IO port and dual-circuit gas pipe at J3 axis to meet the handling application
- Driving adopts new advanced PID control technology to achieve faster response
- With the functions of observer dynamic compensation and weak magnetism, the electric machine can be better controllable and more stable with higher speed
- With collision detection function, it can better protect the robot body and peripheral equipment
- With the function of gravity compensation, the robot has higher precision, so it can be applied in more scenarios
- Equipped with safety emergency stop board which is independent of the control system, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 262 kg |
|---|---|
| Payload | 12 kg |
| Reach | 2.02 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | IP 67, operating temperature 0~45°C |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 262 kg |
|---|---|
| Payload | 12 kg |
| Reach | 2.02 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | IP 67, operating temperature 0~45°C |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRP-RA20-12?
The CRP-RA20-12 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 12 kg payload to a maximum reach of 2015 mm, with a 262 kg body and 0.08 mm repeatability.
Who makes the CRP-RA20-12?
The CRP-RA20-12 is made by Chengdu CRP Robot Technology, a robotics company based in China.
How much does the CRP-RA20-12 cost?
Chengdu CRP Robot Technology has not publicly announced pricing for the CRP-RA20-12. You can enquire through RobotAIGeek for current pricing.
What is the CRP-RA20-12 used for?
The CRP-RA20-12 is designed for assembly, general-automation, machine-tending, and material-handling. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the CRP-RA20-12?
The CRP-RA20-12 has a payload capacity of 12 kg and a reach of 2.02 m.
How much does the CRP-RA20-12 weigh?
The CRP-RA20-12 weighs 262 kg.
How many degrees of freedom does the CRP-RA20-12 have?
The CRP-RA20-12 has 6 degrees of freedom.
