CRP-RA18-25

Chengdu CRP Robot Technology
Industrial-RobotChinaChinaReleased
CRP-RA18-25

DESCRIPTION

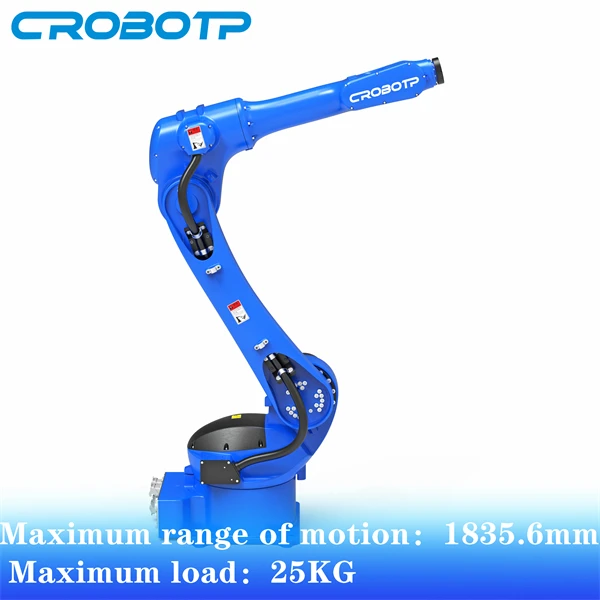

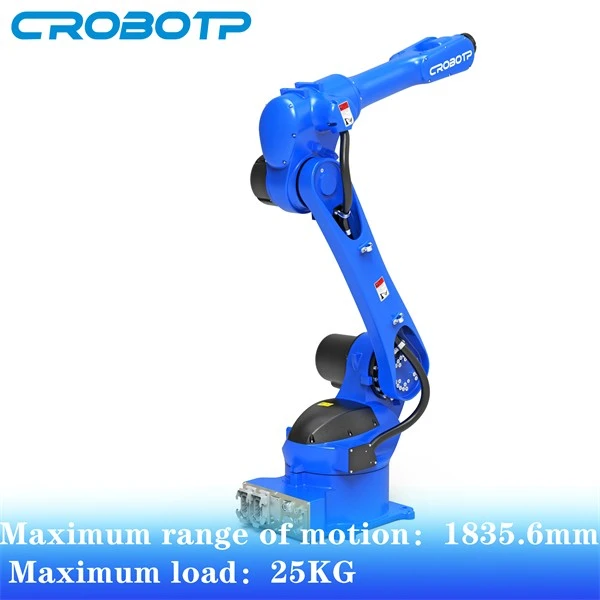

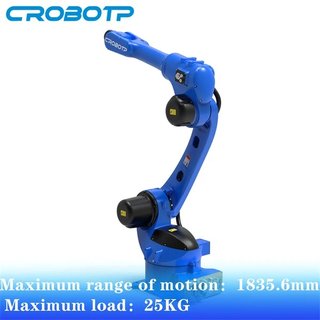

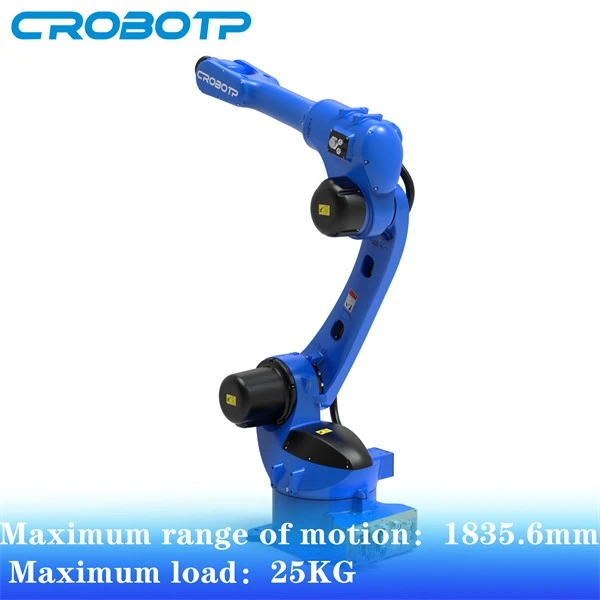

The CRP-RA18-25 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 25 kg payload to a maximum reach of 1835.6 mm, with a 250 kg body and 0.05 mm repeatability. CRP builds the arm for continuous duty on a factory floor: the body is rated IP67, with an operating range of 0~45°C, and mounts ground, upside down mounting, wall mounting. It shares CRP's controller platform with the company's welding line, so the same teaching and I/O conventions apply across a mixed cell.

FEATURES

  • The design of the robot is highly compact, which is more lightweight, especially the wrist is slender, so it can be applied in more scenarios
  • Adopt high speed motor, the robot has high rigidity and faster beat
  • Adopt leak-proof structure, the protection class of robot is up to IP 67 to adapt harsher working environment
  • The robot in the axes of J2 J3 J4 is reserved installation holes to install fixed solenoid valve and other accessories. There are IO port and dual-circuit gas pipe at J3 axis to meet the handling application
  • Driving adopts new advanced PID control technology to achieve faster response
  • With the functions of observer dynamic compensation and weak magnetism, the electric machine can be better controllable and more stable with higher speed
  • With collision detection function, it can better protect the robot body and peripheral equipment
  • With the function of gravity compensation, the robot has higher precision, so it can be applied in more scenarios
  • Equipped with safety emergency stop board which is independent of the control system, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop
  • Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of internal and external distractions

TECHNICAL SPECIFICATIONS

Verified
Physical
Weight250 kg
Payload25 kg
Reach1.84 m
Repeatability±0.05 mm
MaterialsCast aluminium alloy
Mobility
Movement TypeStationary
Degrees of Freedom6
EnvironmentIP 67, operating temperature 0~45°C
Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the CRP-RA18-25?

The CRP-RA18-25 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 25 kg payload to a maximum reach of 1835.6 mm, with a 250 kg body and 0.05 mm repeatability.

Who makes the CRP-RA18-25?

The CRP-RA18-25 is made by Chengdu CRP Robot Technology, a robotics company based in China.

How much does the CRP-RA18-25 cost?

Chengdu CRP Robot Technology has not publicly announced pricing for the CRP-RA18-25. You can enquire through RobotAIGeek for current pricing.

What is the CRP-RA18-25 used for?

The CRP-RA18-25 is designed for assembly, general-automation, machine-tending, and material-handling. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.

What is the payload capacity of the CRP-RA18-25?

The CRP-RA18-25 has a payload capacity of 25 kg and a reach of 1.84 m.

How much does the CRP-RA18-25 weigh?

The CRP-RA18-25 weighs 250 kg.

How many degrees of freedom does the CRP-RA18-25 have?

The CRP-RA18-25 has 6 degrees of freedom.
