DESCRIPTION
CRAB 5000 is an Industrial-Robot from OKAGV. It is built for Intralogistics, Material-Handling, Transport. Key figures: 5000 kg payload.

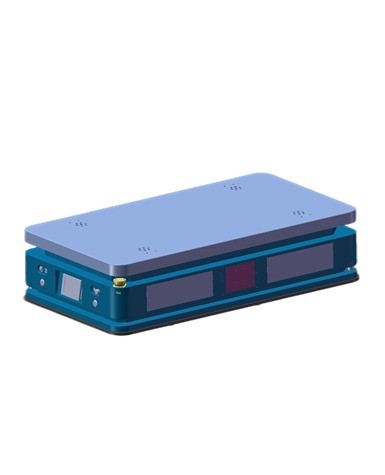

The CRAB 5000 is OKAGV's heavy-duty CRAB-series steering-wheel autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (0-100 mm lift) and carries up to 5 t through factories and warehouses. It measures 2243 x 1143 x 450 mm, travels at up to 40 m/min, uses dual steering-wheel drive, and navigates by QR code, laser or SLAM, with +/-10 mm guidance and stopping accuracy. It lifts loads up to 100 mm and moves in any direction, including sideways, with dual steering wheels.\nLike the rest of OKAGV's range it runs 24 hours on a lithium battery (DC 48 V lithium) rated for at least 2,000 cycles with automatic charging, climbs gradients up to 4 degrees, and is protected by a laser obstacle sensor with an adjustable 0-180 degree, 0-3 m field, front and rear bumpers and emergency stops; it is designed for indoor use at 0-40 C and a 10-year lifespan.
FEATURES
- Payload 5,000 kg
- lifting stroke 0-100 mm
- Size 2243 x 1143 x 450 mm
- Max speed 40 m/min
- Drive: dual steering-wheel drive
- Navigation: QR code, laser or SLAM
- Guidance and stop accuracy +/-10 mm
- Battery: DC 48 V lithium, >= 2,000 cycles
- automatic charging
- Gradeability <= 4 deg
- 24 h operation
- Safety: laser obstacle sensor (0-180 deg, 0-3 m), front/rear bumpers, e-stops
- Indoor 0-40 C, 40-80% RH
- designed lifespan 10 years
- Bilateral (sideways) movement
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 2.24 m × W 1.14 m × H 450 mm |
|---|---|
| Payload | 5000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.4 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 2.24 m × W 1.14 m × H 450 mm |
|---|---|
| Payload | 5000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.4 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRAB 5000?
The CRAB 5000 is OKAGV's heavy-duty CRAB-series steering-wheel autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (0-100 mm lift) and carries up to 5 t through factories and warehouses.
Who makes the CRAB 5000?
The CRAB 5000 is made by OKAGV, a robotics company based in China.
How much does the CRAB 5000 cost?
OKAGV has not publicly announced pricing for the CRAB 5000. You can enquire through RobotAIGeek for current pricing.
What is the CRAB 5000 used for?
The CRAB 5000 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the CRAB 5000?
The CRAB 5000 has a payload capacity of 5,000 kg.
How fast is the CRAB 5000?
The CRAB 5000 can move at speeds of up to 2.4 km/h.
