DESCRIPTION
Counterbalance Series Forklift Robot (FMR) is an Industrial-Robot from Hangcha. It is built for Intralogistics, Material-Handling, Transport. Key figures: 240 min runtime, 5000 kg payload.

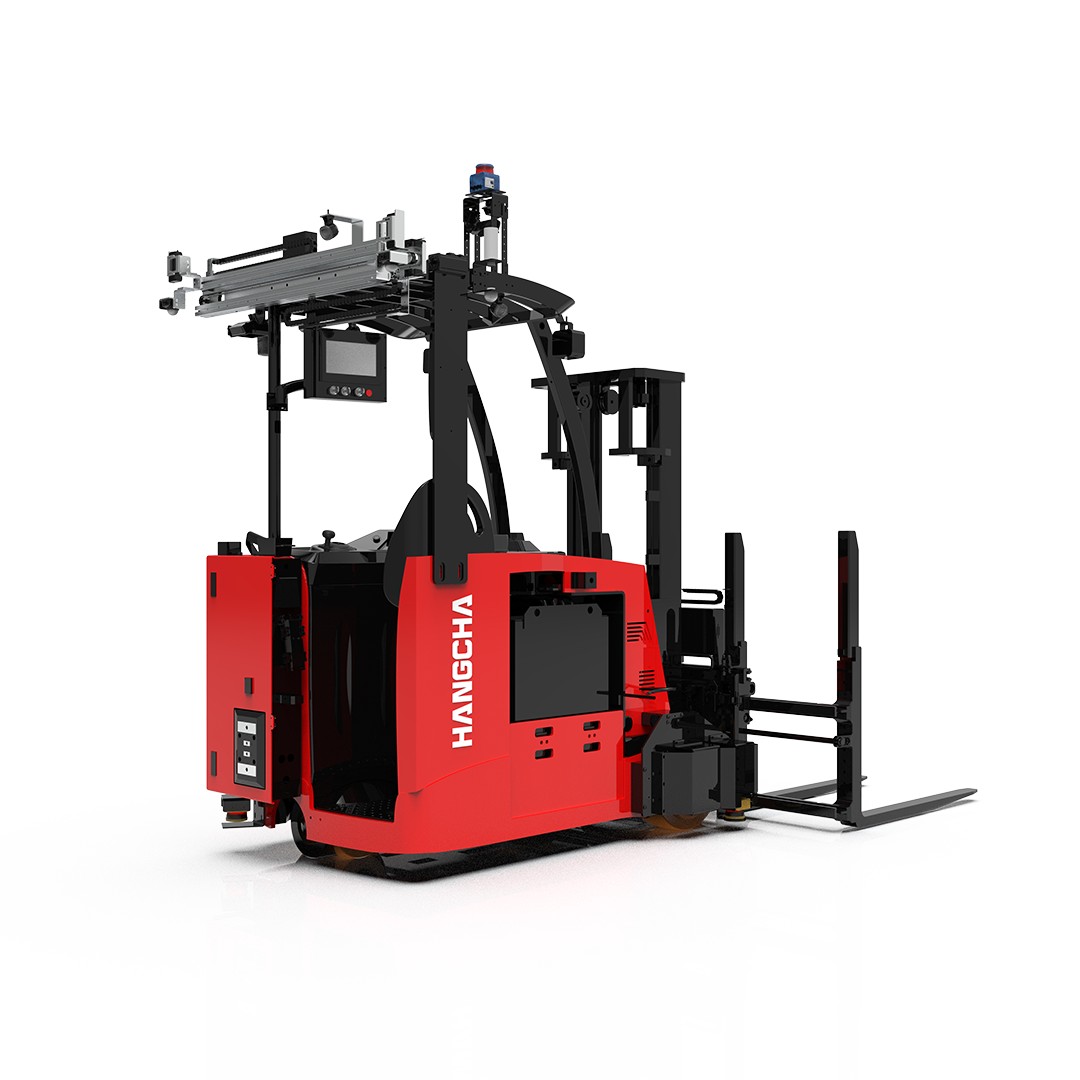

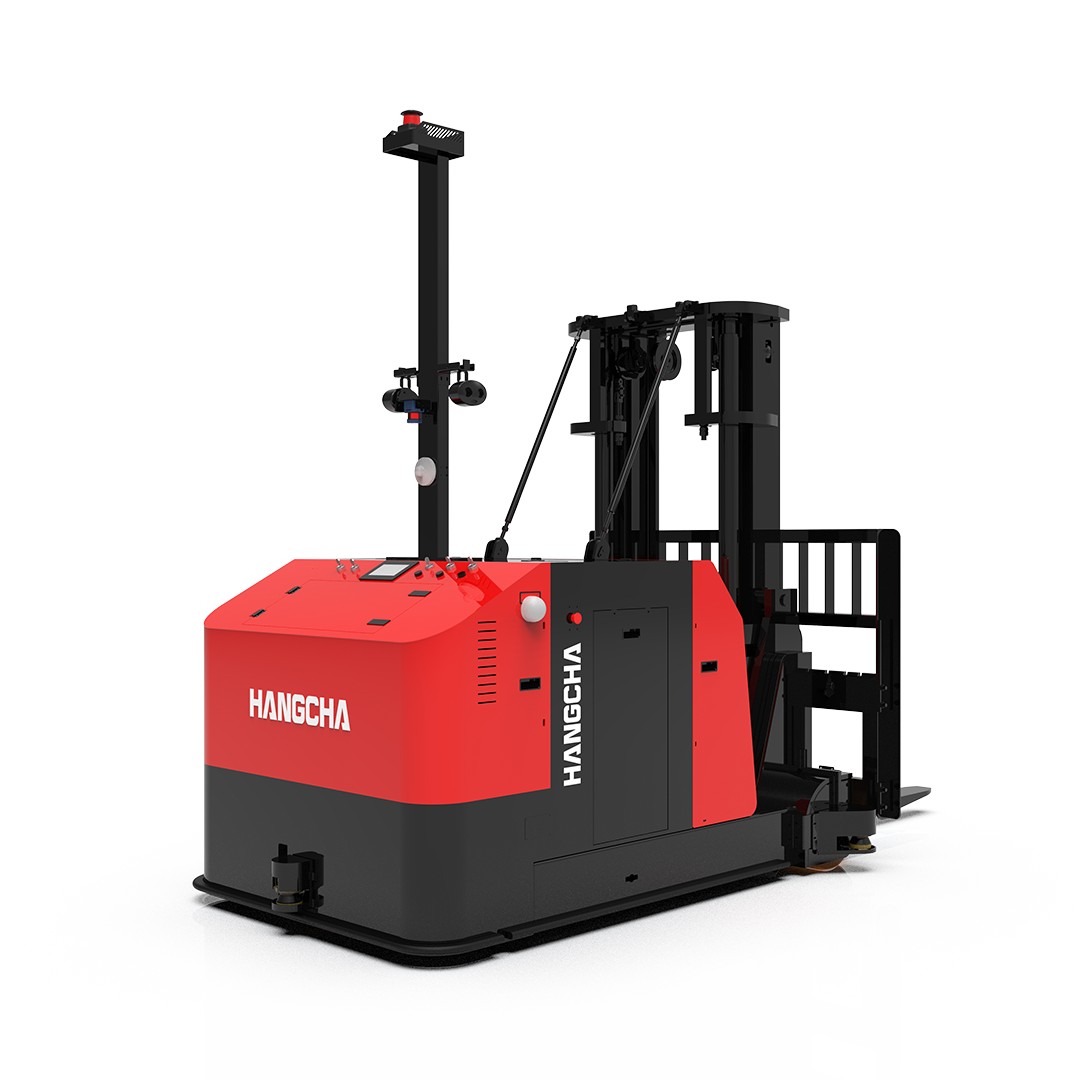

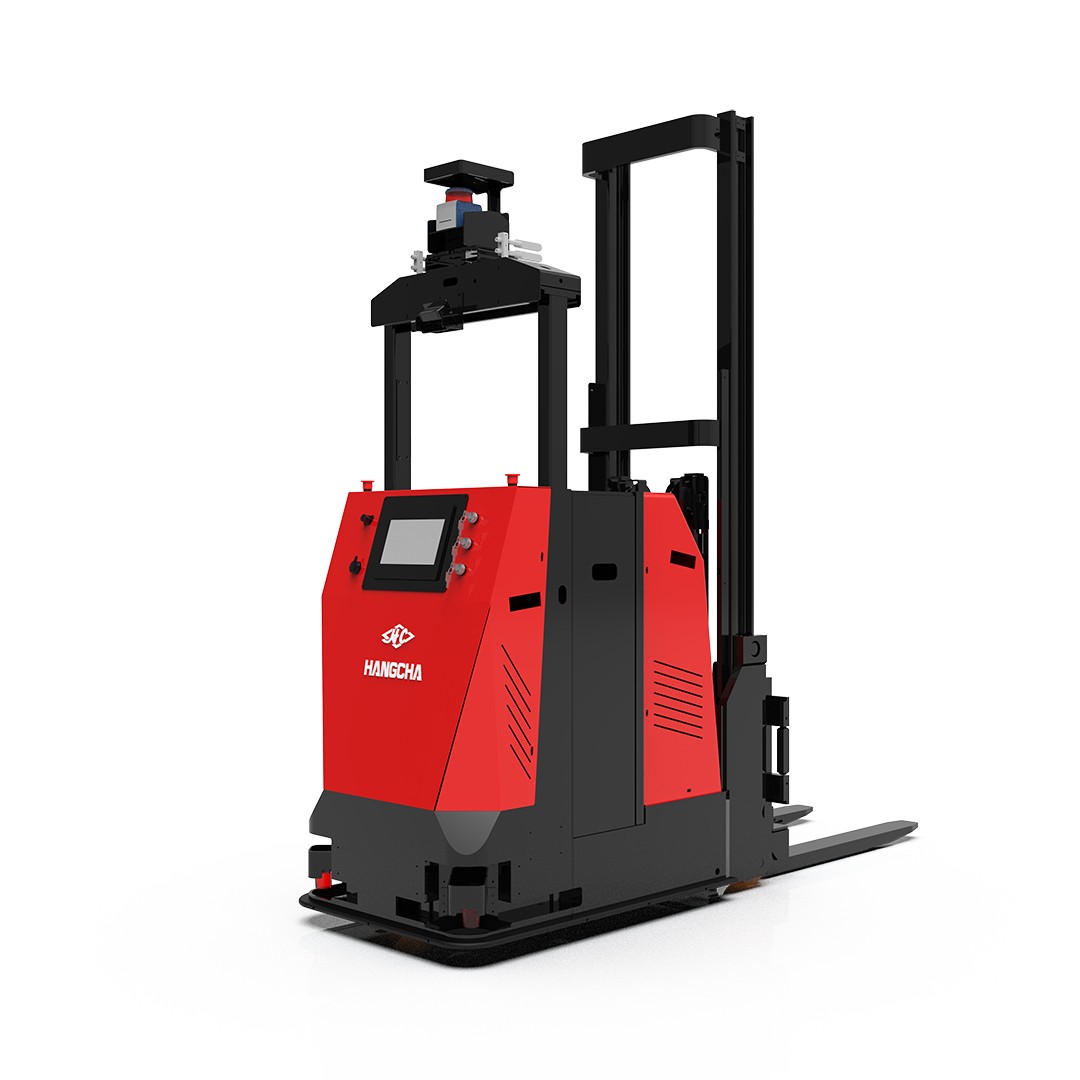

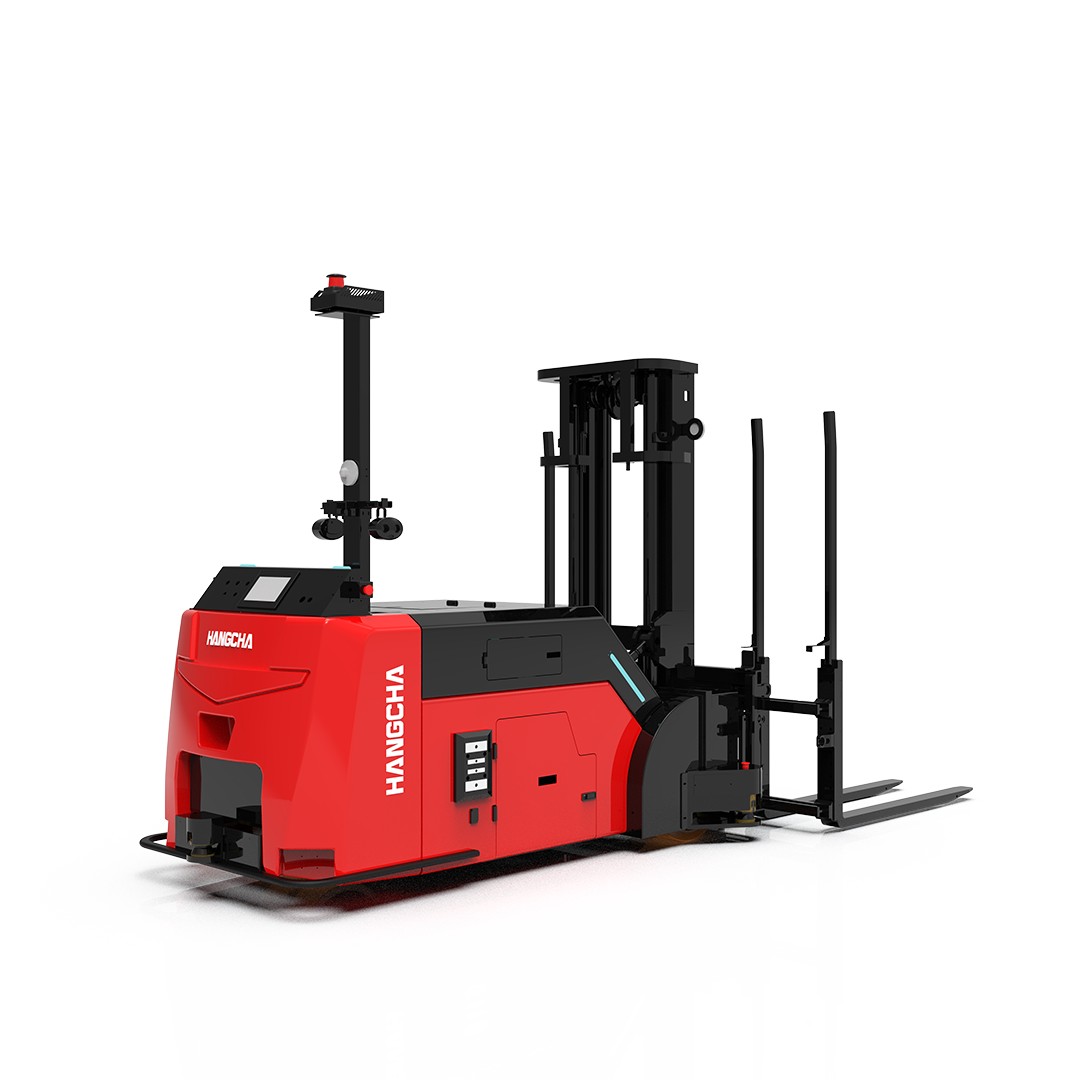

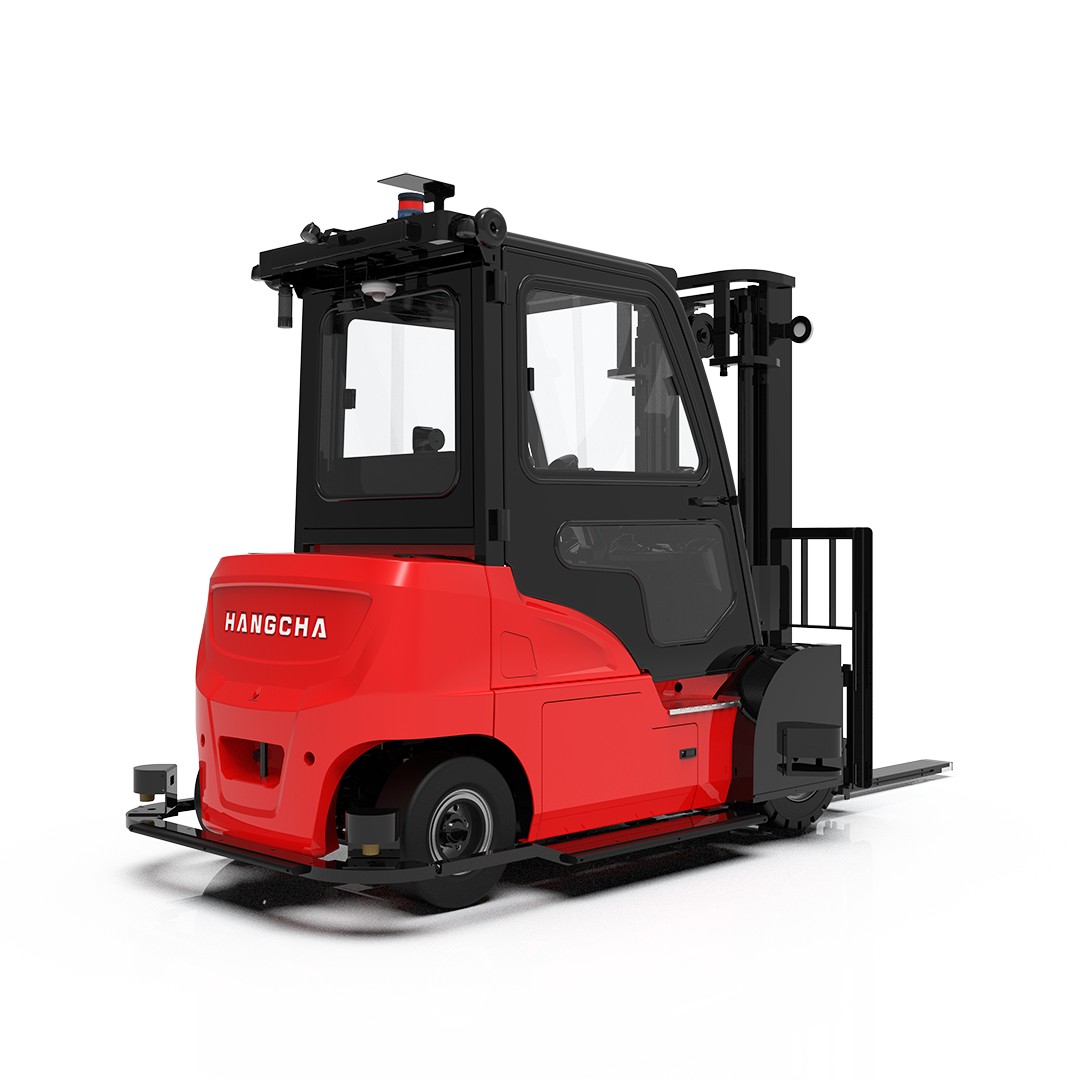

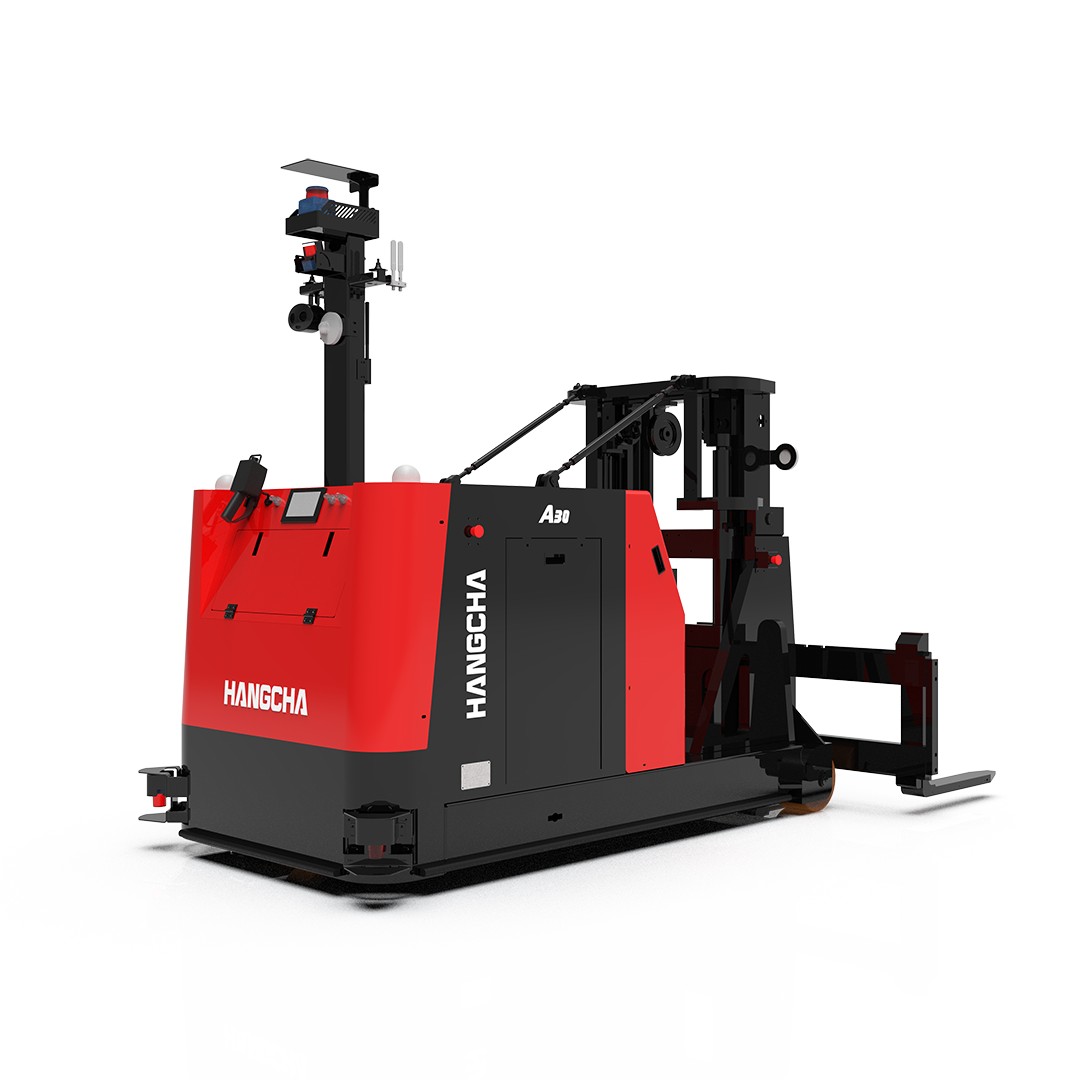

The Counterbalance Forklift Series is Hangcha's line of autonomous counterbalanced forklift robots, built on a vehicle architecture Hangcha developed itself. It covers loads up to 5 t and handles cross-shaped, rectangular and European pallets as well as irregular tooling, for indoor and outdoor transport. Plenty of attachment interfaces allow non-standard custom vehicles. Listed models range from a 0.8 t Mini Counterbalanced FMR to a 3.5 t indoor/outdoor model, 2.3 t and 4.5 t HP versions, 3.0 t and 4.0 t counterweight FMRs and a 5 t model. Lift heights reach 1-4.5 m, the faster models travel at up to 3.5 m/s, and run time is 4-8 hours depending on the model. All use 2D/3D SLAM navigation.
FEATURES
- 0.8t Mini Counterbalanced FMR: Rated load 800 (Kg)
- Lifting height 1000 (mm)
- Minimum tunnel requirement 3200 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 3.5t Indoor and Outdoor Counterbalanced FMR: Rated load 3500 (Kg)
- Lifting height 3000 (mm)
- Minimum tunnel requirement 4455 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1000 (mm/s)
- Rated operating time 4 (h)
- 2.3t counterbalanced FMR (HP version): Rated load 2300 (kg)
- Lifting height 3000 (mm)
- Minimum tunnel requirement 4200 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1000 (mm/s)
- Rated operating time 4 (h)
- 3.0t counterweight FMR: Rated load 3000 (kg)
- Lifting height 4500 (mm)
- Minimum tunnel requirement 4470 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 4.0t counterweight FMR: Rated load 4000 (kg)
- Lifting height 3000 (mm)
- Minimum tunnel requirement 3439 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 3500 (mm/s)
- Rated operating time 6-8 (h)
- 4.5t counterbalanced FMR (HP version): Rated load 4500 (Kg)
- Lifting height 3000 (mm)
- Minimum tunnel requirement 4982 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 3500 (mm/s)
- Rated operating time 6-8 (h)
- 5t counterbalanced FMR: Rated load 5000 (Kg)
- Lifting height 3000 (mm)
- Minimum tunnel requirement 4678 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 5000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 12.6 km/h |
| Environment | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| Power | |
| Battery Life | 240 min |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 5000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 12.6 km/h |
| Environment | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| Power | |
| Battery Life | 240 min |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Counterbalance Series Forklift Robot (FMR)?
The Counterbalance Forklift Series is Hangcha's line of autonomous counterbalanced forklift robots, built on a vehicle architecture Hangcha developed itself. It covers loads up to 5 t and handles cross-shaped, rectangular and European pallets as well as irregular tooling, for indoor and outdoor transport.
Who makes the Counterbalance Series Forklift Robot (FMR)?
The Counterbalance Series Forklift Robot (FMR) is made by Hangcha, a robotics company based in China.
How much does the Counterbalance Series Forklift Robot (FMR) cost?
Hangcha has not publicly announced pricing for the Counterbalance Series Forklift Robot (FMR). You can enquire through RobotAIGeek for current pricing.
What is the Counterbalance Series Forklift Robot (FMR) used for?
The Counterbalance Series Forklift Robot (FMR) is designed for intralogistics, material-handling, transport, and autonomous counterbalanced forklift robots for 0.8-5 t loads indoors and outdoors. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Counterbalance Series Forklift Robot (FMR)?
The Counterbalance Series Forklift Robot (FMR) has a payload capacity of 5,000 kg.
How fast is the Counterbalance Series Forklift Robot (FMR)?
The Counterbalance Series Forklift Robot (FMR) can move at speeds of up to 12.6 km/h.
What is the battery life of the Counterbalance Series Forklift Robot (FMR)?
The Counterbalance Series Forklift Robot (FMR) runs for about 240 minutes on a charge.
