DESCRIPTION
Capra CAPRA500 Mobile Robot Platform is a Mobile-Robots from Capra Robotics. It is built for Intralogistics, Material-Handling, Transport. Key figures: 73.5 kg, 900 min runtime, 100 kg payload.

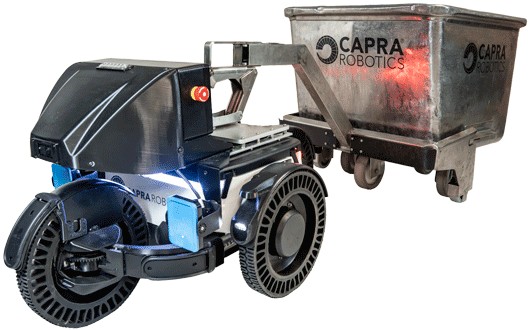

The CAPRA500 is the heavier of Capra Robotics' two mobile robot platforms, using the same patented flexible four-wheel chassis with stronger motors and a larger battery for transport work indoors and outdoors. Capra builds its Capra Carrier logistics solution on this class of robot, towing or carrying carts between buildings, across yards and through food-processing plants, and the platform exposes a ROS 2 interface for integrators. It measures 1,145 x 635 x 356 mm and weighs 73.5 kg, has four 576 W hub motors, carries up to 100 kg and tows up to 500 kg at up to 6 km/h, and handles 50% slopes and 140 mm steps. A 48 V, 40 Ah LFP battery gives up to 15 hours and 75 km per charge, with wireless charging from 20 to 80% in an hour. Like the CAPRA200 it is IP65, rated -20 to +40 °C, uses 2D and 3D lidar plus a depth camera, complies with ISO 3691-4 and RIA R15.08-1, and follows VDA 5050 fleet commands over Wi-Fi or 5G.
FEATURES

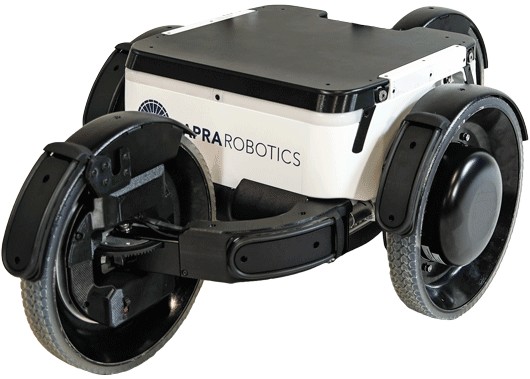

- Patented flexible 4-wheel chassis for uneven terrain, kerbs and urban areas
- Max speed 6 km/h
- slope up to 50%
- climbs steps up to 140 mm
- 326 mm wheels, 126 mm clearance
- IP65
- 20 to +40 °C (heating below -10 °C)
- 100% relative humidity

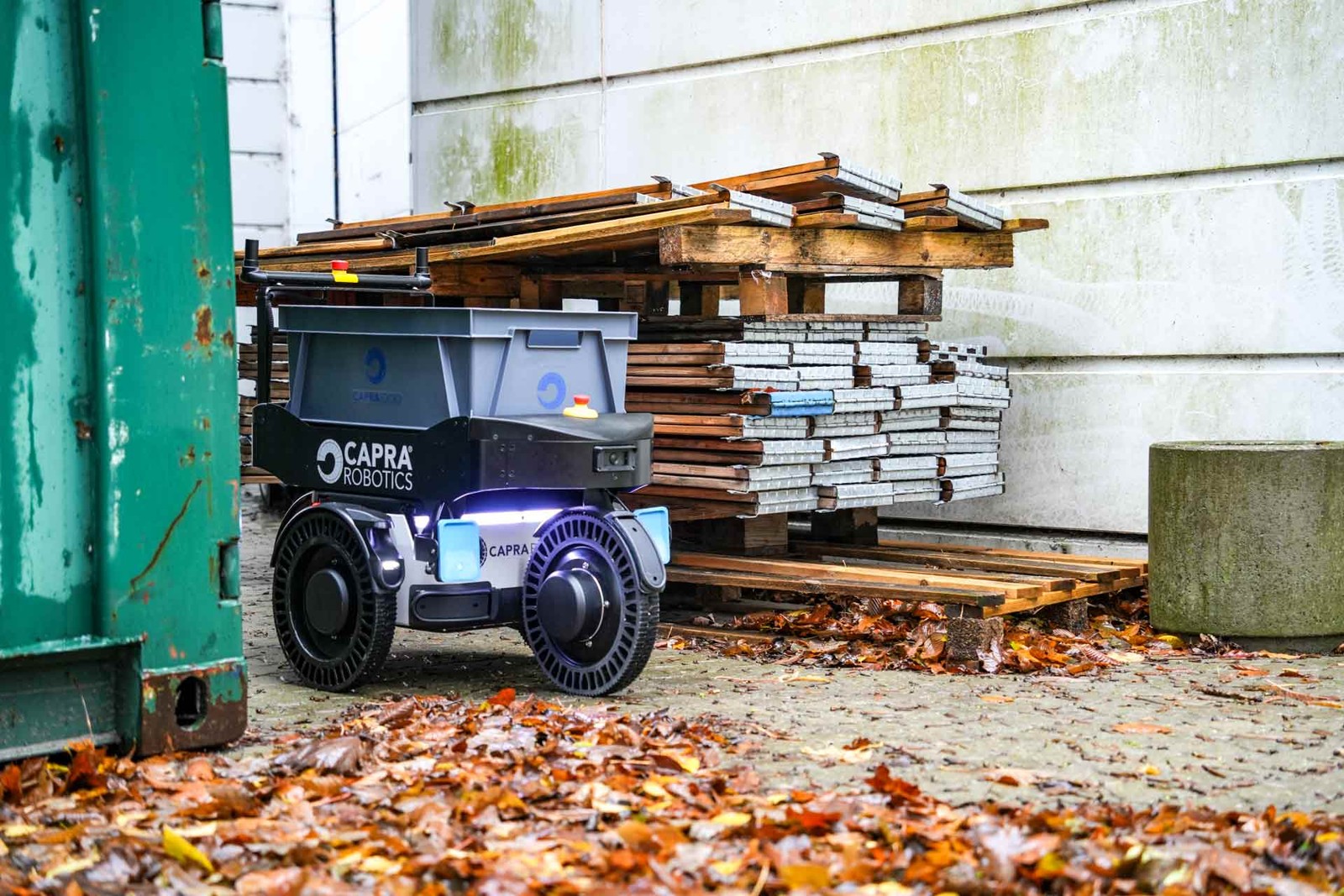

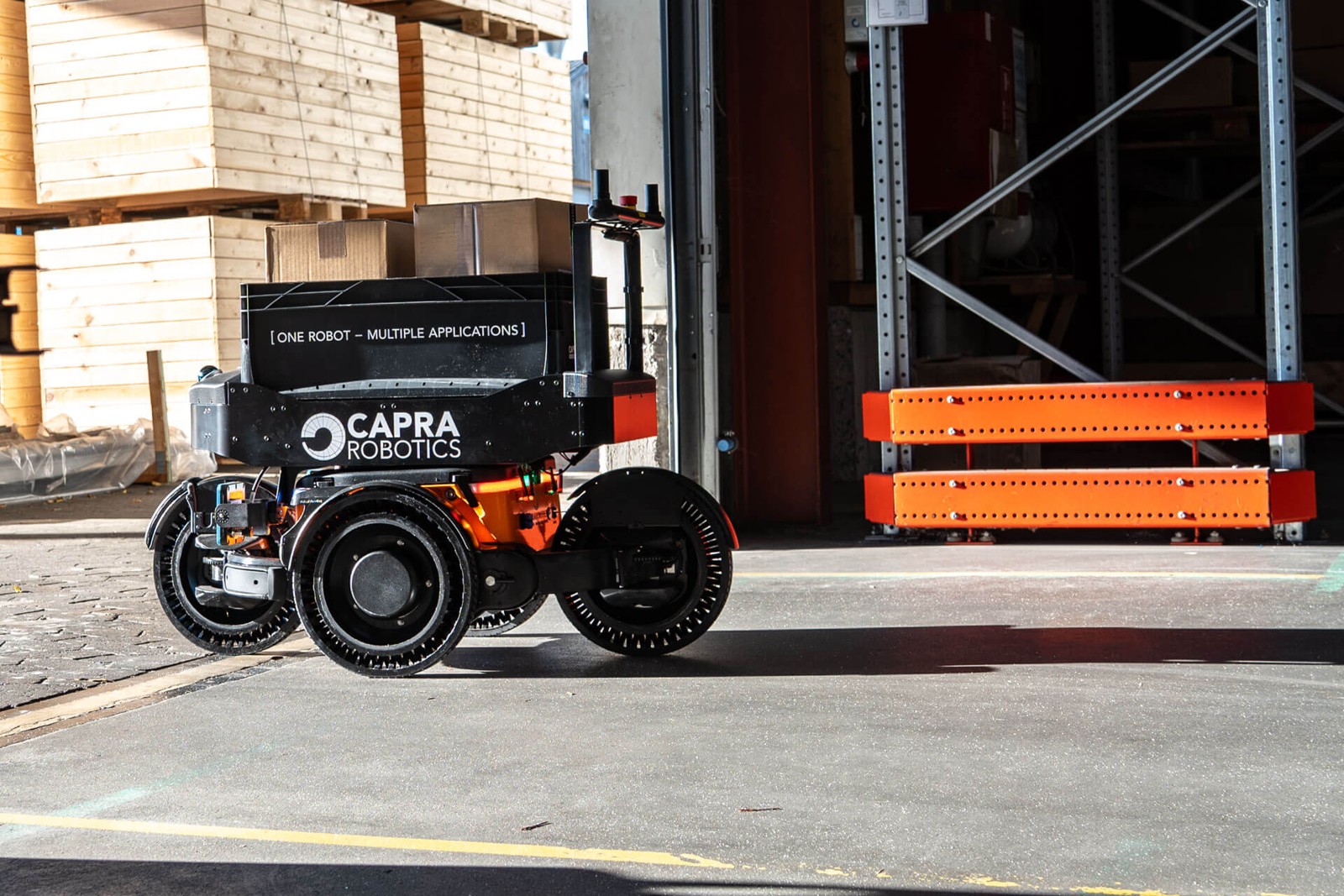

- indoor and outdoor
- Wireless charging: 20-80% in 60 minutes
- Sensor suite: 2D lidar, 3D lidar, depth camera
- obstacle detection and avoidance
- Safety to ISO 3691-4 and RIA R15.08-1
- safety PLC interface and E-stop
- ROS 2 interface
- VDA 5050 fleet control
- Wi-Fi 5 and 5G dual SIM / e-SIM
- 24 V and 48 V user power outputs
- Gigabit Ethernet
- remote control for manual steering
- 1,145 x 635 x 356 mm
- 73.5 kg
- turning radius 480 mm
- 4 x 576 W hub motors

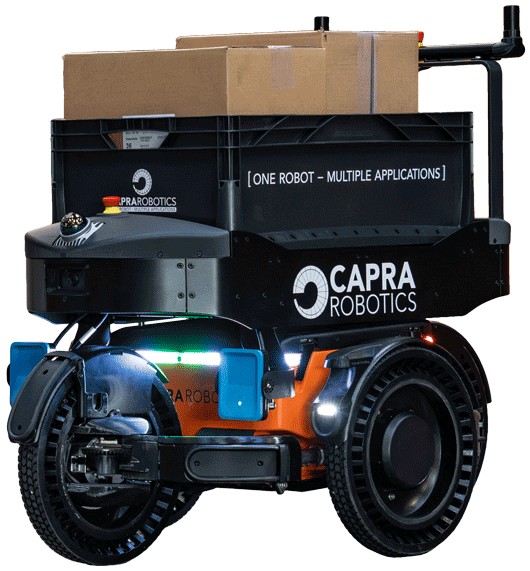

- payload up to 100 kg
- towing up to 500 kg
- 48 V 40 Ah LFP battery
- up to 15 h and 75 km

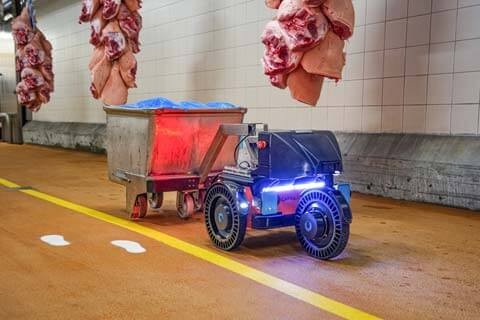

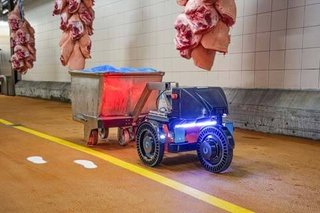

- Capra Carrier configuration for interlogistics and food-processing logistics
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 73.5 kg |
|---|---|
| Dimensions | L 1.15 m × W 635 mm × H 356 mm |
| Payload | 100 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 6.01 km/h |
| Environment | Indoor and outdoor, yards, plants and urban areas, IP65, -20°C to 40°C |
| Actuators | 4 x 576 W hub motors |
| Power | |
| Battery Life | Up to 15 h (surface, incline and payload dependent) |
| Charging Time | 60 min (20-80%, wireless) |
| Sensing & Compute | |
| Sensors | 2D lidar, 3D lidar, depth camera |
| Connectivity | Wi-Fi 5 dual-band; 5G dual SIM and e-SIM; Gigabit Ethernet |
| Software / AI | ROS 2; VDA 5050 compatible |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 73.5 kg |
|---|---|
| Dimensions | L 1.15 m × W 635 mm × H 356 mm |
| Payload | 100 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 6.01 km/h |
| Environment | Indoor and outdoor, yards, plants and urban areas, IP65, -20°C to 40°C |
| Actuators | 4 x 576 W hub motors |
| Power | |
| Battery Life | Up to 15 h (surface, incline and payload dependent) |
| Charging Time | 60 min (20-80%, wireless) |
| Sensing & Compute | |
| Sensors | 2D lidar, 3D lidar, depth camera |
| Connectivity | Wi-Fi 5 dual-band; 5G dual SIM and e-SIM; Gigabit Ethernet |
| Software / AI | ROS 2; VDA 5050 compatible |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Capra CAPRA500 Mobile Robot Platform?
The CAPRA500 is the heavier of Capra Robotics' two mobile robot platforms, using the same patented flexible four-wheel chassis with stronger motors and a larger battery for transport work indoors and outdoors.
Who makes the Capra CAPRA500 Mobile Robot Platform?
The Capra CAPRA500 Mobile Robot Platform is made by Capra Robotics, a robotics company based in Denmark.
How much does the Capra CAPRA500 Mobile Robot Platform cost?
Capra Robotics has not publicly announced pricing for the Capra CAPRA500 Mobile Robot Platform. You can enquire through RobotAIGeek for current pricing.
What is the Capra CAPRA500 Mobile Robot Platform used for?
The Capra CAPRA500 Mobile Robot Platform is designed for intralogistics, material-handling, transport, and indoor-outdoor interlogistics, cart towing and food-processing logistics. It is used in facilities, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the Capra CAPRA500 Mobile Robot Platform?
The Capra CAPRA500 Mobile Robot Platform has a payload capacity of 100 kg.
How much does the Capra CAPRA500 Mobile Robot Platform weigh?
The Capra CAPRA500 Mobile Robot Platform weighs 73.5 kg.
How fast is the Capra CAPRA500 Mobile Robot Platform?
The Capra CAPRA500 Mobile Robot Platform can move at speeds of up to 6.01 km/h.
What is the battery life of the Capra CAPRA500 Mobile Robot Platform?
The Capra CAPRA500 Mobile Robot Platform runs for Up to 15 h (surface, incline and payload dependent) on a charge. It takes 60 min (20-80%, wireless) to charge.
