BVS Vacuum Scraper

BouMatic

Agricultural-Robots

United StatesReleased

★Not rated yet

Sources:

Industries:

Uses:

Price:

Not announced

Model:

BVS BouMatic Vacuum Scraper autonomous manure-vacuum robot

DESCRIPTION

BVS Vacuum Scraper is an Agricultural-Robots from BouMatic. It is built for Agriculture, Cleaning. Key figures: 420 kg, 960 min runtime.

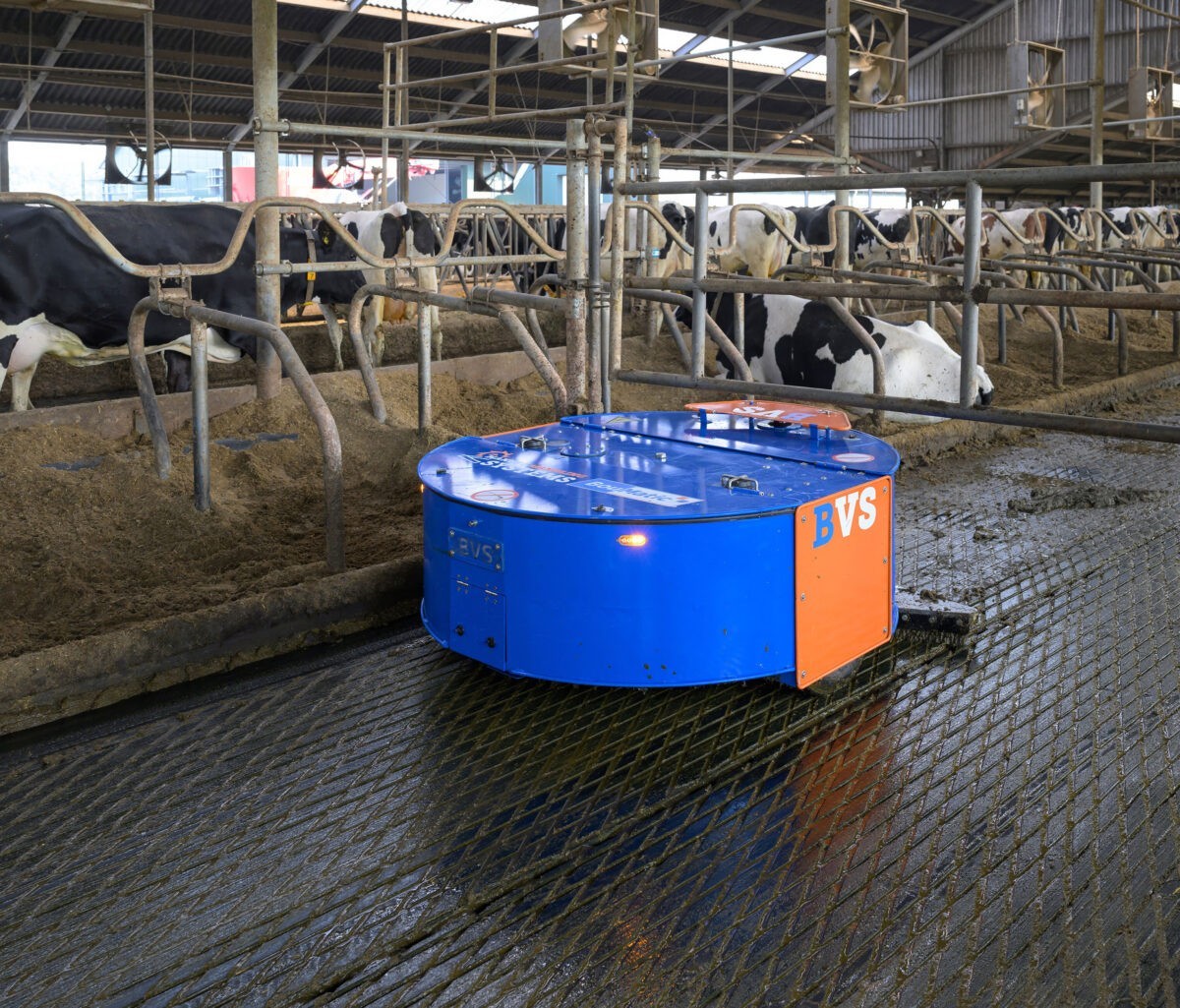

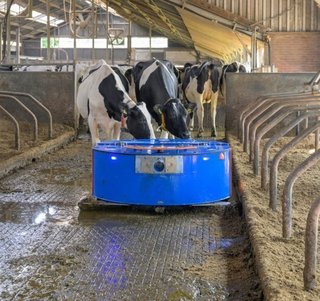

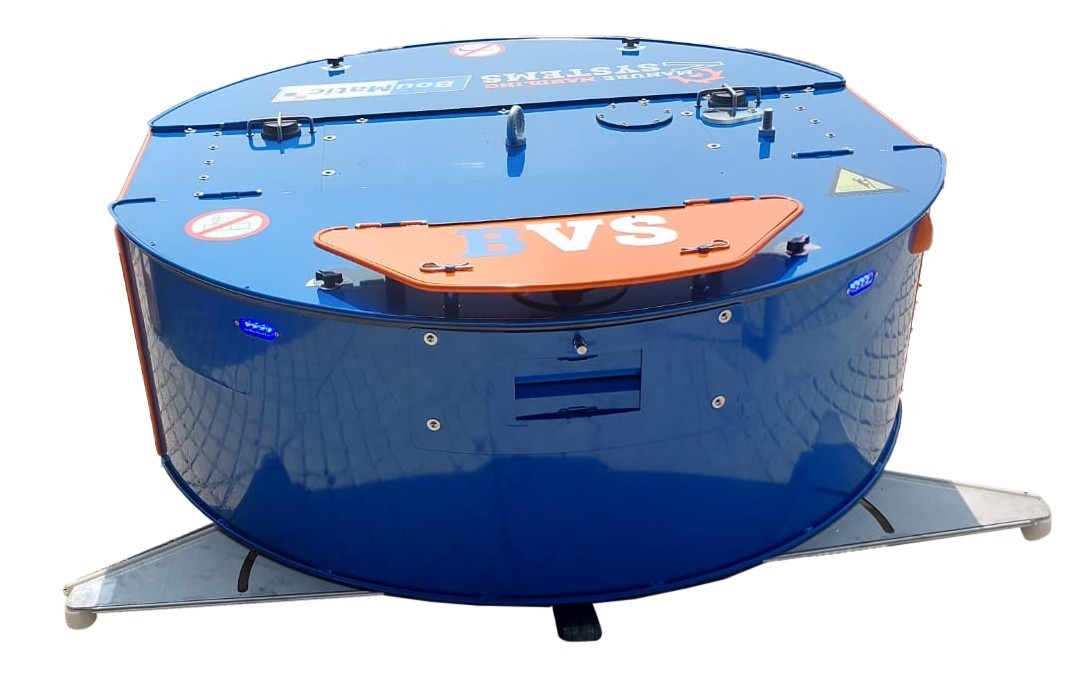

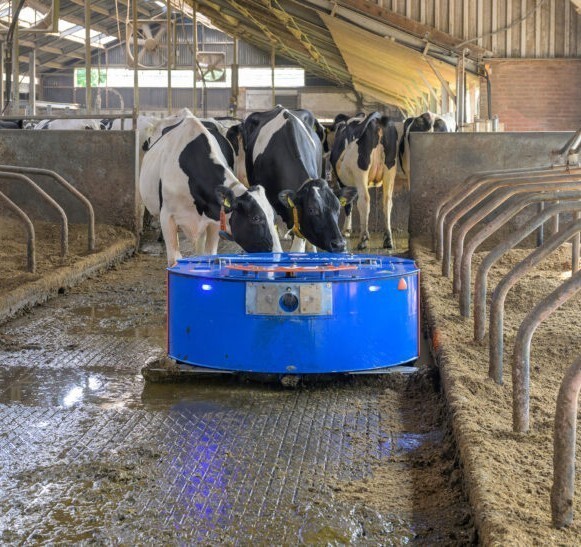

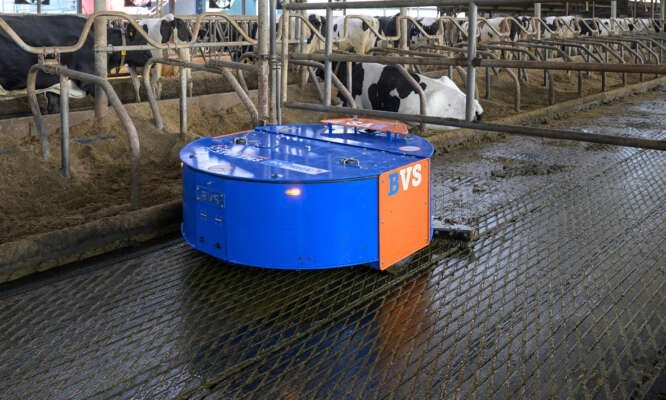

The BVS (BouMatic Vacuum Scraper) is an autonomous robot that vacuums manure from the alleys of dairy barns. Two side arms push the slurry towards the tank inlet, where it forms a plug, and a vacuum pump sucks it into a 350-litre slurry tank; at the discharge point the pump reverses to empty the tank into a storage pit, channel, receiving pit or slatted floor. It needs no rails: during commissioning the robot maps the barn and then navigates freely with two LiDAR laser scanners, on concrete or slatted floors, in alleys at least 1.7 m wide, under barriers from 70 cm and on slopes up to 8%. A lithium battery gives 16 hours of autonomy a day at about 250 W, it travels at 10 m per minute and one robot covers 50 to 150 cows. The painted stainless-steel robot weighs 420 kg empty and 840 kg in operation, carries a 70-litre water tank, runs at 39.4 dB at 1 m, and is set up from a PC or smartphone with e-mail and SMS alarms, remote troubleshooting and a remote control for manual moves; full barn Wi-Fi is required.

FEATURES

Vacuum pump system: side arms push slurry to the inlet
pump reverses to discharge
350 L slurry tank
70 L water tank
Two LiDAR laser scanners
virtual barn map
no floor rails needed
Works on solid and slatted floors
min. alley width 170 cm
min. height under barrier 700 mm
slopes up to 8% (4%+4%)
Lithium battery: 16 h/day autonomy
~250 W consumption
Travel speed 10 m/min
50-150 dairy cows per robot
Noise 39.4 dB at 1 m / 28.7 dB at 10 m
420 kg empty / 840 kg operating weight
painted stainless steel
PC/smartphone control, e-mail/SMS alarms, remote troubleshooting, remote control
full Wi-Fi coverage required

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	420 kg
Mobility
Movement Type	Wheeled
Speed	0.6 km/h
Environment	Dairy barns: concrete alleys, slatted floors and passages between cubicles
Power
Battery Life	960 min
Sensing & Compute
Sensors	2 LiDAR laser scanners
Connectivity	Wi-Fi (full barn coverage required); PC and smartphone control; e-mail/SMS alerts
