DESCRIPTION

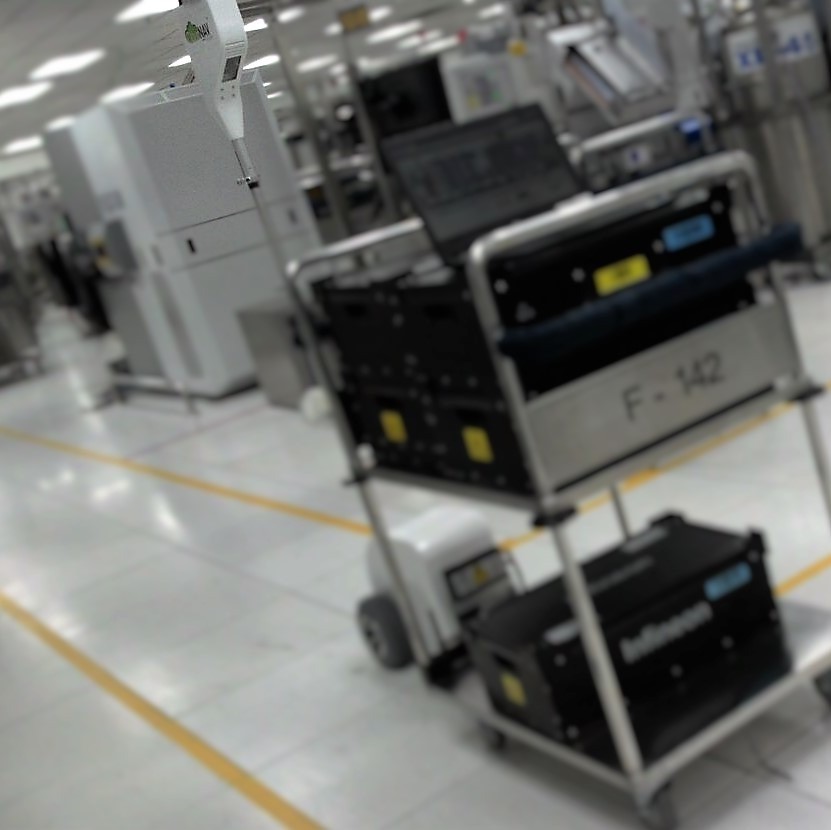

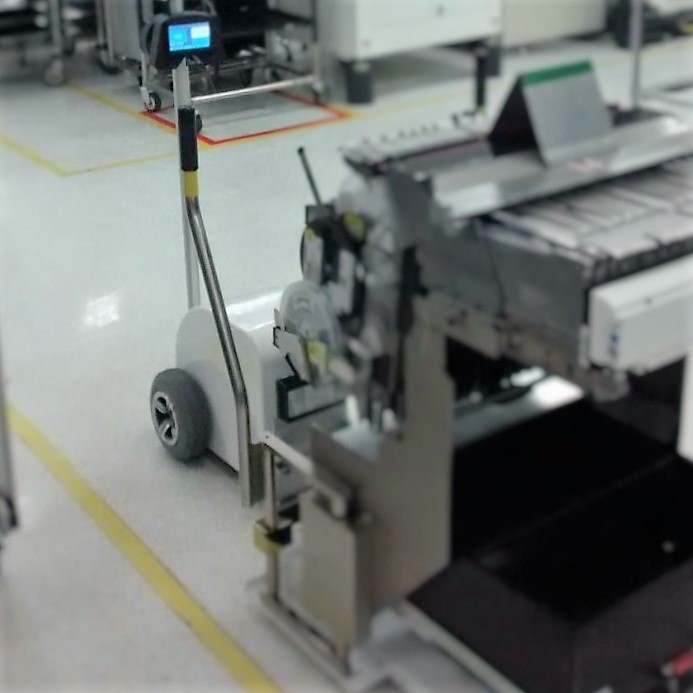

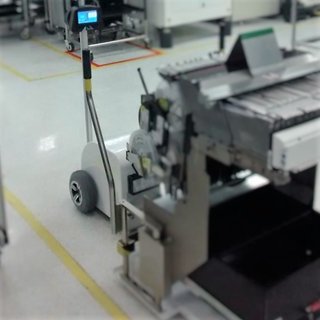

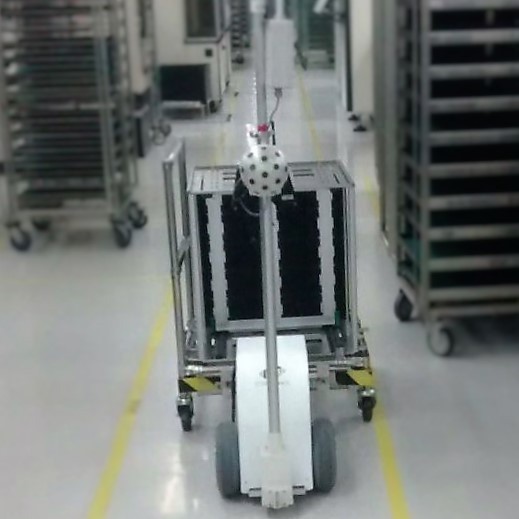

Axon is a Mobile-Robots from CtrlWorks. It is built for Material-Handling, Transport, Automating existing trolleys and carts for indoor material transport.
The CtrlWorks Axon is a compact AGV system and modular add-on kit that automates ordinary wheeled platforms - trolleys, pushcarts and custom payload carriers - turning them into autonomous mobile robots for indoor material handling. A small drive unit with a high-torque drive-train couples to the platform, a telescopic pole carries the localisation and navigation sensor module, operating lights and a user remote control, and a customisable mounting plate lets payloads be swapped for different jobs; sensor packages and accessories are configured for each environment. Axon is navigated by CtrlWorks' patented CloudNAV cloud engine over Wi-Fi or 4G, which lets it follow planned routes without beacons, wires or building changes. Functions include obstacle detection and pause, autonomous return to its charging station, autonomous hook-on to mount and unmount payloads, control of third-party doors and lifts, a web UI to monitor a fleet in real time, intelligent fleet routing and scheduling, and a REST API. Its scalable architecture is intended for multi-robot logistics in warehouses, hospitals, manufacturing, construction, cleaning and research.
FEATURES
- Add-on AGV kit that automates existing trolleys and carts
- Small footprint, high-torque drive-train for indoor operations

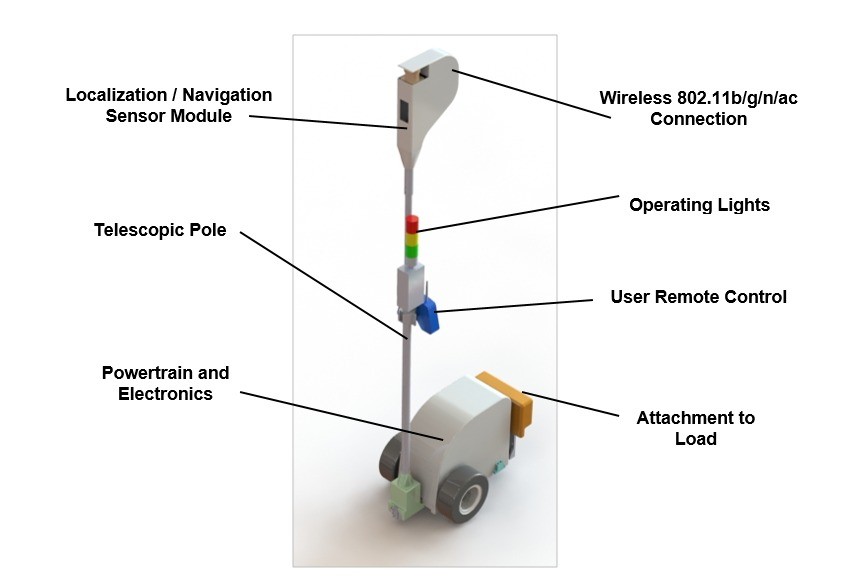

- Telescopic pole with localisation/navigation sensor module, lights and remote control
- Customisable mounting plate for swappable payloads

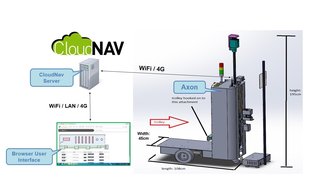

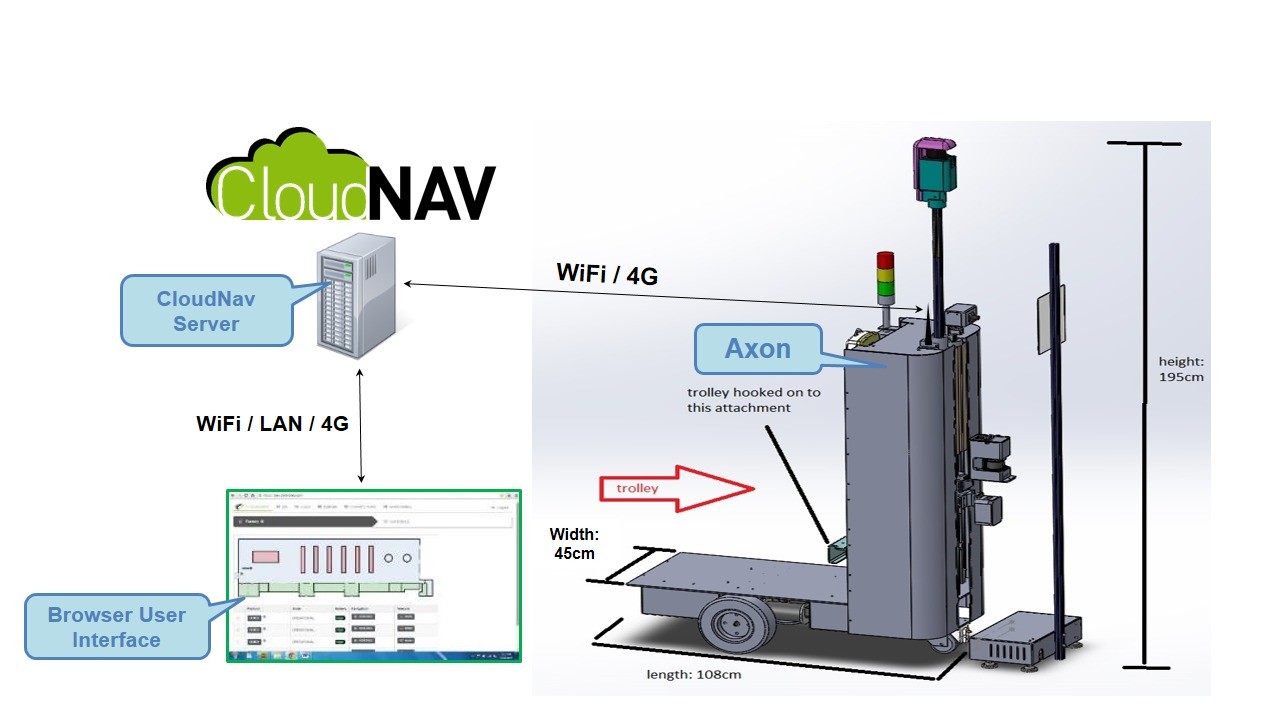

- CloudNAV cloud navigation over Wi-Fi/4G
- no beacons or wires
- Obstacle detection, auto docking and autonomous hook-on
- Door and lift integration
- web UI
- fleet management
- REST API
TECHNICAL SPECIFICATIONS
| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Indoor factories, warehouses, hospitals and buildings with lifts and doors |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Indoor factories, warehouses, hospitals and buildings with lifts and doors |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Axon?
The CtrlWorks Axon is a compact AGV system and modular add-on kit that automates ordinary wheeled platforms - trolleys, pushcarts and custom payload carriers - turning them into autonomous mobile robots for indoor material handling.
Who makes the Axon?
The Axon is made by CtrlWorks, a robotics company based in Singapore.
How much does the Axon cost?
CtrlWorks has not publicly announced pricing for the Axon. You can enquire through RobotAIGeek for current pricing.
What is the Axon used for?
The Axon is designed for material-handling, transport, and automating existing trolleys and carts for indoor material transport. It is used in healthcare, warehouse & logistics, and manufacturing settings.
