Auto Robot Bag Palletizer
DESCRIPTION
Auto Robot Bag Palletizer is an Industrial-Robot from Shandong Gojon Precision Technology. It is built for Material-Handling, palletizing. Key figures: 100 kg payload.

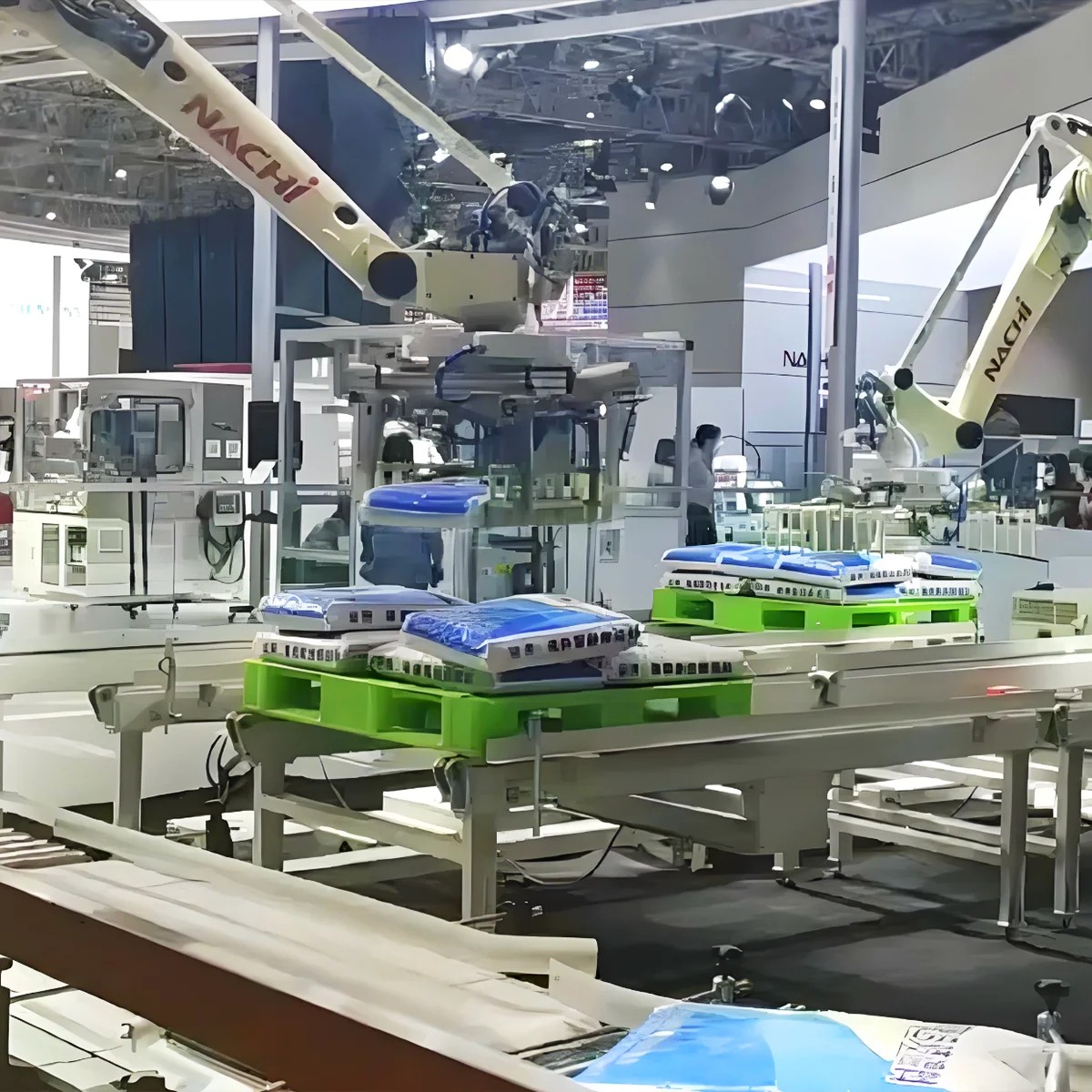

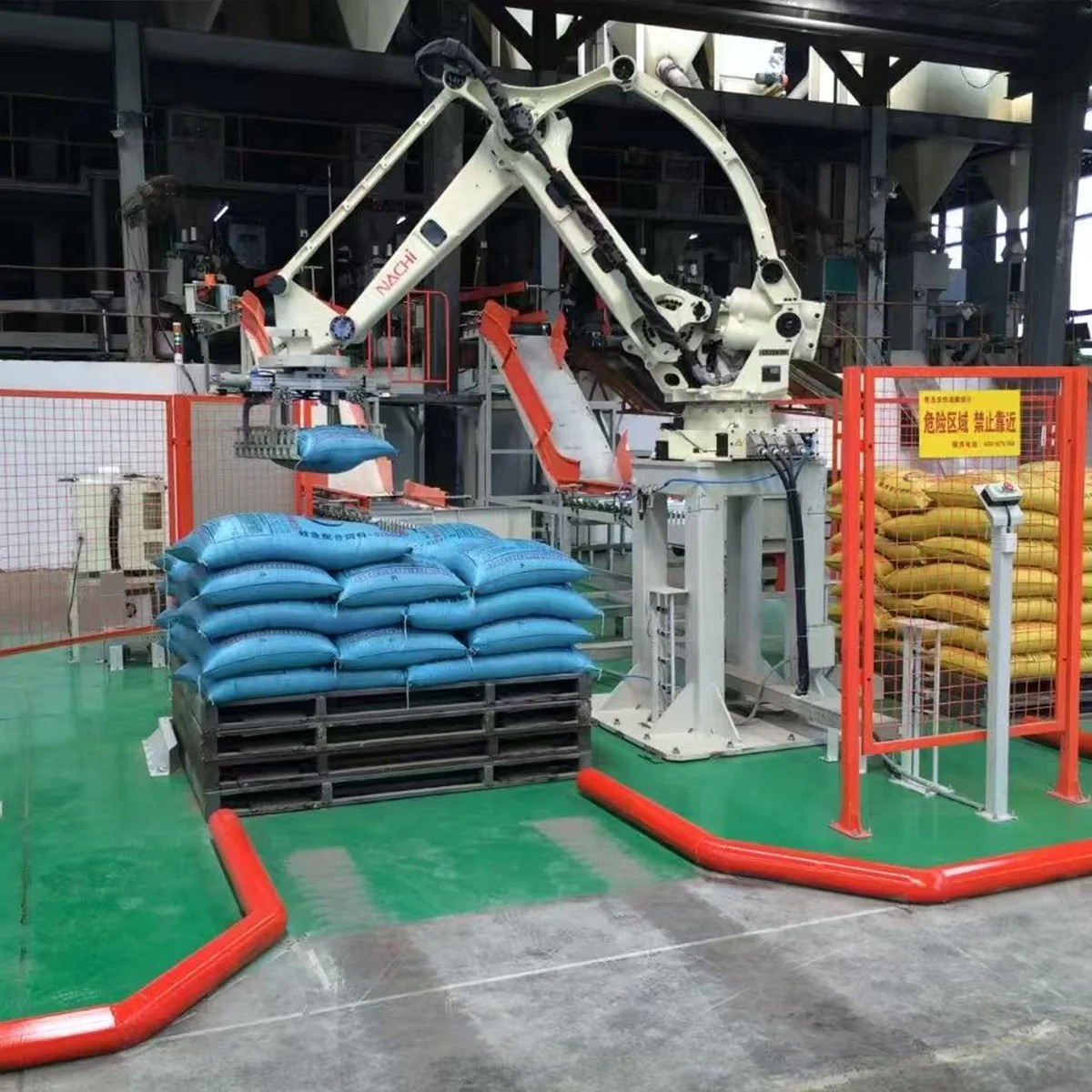

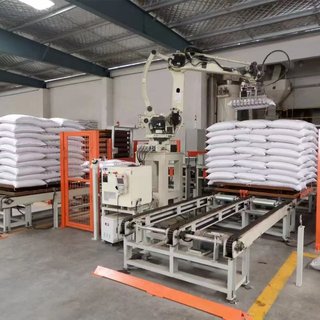

The GOJON Auto Robot Bag Palletizer is a robotic palletizing cell from Shandong Gojon Precision Technology that stacks filled bags (woven, paper or plastic sacks of chemicals, agricultural products or food ingredients) onto pallets at the end of a production line. An industrial robot arm with a bag gripper builds customizable stacking patterns at up to 22 cycles per minute with ±2 mm positioning accuracy, handling up to 100 kg per grab and stacking up to 2,200 mm high on pallets from 1,000 to 1,500 mm.
FEATURES
- Robotic bag palletizing cell built around an industrial robot arm
- End-of-arm tooling for woven, paper and plastic bags
- Customizable stacking patterns for stable pallets
- Optional AI 3D vision for picking and placing bags
- Compact footprint for existing production lines
- Up to 22 palletizing cycles per minute, up to 38 bundles per minute
- Palletizing position accuracy ±2 mm
- Maximum grab load 100 kg
- Maximum stacking area 1650 x 1650 mm, maximum stacking height 2200 mm
- Pallet sizes 1000 x 1000 mm to 1500 x 1500 mm
- Pallet change time 5 seconds
- Integrates with GOJON's Whole Factory Conveyor System
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line packaging area |
| Actuators | Industrial robot arm with bag gripper (end-of-arm tooling) |
| Sensing & Compute | |
| Sensors | Optional AI 3D vision system |
| Software / AI | Customizable stacking-pattern software |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line packaging area |
| Actuators | Industrial robot arm with bag gripper (end-of-arm tooling) |
| Sensing & Compute | |
| Sensors | Optional AI 3D vision system |
| Software / AI | Customizable stacking-pattern software |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Auto Robot Bag Palletizer?
The GOJON Auto Robot Bag Palletizer is a robotic palletizing cell from Shandong Gojon Precision Technology that stacks filled bags (woven, paper or plastic sacks of chemicals, agricultural products or food ingredients) onto pallets at the end of a production line.
Who makes the Auto Robot Bag Palletizer?
The Auto Robot Bag Palletizer is made by Shandong Gojon Precision Technology, a robotics company based in China.
How much does the Auto Robot Bag Palletizer cost?
Shandong Gojon Precision Technology has not publicly announced pricing for the Auto Robot Bag Palletizer. You can enquire through RobotAIGeek for current pricing.
What is the Auto Robot Bag Palletizer used for?
The Auto Robot Bag Palletizer is designed for material-handling and palletizing. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Auto Robot Bag Palletizer?
The Auto Robot Bag Palletizer has a payload capacity of 100 kg.
