DESCRIPTION

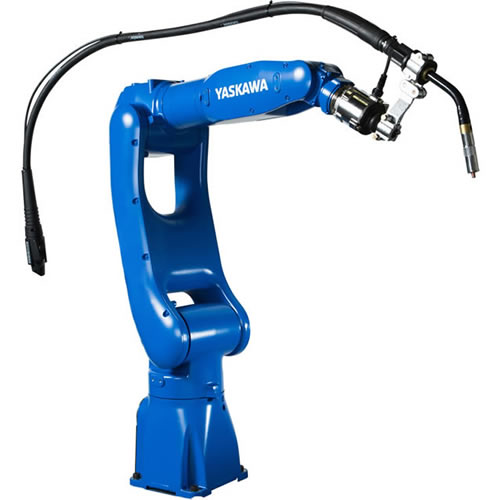

AR900 is an Industrial-Robot from YASKAWA Electric. It is built for Welding. Key figures: 34 kg, 7 kg payload, 927 mm reach, 6 degrees of freedom, released 2020.
Yaskawa Motoman AR900 is a AR Series industrial robot with 7 kg payload and 927 mm horizontal reach (34 kg mass, ±0.01 mm repeatability).
FEATURES
- Payload 7 kg
- Horizontal reach 927 mm
- Vertical reach 1693 mm
- Mass 34 kg
- Repeatability ±0.01 mm
- 6 controlled axes
- Applications: Arc Welding
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 34 kg |
|---|---|
| Payload | 7 kg |
| Reach | 927 mm |
| Repeatability | ±0.01 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Videos
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 34 kg |
|---|---|
| Payload | 7 kg |
| Reach | 927 mm |
| Repeatability | ±0.01 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AR900?
Yaskawa Motoman AR900 is a AR Series industrial robot with 7 kg payload and 927 mm horizontal reach (34 kg mass, ±0.01 mm repeatability).
Who makes the AR900?
The AR900 is made by YASKAWA Electric, a robotics company based in Japan.
How much does the AR900 cost?
YASKAWA Electric has not publicly announced pricing for the AR900. You can enquire through RobotAIGeek for current pricing.
What is the AR900 used for?
The AR900 is designed for welding. It is used in automotive and manufacturing settings.
What is the payload capacity of the AR900?
The AR900 has a payload capacity of 7 kg and a reach of 927 mm.
How much does the AR900 weigh?
The AR900 weighs 34 kg.
How many degrees of freedom does the AR900 have?
The AR900 has 6 degrees of freedom.
When was the AR900 released?
The AR900 was released in 2020.
