DESCRIPTION
AQUA-SCANNER is a Mobile-Robots from i4-Marine Technologies. It is built for Data Collection, Mapping, Surveying. Key figures: 240 min runtime, price 2,150,000 INR.

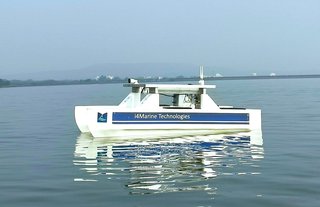

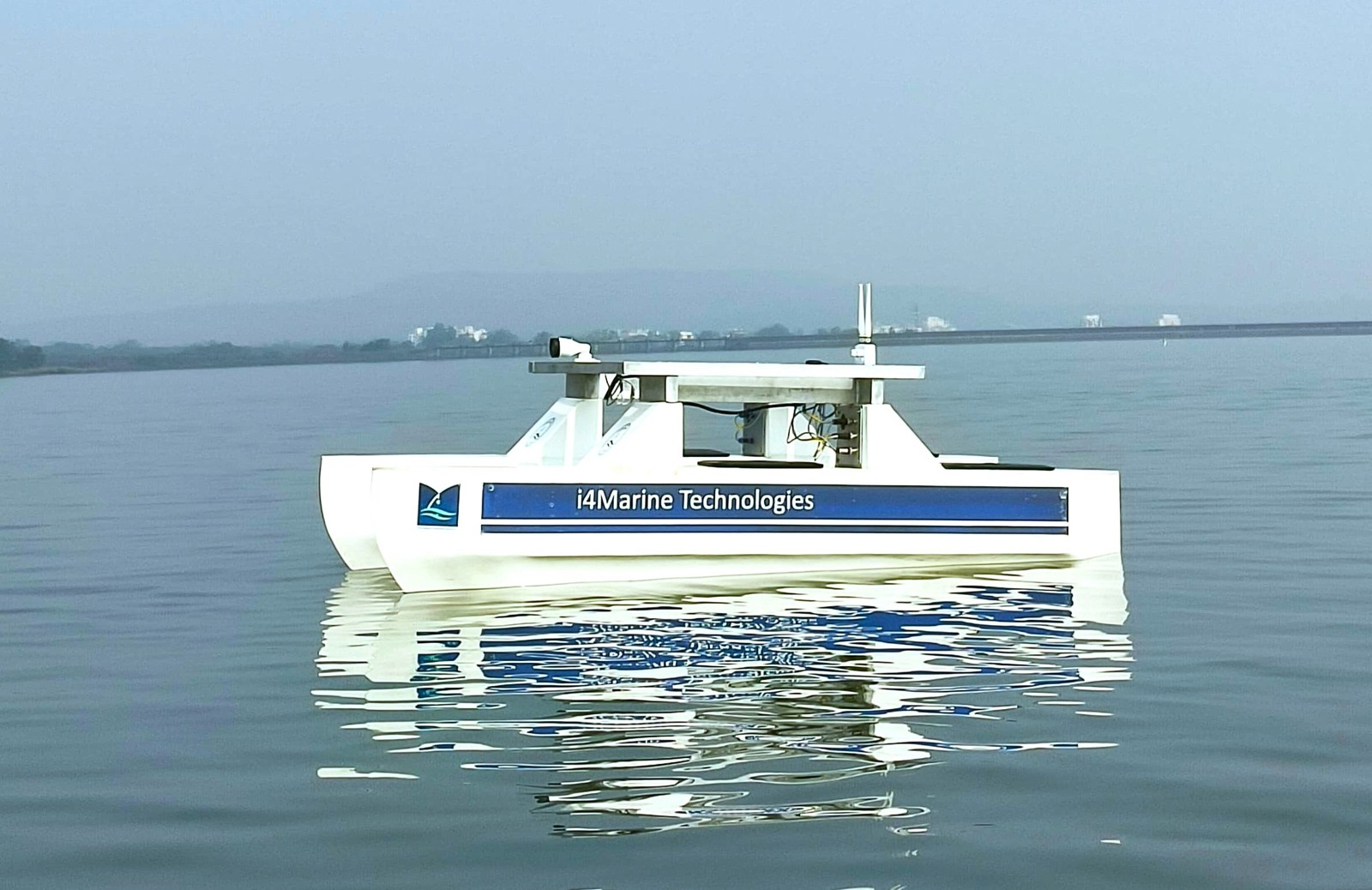

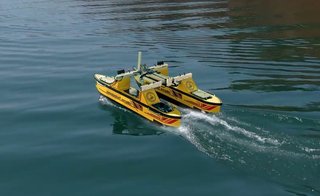

AQUA-SCANNER is a family of remotely operated unmanned catamarans from i4-Marine Technologies, built as survey and monitoring platforms for dams, reservoirs, rivers, canals, ports and other water bodies. The maker's site shows two versions, the AQUA-SCANNER 500 and the larger AQUA-SCANNER 1000, both described as a remotely operated unmanned catamaran platform. The twin-hull layout gives a stable deck for sensors, and the boat carries an echo sounder for bathymetry along with cameras and data links that stream measurements and video to a ground control station in real time. It can follow a pre-programmed survey path autonomously, or be driven by remote control over shallow water and mangroves, and its battery-electric drive keeps noise low around the sensors. i4-Marine's own IndiaMART listing for the AQUA-SCANNER 1000 gives a fibreglass (FRP) hull of 5.0 m by 2.5 m by 1.5 m, a speed of 6 knots, 4 hours of endurance, operation up to sea state 3 and IP67 protection. The company uses these boats for its own bathymetric survey service, reporting about 30-40 line km of survey per deployment.
FEATURES
- Remotely operated unmanned catamaran platform (twin hulls)
- Variants shown on the maker's site: AQUA-SCANNER 500 and AQUA-SCANNER 1000
- Autonomous operation over a pre-programmed survey path
- Remote-control mode for shallow waters and mangroves
- Echo sounder for bathymetric survey
- Built-in data and video links for real-time monitoring at a remote ground control station
- Battery-electric (rechargeable Li-ion) drive for quiet operation near the sensors
- Modular construction for easy deployment
- AQUA-SCANNER 1000: dimensions 5.0 m L x 2.5 m W x 1.5 m H
- AQUA-SCANNER 1000: speed 6 knots
- AQUA-SCANNER 1000: endurance 4 hours
- AQUA-SCANNER 1000: operable up to sea state 3
- IP67 ingress protection
- FRP (fibreglass) hull
- Uses: bathymetry, water-quality monitoring, surveillance, meteorological parameters
- Survey coverage about 30-40 line km per deployment (i4-Marine survey service)
- Survey deliverables: mission plan, contour maps, area-capacity curves, optional 3D terrain models
- Supplied with ground control station, battery charger and tool kit
- Made in India
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 5 m × W 2.5 m × H 1.5 m |
|---|---|
| Materials | FRP (fibreglass) |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 11.12 km/h |
| Environment | Dams, reservoirs, rivers, canals, lakes, ports and shallow coastal waters up to sea state 3, IP67 |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | Echo sounder, Cameras with real-time video link |
| Connectivity | Data and video link to a remote ground control station |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 5 m × W 2.5 m × H 1.5 m |
|---|---|
| Materials | FRP (fibreglass) |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 11.12 km/h |
| Environment | Dams, reservoirs, rivers, canals, lakes, ports and shallow coastal waters up to sea state 3, IP67 |
| Power | |
| Battery Life | 240 min |
| Sensing & Compute | |
| Sensors | Echo sounder, Cameras with real-time video link |
| Connectivity | Data and video link to a remote ground control station |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AQUA-SCANNER?
AQUA-SCANNER is a family of remotely operated unmanned catamarans from i4-Marine Technologies, built as survey and monitoring platforms for dams, reservoirs, rivers, canals, ports and other water bodies.
Who makes the AQUA-SCANNER?
The AQUA-SCANNER is made by i4-Marine Technologies, a robotics company based in India.
How much does the AQUA-SCANNER cost?
The AQUA-SCANNER is priced at around 2,150,000 INR.
What is the AQUA-SCANNER used for?
The AQUA-SCANNER is designed for data collection, mapping, surveying, and inspection. It is used in energy, government, research, and security & patrol settings.
How fast is the AQUA-SCANNER?
The AQUA-SCANNER can move at speeds of up to 11.12 km/h.
What is the battery life of the AQUA-SCANNER?
The AQUA-SCANNER runs for about 240 minutes on a charge.
