DESCRIPTION
AMR-AI-Roller Robot is an Industrial-Robot from Micro-Star International (MSI). It is built for Intralogistics, Loading, Material-Handling. Key figures: 145 kg, 480 min runtime, 150 kg payload.

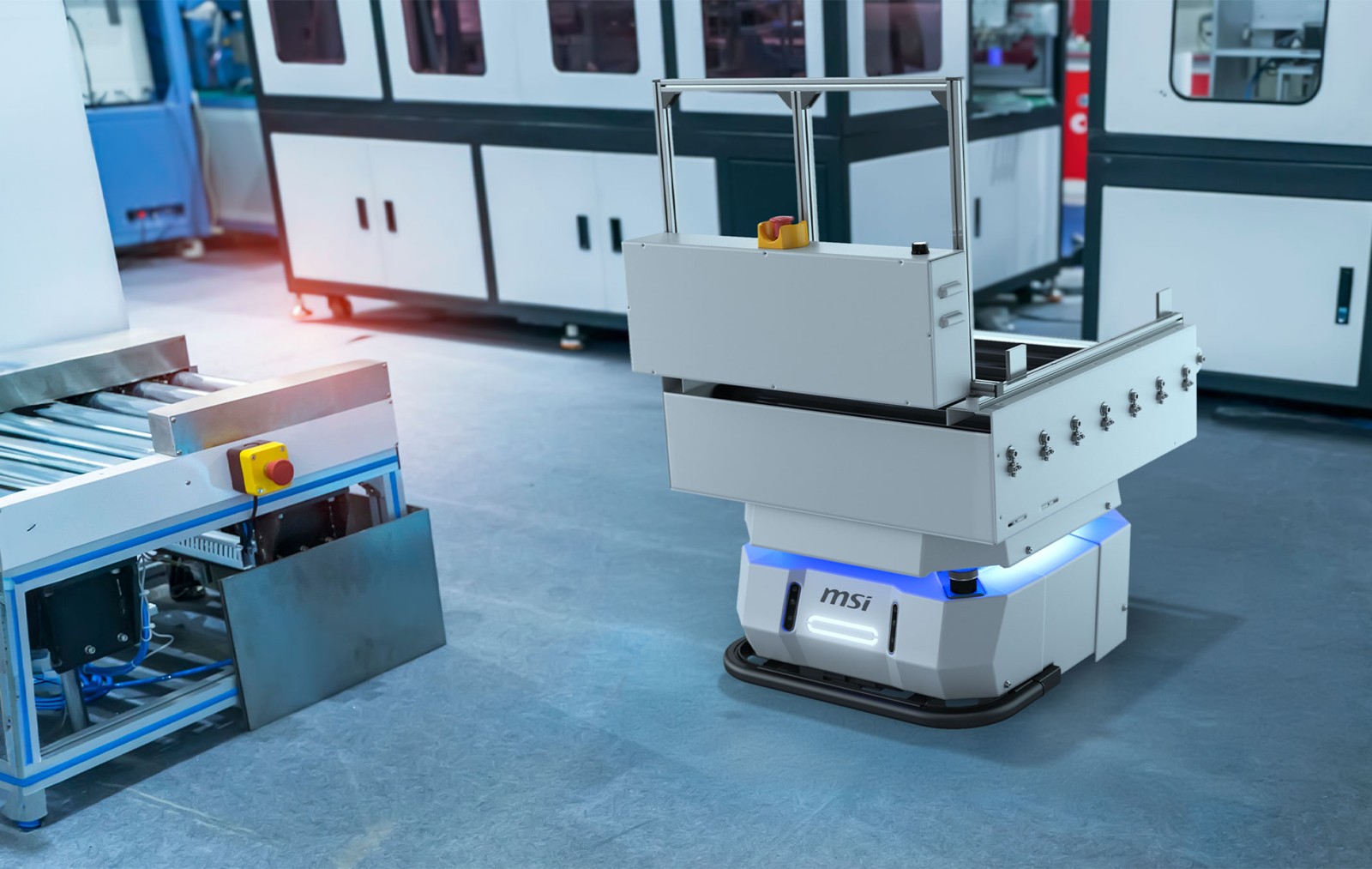

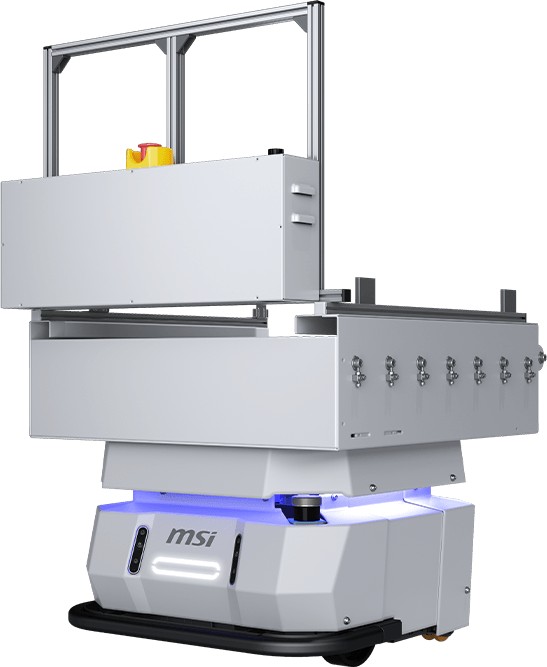

The AMR-AI-Roller Robot is an MSI autonomous mobile robot with a roller-conveyor top that docks with production-line equipment and transfers goods on and off without manual handling. It identifies and aligns with stations automatically and exchanges data with line equipment wirelessly, so lines can be reconfigured without large equipment changes. It measures 811 x 674 x 1,101 mm, weighs 145 kg and carries up to 150 kg. It runs at up to 1.3 m/s with +/-50 mm positioning, needs a 1,005 mm aisle, crosses 5 mm gaps and climbs 7-degree grades. Navigation combines lidar, inertial and visual positioning with Intel RealSense 3D obstacle avoidance. A 48 V / 33.6 Ah battery runs 8 hours and recharges autonomously on a 30 A dock. Multiple roller robots cooperate under MSI's fleet platform. MSI targets electronics manufacturing, machinery processing, warehousing and food production, and the robot is certified to CE and SEMI S2.
FEATURES
- Roller-conveyor top
- automatic identification and docking with line equipment
- 150 kg payload
- 145 kg robot weight
- 811 x 674 x 1,101 mm
- Up to 1.3 m/s
- +/-50 mm positioning
- 1,005 mm minimum aisle
- 5 mm gaps
- 7-degree climb
- Inertial and visual navigation with lidar
- 8 h runtime
- 48 V / 33.6 Ah
- autonomous charging, <= 2 h on 30 A dock
- Lidar SLAM + Intel RealSense 3D obstacle avoidance
- maps update automatically as the site changes

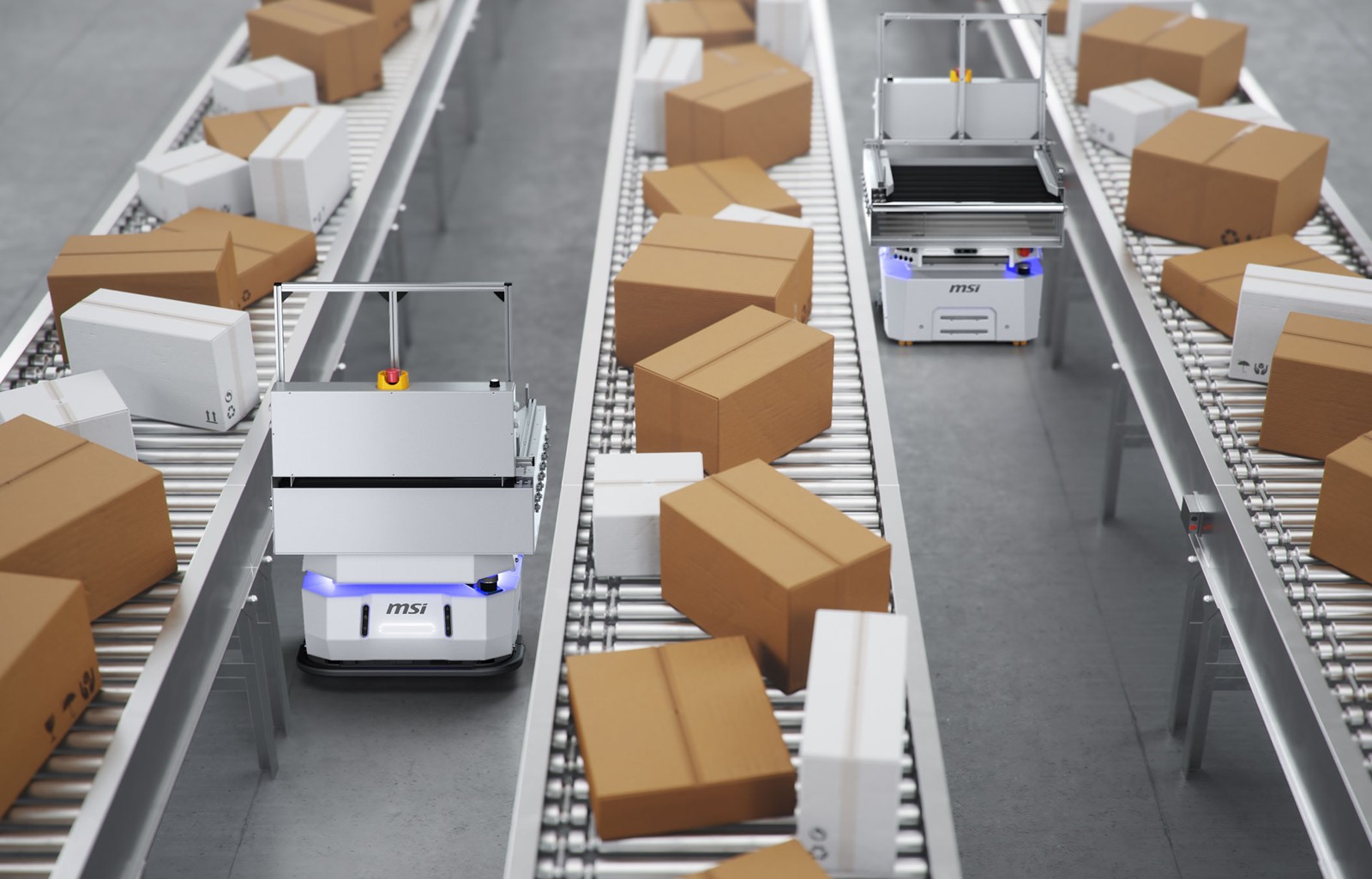

- Fleet management with multi-robot cooperation and cross-floor delivery (automatic elevator / door control)
- Wi-Fi 802.11 a/b/g/n/ac standard
- 5G optional
- remote control over Wi-Fi, BT, LTE and web services
- CE and SEMI S2 certified
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 145 kg |
|---|---|
| Dimensions | L 811 mm × W 674 mm × H 1.1 m |
| Payload | 150 kg |
| Repeatability | ±50 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.7 km/h |
| Environment | Indoor production lines and warehouses: electronics, machinery processing, food |
| Actuators | Wheeled base with powered roller conveyor |
| Power | |
| Battery Life | 480 min |
| Charging Type | Dock charger (30 A), autonomous docking |
| Sensing & Compute | |
| Sensors | 2 x lidar (front and rear), 3 x Intel RealSense depth cameras, emergency stop button |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac; optional 5G; RJ45, 2 x USB; Modbus optional |
| Software / AI | MSI AMR fleet management platform |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 145 kg |
|---|---|
| Dimensions | L 811 mm × W 674 mm × H 1.1 m |
| Payload | 150 kg |
| Repeatability | ±50 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.7 km/h |
| Environment | Indoor production lines and warehouses: electronics, machinery processing, food |
| Actuators | Wheeled base with powered roller conveyor |
| Power | |
| Battery Life | 480 min |
| Charging Type | Dock charger (30 A), autonomous docking |
| Sensing & Compute | |
| Sensors | 2 x lidar (front and rear), 3 x Intel RealSense depth cameras, emergency stop button |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac; optional 5G; RJ45, 2 x USB; Modbus optional |
| Software / AI | MSI AMR fleet management platform |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AMR-AI-Roller Robot?
The AMR-AI-Roller Robot is an MSI autonomous mobile robot with a roller-conveyor top that docks with production-line equipment and transfers goods on and off without manual handling.
Who makes the AMR-AI-Roller Robot?
The AMR-AI-Roller Robot is made by Micro-Star International (MSI), a robotics company based in Taiwan.
How much does the AMR-AI-Roller Robot cost?
Micro-Star International (MSI) has not publicly announced pricing for the AMR-AI-Roller Robot. You can enquire through RobotAIGeek for current pricing.
What is the AMR-AI-Roller Robot used for?
The AMR-AI-Roller Robot is designed for intralogistics, loading, material-handling, and unloading. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the AMR-AI-Roller Robot?
The AMR-AI-Roller Robot has a payload capacity of 150 kg.
How much does the AMR-AI-Roller Robot weigh?
The AMR-AI-Roller Robot weighs 145 kg.
How fast is the AMR-AI-Roller Robot?
The AMR-AI-Roller Robot can move at speeds of up to 4.7 km/h.
What is the battery life of the AMR-AI-Roller Robot?
The AMR-AI-Roller Robot runs for about 480 minutes on a charge.
