DESCRIPTION
AMR-AI-Lift Robot is an Industrial-Robot from Micro-Star International (MSI). It is built for Intralogistics, Lifting, Material-Handling. Key figures: 135 kg, 480 min runtime, 150 kg payload.

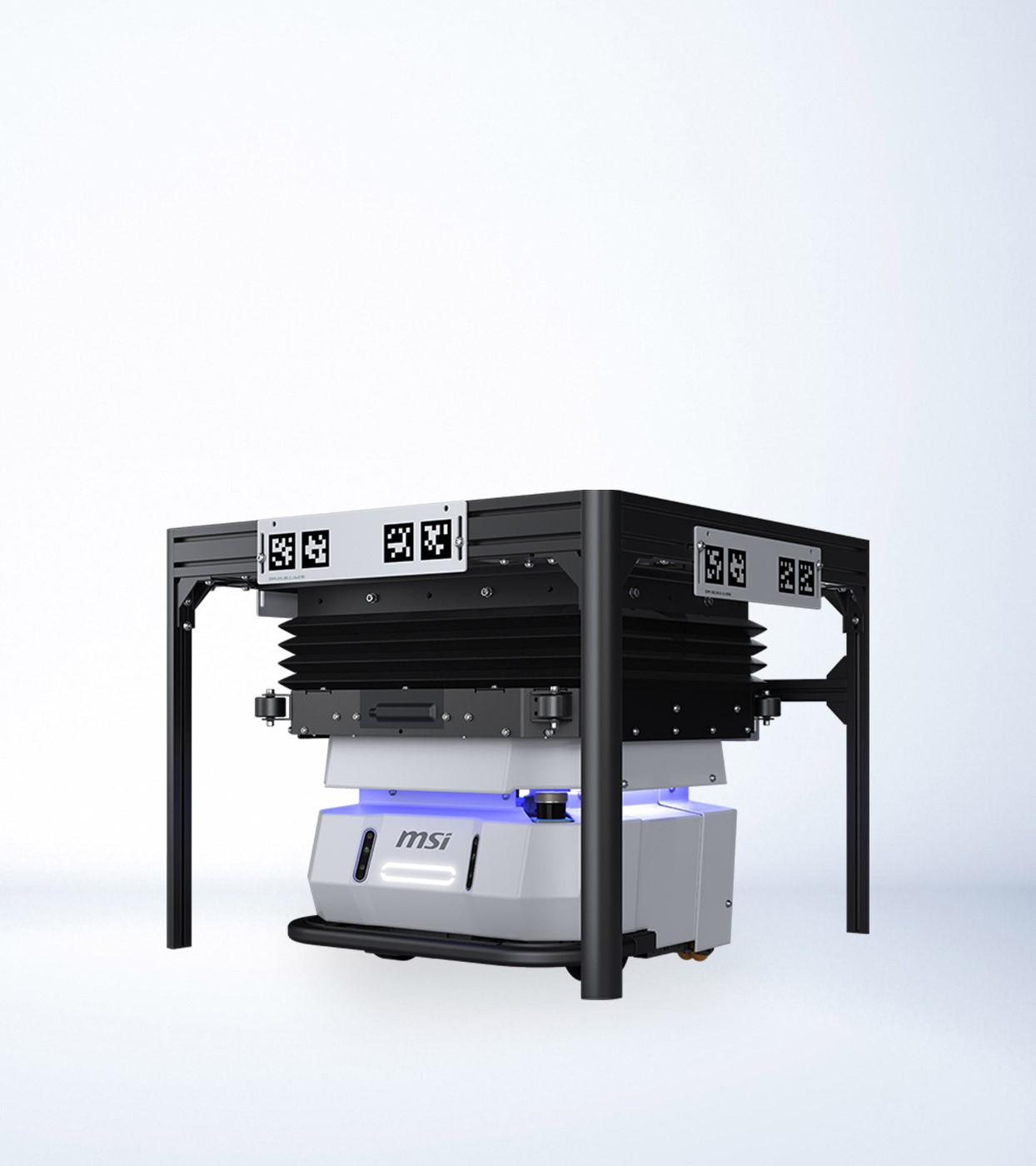

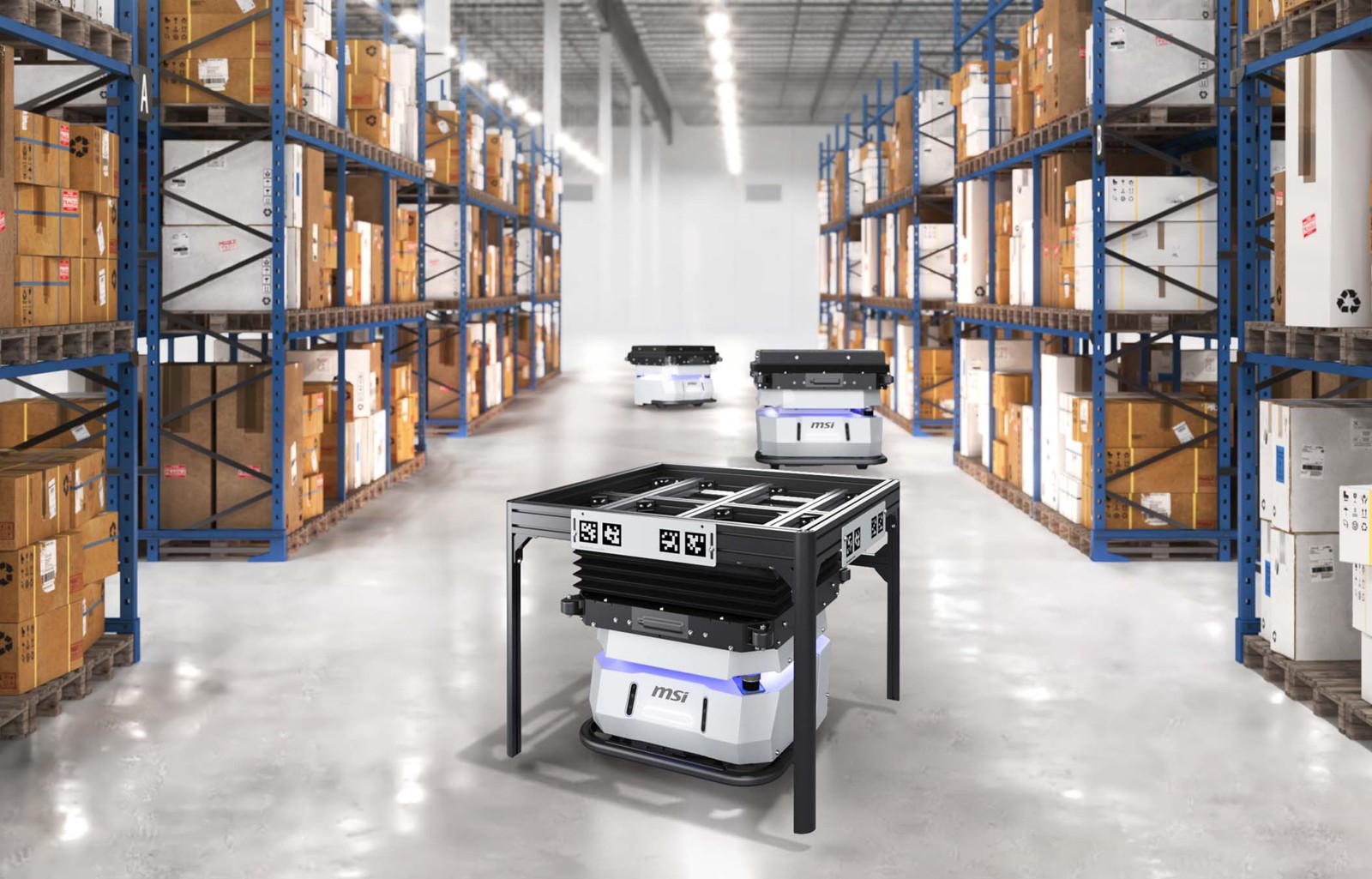

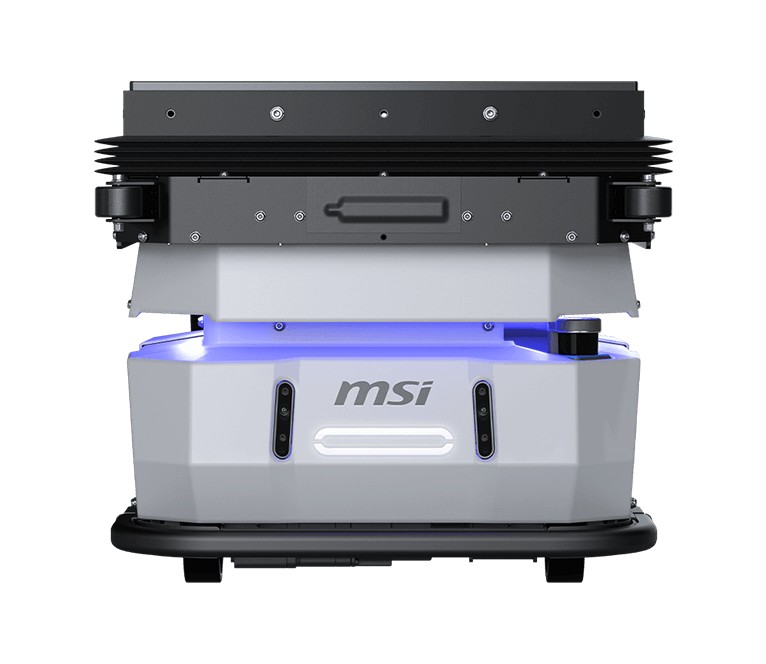

The AMR-AI-Lift Robot is an MSI autonomous mobile robot that drives under a shelf, reads the shelf's QR code, lifts it and carries it to its destination. It works with standard and custom shelves holding up to 150 kg of goods, so plants and warehouses can automate shelf moves without large equipment changes. It measures 705 x 620 x 561 mm and weighs 135 kg, runs at up to 1.3 m/s with +/-50 mm positioning, needs a 1,005 mm aisle, crosses 5 mm gaps and climbs 7-degree grades. Navigation and obstacle avoidance use front and rear lidar and Intel RealSense 3D cameras, and an emergency-stop button is fitted. The 48 V / 33.6 Ah battery runs 8 hours and recharges autonomously on a 30 A dock in two hours or less. Several robots can work together under MSI's fleet platform. MSI lists electronics manufacturing, biotechnology, warehousing, textiles, automotive, machining and food as application industries, and the robot is certified to CE and SEMI S2.
FEATURES

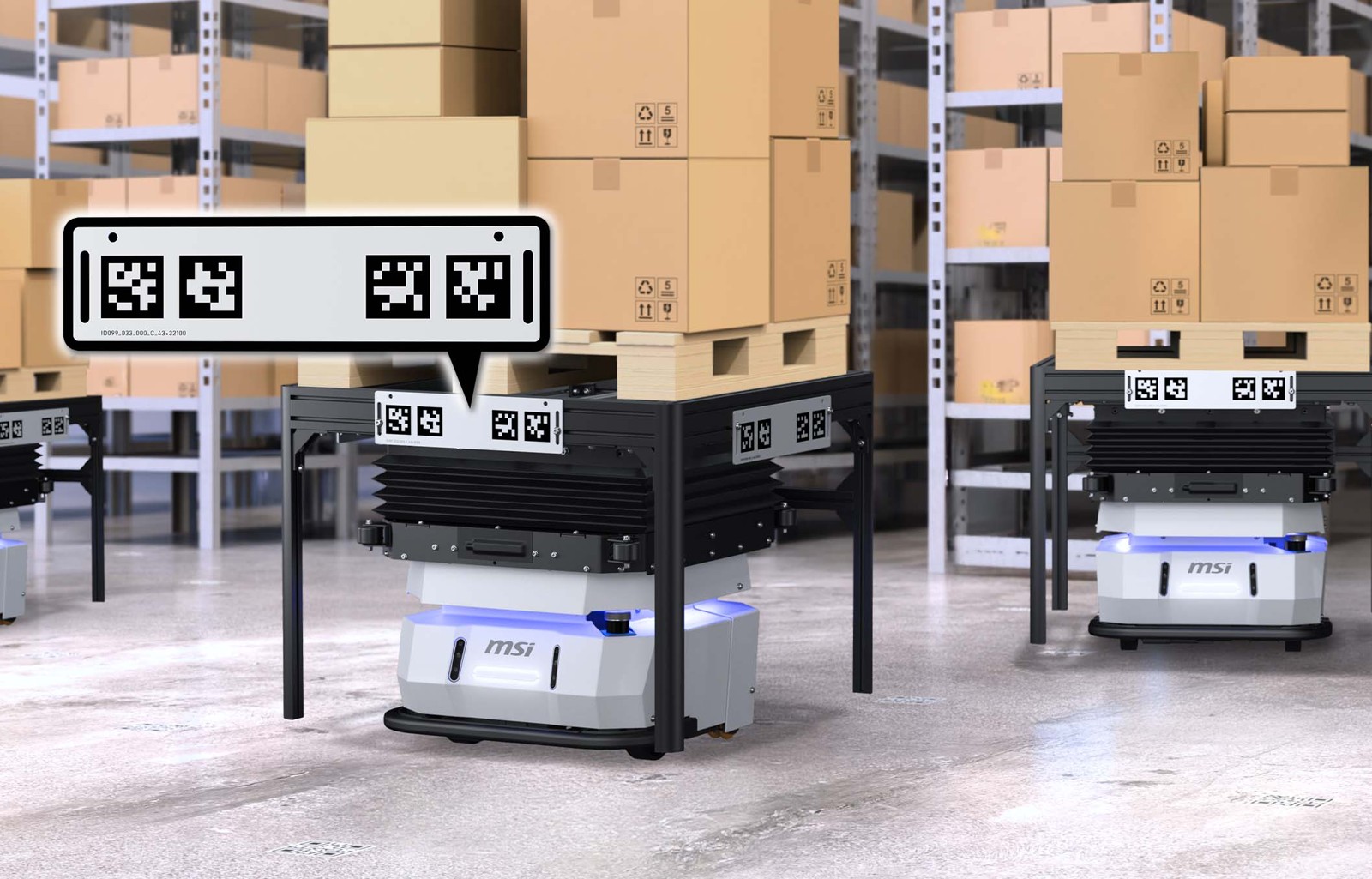

- Recognises QR-coded shelves and lifts / carries them
- standard and custom shelves
- 150 kg shelf payload
- 135 kg robot weight
- 705 x 620 x 561 mm
- Up to 1.3 m/s
- +/-50 mm positioning
- 1,005 mm minimum aisle
- 5 mm gaps
- 7-degree climb
- 8 h runtime
- 48 V / 33.6 Ah
- autonomous charging, <= 2 h on 30 A dock
- Lidar SLAM + Intel RealSense 3D obstacle avoidance
- maps update automatically as the site changes
- Fleet management with multi-robot cooperation and cross-floor delivery (automatic elevator / door control)
- Wi-Fi 802.11 a/b/g/n/ac standard
- 5G optional
- remote control over Wi-Fi, BT, LTE and web services
- CE and SEMI S2 certified
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 135 kg |
|---|---|
| Dimensions | L 705 mm × W 620 mm × H 561 mm |
| Payload | 150 kg |
| Repeatability | ±50 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.7 km/h |
| Environment | Indoor: electronics, biotech, textile, automotive, machining and food plants; warehouses |
| Actuators | Wheeled base with lifting top |
| Power | |
| Battery Life | 480 min |
| Charging Type | Dock charger (30 A), autonomous docking |
| Sensing & Compute | |
| Sensors | 2 x lidar (front and rear), 3 x Intel RealSense depth cameras, emergency stop button |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac; optional 5G; RJ45, 2 x USB; Modbus optional |
| Software / AI | MSI AMR fleet management platform |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 135 kg |
|---|---|
| Dimensions | L 705 mm × W 620 mm × H 561 mm |
| Payload | 150 kg |
| Repeatability | ±50 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.7 km/h |
| Environment | Indoor: electronics, biotech, textile, automotive, machining and food plants; warehouses |
| Actuators | Wheeled base with lifting top |
| Power | |
| Battery Life | 480 min |
| Charging Type | Dock charger (30 A), autonomous docking |
| Sensing & Compute | |
| Sensors | 2 x lidar (front and rear), 3 x Intel RealSense depth cameras, emergency stop button |
| Connectivity | Wi-Fi 802.11 a/b/g/n/ac; optional 5G; RJ45, 2 x USB; Modbus optional |
| Software / AI | MSI AMR fleet management platform |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AMR-AI-Lift Robot?
The AMR-AI-Lift Robot is an MSI autonomous mobile robot that drives under a shelf, reads the shelf's QR code, lifts it and carries it to its destination. It works with standard and custom shelves holding up to 150 kg of goods, so plants and warehouses can automate shelf moves without large equipment changes.
Who makes the AMR-AI-Lift Robot?
The AMR-AI-Lift Robot is made by Micro-Star International (MSI), a robotics company based in Taiwan.
How much does the AMR-AI-Lift Robot cost?
Micro-Star International (MSI) has not publicly announced pricing for the AMR-AI-Lift Robot. You can enquire through RobotAIGeek for current pricing.
What is the AMR-AI-Lift Robot used for?
The AMR-AI-Lift Robot is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the AMR-AI-Lift Robot?
The AMR-AI-Lift Robot has a payload capacity of 150 kg.
How much does the AMR-AI-Lift Robot weigh?
The AMR-AI-Lift Robot weighs 135 kg.
How fast is the AMR-AI-Lift Robot?
The AMR-AI-Lift Robot can move at speeds of up to 4.7 km/h.
What is the battery life of the AMR-AI-Lift Robot?
The AMR-AI-Lift Robot runs for about 480 minutes on a charge.
