DESCRIPTION
AMR-180 is a Mobile-Robots from GE Creative. It is built for Intralogistics, Material-Handling, Transport. Key figures: 60 kg, 300 min runtime, 500 kg payload.

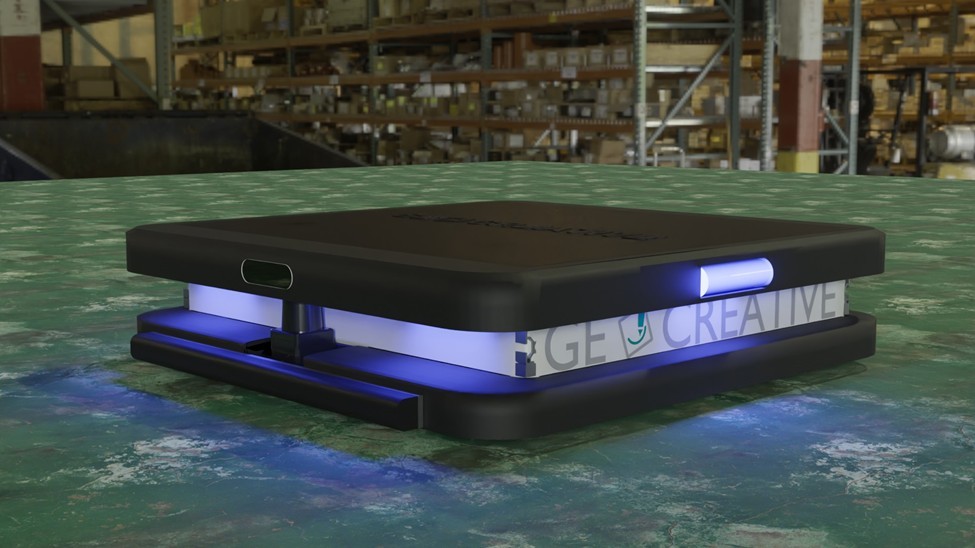

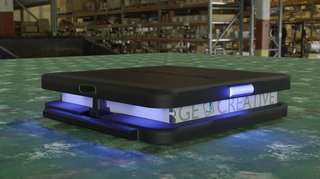

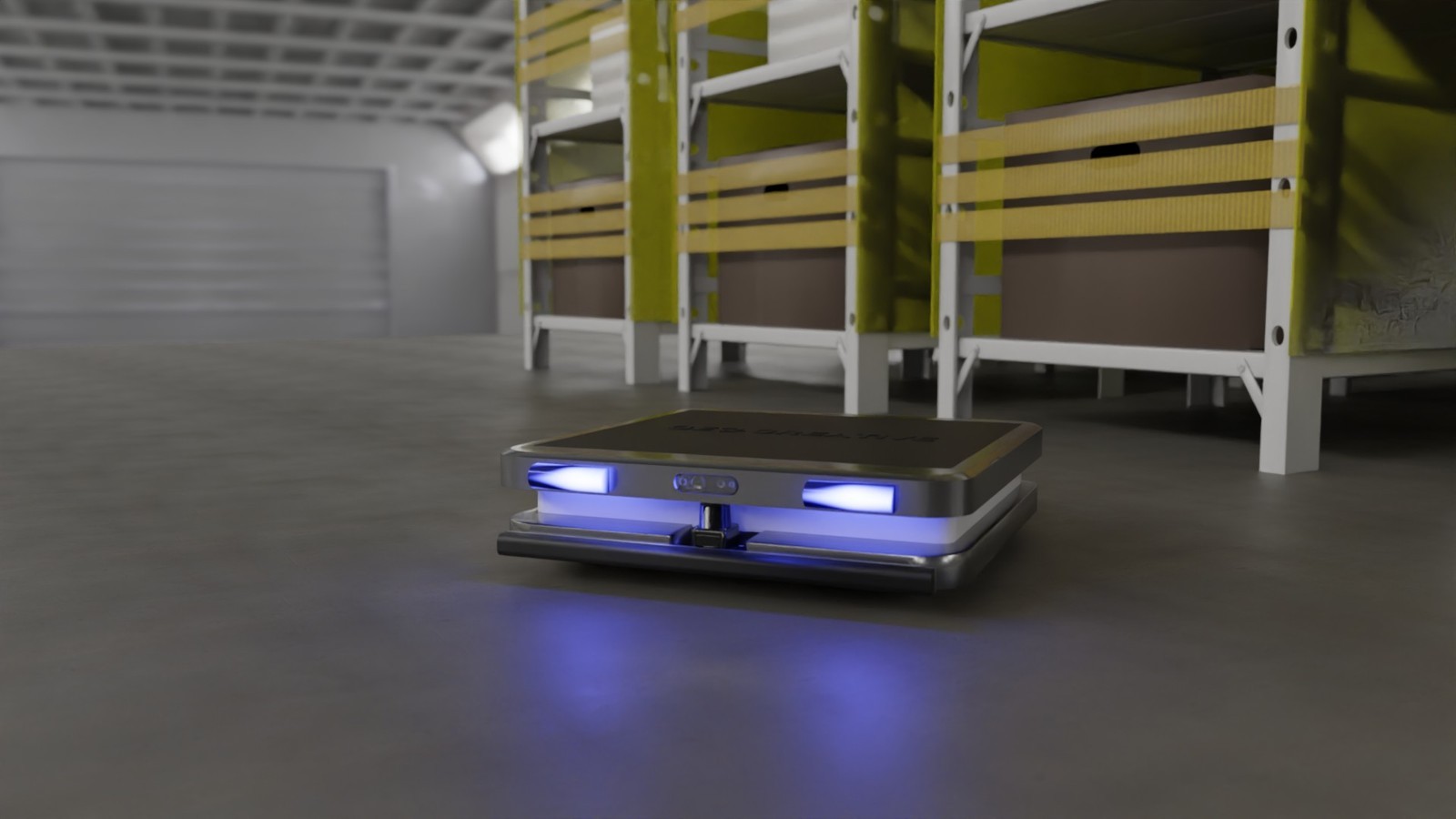

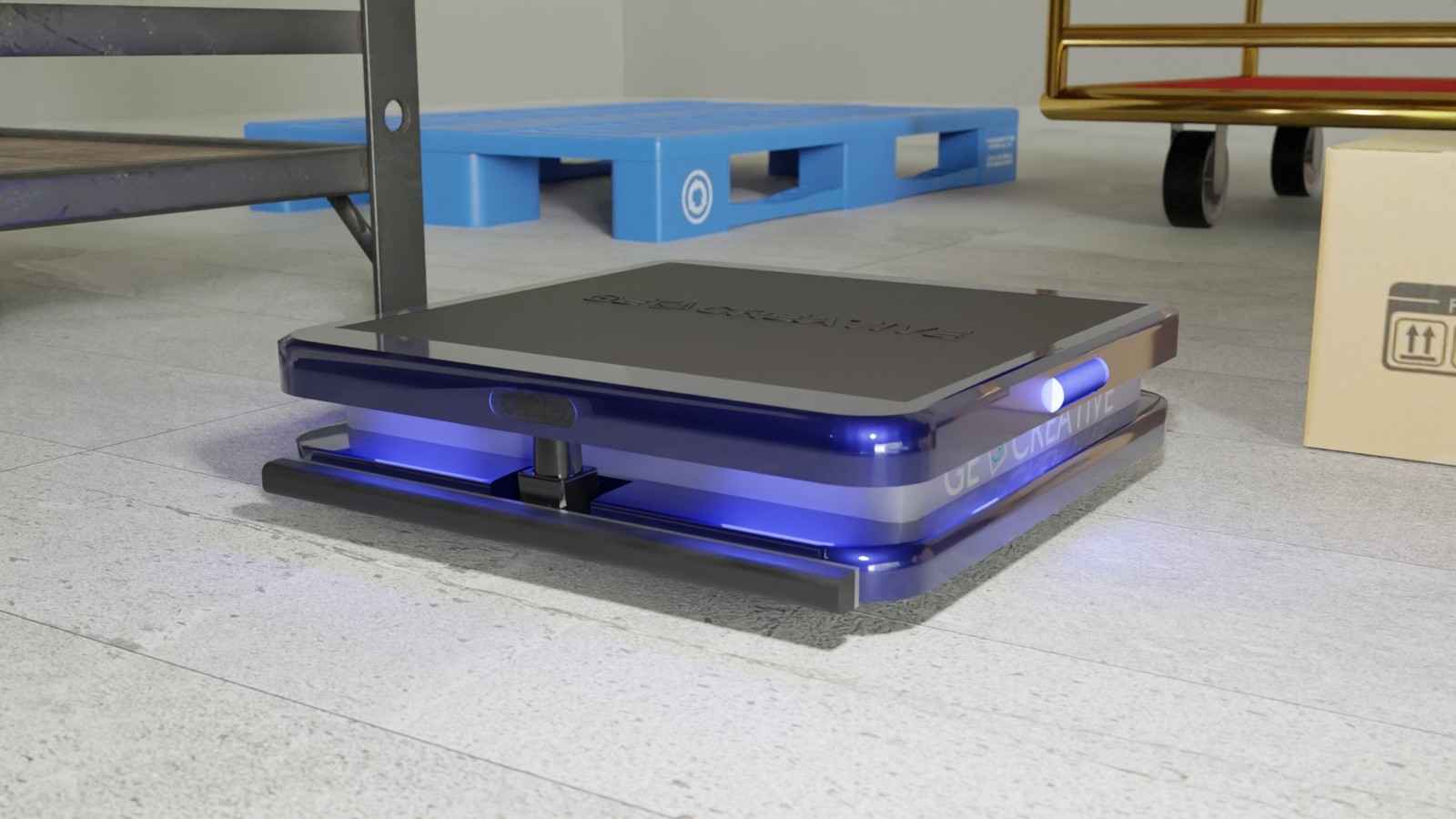

The AMR-180 is a compact lift-up autonomous mobile robot only 180 mm high with a square 600 x 600 mm footprint, small and nimble enough to carry roll cages through narrow aisles. It slides under the load, lifts it by 50 mm and, according to its spec sheet, carries up to 500 kg (marked provisional), with the size customisable. It navigates by 2D SLAM, with AGV guidance or Visual SLAM as options, travels at up to 50 m/min (3 km/h) with spin turns and runs 4 to 5 hours on a battery charged by cable, with automatic charging available. An emergency stop, obstacle sensors and a bumper sensor protect people, and destinations are set in a Web UI or through PLC linkage. The robot weighs 60 kg; YOKOIDO lists it among its non-promoted (built-to-order) models.
FEATURES
- Lift-up transport, lift +50 mm
- payload 500 kg (provisional)
- Height 180 mm
- 600 x 600 mm (customisable)
- 60 kg
- Max 50 m/min (3 km/h)
- 2D SLAM standard
- AGV or Visual SLAM as options
- Safety: emergency stop, obstacle sensors, bumper sensor
- Operating time 4-5 h
- cable charger, auto-charging on request
- Web UI set-up in the browser
- no construction work needed
- Forward/reverse, curves and spin turns
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 60 kg |
|---|---|
| Dimensions | L 600 mm × W 600 mm × H 180 mm |
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3 km/h |
| Environment | Factories and warehouses; roll-cage transport in narrow aisles |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR, obstacle sensors, bumper sensor |
| Connectivity | Wi-Fi 2.4/5 GHz; Bluetooth remote control; Web UI |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 60 kg |
|---|---|
| Dimensions | L 600 mm × W 600 mm × H 180 mm |
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3 km/h |
| Environment | Factories and warehouses; roll-cage transport in narrow aisles |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR, obstacle sensors, bumper sensor |
| Connectivity | Wi-Fi 2.4/5 GHz; Bluetooth remote control; Web UI |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AMR-180?
The AMR-180 is a compact lift-up autonomous mobile robot only 180 mm high with a square 600 x 600 mm footprint, small and nimble enough to carry roll cages through narrow aisles.
Who makes the AMR-180?
The AMR-180 is made by GE Creative, a robotics company based in Japan.
How much does the AMR-180 cost?
GE Creative has not publicly announced pricing for the AMR-180. You can enquire through RobotAIGeek for current pricing.
What is the AMR-180 used for?
The AMR-180 is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the AMR-180?
The AMR-180 has a payload capacity of 500 kg.
How much does the AMR-180 weigh?
The AMR-180 weighs 60 kg.
How fast is the AMR-180?
The AMR-180 can move at speeds of up to 3 km/h.
What is the battery life of the AMR-180?
The AMR-180 runs for about 300 minutes on a charge.
