DESCRIPTION
AMR-160 is a Mobile-Robots from GE Creative. It is built for Intralogistics, Material-Handling, Transport. Key figures: 130 kg, 300 min runtime, 500 kg payload.

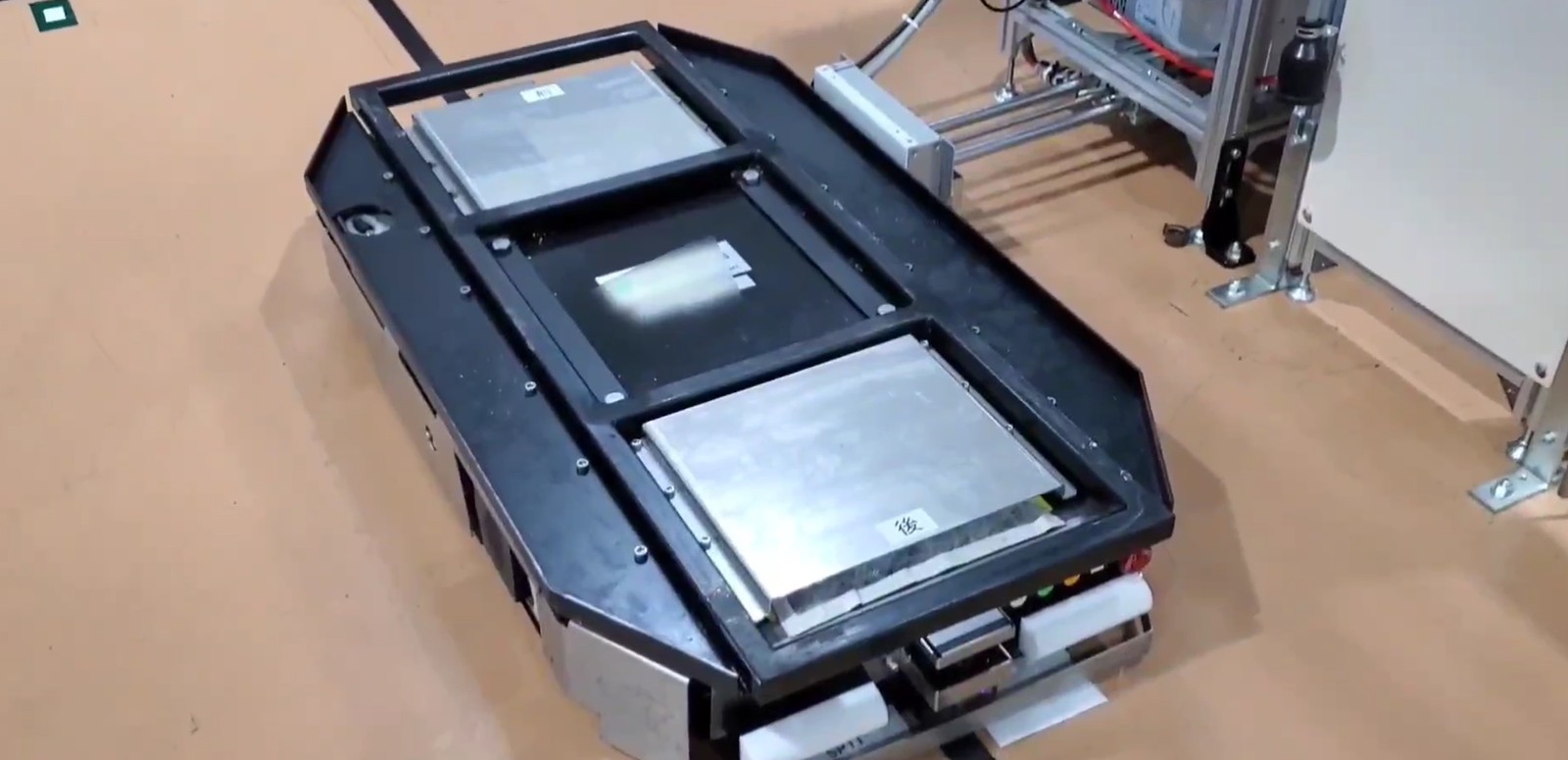

The AMR-160 is a lift-up autonomous mobile robot only 160 mm high - among the lowest in its class in Japan - with a slim 530 mm body that fits under special racks, lifting them by 30 mm and carrying up to 500 kg, or more with customisation. It is an AMR/AGV hybrid: 2D SLAM navigation as standard, with 3D SLAM, Visual SLAM or magnetic-tape AGV guidance as options for high stopping accuracy, and it can be fully automated through PLC linkage or a dedicated operating panel. The 950 x 530 x 160 mm robot weighs 130 kg, travels at up to 50 m/min (3 km/h) with spin turns, stops within +/-50 mm and runs 4 to 5 hours per charge. Two laser area sensors, two bumper switches and two emergency stops protect people, and destinations are set in a Web UI. YOKOIDO lists it among its non-promoted (built-to-order) models.
FEATURES
- Lift-up transport, lift +30 mm
- payload 500 kg (more with customisation)
- Height 160 mm
- 950 x 530 mm
- 130 kg
- Max 50 m/min (3 km/h)
- stop accuracy +/-50 mm
- 2D SLAM standard
- 3D SLAM, Visual SLAM, magnetic-tape AGV hybrid as options
- Safety: 2 laser area sensors, 2 bumper switches, 2 emergency stops
- Operating time 4-5 h
- cable charger, auto-charging on request
- Dedicated operating panel and PLC linkage for full automation
- Web UI set-up in the browser
- no construction work needed
- Forward/reverse, curves and spin turns
- Wi-Fi 2.4 or 5 GHz
- Bluetooth remote control
- PLC (control panel) linkage on request
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 130 kg |
|---|---|
| Dimensions | L 950 mm × W 530 mm × H 160 mm |
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3 km/h |
| Environment | Factories and warehouses; special racks and narrow spaces |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR, 2 laser area sensors, bumper switches, magnetic tape sensor (option) |
| Connectivity | Wi-Fi 2.4/5 GHz; Bluetooth remote control; Web UI |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 130 kg |
|---|---|
| Dimensions | L 950 mm × W 530 mm × H 160 mm |
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3 km/h |
| Environment | Factories and warehouses; special racks and narrow spaces |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR, 2 laser area sensors, bumper switches, magnetic tape sensor (option) |
| Connectivity | Wi-Fi 2.4/5 GHz; Bluetooth remote control; Web UI |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AMR-160?
The AMR-160 is a lift-up autonomous mobile robot only 160 mm high - among the lowest in its class in Japan - with a slim 530 mm body that fits under special racks, lifting them by 30 mm and carrying up to 500 kg, or more with customisation.
Who makes the AMR-160?
The AMR-160 is made by GE Creative, a robotics company based in Japan.
How much does the AMR-160 cost?
GE Creative has not publicly announced pricing for the AMR-160. You can enquire through RobotAIGeek for current pricing.
What is the AMR-160 used for?
The AMR-160 is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the AMR-160?
The AMR-160 has a payload capacity of 500 kg.
How much does the AMR-160 weigh?
The AMR-160 weighs 130 kg.
How fast is the AMR-160?
The AMR-160 can move at speeds of up to 3 km/h.
What is the battery life of the AMR-160?
The AMR-160 runs for about 300 minutes on a charge.
