DESCRIPTION

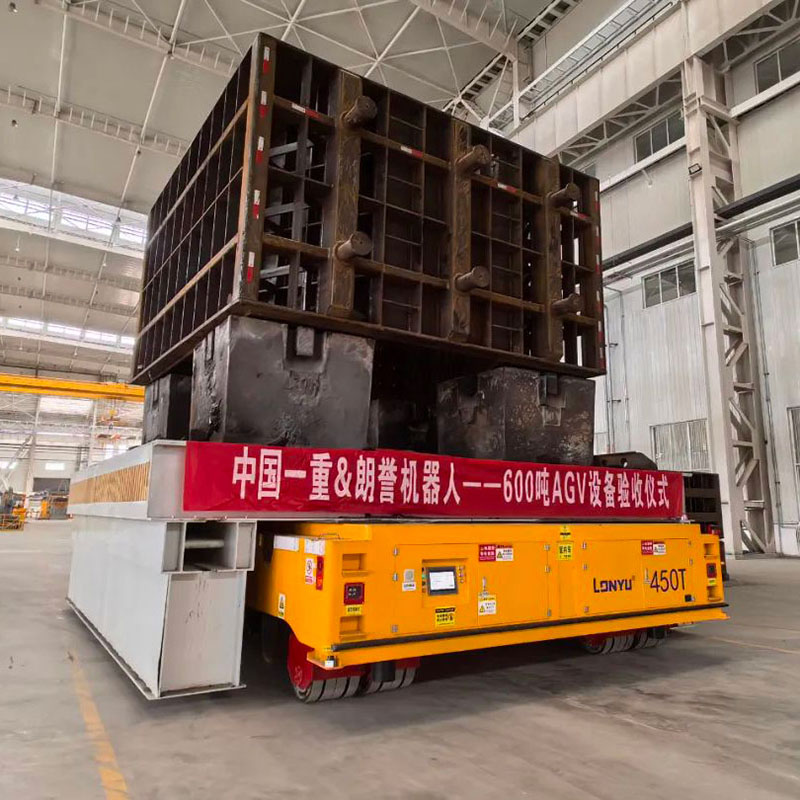

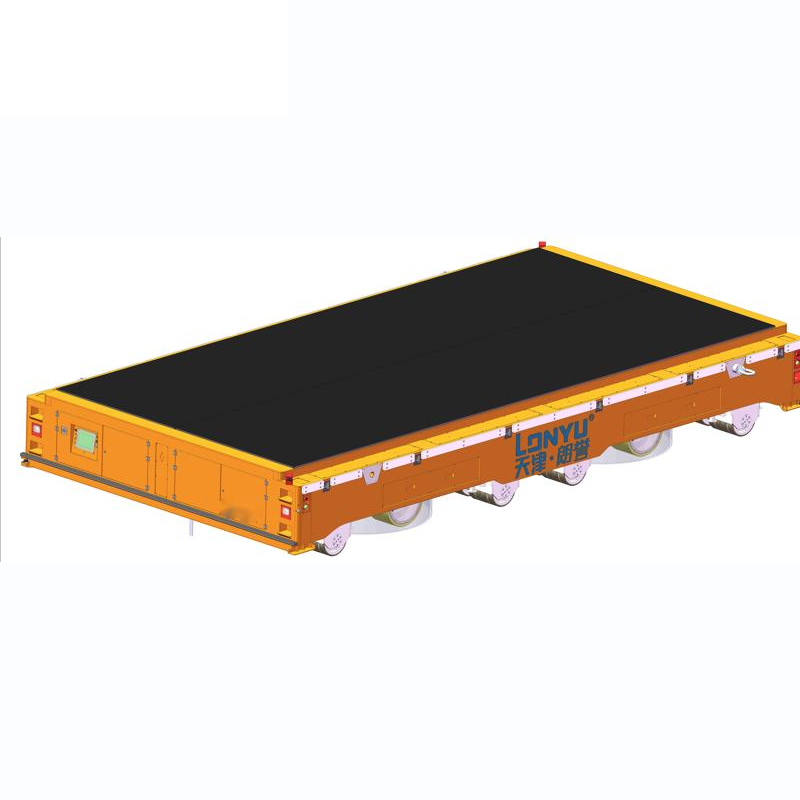

The 600 t Heavy Duty AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 600 t. Lonyu designates it LY-1-450(600)T-416-A. It has a body measuring 8500 mm long, 4540 mm wide and 1200 mm high and an unladen mass of 50 t. Mechanically, the chassis uses differential drive; suspension is hydraulic suspension. Lonyu describes its movement as: The whole vehicle can realize forward and backward straight travel, left and right straight travel, in-situ rotation and turning movement in the plane under no-load and full-load conditions. It navigates by remote control, is commanded by wireless remote. For power and motion, it runs on Lithium Iron Phosphate Battery , 96V/ 600 Ah; charging is manual charging; travel speed is 0-25m / min. On safety, safety is handled by laser obstacle avoidance sensor + contact collision avoidance + sound and light warning + emergency stop; braking distance is Full load braking ≤500mm, no-load braking distance ≤300mm; ingress protection is IP44 /IP65; it climbs gradients of ≤5°. Lonyu rates it for indoor and outdoor work. It has no lifting stroke - the deck is fixed.
FEATURES
- Rated load: 600 t
- Unladen mass: 50 t
- Body dimensions: 8500 x 4540 x 1200 mm
- Lifting stroke: none (fixed deck)
- Chassis: differential drive
- Navigation: remote control
- Control: wireless remote
- Travel speed: 0-25m / min
- Battery: Lithium Iron Phosphate Battery , 96V/ 600 Ah
- Charging: Manual charging
- Suspension: Hydraulic suspension
- Gradeability: ≤5°
- Braking distance: Full load braking ≤500mm, no-load braking distance ≤300mm
- Protection rating: IP44 /IP65
- Safety systems: Laser obstacle avoidance sensor + contact collision avoidance + sound and light warning + emergency stop
- Operating environment: Indoor and outdoor work
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 50000 kg |
|---|---|
| Dimensions | L 8.5 m × W 4.54 m × H 1.2 m |
| Payload | 600000 kg |
| Mobility | |
| Speed | 1.5 km/h |
| Environment | Indoor and outdoor work |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 50000 kg |
|---|---|
| Dimensions | L 8.5 m × W 4.54 m × H 1.2 m |
| Payload | 600000 kg |
| Mobility | |
| Speed | 1.5 km/h |
| Environment | Indoor and outdoor work |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 600 t Heavy Duty AGV?
The 600 t Heavy Duty AGV is a Backpack Heavy-duty AGV built by Lonyu AGV, rated to carry 600 t. Lonyu designates it LY-1-450(600)T-416-A. It has a body measuring 8500 mm long, 4540 mm wide and 1200 mm high and an unladen mass of 50 t.
Who makes the 600 t Heavy Duty AGV?
The 600 t Heavy Duty AGV is made by Lonyu Agv.
How much does the 600 t Heavy Duty AGV cost?
Lonyu Agv has not publicly announced pricing for the 600 t Heavy Duty AGV. You can enquire through RobotAIGeek for current pricing.
What is the 600 t Heavy Duty AGV used for?
The 600 t Heavy Duty AGV is designed for transport.
What is the payload capacity of the 600 t Heavy Duty AGV?
The 600 t Heavy Duty AGV has a payload capacity of 600,000 kg.
How much does the 600 t Heavy Duty AGV weigh?
The 600 t Heavy Duty AGV weighs 50,000 kg.
How fast is the 600 t Heavy Duty AGV?
The 600 t Heavy Duty AGV can move at speeds of up to 1.5 km/h.
