DESCRIPTION
6 Axis SZGH-M1850-3C-6 Grinding Robot Arm is an Industrial-Robot from SZGH Automation. It is built for Grinding, Polishing. Key figures: 270 kg, 30 kg payload, 1850 mm reach, 6 degrees of freedom.

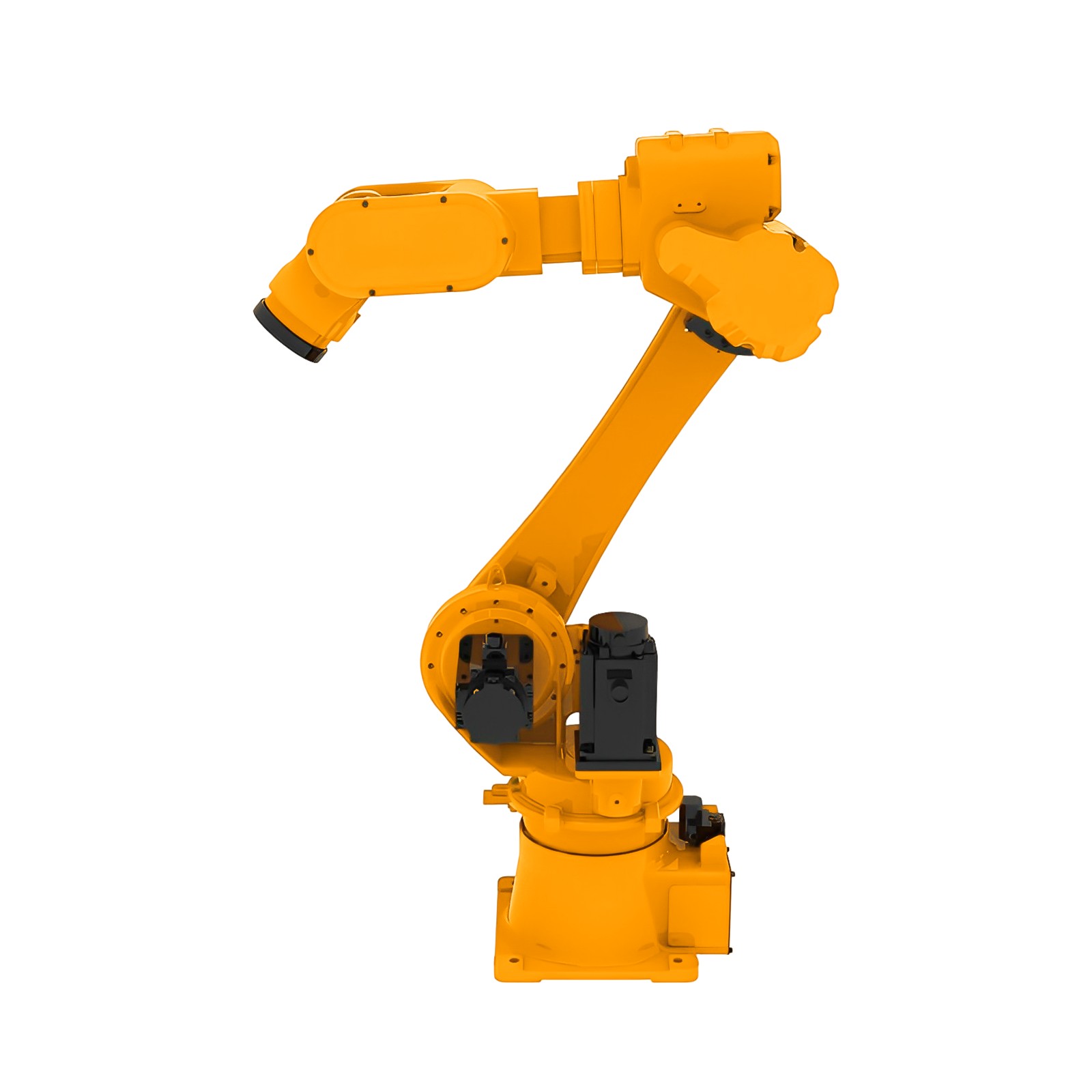

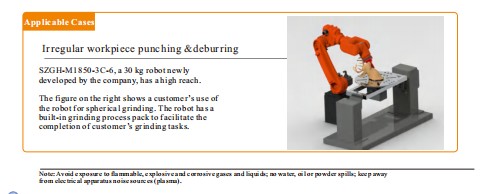

The SZGH-M1850-3C-6 is a six-axis articulated industrial robot arm from ShenZhen GuanHong Automation (SZGH) built for grinding, polishing and deburring. It carries 30 kg over a 1850 mm reach with ±0.05 mm repeatability, weighs about 270 kg, and mounts on the floor, a bracket or the ceiling. SZGH describes it as a high-reach 30 kg robot for spherical grinding, used in customer cells for irregular-workpiece punching and deburring.
FEATURES
- Six-axis articulated arm for grinding, polishing and deburring
- Payload 30 kg
- Reach 1850 mm
- Repeatability ±0.05 mm

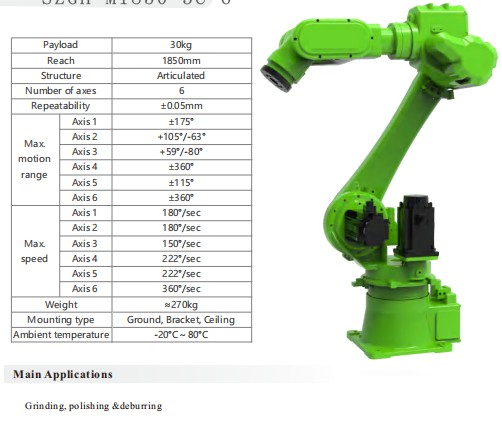

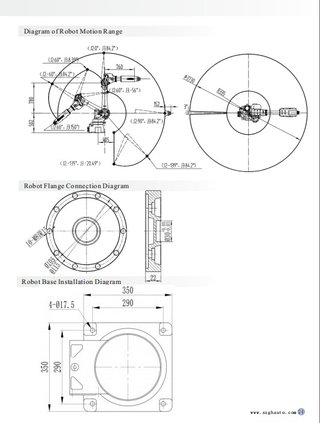

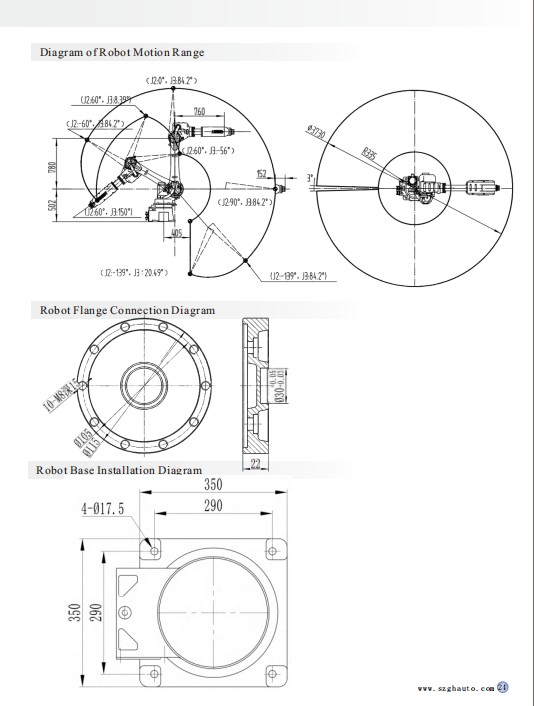

- Axis ranges: J1 ±175°, J2 +105°/-63°, J3 +59°/-80°, J4 ±360°, J5 ±115°, J6 ±360°
- Max axis speeds: J1 180°/s, J2 180°/s, J3 150°/s, J4 222°/s, J5 222°/s, J6 360°/s
- Weight about 270 kg
- Floor, bracket or ceiling mounting
- Ambient temperature -20°C to 80°C
- Controller display in Chinese, English, Russian, Vietnamese and Korean
- 2-year warranty and lifelong technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 270 kg |
|---|---|
| Payload | 30 kg |
| Reach | 1.85 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature -20°C to 80°C |
| Actuators | Six-axis articulated arm, servo-driven |
| Sensing & Compute | |
| Software / AI | Robot controller with multilingual display (Chinese, English, Russian, Vietnamese, Korean) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 270 kg |
|---|---|
| Payload | 30 kg |
| Reach | 1.85 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature -20°C to 80°C |
| Actuators | Six-axis articulated arm, servo-driven |
| Sensing & Compute | |
| Software / AI | Robot controller with multilingual display (Chinese, English, Russian, Vietnamese, Korean) |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm?
The SZGH-M1850-3C-6 is a six-axis articulated industrial robot arm from ShenZhen GuanHong Automation (SZGH) built for grinding, polishing and deburring. It carries 30 kg over a 1850 mm reach with ±0.05 mm repeatability, weighs about 270 kg, and mounts on the floor, a bracket or the ceiling.
Who makes the 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm?
The 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm is made by SZGH Automation, a robotics company based in China.
How much does the 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm cost?
SZGH Automation has not publicly announced pricing for the 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm. You can enquire through RobotAIGeek for current pricing.
What is the 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm used for?
The 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm is designed for grinding and polishing. It is used in manufacturing settings.
What is the payload capacity of the 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm?
The 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm has a payload capacity of 30 kg and a reach of 1.85 m.
How much does the 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm weigh?
The 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm weighs 270 kg.
How many degrees of freedom does the 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm have?
The 6 Axis SZGH-M1850-3C-6 Grinding Robot Arm has 6 degrees of freedom.
