Shenhao L3 Indoor Rail Hanging Inspection Robot

Shenhao Technology
Mobile-RobotsChinaChina출시됨
Shenhao L3 Indoor Rail Hanging Inspection Robot
비교
출처:
shenhaorobotics.com
산업:
에너지제조보안·순찰
용도:
점검모니터링Power distribution room inspectionrelay protection room monitoringswitch room partial discharge detectionfault diagnosis and early warning
가격:
미공개

설명

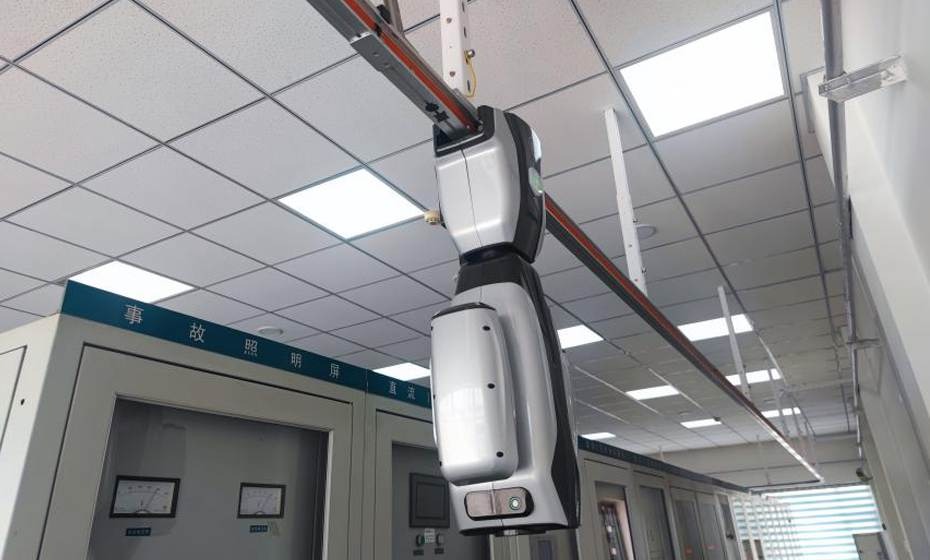

The L3, factory-coded STIR-3000, hangs from a rail in the ceiling rather than driving on the floor, which in a switch room is the difference between a robot that works and one that is permanently blocked by trolleys, cable drums and open cubicle doors. Suspended on its track it runs a fixed route with millimetre-level positioning to ±2 mm, lowering a pan-tilt head up to 1600 mm to bring sensors down to equipment level and retracting out of the way afterwards. Because it draws power from a sliding contact line it can run 24 hours without stopping to charge, with a lithium battery giving at least five hours if the line is unavailable. Its detection set is unusually complete for partial discharge: ultrasonic, ground wave and ultra-high frequency together, alongside infrared temperature measurement, visible-light recognition and environmental monitoring.

주요 기능

  • Rail-suspended design running on a ceiling-mounted track, avoiding floor obstructions
  • Millimetre-level positioning with an accuracy of ±2 mm (specification table states ±10 mm or better)
  • Maximum lifting stroke of 1600 mm on a lifting pan-tilt head
  • Sliding-line power supply for 24-hour non-stop operation
  • lithium battery giving not less than 5 hours
  • Maximum operating speed 1 m/s
  • minimum turning radius 300 mm
  • Multi-in-one partial discharge detection: ultrasonic, ground wave and ultra-high frequency
  • Infrared temperature measurement and visible light recognition
  • Environmental monitoring
  • 24 V DC carrier and wireless WiFi communication
  • Miniaturised, lightweight and modular for easy deployment
  • Used in power distribution rooms, relay protection rooms and switch rooms

기술 사양

검증됨
이동성
이동 방식기타
속도3.6 km/h
작동 환경Indoor power distribution rooms, relay protection rooms and switch rooms
액추에이터Ceiling rail-suspended carriage with a lifting pan-tilt head, powered by a sliding contact line or lithium battery
전원
배터리 지속 시간24 h on sliding line; ≥5 h on battery
센싱 & 컴퓨팅
센서visible light camera, infrared thermal imager, ultrasonic partial discharge sensor, ground wave sensor, UHF partial discharge sensor
제조사 출처서드파티 출처출처 없음출처 상태는 이 로봇에 등록된 출처를 기준으로 합니다.

자주 묻는 질문

What is the Shenhao L3 Indoor Rail Hanging Inspection Robot?

The L3, factory-coded STIR-3000, hangs from a rail in the ceiling rather than driving on the floor, which in a switch room is the difference between a robot that works and one that is permanently blocked by trolleys, cable drums and open cubicle doors.

Who makes the Shenhao L3 Indoor Rail Hanging Inspection Robot?

The Shenhao L3 Indoor Rail Hanging Inspection Robot is made by Shenhao Technology, a robotics company based in China.

How much does the Shenhao L3 Indoor Rail Hanging Inspection Robot cost?

Shenhao Technology has not publicly announced pricing for the Shenhao L3 Indoor Rail Hanging Inspection Robot. You can enquire through RobotAIGeek for current pricing.

What is the Shenhao L3 Indoor Rail Hanging Inspection Robot used for?

The Shenhao L3 Indoor Rail Hanging Inspection Robot is designed for 점검, 모니터링, power distribution room inspection, and relay protection room monitoring. It is used in 에너지, 제조, and 보안·순찰 settings.

How fast is the Shenhao L3 Indoor Rail Hanging Inspection Robot?

The Shenhao L3 Indoor Rail Hanging Inspection Robot can move at speeds of up to 3.6 km/h.

What is the battery life of the Shenhao L3 Indoor Rail Hanging Inspection Robot?

The Shenhao L3 Indoor Rail Hanging Inspection Robot runs for 24 h on sliding line; ≥5 h on battery on a charge.
