설명
Mecabot X은(는) Roboworks의 Educational-Robots입니다. 개발, 내비게이션, 연구 용도로 설계되었습니다. 주요 수치: 가동 시간 240분, 가반 하중 60 kg, 가격 $8,275–$12,131.
Mecabot X is the enclosed version of Roboworks' Mecabot Plus - a 60 kg-payload mecanum-wheel AMR in a full metal enclosure, intended as a ready-to-ship base for indoor service robots in factories, warehouses, hospitals, transport hubs, offices, hotels and restaurants. Four 152 mm mecanum wheels with independent suspension and 100 W motors move it in any direction at up to 1.39 m/s. Inside are a Jetson Orin Nano or NX ROS computer, LiDAR, depth camera and STM32 controller, powered by a swappable 24 V LFP battery good for about four hours. XAC versions add Auto Charge and a radio remote. Prices run from US$8,275 to US$12,131.
주요 기능
- Full metallic enclosure
- ready-to-ship base for indoor service robots
- 152 mm mecanum wheels with independent suspension
- omnidirectional
- Max payload 60 kg
- max speed 1.39 m/s
- Jetson Orin Nano or Orin NX ROS computer
- LS LiDAR
- Orbbec depth camera
- STM32 controller
- MD60 100 W brushed DC motors, 1:18 reduction
- 24 V 6,100 mAh LFP battery: 4 h unloaded, 3 h loaded
- Models: Mecabot X and Mecabot XAC (Auto Charge, with radio remote)
- Pre-loaded Ubuntu 22.04, ROS 2 Humble and MiROS cloud-based visual ROS DevKit
- Power Mag magnetic LFP battery for quick swaps
- optional Auto Charge docking station
- I/O: CAN, serial, USB, HDMI
- iOS/Android remote-control apps
- STP and URDF files provided
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 60 kg |
|---|---|
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 5 km/h |
| 작동 환경 | Indoor labs and service environments |
| 액추에이터 | MD60 100 W brushed DC motors, mecanum wheels, independent suspension |
| 전원 | |
| 배터리 지속 시간 | 240 min |
| 센싱 & 컴퓨팅 | |
| 센서 | LS LiDAR, Orbbec depth camera, IMU |
| 소프트웨어 / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
기술 사양
검증됨| 물리 사양 | |
| 가반하중 | 60 kg |
|---|---|
| 이동성 | |
| 이동 방식 | 바퀴형 |
| 속도 | 5 km/h |
| 작동 환경 | Indoor labs and service environments |
| 액추에이터 | MD60 100 W brushed DC motors, mecanum wheels, independent suspension |
| 전원 | |
| 배터리 지속 시간 | 240 min |
| 센싱 & 컴퓨팅 | |
| 센서 | LS LiDAR, Orbbec depth camera, IMU |
| 소프트웨어 / AI | Ubuntu 22.04; ROS 2 Humble; MiROS |
이미지
martti
이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the Mecabot X?
Mecabot X is the enclosed version of Roboworks' Mecabot Plus - a 60 kg-payload mecanum-wheel AMR in a full metal enclosure, intended as a ready-to-ship base for indoor service robots in factories, warehouses, hospitals, transport hubs, offices, hotels and restaurants.
Who makes the Mecabot X?
The Mecabot X is made by Roboworks, a robotics company based in Australia.
How much does the Mecabot X cost?
Pricing for the Mecabot X ranges from $8,275 to $12,131.
What is the Mecabot X used for?
The Mecabot X is designed for 개발, 내비게이션, 연구, and 교육. It is used in 연구, 교육, and 창고·물류 settings.
What is the payload capacity of the Mecabot X?
The Mecabot X has a payload capacity of 60 kg.
How fast is the Mecabot X?
The Mecabot X can move at speeds of up to 5 km/h.
What is the battery life of the Mecabot X?
The Mecabot X runs for about 240 minutes on a charge.
유사 로봇과 비교
이 로봇이 가장 가까운 대안들과 어떻게 비교되는지 확인하세요
- Mecabot X vs Mecabot Plus
- Mecabot X vs Mecabot 2
- Mecabot X vs Mecabot Pro
- Mecabot X vs Rosbot Pro

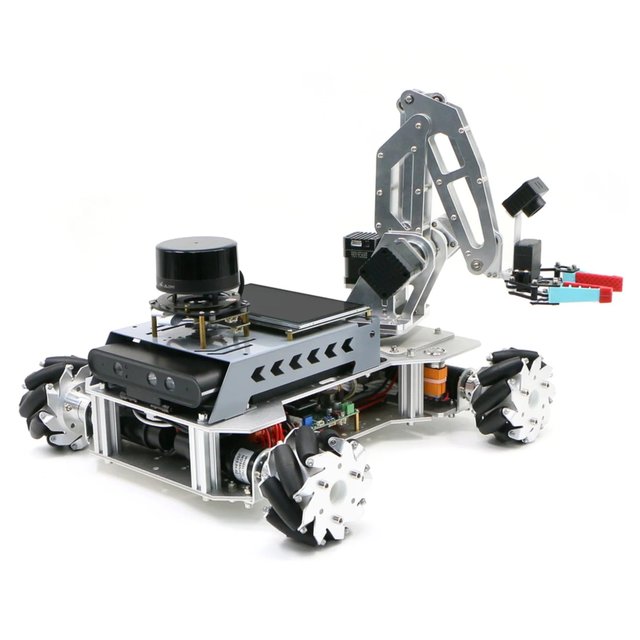

- Mecabot X vs Pickerbot Pro
