설명

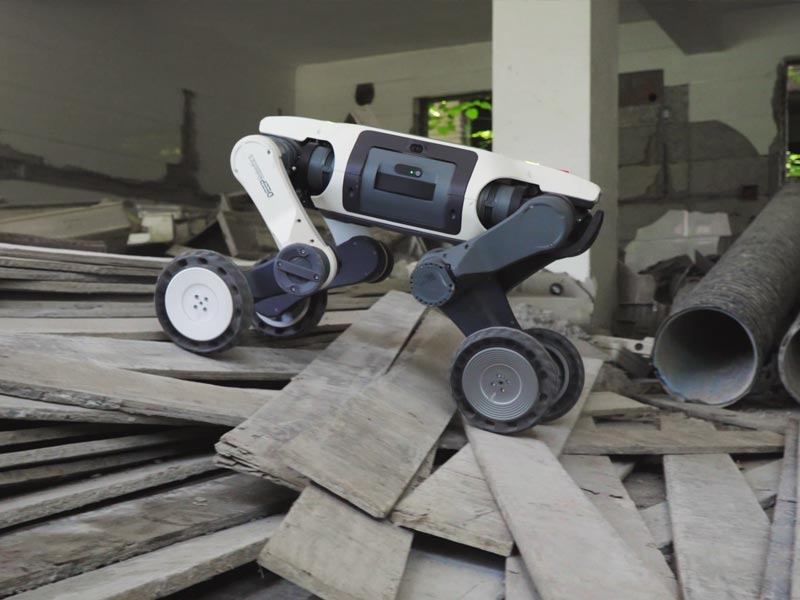

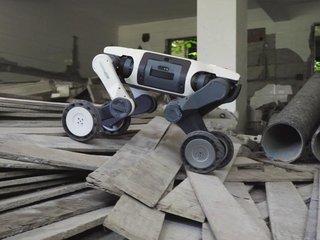

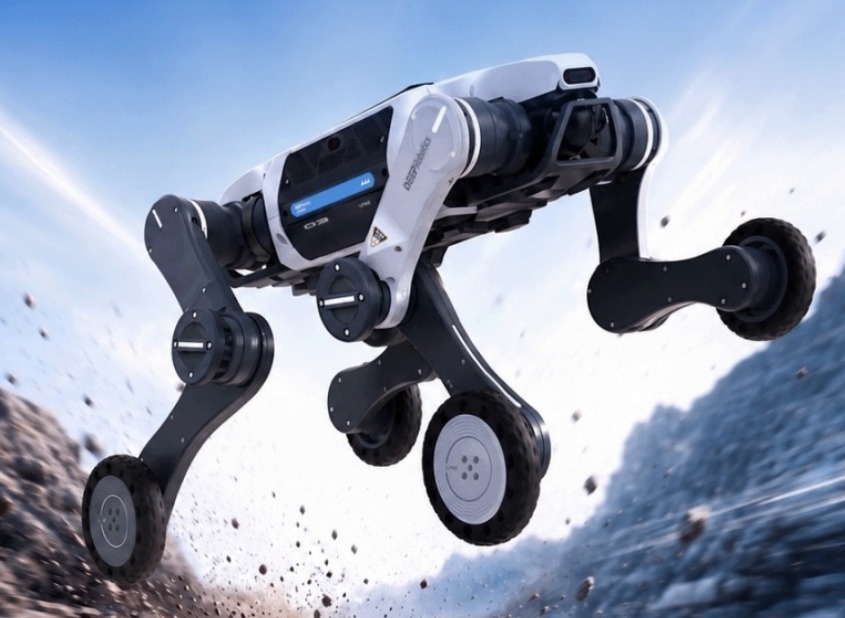

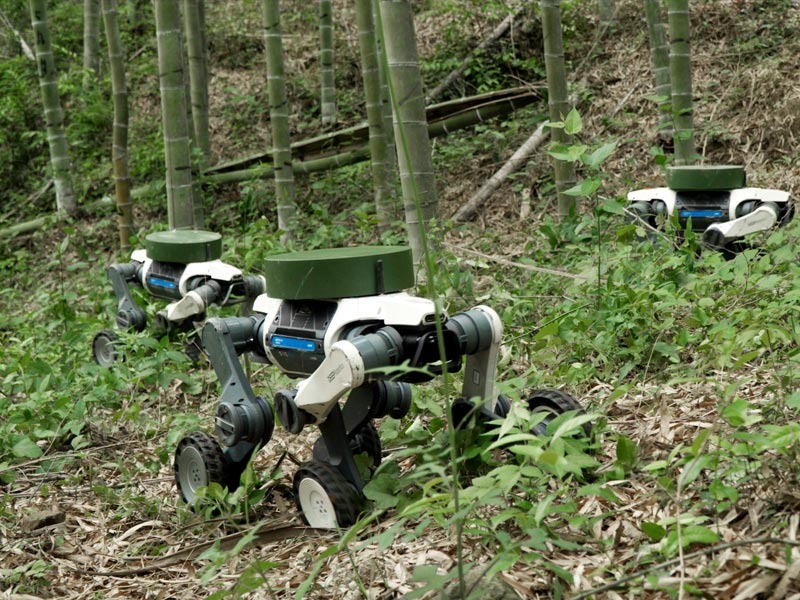

The Lynx S10 is DEEP Robotics' compact wheel-legged quadruped — under 20 kg, yet tested above 8 m/s, which makes it the fastest machine in the company's line-up. Advanced embodied motion control lets it perform dynamic manoeuvres well beyond walking: bipedal standing, forward sliding and reverse sliding on its wheeled feet. Perception is deliberately omnidirectional, with four ultra-wide-angle cameras and dual front-and-rear LiDAR sensors feeding a next-generation sensor architecture whose hardware-level time synchronisation is what keeps localisation accurate at those speeds. IP66 protection handles dust and heavy rain, and a -20 °C to 55 °C operating range supports all-weather, all-terrain deployment.
주요 기능
- Compact wheel-legged quadruped weighing 20 kg or less including battery, portable by one person
- Flat-ground top speed of 8 m/s
- Clears obstacles up to 50 cm high
- Next-generation AI motion control and gait algorithm supporting extreme manoeuvres including bipedal standing, forward sliding and reverse sliding
- Omnidirectional sensing with four ultra-wide-angle cameras and dual front-and-rear LiDAR
- Hardware-level time synchronisation across the sensor architecture for precise localisation at speed
- Autonomous path planning and intelligent obstacle avoidance, completing tasks without human intervention

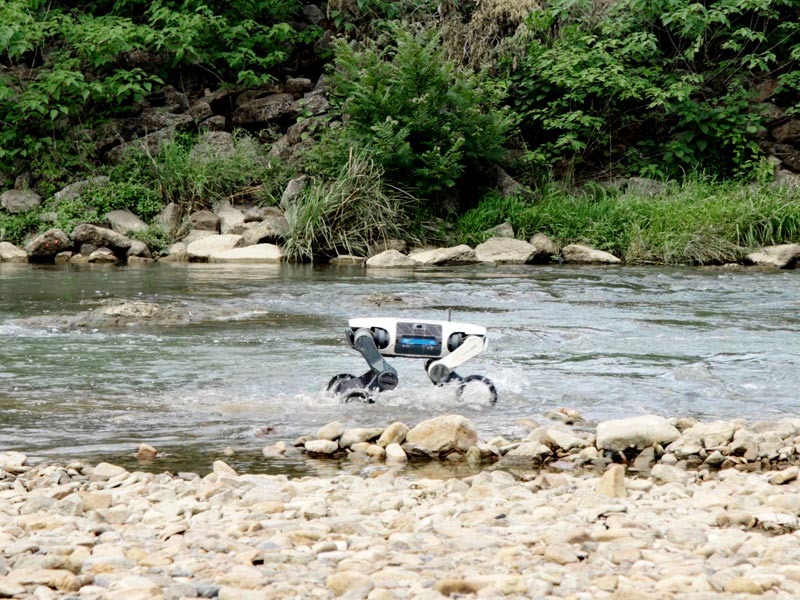

- IP66 protection against dust, heavy rain and humid or foggy conditions
- Operating temperature range of -20 °C to 55 °C

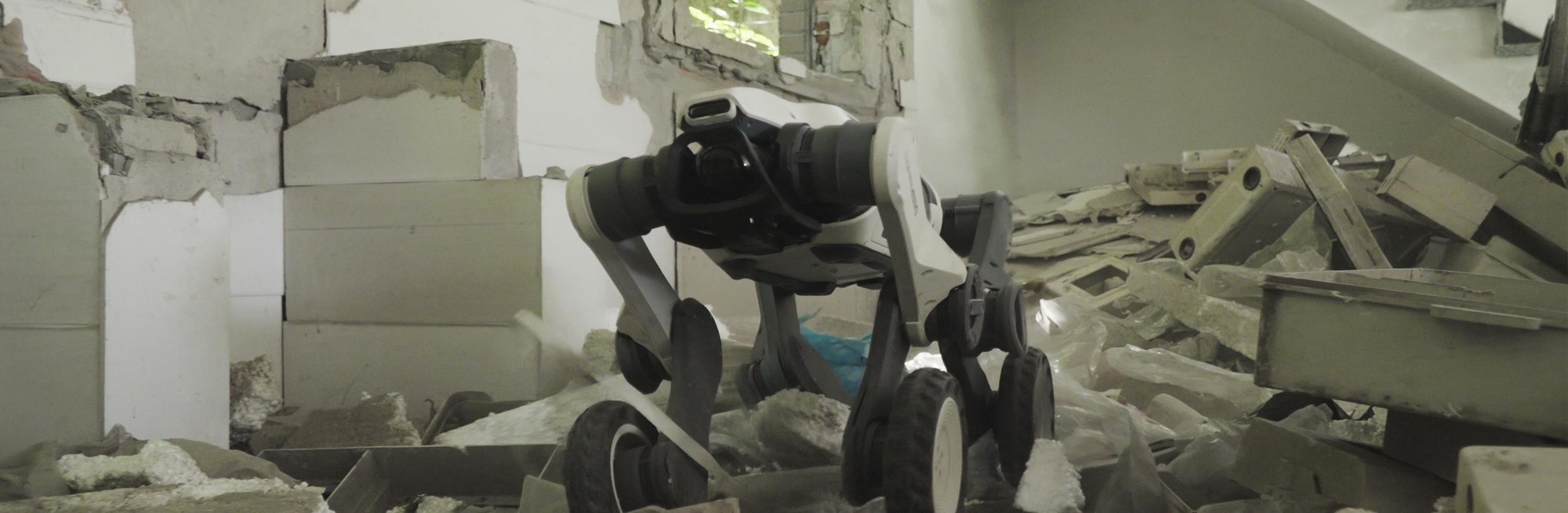

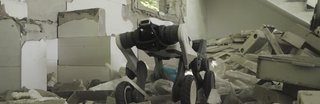

- Passes through narrow passages and rubble gaps that larger robots cannot reach
기술 사양
검증됨| 물리 사양 | |
| 무게 | 20 kg |
|---|---|
| 이동성 | |
| 이동 방식 | 사족보행, 바퀴형 |
| 속도 | 28.8 km/h |
| 조작 능력 | 낮음 |
| 작동 환경 | All-weather, all-terrain; dust and heavy-rain resistant, IP66, -20°C to 55°C |
| 센싱 & 컴퓨팅 | |
| 센서 | 4x ultra-wide-angle camera, front LiDAR, rear LiDAR, hardware-level time-synchronised sensor architecture |
| 소프트웨어 / AI | Advanced embodied motion control with dynamic manoeuvre support |
기술 사양
검증됨| 물리 사양 | |
| 무게 | 20 kg |
|---|---|
| 이동성 | |
| 이동 방식 | 사족보행, 바퀴형 |
| 속도 | 28.8 km/h |
| 조작 능력 | 낮음 |
| 작동 환경 | All-weather, all-terrain; dust and heavy-rain resistant, IP66, -20°C to 55°C |
| 센싱 & 컴퓨팅 | |
| 센서 | 4x ultra-wide-angle camera, front LiDAR, rear LiDAR, hardware-level time-synchronised sensor architecture |
| 소프트웨어 / AI | Advanced embodied motion control with dynamic manoeuvre support |
이미지
martti
martti
martti
martti
martti이미지 기여
동영상
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the Lynx S10?
The Lynx S10 is DEEP Robotics' compact wheel-legged quadruped — under 20 kg, yet tested above 8 m/s, which makes it the fastest machine in the company's line-up.
Who makes the Lynx S10?
The Lynx S10 is made by DEEP Robotics (Hangzhou Yunshenchu Technology Co., Ltd.), a robotics company based in China.
How much does the Lynx S10 cost?
DEEP Robotics (Hangzhou Yunshenchu Technology Co., Ltd.) has not publicly announced pricing for the Lynx S10. You can enquire through RobotAIGeek for current pricing.
What is the Lynx S10 used for?
The Lynx S10 is designed for 순찰, security patrol, industrial inspection, and all-terrain mobility research. It is used in 연구, 제조, and 보안·순찰 settings.
How much does the Lynx S10 weigh?
The Lynx S10 weighs 20 kg.
How fast is the Lynx S10?
The Lynx S10 can move at speeds of up to 28.8 km/h.
