説明
miniはBlueBoticsのMobile-Robotsです。 マテリアルハンドリング、搬送、Cleanroom and laboratory material transport向けに設計されています。 主な数値：70 kg、稼働時間 360 分、可搬質量 150 kg。

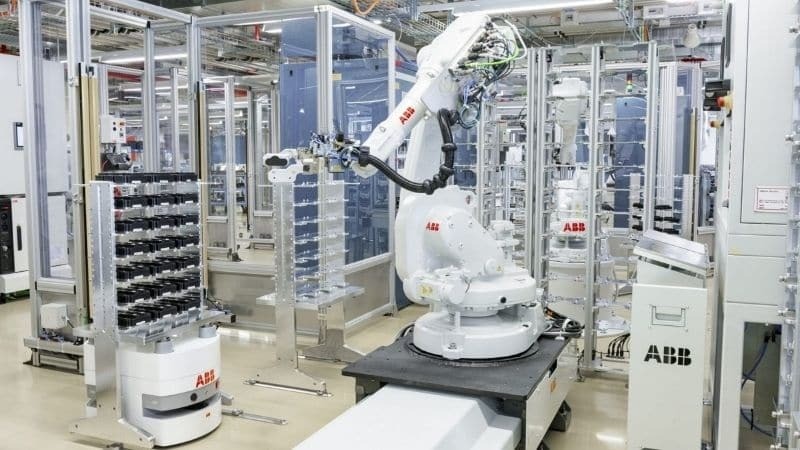

The BlueBotics mini is a compact, low-particle-emission autonomous mobile robot (AMR) platform for cleanrooms, laboratories and light material handling of boxes, racks and trays, and a base for integrating small industrial robots or cobots. Driven by BlueBotics' ANT natural-feature navigation and fleet-ready with ANT server, it has an articulated chassis and can be fitted with lift or conveyor modules, custom modules and an obstacle-avoidance option. It measures 40 x 30 x 59 cm (W x H x L), weighs 70 kg (modules 15-25 kg), carries up to 150 kg at up to 1.5 m/s, runs for more than 6 hours, charges in 1.2 hours with automatic recharging included, and has a 360-degree laser-scanner safety field. BlueBotics developed it for ABB's award-winning Project Genesis in Lenzburg, Switzerland, where modified mini robots transfer materials between ABB robots to automate semiconductor production.
特長
- Low particle emission AMR platform for cleanrooms and labs
- Compact articulated chassis
- 40 x 30 x 59 cm (W x H x L)
- Payload 150 kg
- platform weight 70 kg
- Max speed 1.5 m/s
- >6 h autonomy
- 1.2 h charge
- automatic recharging included
- 360-degree laser scanner safety field
- Lift, conveyor and custom module options
- ANT natural-feature navigation
- ANT lab + ANT server fleet management
- Developed for ABB Project Genesis (Lenzburg)
技術仕様
検証済み| 本体 | |
| 重量 | 70 kg |
|---|---|
| 寸法 | L 590 mm × W 400 mm × H 300 mm |
| 可搬重量 | 150 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 5.4 km/h |
| 使用環境 | Cleanrooms, laboratories and indoor production areas |
| 電源 | |
| バッテリー駆動時間 | 360 min |
ロボットフォーラム
フォーラムを読み込み中...
技術仕様
検証済み| 本体 | |
| 重量 | 70 kg |
|---|---|
| 寸法 | L 590 mm × W 400 mm × H 300 mm |
| 可搬重量 | 150 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 速度 | 5.4 km/h |
| 使用環境 | Cleanrooms, laboratories and indoor production areas |
| 電源 | |
| バッテリー駆動時間 | 360 min |
画像
martti
martti
martti投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the mini?
The BlueBotics mini is a compact, low-particle-emission autonomous mobile robot (AMR) platform for cleanrooms, laboratories and light material handling of boxes, racks and trays, and a base for integrating small industrial robots or cobots.
Who makes the mini?
The mini is made by BlueBotics, a robotics company based in Switzerland.
How much does the mini cost?
BlueBotics has not publicly announced pricing for the mini. You can enquire through RobotAIGeek for current pricing.
What is the mini used for?
The mini is designed for マテリアルハンドリング, 搬送, cleanroom and laboratory material transport, and base platform for custom amrs. It is used in 倉庫・物流 and 製造 settings.
What is the payload capacity of the mini?
The mini has a payload capacity of 150 kg.
How much does the mini weigh?
The mini weighs 70 kg.
How fast is the mini?
The mini can move at speeds of up to 5.4 km/h.
What is the battery life of the mini?
The mini runs for about 360 minutes on a charge.
