説明

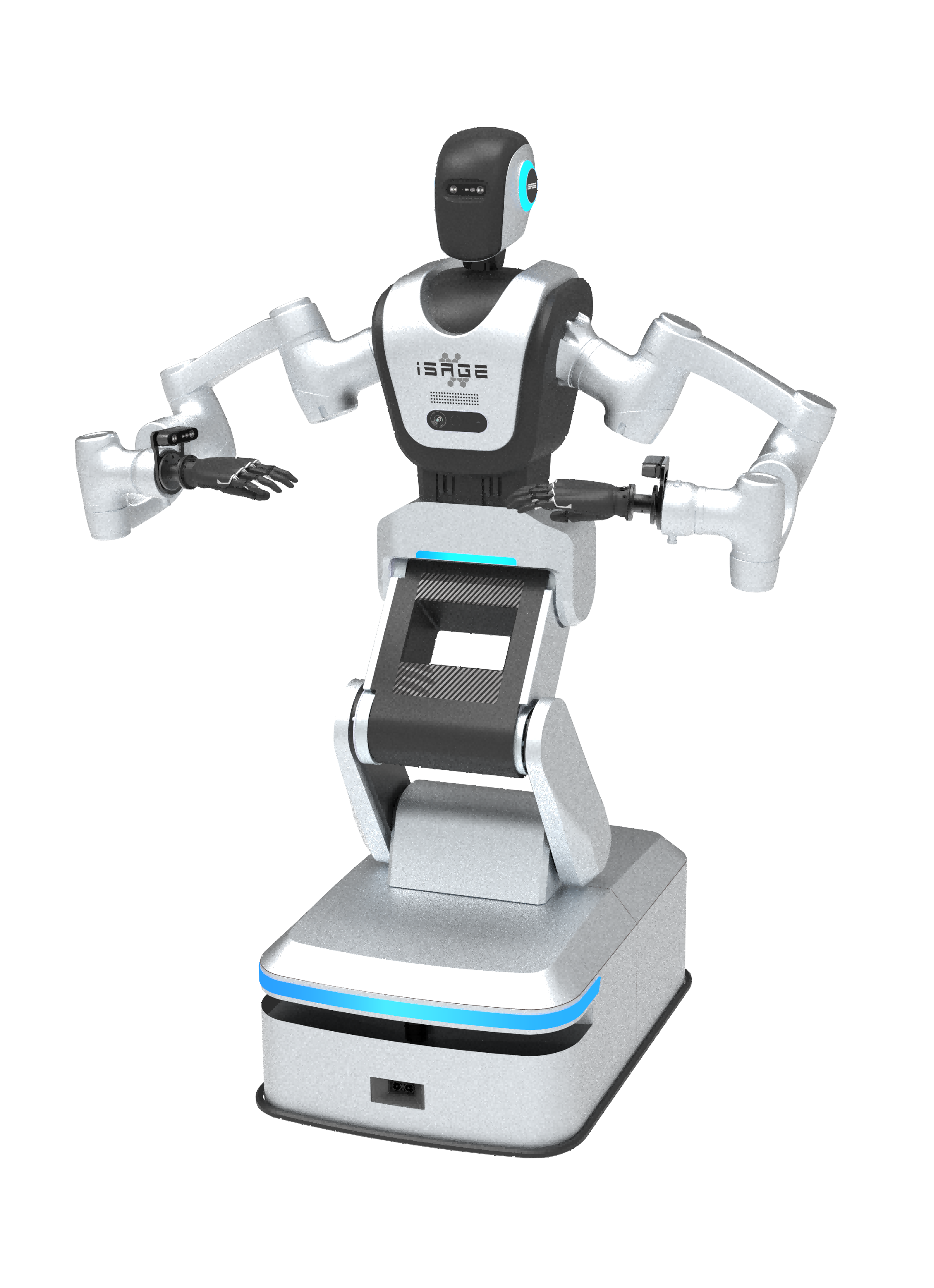

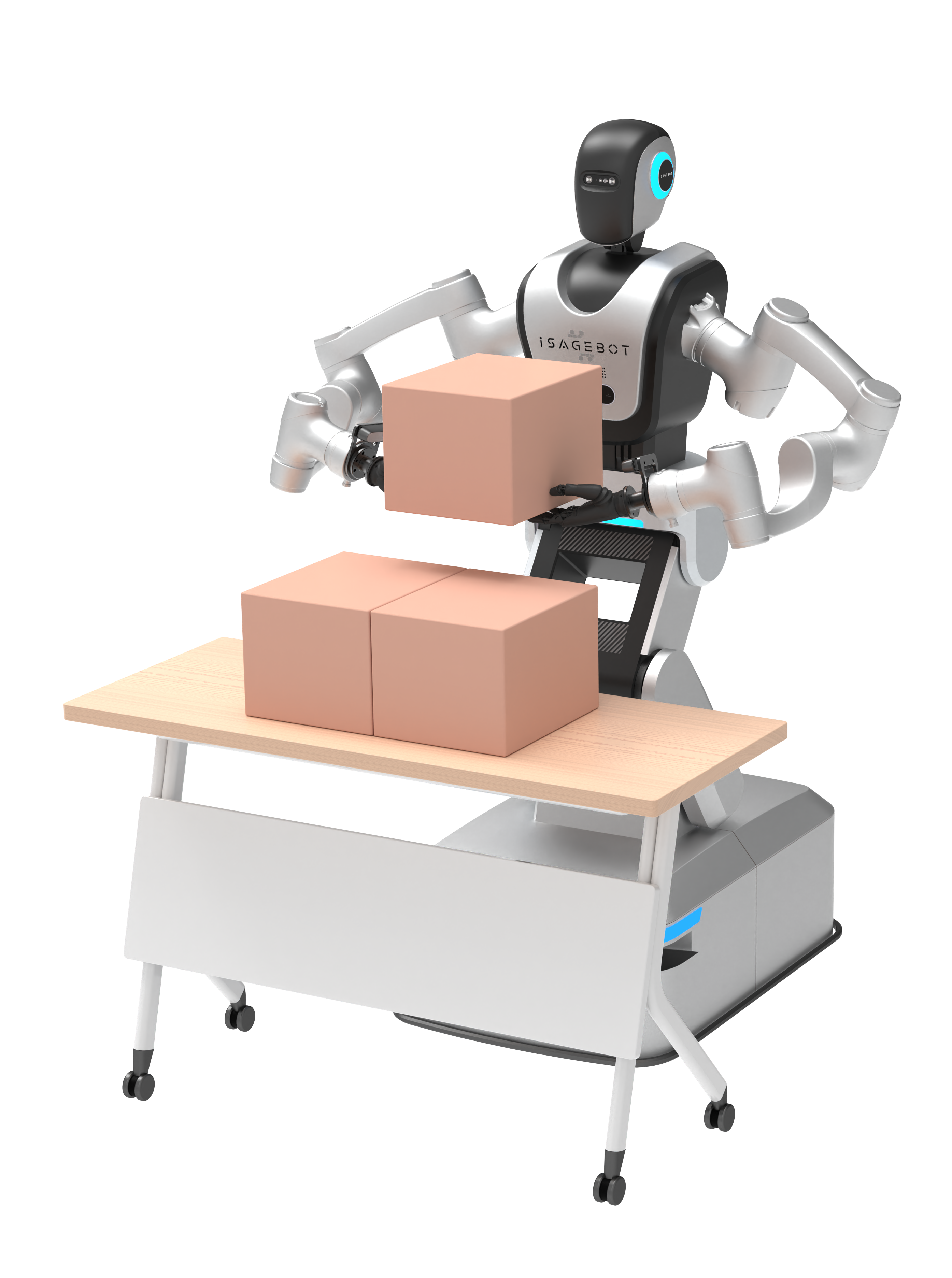

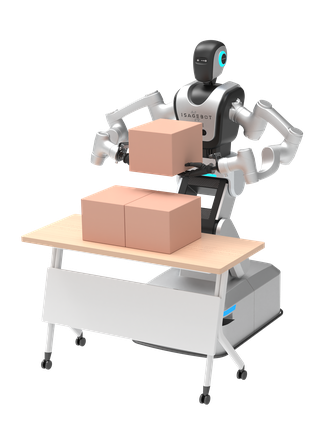

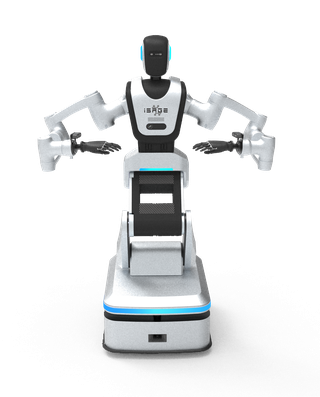

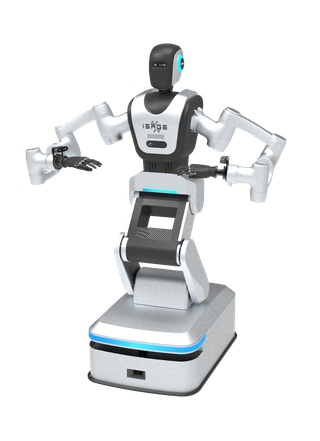

The iSAGE STAR is the two-armed member of iSAGEBOT's manipulator family, built for coordinated work rather than raw strength: two arms assembling and constructing together, picking and placing autonomously, transferring material, doing precision machining, sorting and inventorying, collecting data and inspecting for anomalies, and handling hazardous material a person should not. It measures 900 by 600 mm and stands 1,560 mm, extending to 1,815 mm, and weighs 244 kg. Configurations run from 17 to 42 degrees of freedom with 3 to 16 kg carried per arm. It travels at up to 1.5 m/s with navigation accurate to 5 mm, and visual positioning accurate to a remarkable 0.05 mm. Control is by voice, remote cloud or touchscreen.
特長
- Coordinated two-arm assembly and construction
- 17 to 42 degrees of freedom depending on configuration
- Payload 3 to 16 kg per arm
- Dimensions 900 x 600 x 1560 mm, extending to 1815 mm
- Net weight 244 kg
- Running speed 0 to 1.5 m/s
- Visual positioning accuracy 0.05 mm
- Navigation accuracy 5 mm
- multi-sensor fusion navigation
- Autonomous picking and placing, material transfer, precision machining
- Sorting and inventorying, data collection and anomaly inspection
- Hazardous material transfer
- Voice interaction, remote cloud control and touchscreen control
技術仕様
検証済み| 本体 | |
| 重量 | 244 kg |
|---|---|
| 寸法 | L 900 mm × W 600 mm × H 1.56 m |
| 可搬重量 | 16 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 自由度 | 42 |
| 速度 | 5.4 km/h |
| マニピュレーション | 高 |
| 使用環境 | Manufacturing floors including hazardous-material handling |
| アクチュエーター | Two coordinated arms on a height-extending wheeled body |
| センシング・演算 | |
| センサー | vision system, multi-sensor fusion navigation |
| ソフトウェア / AI | Multi-sensor fusion navigation; voice, cloud and touchscreen control |
技術仕様
検証済み| 本体 | |
| 重量 | 244 kg |
|---|---|
| 寸法 | L 900 mm × W 600 mm × H 1.56 m |
| 可搬重量 | 16 kg |
| 移動性能 | |
| 移動方式 | 車輪型 |
| 自由度 | 42 |
| 速度 | 5.4 km/h |
| マニピュレーション | 高 |
| 使用環境 | Manufacturing floors including hazardous-material handling |
| アクチュエーター | Two coordinated arms on a height-extending wheeled body |
| センシング・演算 | |
| センサー | vision system, multi-sensor fusion navigation |
| ソフトウェア / AI | Multi-sensor fusion navigation; voice, cloud and touchscreen control |
画像
martti
martti
martti投稿画像
動画
ロボットフォーラム
フォーラムを読み込み中...
評価
よくある質問
What is the iSAGEBOT iSAGE STAR Dual-arm Robot?
The iSAGE STAR is the two-armed member of iSAGEBOT's manipulator family, built for coordinated work rather than raw strength: two arms assembling and constructing together, picking and placing autonomously, transferring material, doing precision machining, sorting and inventorying, collecting data and inspecting for an…
Who makes the iSAGEBOT iSAGE STAR Dual-arm Robot?
The iSAGEBOT iSAGE STAR Dual-arm Robot is made by Isagebot, a robotics company based in China.
How much does the iSAGEBOT iSAGE STAR Dual-arm Robot cost?
Isagebot has not publicly announced pricing for the iSAGEBOT iSAGE STAR Dual-arm Robot. You can enquire through RobotAIGeek for current pricing.
What is the iSAGEBOT iSAGE STAR Dual-arm Robot used for?
The iSAGEBOT iSAGE STAR Dual-arm Robot is designed for 組立, マテリアルハンドリング, and 点検. It is used in エレクトロニクス, 医療, and 製造 settings.
What is the payload capacity of the iSAGEBOT iSAGE STAR Dual-arm Robot?
The iSAGEBOT iSAGE STAR Dual-arm Robot has a payload capacity of 16 kg.
How much does the iSAGEBOT iSAGE STAR Dual-arm Robot weigh?
The iSAGEBOT iSAGE STAR Dual-arm Robot weighs 244 kg.
How fast is the iSAGEBOT iSAGE STAR Dual-arm Robot?
The iSAGEBOT iSAGE STAR Dual-arm Robot can move at speeds of up to 5.4 km/h.
How many degrees of freedom does the iSAGEBOT iSAGE STAR Dual-arm Robot have?
The iSAGEBOT iSAGE STAR Dual-arm Robot has 42 degrees of freedom.
