BESCHREIBUNG

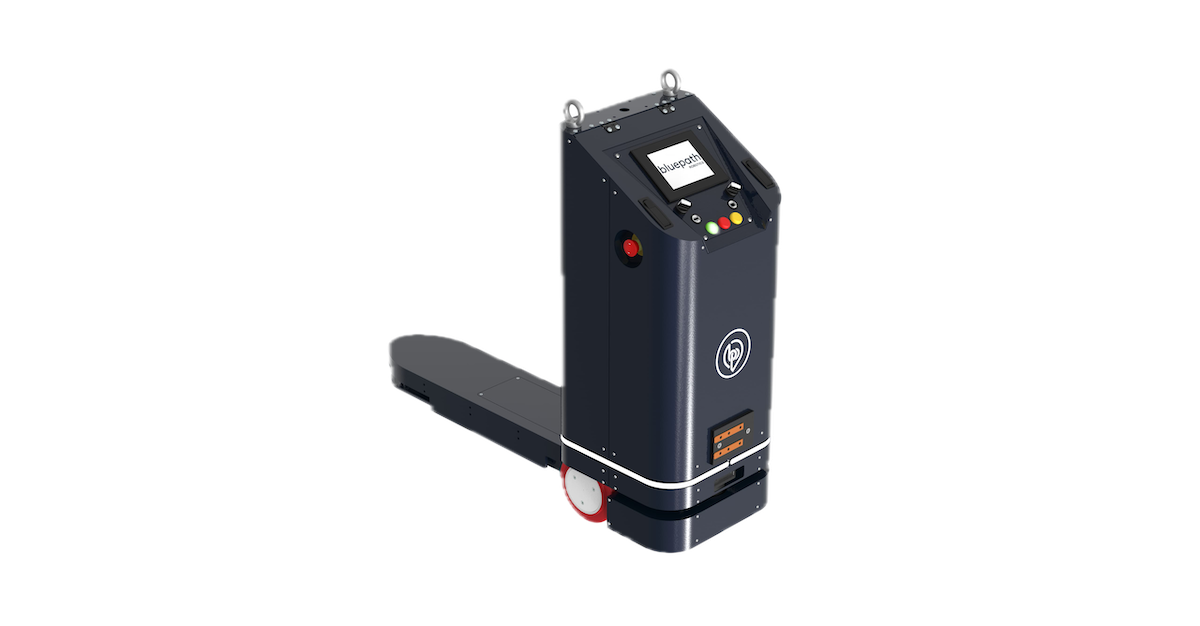

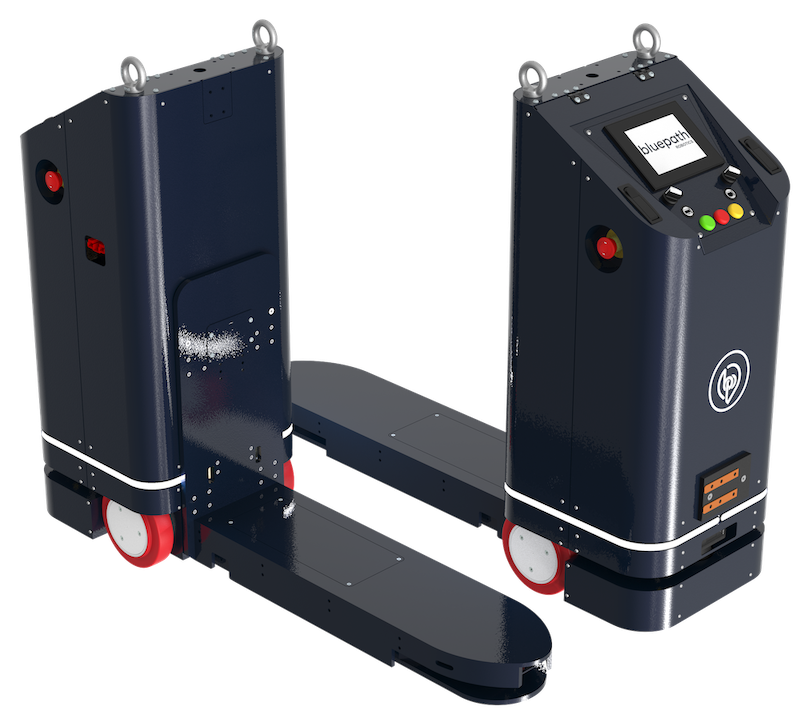

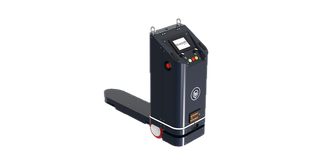

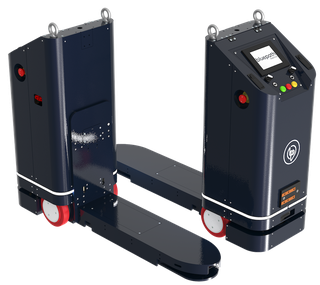

The Dolly Mover is the lightest robot in Bluepath Robotics' range, built by the Istanbul, Turkey manufacturer to move dollies and pallets up to 300 kg through narrow aisles. A ground-lift function picks the dolly up rather than pushing it, which suits the high-frequency small-part transfers of a lean production system. At 400 mm wide it fits aisles that block a full-size AMR, travels at up to 1.2 m/s, and navigates by natural SLAM with Bluepath's standard safety package — so it needs no floor magnets or reflectors to be added to an existing plant.
FUNKTIONEN
- 300 kg payload with a ground-lift function that picks up dollies rather than pushing
- 400 mm wide body for narrow-aisle and lean-line small-part logistics
- Natural SLAM navigation — no floor magnets or reflectors required
- Up to 1.2 m/s travel speed for high-frequency transfer cycles
- 3D object detection and dynamic map update for shared human/robot floors
- VDA 5050 compatible
- scheduled from the All-in-One Fleet Manager
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Abmessungen | L 400 mm × W 1.21 m × H 1.9 m |
|---|---|
| Traglast | 300 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 4.3 km/h |
| Einsatzumgebung | Indoor lean-production lines and narrow-aisle warehouse floors |
| Sensorik & Rechenleistung | |
| Software / KI | Bluepath Robotic Software System with All-in-One Fleet Management; automated task management with manual override, shift management |
TECHNISCHE DATEN
Verifiziert| Physisch | |
| Abmessungen | L 400 mm × W 1.21 m × H 1.9 m |
|---|---|
| Traglast | 300 kg |
| Mobilität | |
| Bewegungsart | Radbasiert |
| Geschwindigkeit | 4.3 km/h |
| Einsatzumgebung | Indoor lean-production lines and narrow-aisle warehouse floors |
| Sensorik & Rechenleistung | |
| Software / KI | Bluepath Robotic Software System with All-in-One Fleet Management; automated task management with manual override, shift management |
Bilder
martti
marttiBildbeiträge
Videos
ROBOTER-FOREN
Foren werden geladen...
BEWERTUNGEN
HÄUFIG GESTELLTE FRAGEN
What is the Dolly Mover?
The Dolly Mover is the lightest robot in Bluepath Robotics' range, built by the Istanbul, Turkey manufacturer to move dollies and pallets up to 300 kg through narrow aisles.
Who makes the Dolly Mover?
The Dolly Mover is made by Bluepath Robotics, a robotics company based in Turkey.
How much does the Dolly Mover cost?
Bluepath Robotics has not publicly announced pricing for the Dolly Mover. You can enquire through RobotAIGeek for current pricing.
What is the Dolly Mover used for?
The Dolly Mover is designed for transport. It is used in lager & logistik and fertigung settings.
What is the payload capacity of the Dolly Mover?
The Dolly Mover has a payload capacity of 300 kg.
How fast is the Dolly Mover?
The Dolly Mover can move at speeds of up to 4.3 km/h.
