描述

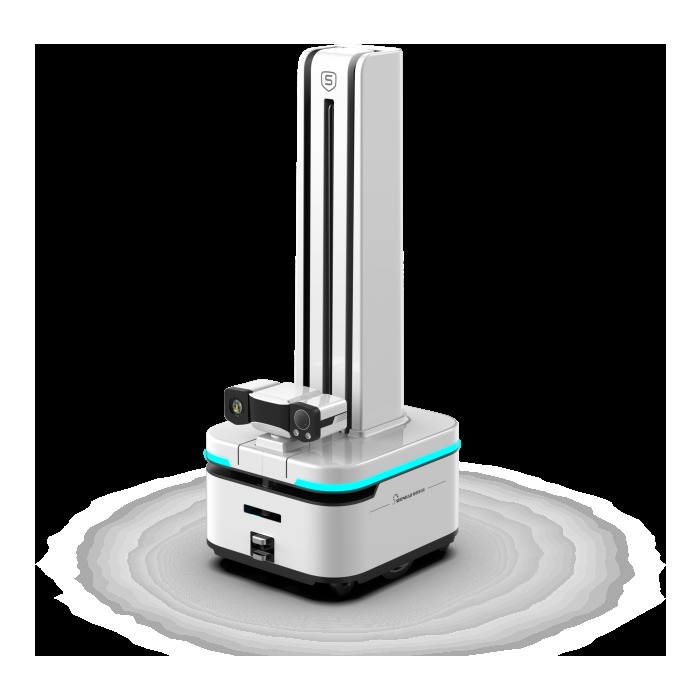

The L2 Pro, factory-coded F200, solves an indoor problem: instruments and displays sit at wildly different heights in a switch room, and a fixed camera height means half of them are read badly. Its answer is a two-stage track-type lifting module on a self-balancing suspension chassis — the mast travels fast over a large stroke to put the gimbal at the right height, while the suspension keeps the vehicle stable enough that the image is usable while it does. Chassis and lift are controlled together based on ground, environment and task rather than independently. It carries visible light, infrared, sound, gas and temperature-humidity sensing, and its gas set covers CO, H2S and CH4. At 65 kg it walks at 1.2 m/s, stops within half a metre from 1 m/s, turns in place on two-wheel differential steering, and can drive lifts and access control to move between floors.
功能特色
- Self-balancing suspension motion chassis with a two-stage track-type lifting module, fast with a large stroke
- Robot weight up to 65 kg
- Maximum walking speed of 1.2 m/s or more, braking distance 0.5 m or less from 1 m/s
- Two-wheel differential steering with rotation in place
- Navigation positioning accuracy ±20 mm
- Battery life of 5 hours or more
- Ambient temperature -5 to 50 degrees Celsius
- relative humidity 5% to 90% non-condensing
- Visible light inspection, infrared temperature measurement, environmental and gas monitoring
- Gas detection covering CO, H2S and CH4
- Noise detection: omnidirectional, sensitivity -24 dB, signal-to-noise ratio 60 dB
- Environmental temperature and humidity collection
- Elevator control and access control linkage for multi-floor working
- Safety: emergency stop, collision prevention, obstacle avoidance and avoidance, and pit protection
- Intelligent joint motion control of chassis and lifting module based on ground, environment and task
技術規格
已驗證| 物理參數 | |
| 重量 | 65 kg |
|---|---|
| 移動能力 | |
| 移動類型 | 帶輪的 |
| 速度 | 4.32 km/h |
| 作業環境 | Indoor switch rooms and distribution rooms; -5 to 50 degrees Celsius; 5-90% RH non-condensing |
| 致動器 | Self-balancing suspension wheeled chassis with a two-stage track-type lifting mast |
| 電源與續航 | |
| 續航時間 | ≥5 h |
| 感知與計算 | |
| 感測器 | visible light camera, infrared thermal imager, omnidirectional microphone, CO, H2S and CH4 gas sensors, temperature and humidity sensor |
| 軟體 / AI | Intelligent joint motion control of chassis and lift; data upload to the robot platform for visualisation and analysis |
技術規格
已驗證| 物理參數 | |
| 重量 | 65 kg |
|---|---|
| 移動能力 | |
| 移動類型 | 帶輪的 |
| 速度 | 4.32 km/h |
| 作業環境 | Indoor switch rooms and distribution rooms; -5 to 50 degrees Celsius; 5-90% RH non-condensing |
| 致動器 | Self-balancing suspension wheeled chassis with a two-stage track-type lifting mast |
| 電源與續航 | |
| 續航時間 | ≥5 h |
| 感知與計算 | |
| 感測器 | visible light camera, infrared thermal imager, omnidirectional microphone, CO, H2S and CH4 gas sensors, temperature and humidity sensor |
| 軟體 / AI | Intelligent joint motion control of chassis and lift; data upload to the robot platform for visualisation and analysis |
圖片
martti
圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot?
The L2 Pro, factory-coded F200, solves an indoor problem: instruments and displays sit at wildly different heights in a switch room, and a fixed camera height means half of them are read badly.
Who makes the Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot?
The Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot is made by Shenhao Technology, a robotics company based in China.
How much does the Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot cost?
Shenhao Technology has not publicly announced pricing for the Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot. You can enquire through RobotAIGeek for current pricing.
What is the Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot used for?
The Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot is designed for 檢查, 監測, indoor switch room and distribution room inspection, and multi-height instrument and display reading. It is used in 能源, 製造業, and 安全 settings.
How much does the Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot weigh?
The Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot weighs 65 kg.
How fast is the Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot?
The Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot can move at speeds of up to 4.32 km/h.
What is the battery life of the Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot?
The Shenhao L2 Pro Indoor Lifting Wheel Inspection Robot runs for ≥5 h on a charge.
