描述
Mobile palletizing workstation with a payload of 40KG and a palletizing height of up to 2.5 meters. Widely applicable: widely used in industries such as food, medicine, 3C, daily chemical, printing, etc; Safe and stable: Industrial grade force control sensors with high reliability and safety; Support 10 level collision detection; When a single fault occurs, the safety function will not be lost; Easy programming: graphical programming, simple and efficient, no need to be proficient in programming languages to easily use robots.
功能特色
- Vertically articulated six-axis arm rated 40 kg payload with a 2,000 mm working radius.
- Position repetition accuracy of ±0.08 mm
- body weight 750 kg.
- Power capacity 3.0 kVA
- protection rated equivalent to IP54.
- Ground (floor) mounted installation.
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- It is a mobile palletizing workstation with a payload of 40KG and a palletizing height of up to 2.5 meters. Widely applicable: widely used in industries such as food, medicine, 3C, daily chemical, printing, etc
- Safe and stable: Industrial grade force control sensors with high reliability and...

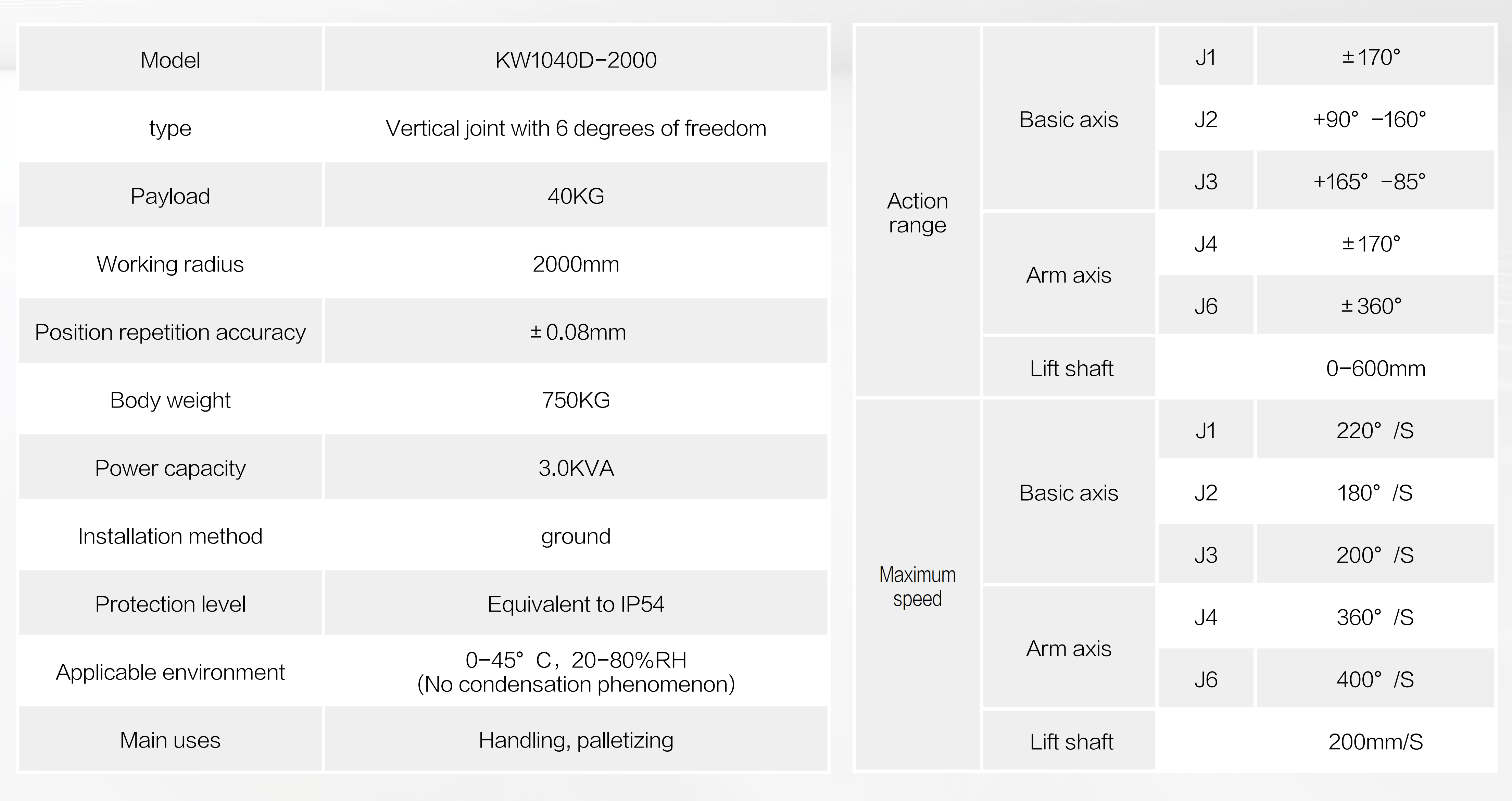

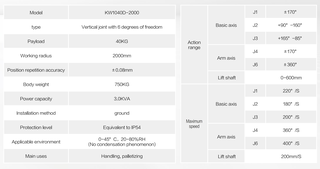

技術規格
已驗證| 物理參數 | |
| 重量 | 750 kg |
|---|---|
| 負載 | 40 kg |
| 臂展 | 2 m |
| 重複定位精度 | ±0.08 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
| 作業環境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
技術規格
已驗證| 物理參數 | |
| 重量 | 750 kg |
|---|---|
| 負載 | 40 kg |
| 臂展 | 2 m |
| 重複定位精度 | ±0.08 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 6 |
| 作業環境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
圖片
martti
martti
martti圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the Mobile palletizing workstation KW1040D-2000?
Mobile palletizing workstation with a payload of 40KG and a palletizing height of up to 2.5 meters. Widely applicable: widely used in industries such as food, medicine, 3C, daily chemical, printing, etc; Safe and stable: Industrial grade force control sensors with high reliability and safety; Support 10 level collision…
Who makes the Mobile palletizing workstation KW1040D-2000?
The Mobile palletizing workstation KW1040D-2000 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Mobile palletizing workstation KW1040D-2000 cost?
Shandong Kewei Robot has not publicly announced pricing for the Mobile palletizing workstation KW1040D-2000. You can enquire through RobotAIGeek for current pricing.
What is the Mobile palletizing workstation KW1040D-2000 used for?
The Mobile palletizing workstation KW1040D-2000 is designed for 物料搬運 and 托盤化. It is used in 物流 and 製造業 settings.
What is the payload capacity of the Mobile palletizing workstation KW1040D-2000?
The Mobile palletizing workstation KW1040D-2000 has a payload capacity of 40 kg and a reach of 2 m.
How much does the Mobile palletizing workstation KW1040D-2000 weigh?
The Mobile palletizing workstation KW1040D-2000 weighs 750 kg.
How many degrees of freedom does the Mobile palletizing workstation KW1040D-2000 have?
The Mobile palletizing workstation KW1040D-2000 has 6 degrees of freedom.
