描述
This 4 axis robot arm with a payload of 30KG and a working radius of 1850mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, and can be used in various industries such as food, beverage, building materials, logistics, and warehousing. Advantages and features: high precision, fast speed, simple and convenient operation; Fully automated operation saves labor costs; Equipped with a safe and reliable emergency stop button; Lightweight design, small footprint.
功能特色
- Vertically articulated four-axis arm rated 30 kg payload with a 1,835 mm working radius.
- Position repetition accuracy of ±0.05 mm
- body weight 220 kg.
- Power capacity 3.0 kVA
- protection rated equivalent to IP54.
- Ground (floor) mounted installation.
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- This 4 axis robot arm with a payload of 30KG and a working radius of 1850mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, and can be used in various industries such as food, beverage, building materials,...
技術規格

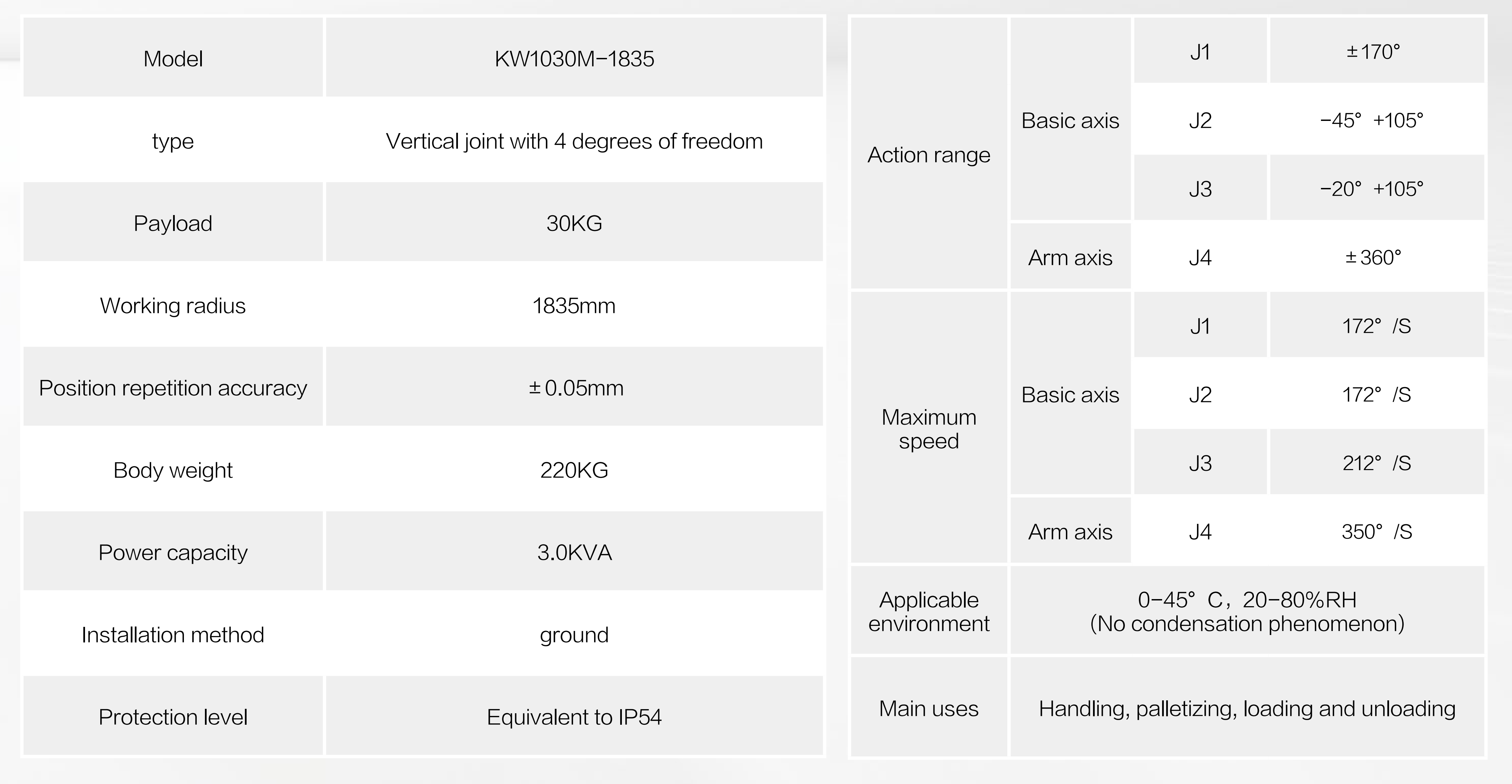

已驗證| 物理參數 | |
| 重量 | 220 kg |
|---|---|
| 負載 | 30 kg |
| 臂展 | 1.83 m |
| 重複定位精度 | ±0.05 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 4 |
| 作業環境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
技術規格
已驗證| 物理參數 | |
| 重量 | 220 kg |
|---|---|
| 負載 | 30 kg |
| 臂展 | 1.83 m |
| 重複定位精度 | ±0.05 mm |
| 移動能力 | |
| 移動類型 | 文具 |
| 自由度 | 4 |
| 作業環境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
圖片
martti
martti
martti圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the 4 axis robot arm KW1030M-1835?
This 4 axis robot arm with a payload of 30KG and a working radius of 1850mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, and can be used in various industries such as food, beverage, building materials, logistics, and warehousing.
Who makes the 4 axis robot arm KW1030M-1835?
The 4 axis robot arm KW1030M-1835 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the 4 axis robot arm KW1030M-1835 cost?
Shandong Kewei Robot has not publicly announced pricing for the 4 axis robot arm KW1030M-1835. You can enquire through RobotAIGeek for current pricing.
What is the 4 axis robot arm KW1030M-1835 used for?
The 4 axis robot arm KW1030M-1835 is designed for 物料搬運 and 托盤化. It is used in 物流 and 製造業 settings.
What is the payload capacity of the 4 axis robot arm KW1030M-1835?
The 4 axis robot arm KW1030M-1835 has a payload capacity of 30 kg and a reach of 1.83 m.
How much does the 4 axis robot arm KW1030M-1835 weigh?
The 4 axis robot arm KW1030M-1835 weighs 220 kg.
How many degrees of freedom does the 4 axis robot arm KW1030M-1835 have?
The 4 axis robot arm KW1030M-1835 has 4 degrees of freedom.
