KW1020B-2000

Shandong Kewei Robot
Industrial-RobotChinaChina已發布
KW1020B-2000
比較
來源：
keweirobot.com
行業：
物流製造業
用途：
物料搬運托盤化
價格：
尚未公布

描述

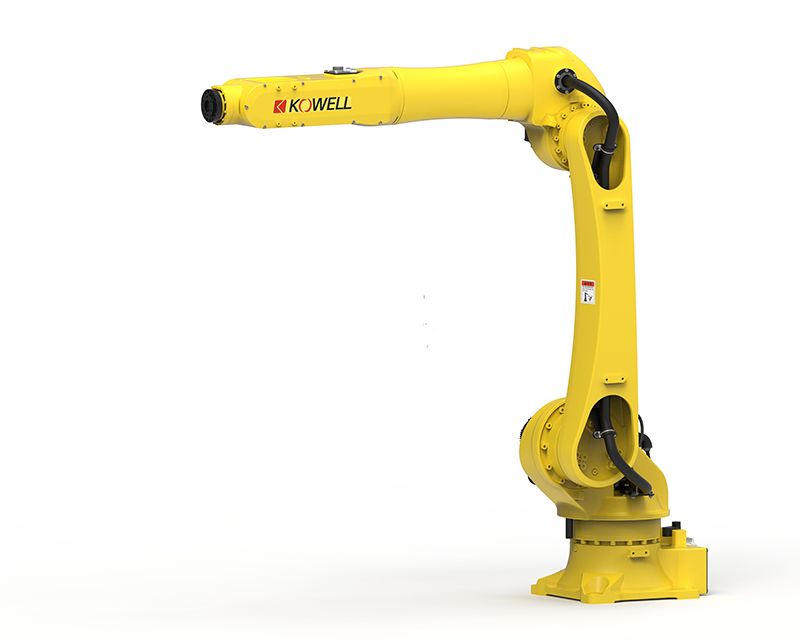

6-axis industrial robot arm with a payload of 20KG and a working radius of 2000mm. Widely applicable to working environments such as handling, picking and placing, palletizing, packing, loading and unloading materials. It can be applied to various industries such as photovoltaics, lithium batteries, automotive parts, food, beverages, and sheet metal. Advantages and features: Compact appearance and flexible operation in small workspaces; High repeatability accuracy, stable performance, and fast running speed; Support multiple bus communication methods; Built in IO and trachea for easy fixture installation.

功能特色

  • Vertically articulated six-axis arm rated 20 kg payload with a 2,000 mm working radius.
  • Position repetition accuracy of ±0.05 mm
  • body weight 195 kg.
  • Power capacity 3.0 kVA
  • protection rated equivalent to IP54.
  • Ground (floor) mounted installation.
  • Rated for 0-45 °C and 20-80% RH, non-condensing.
  • It is a 6-axis industrial robot arm with a payload of 20KG and a working radius of 2000mm. Widely applicable to working environments such as handling, picking and placing, palletizing, packing, loading and unloading materials. It can be applied to various industries such as photovoltaics,...

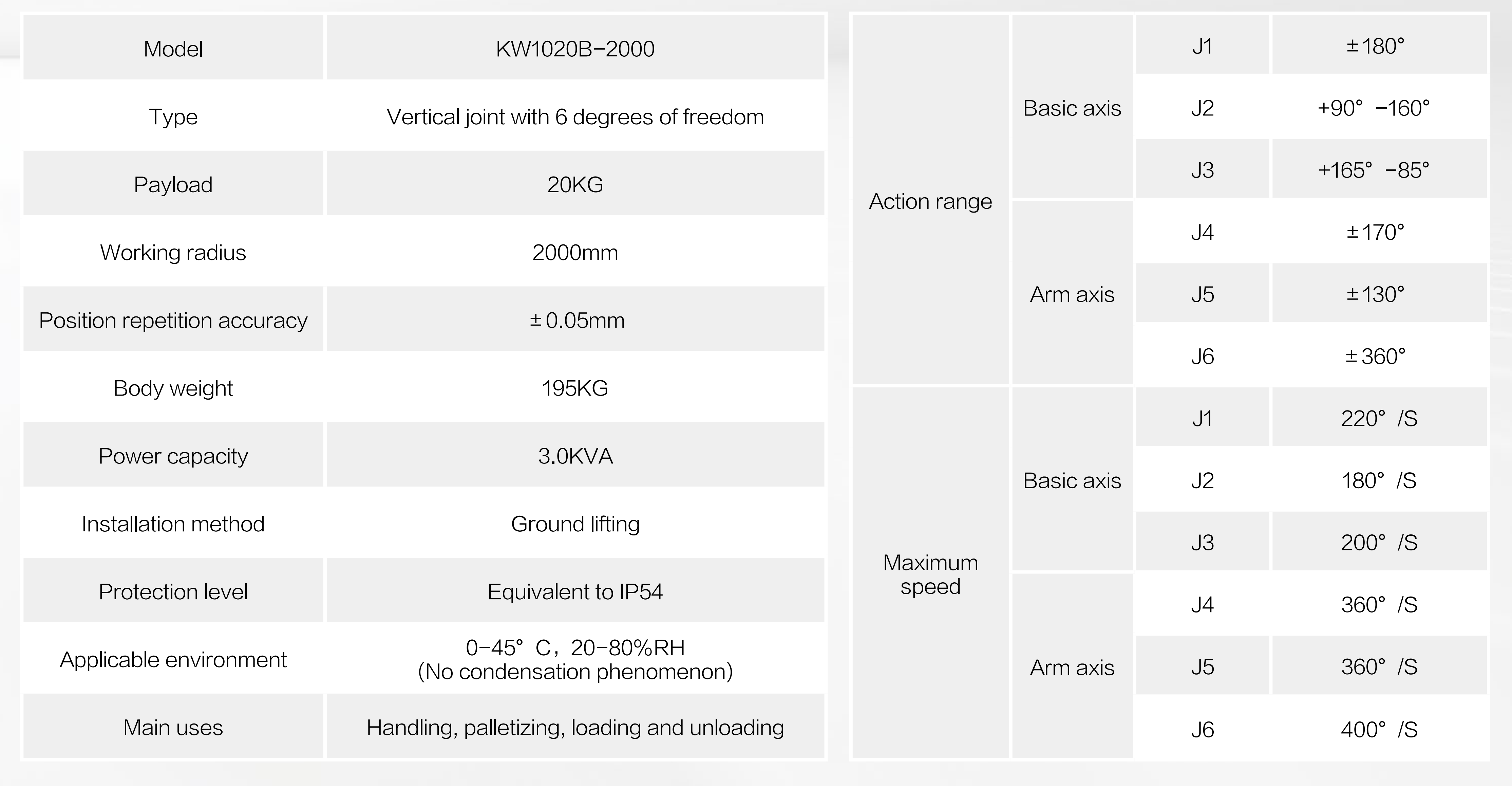

技術規格

已驗證
物理參數
重量195 kg
負載20 kg

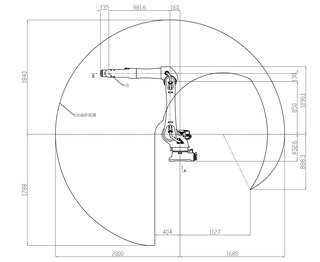

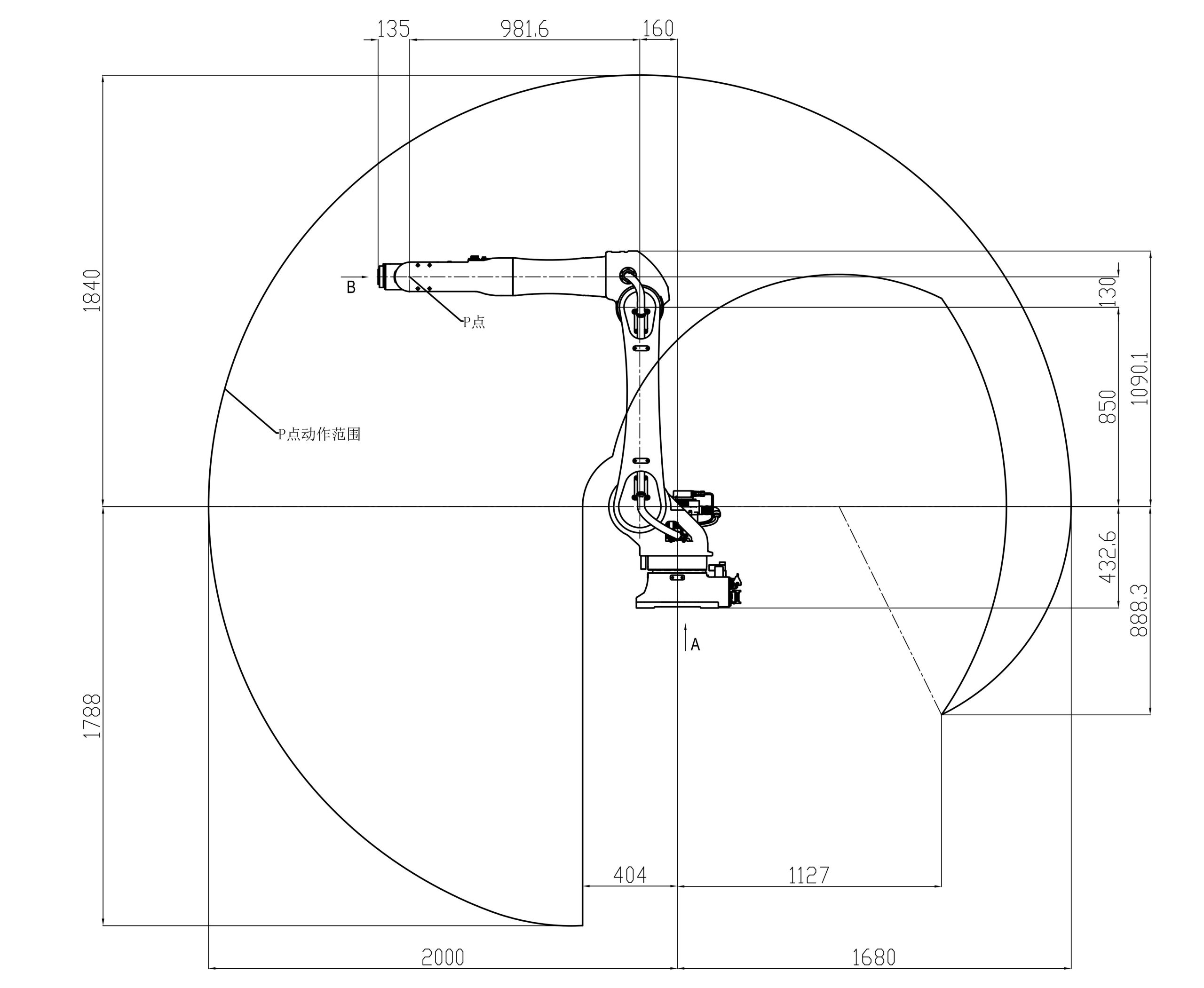

臂展2 m
重複定位精度±0.05 mm
移動能力
移動類型文具
自由度6
作業環境Indoor industrial; 0-45 °C, 20-80% RH, non-condensing.
來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。

常見問題

What is the KW1020B-2000?

6-axis industrial robot arm with a payload of 20KG and a working radius of 2000mm. Widely applicable to working environments such as handling, picking and placing, palletizing, packing, loading and unloading materials.

Who makes the KW1020B-2000?

The KW1020B-2000 is made by Shandong Kewei Robot, a robotics company based in China.

How much does the KW1020B-2000 cost?

Shandong Kewei Robot has not publicly announced pricing for the KW1020B-2000. You can enquire through RobotAIGeek for current pricing.

What is the KW1020B-2000 used for?

The KW1020B-2000 is designed for 物料搬運 and 托盤化. It is used in 物流 and 製造業 settings.

What is the payload capacity of the KW1020B-2000?

The KW1020B-2000 has a payload capacity of 20 kg and a reach of 2 m.

How much does the KW1020B-2000 weigh?

The KW1020B-2000 weighs 195 kg.

How many degrees of freedom does the KW1020B-2000 have?

The KW1020B-2000 has 6 degrees of freedom.
