描述

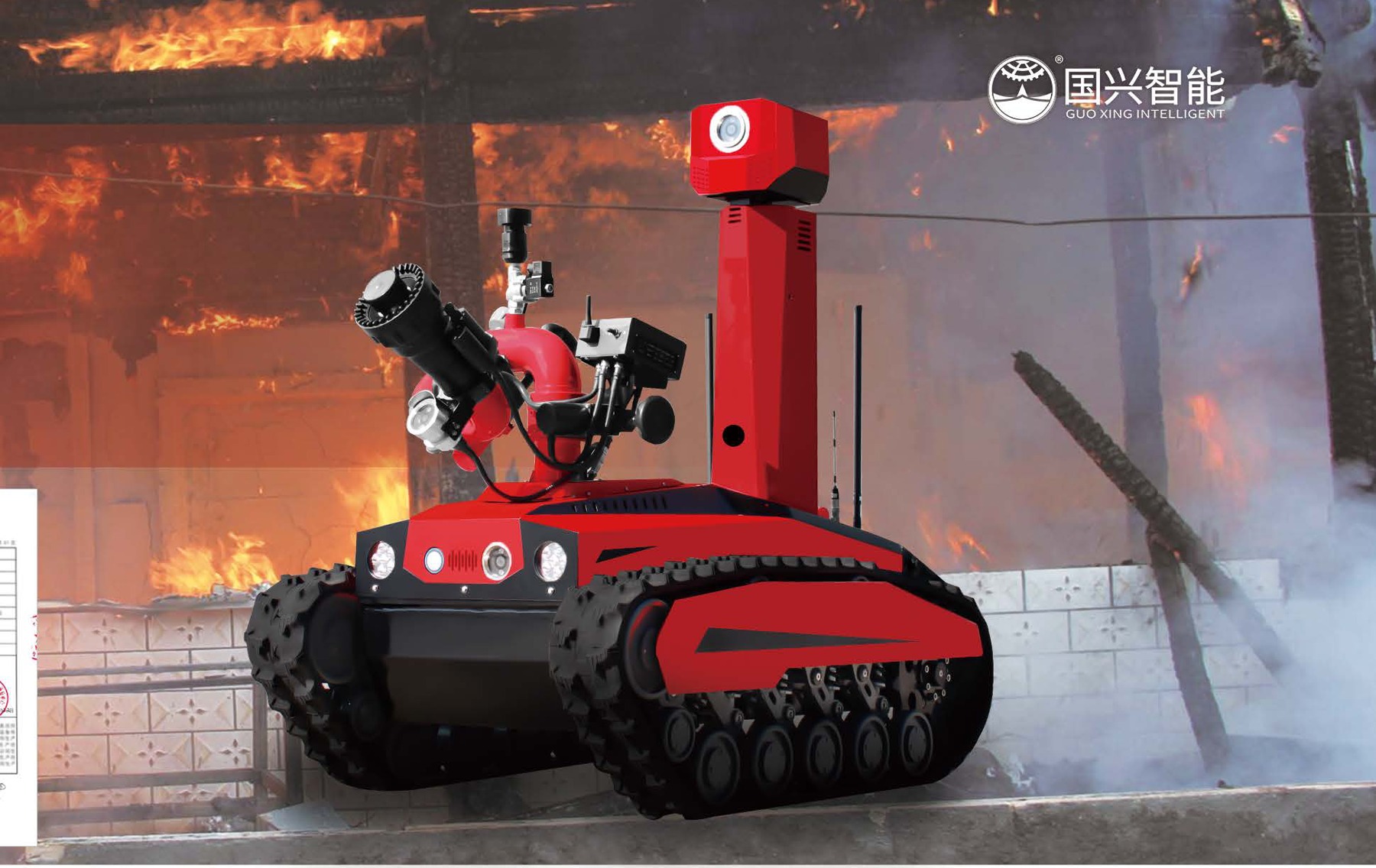

The RXR-M80D-13KT is a mid-weight tracked firefighting robot carrying the same 80 L/s water-and-foam cannon as Guoxing's explosion-proof flagship on a lighter, more agile platform. It throws water or foam beyond 80 metres and collects six gases around the body while an infrared camera observes the scene and feeds four channels of imagery back to the remote control centre. What distinguishes it in the range is its climbing figure: a 36-degree slope rating, the steepest of Guoxing's electric tracked firefighting machines, with a 3.5 kN traction force to match. It self-protects with a double water curtain spray for cooling, runs over five hours, tows 280 water hoses to 60 metres and carries about 100 kg.
功能特色
- Up to 1500 x 1000 x 1500 mm and up to 700 kg
- Fire water cannon at 80 L/s or more, water and foam dual-purpose, shooting range 80 metres or more
- Infrared camera observing the scene, with 4-channel image collection to the remote control centre
- Gas collection of six gases around the robot body
- Max obstacle height of 220 mm or more and climbing ability of 70% or more
- Slope rating of 36 degrees or more, the steepest of the electric tracked firefighting range
- Traction force of 3.5 kN or more
- Straight speed of 1.3 m/s or more, straight running deviation 7% or less, braking distance 0.3 m or less
- Working time of 5 hours or more, load weight about 100 kg
- Able to tow 280 water hoses to 60 metres
- Spray cooling with double water curtain
- dual LED strong light
- sound and light alarm
- automatic obstacle avoidance
- IP67 chassis with IP65 body
- remote distance 1000 m
- wireless control
技術規格
已驗證| 物理參數 | |
| 重量 | 700 kg |
|---|---|
| 外形尺寸 | L 1.5 m × W 1 m × H 1.5 m |
| 負載 | 100 kg |
| 移動能力 | |
| 移動類型 | 其他 |
| 速度 | 4.68 km/h |
| 作業環境 | High-heat fire scenes; IP67 chassis, IP65 body |
| 致動器 | Tracked chassis with an 80 L/s rotating water and foam cannon |
| 電源與續航 | |
| 續航時間 | ≥5 h |
| 感知與計算 | |
| 感測器 | infrared camera, 4-channel cameras, 6-gas detector |
技術規格
已驗證| 物理參數 | |
| 重量 | 700 kg |
|---|---|
| 外形尺寸 | L 1.5 m × W 1 m × H 1.5 m |
| 負載 | 100 kg |
| 移動能力 | |
| 移動類型 | 其他 |
| 速度 | 4.68 km/h |
| 作業環境 | High-heat fire scenes; IP67 chassis, IP65 body |
| 致動器 | Tracked chassis with an 80 L/s rotating water and foam cannon |
| 電源與續航 | |
| 續航時間 | ≥5 h |
| 感知與計算 | |
| 感測器 | infrared camera, 4-channel cameras, 6-gas detector |
圖片
martti
圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the Guoxing RXR-M80D-13KT?
The RXR-M80D-13KT is a mid-weight tracked firefighting robot carrying the same 80 L/s water-and-foam cannon as Guoxing's explosion-proof flagship on a lighter, more agile platform.
Who makes the Guoxing RXR-M80D-13KT?
The Guoxing RXR-M80D-13KT is made by Shandong Guoxing Intelligent Technology, a robotics company based in China.
How much does the Guoxing RXR-M80D-13KT cost?
Shandong Guoxing Intelligent Technology has not publicly announced pricing for the Guoxing RXR-M80D-13KT. You can enquire through RobotAIGeek for current pricing.
What is the Guoxing RXR-M80D-13KT used for?
The Guoxing RXR-M80D-13KT is designed for 檢查, 監測, industrial and warehouse fires, and high-rise fire support. It is used in 能源, 製造業, and 安全 settings.
What is the payload capacity of the Guoxing RXR-M80D-13KT?
The Guoxing RXR-M80D-13KT has a payload capacity of 100 kg.
How much does the Guoxing RXR-M80D-13KT weigh?
The Guoxing RXR-M80D-13KT weighs 700 kg.
How fast is the Guoxing RXR-M80D-13KT?
The Guoxing RXR-M80D-13KT can move at speeds of up to 4.68 km/h.
What is the battery life of the Guoxing RXR-M80D-13KT?
The Guoxing RXR-M80D-13KT runs for ≥5 h on a charge.
