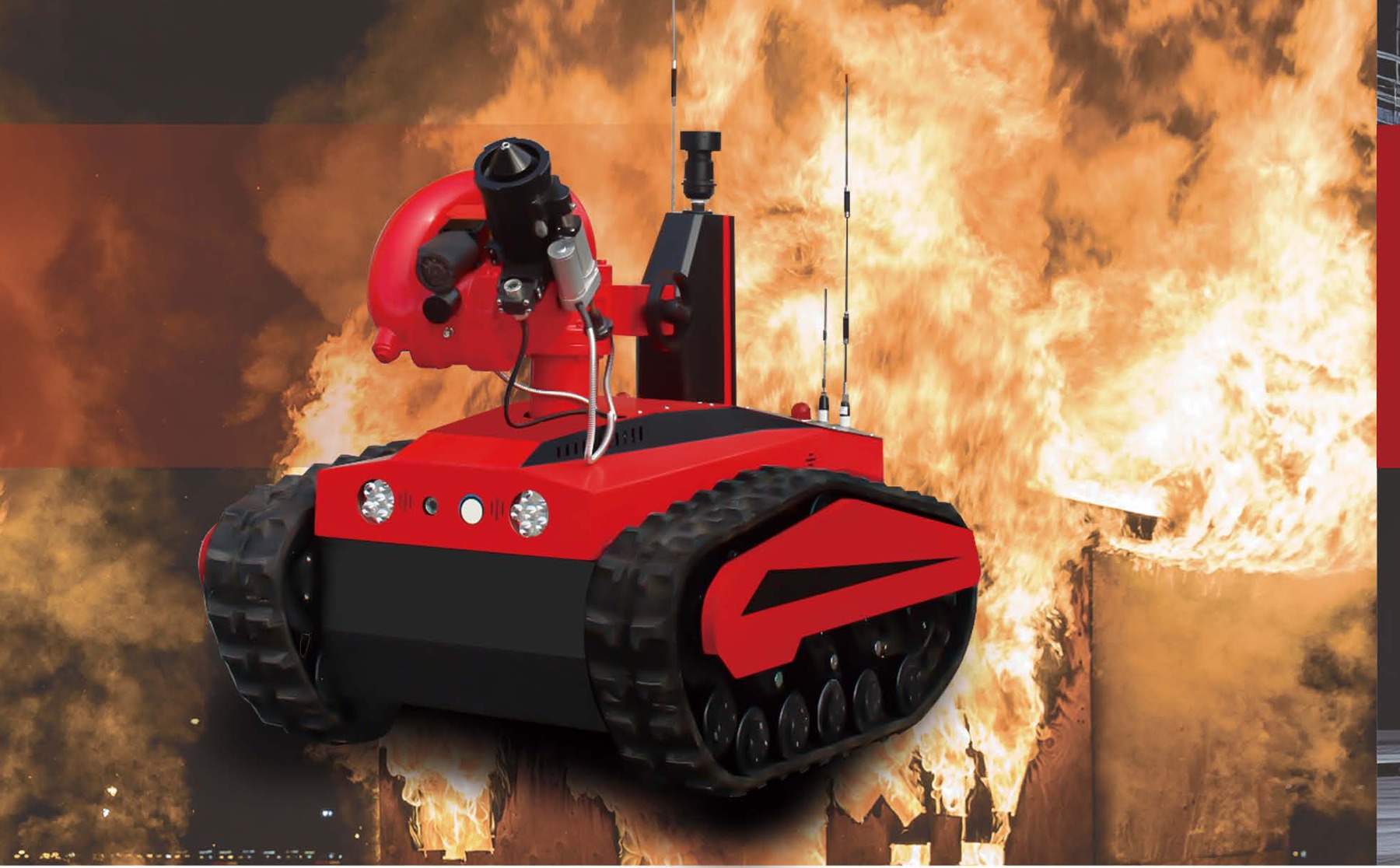

The RXR-M40D-11KT is the small, fast member of Guoxing's electric firefighting range — 1300 mm long and 450 kg, light enough to get through doorways and along corridors where the 800 kg machines cannot follow, and the quickest in the line at 2 m/s. Guoxing's own marketing nickname for it is the 'Tiny King Kong'. It gives up water volume for that access, carrying a 40 L/s water-and-foam cannon throwing beyond 65 metres rather than the 80 L/s of its larger siblings, but it keeps the capabilities that matter at an incident: detection of six toxic and flammable gases, three channels of wireless imagery, dual LED lighting, and a self-protection package of water curtain cooling with anti-overturning and anti-collision. It stays stable on a 30-degree roll and tows an 80 mm hose 60 metres.
功能特色
- Compact platform at up to 1300 x 900 x 1100 mm and up to 450 kg
- Fastest in the electric range at 2 m/s or more
- Fire-fighting water cannon at 40 L/s or more, water and foam dual-purpose, range 65 metres or more
- Maximum obstacle crossing of 150 mm or more and climbing ability of 70% or more
- Traction force of 2 kN or more
- Roll angle stability of 30 degrees or more
- Continuous working time of 5 hours or more, load weight about 100 kg
- Wireless image collection on 3 channels with real-time transmission to the control centre
- Detection of 6 types of toxic and flammable gases around the robot body
- Self-protection package: water curtain cooling, anti-overturning and anti-collision
- Able to tow one 80 mm water hose 60 metres
- Chassis IP67 with top IP54
- remote control distance 1000 m
- straight running deviation 7% or less
技術規格
已驗證| 物理參數 | |
| 重量 | 450 kg |
|---|---|
| 外形尺寸 | L 1.3 m × W 900 mm × H 1.1 m |
| 負載 | 100 kg |
| 移動能力 | |
| 移動類型 | 其他 |
| 速度 | 7.2 km/h |
| 作業環境 | Indoor and confined fire scenes; chassis IP67, top IP54 |
| 致動器 | Compact tracked chassis with a 40 L/s rotating water and foam cannon |
| 電源與續航 | |
| 續航時間 | ≥5 h |
| 感知與計算 | |
| 感測器 | 3-channel cameras, 6-gas detector |
技術規格
已驗證| 物理參數 | |
| 重量 | 450 kg |
|---|---|
| 外形尺寸 | L 1.3 m × W 900 mm × H 1.1 m |
| 負載 | 100 kg |
| 移動能力 | |
| 移動類型 | 其他 |
| 速度 | 7.2 km/h |
| 作業環境 | Indoor and confined fire scenes; chassis IP67, top IP54 |
| 致動器 | Compact tracked chassis with a 40 L/s rotating water and foam cannon |
| 電源與續航 | |
| 續航時間 | ≥5 h |
| 感知與計算 | |
| 感測器 | 3-channel cameras, 6-gas detector |
圖片
martti
圖片貢獻
影片
機器人論壇
正在載入論壇...
評分
常見問題
What is the Guoxing RXR-M40D-11KT?
The RXR-M40D-11KT is the small, fast member of Guoxing's electric firefighting range — 1300 mm long and 450 kg, light enough to get through doorways and along corridors where the 800 kg machines cannot follow, and the quickest in the line at 2 m/s. Guoxing's own marketing nickname for it is the 'Tiny King Kong'.
Who makes the Guoxing RXR-M40D-11KT?
The Guoxing RXR-M40D-11KT is made by Shandong Guoxing Intelligent Technology, a robotics company based in China.
How much does the Guoxing RXR-M40D-11KT cost?
Shandong Guoxing Intelligent Technology has not publicly announced pricing for the Guoxing RXR-M40D-11KT. You can enquire through RobotAIGeek for current pricing.
What is the Guoxing RXR-M40D-11KT used for?
The Guoxing RXR-M40D-11KT is designed for 檢查, 監測, indoor and confined-space fires, and corridor and doorway access. It is used in 能源, 製造業, and 安全 settings.
What is the payload capacity of the Guoxing RXR-M40D-11KT?
The Guoxing RXR-M40D-11KT has a payload capacity of 100 kg.
How much does the Guoxing RXR-M40D-11KT weigh?
The Guoxing RXR-M40D-11KT weighs 450 kg.
How fast is the Guoxing RXR-M40D-11KT?
The Guoxing RXR-M40D-11KT can move at speeds of up to 7.2 km/h.
What is the battery life of the Guoxing RXR-M40D-11KT?
The Guoxing RXR-M40D-11KT runs for ≥5 h on a charge.
