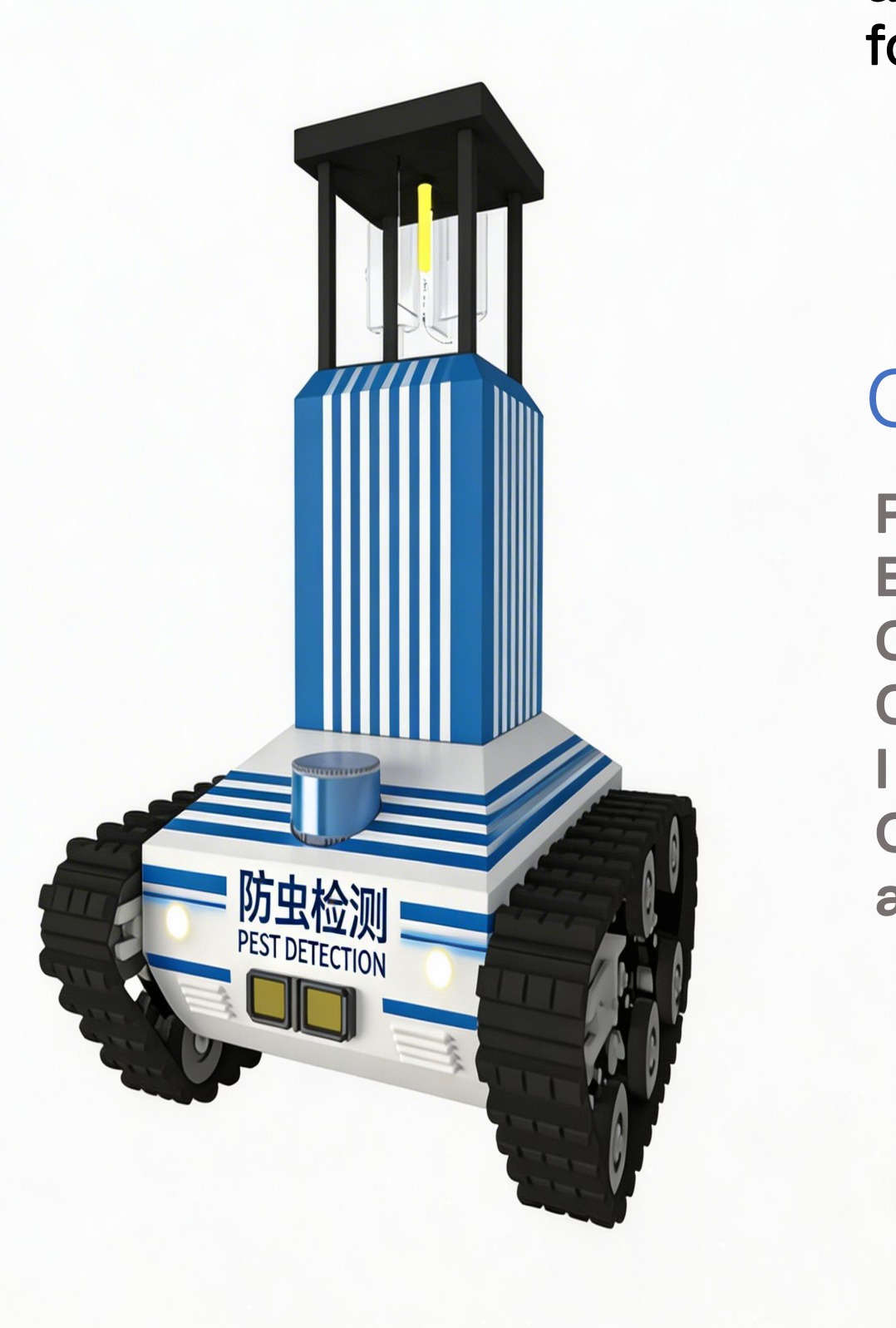

GC Robotics Pest Detection Robot

GC Robotics
Agricultural-RobotsChinaChina已發布
GC Robotics Pest Detection Robot
比較
來源：
cdn.robotaigeek.com
行業：
研究農業
用途：
資料蒐集檢查監測
價格：
尚未公布

描述

The Pest Detection Robot is the tracked sibling of GC Robotics' pest monitor, built for ground the wheeled version would struggle on. Rubber tracks on spring suspension absorb the jolts of rutted fields, and it turns on the spot for a zero turning radius in narrow rows. The work is the same: ultraviolet and visible-light luring on a light and timer trigger, a sealed escape-proof collection box with a 95%+ capture rate, on-board AI vision that identifies species at a stated 90%+ rate with counting error of 5% or less, and upload of images, counts and positions over Wi-Fi or 4G. It can cruise the whole field automatically or hold fixed-point forecasting positions. It is larger than the wheeled model at 820 x 660 x 900 mm, weighs 75 kg and carries 70 kg, climbing 20-degree slopes and clearing 50 mm obstacles at up to 0.8 m/s. A 16-line LiDAR, depth camera and IMU give +/-5 cm positioning, and the 36 V 26 Ah battery runs at least 12 hours loaded with a 2.5-hour recharge.

功能特色

  • Rubber tracks with spring suspension for rough field ground
  • Straight running, on-the-spot rotation and zero turning radius
  • Travel speed -0.8 to 0.8 m/s
  • rotation -1 to 1 rad/s
  • Climbs 20-degree slopes
  • clears 50 mm obstacles
  • 820 x 660 x 900 mm
  • 75 kg
  • rated load 70 kg
  • 36 V 26 Ah lithium battery (400 x 140 x 65 mm)
  • Endurance at least 12 h loaded, at least 16 h unloaded
  • 36 V 10 A fast charging, full in 2.5 h or less
  • RoboSense 16-line LiDAR, Orbbec DaBai Max depth camera and a JY61P 6-axis IMU
  • Positioning accuracy +/-5 cm
  • obstacle response within 0.2 s
  • AI vision deep-learning recognition: 90%+ identification rate, counting error 5% or less
  • Ultraviolet plus visible-light spectrum luring, opened automatically by light and timer
  • Sealed escape-proof collection box
  • insect collection rate 95%+
  • Automatic cruise and fixed-point forecasting modes
  • Wi-Fi and 4G upload of images, counts and positions
  • FSI6S remote with A8S receiver
  • automatic and manual dual mode
  • 2.8-inch display with emergency stop and self-locking switch
  • Wi-Fi, USB, CAN and 4-pin aviation connector interfaces
  • R7 5800U industrial computer, 8 GB RAM, 128 GB storage
  • IP54 protection
  • working temperature -5 to 45 C, storage -20 to 60 C
  • Mean time between failures 300 h or more
  • Over-charge, over-discharge, over-current and short-circuit protection

技術規格

物理參數
重量75 kg
外形尺寸L 820 mm × W 660 mm × H 900 mm
負載70 kg
移動能力
移動類型其他
速度2.88 km/h
作業環境Outdoor farmland, orchards and greenhouses
電源與續航
續航時間720 min
來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。

常見問題

What is the GC Robotics Pest Detection Robot?

The Pest Detection Robot is the tracked sibling of GC Robotics' pest monitor, built for ground the wheeled version would struggle on. Rubber tracks on spring suspension absorb the jolts of rutted fields, and it turns on the spot for a zero turning radius in narrow rows.

Who makes the GC Robotics Pest Detection Robot?

The GC Robotics Pest Detection Robot is made by GC Robotics, a robotics company based in China.

How much does the GC Robotics Pest Detection Robot cost?

GC Robotics has not publicly announced pricing for the GC Robotics Pest Detection Robot. You can enquire through RobotAIGeek for current pricing.

What is the GC Robotics Pest Detection Robot used for?

The GC Robotics Pest Detection Robot is designed for 資料蒐集, 檢查, and 監測. It is used in 研究 and 農業 settings.

What is the payload capacity of the GC Robotics Pest Detection Robot?

The GC Robotics Pest Detection Robot has a payload capacity of 70 kg.

How much does the GC Robotics Pest Detection Robot weigh?

The GC Robotics Pest Detection Robot weighs 75 kg.

How fast is the GC Robotics Pest Detection Robot?

The GC Robotics Pest Detection Robot can move at speeds of up to 2.88 km/h.

What is the battery life of the GC Robotics Pest Detection Robot?

The GC Robotics Pest Detection Robot runs for about 720 minutes on a charge.
