GC Robotics C30

GC Robotics
Mobile-RobotsChinaChina已發布
GC Robotics C30
比較
來源：
gcarobotics.com
行業：
研究醫療保健物流零售
用途：
檢查運輸Warehouse automationhospital service robotscommercial service robotsindoor inspectionnarrow-aisle transport
價格：
尚未公布

描述

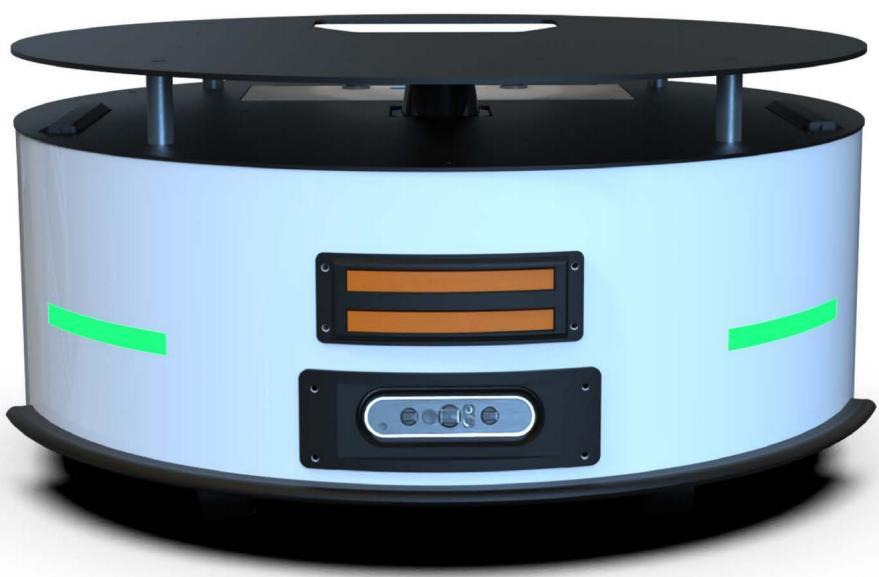

The C30 is the smallest of GC Robotics' indoor platforms and the only round one — a 500 mm cylinder just 225 mm tall, weighing 30 kg. The shape is functional rather than stylistic: a circular footprint rotating in place cannot catch a corner, which is what lets it work aisles as narrow as 70 cm. It navigates by Laser SLAM to a stated positioning accuracy of ±2.5 cm, with LiDAR, a depth camera, an IMU, wheel odometry and a bumper strip included as standard, and it carries 40 kg on a modular payload platform. Endurance is up to ten hours unloaded from a 24 V 18 Ah pack with automatic charging. Like the rest of the range it is sold for rapid secondary development, with a web interface and development API on top of the shared GC Robotics software platform, and the manufacturer points it at warehouse automation, hospital service, commercial robots and indoor inspection.

功能特色

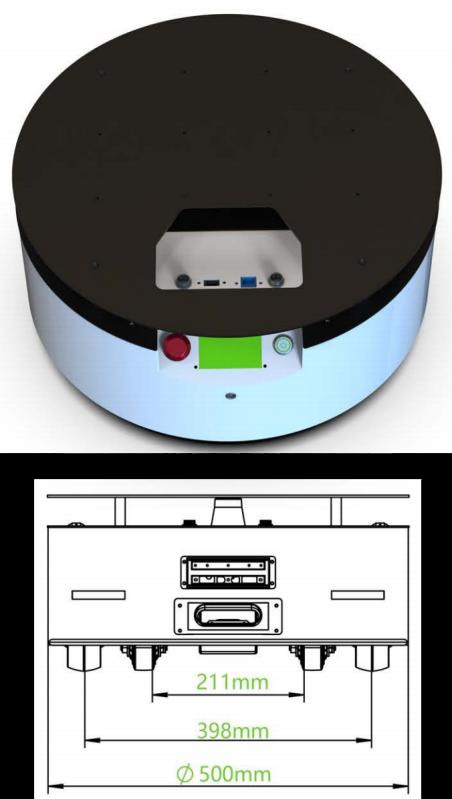

  • Ø500 x 225 mm and 30 kg, the smallest platform in the range
  • Round footprint enabling rotation in place without catching corners
  • Minimum aisle width 70 cm
  • Positioning accuracy ±2.5 cm by Laser SLAM
  • Maximum payload 40 kg on a modular payload platform
  • Sensor suite included: LiDAR, depth camera, IMU, wheel odometry and bumper strip
  • Differential drive that can rotate in place
  • Maximum linear speed 1 m/s
  • maximum angular speed ±1.0 rad/s
  • Drive motors 350 W x 2
  • encoder resolution 1024 lines
  • independent suspension
  • Wheel track 398 mm
  • wheel diameter 165 mm
  • Battery 24 V / 18 Ah
  • operating endurance up to 10 h unloaded on a flat surface
  • Charging time 4 h
  • charger 29 V / 5 A
  • automatic charging supported
  • Operating temperature 0 to 42 degrees Celsius, indoor
  • Interfaces: HTTP API, RJ45, Wi-Fi and a 4-pin aviation plug
  • Web interface and secondary development API

技術規格

已驗證
物理參數
重量30 kg
外形尺寸H 225 mm
負載40 kg
移動能力
移動類型帶輪的
速度3.6 km/h
作業環境Indoor, 0 to 42 degrees Celsius
致動器Differential-drive round wheeled chassis with independent suspension and 350 W x 2 drive motors
電源與續航
續航時間up to 10 h
感知與計算
感測器LiDAR, depth camera, IMU, wheel odometry, safety bumper strip
軟體 / AIGC Robotics software platform providing map building, autonomous navigation, task scheduling, system configuration, remote monitoring and OTA firmware updates, with ROS support, open APIs, SDKs and a web-based management platform
來源：製造商官網來源：第三方暫無來源來源狀態基於該機器人已登記的資料來源。

常見問題

What is the GC Robotics C30?

The C30 is the smallest of GC Robotics' indoor platforms and the only round one — a 500 mm cylinder just 225 mm tall, weighing 30 kg. The shape is functional rather than stylistic: a circular footprint rotating in place cannot catch a corner, which is what lets it work aisles as narrow as 70 cm.

Who makes the GC Robotics C30?

The GC Robotics C30 is made by GC Robotics, a robotics company based in China.

How much does the GC Robotics C30 cost?

GC Robotics has not publicly announced pricing for the GC Robotics C30. You can enquire through RobotAIGeek for current pricing.

What is the GC Robotics C30 used for?

The GC Robotics C30 is designed for 檢查, 運輸, warehouse automation, and hospital service robots. It is used in 研究, 醫療保健, 物流, and 零售 settings.

What is the payload capacity of the GC Robotics C30?

The GC Robotics C30 has a payload capacity of 40 kg.

How much does the GC Robotics C30 weigh?

The GC Robotics C30 weighs 30 kg.

How fast is the GC Robotics C30?

The GC Robotics C30 can move at speeds of up to 3.6 km/h.

What is the battery life of the GC Robotics C30?

The GC Robotics C30 runs for up to 10 h on a charge.
