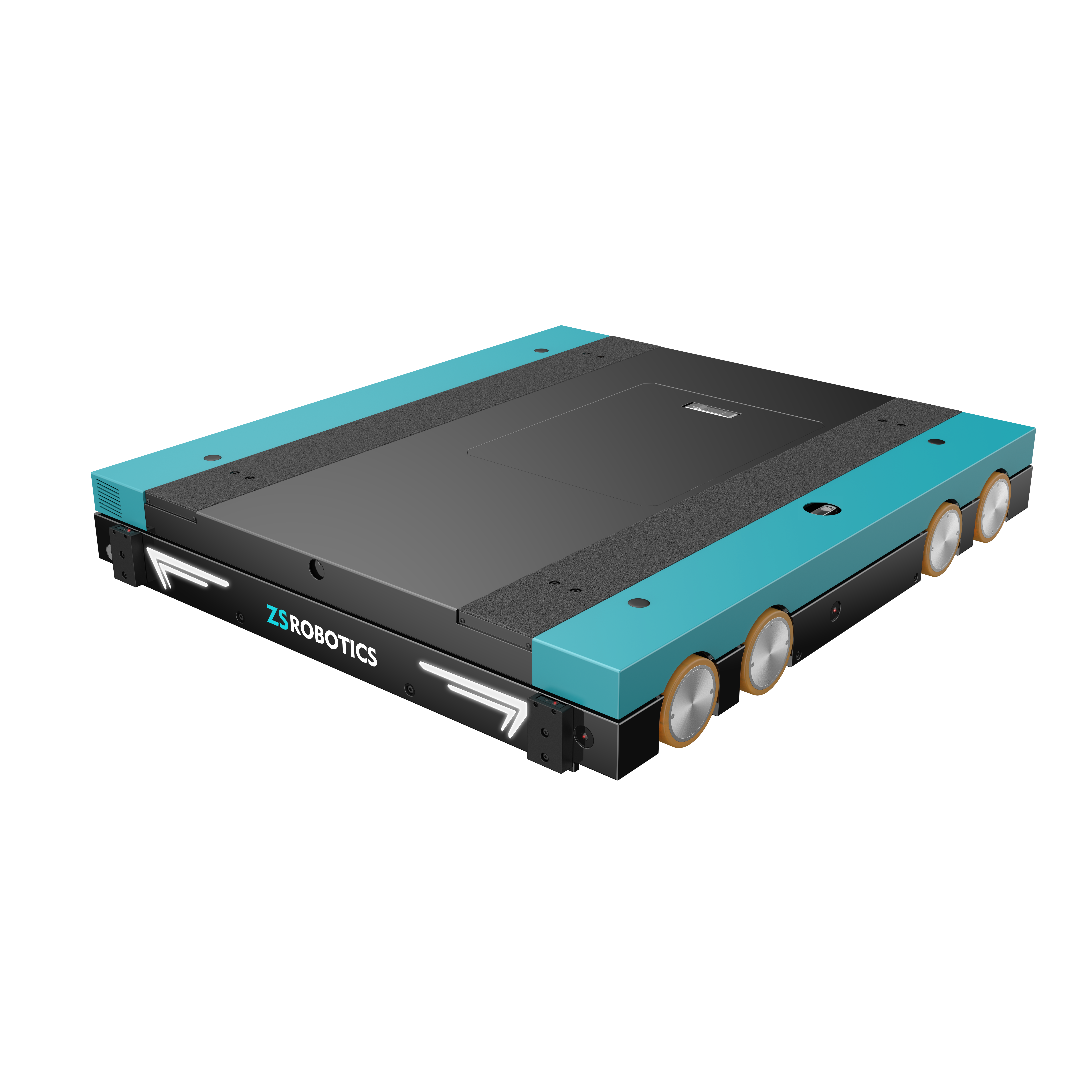

The ZS-L2500 is a four-way pallet shuttle from ZS ROBOTICS, a battery-powered robot that runs inside pallet racking and travels in all four directions to store and retrieve pallets in high-density automated warehouses. It carries 2500 kg, weighs 400 kg and measures 1310 x 1010 x 180 mm, travelling at up to 0.8 m/s, and is suited to large load storage. It runs on a 48V/50AH battery for 8–10 h of operation and is certified to CE, UL & CSA Certified standards. ZS ROBOTICS equips its shuttles with a 15-sensor safety system fusing 6 lidar and 4 time-of-flight sensors, dual positioning detection, and pallet detection that checks pallets front and rear, spots offset pallets and recognises hollow or incomplete loads. Its 20-wheel drive system, which the company calls an industry first, reduces rail stress by about 30%. The shuttle works with ZS ROBOTICS' lifts, conveyors and the ZSmart platform, which orchestrates movements across levels and aisles in a pallet AS/RS installation.
功能特点
- Four-way pallet shuttle (Large Load Storage)
- Rated load 2500 kg
- Dimensions 1310 x 1010 x 180 mm
- Shuttle weight 400 kg
- Max travel speed 0.8 m/s
- Battery 48V/50AH
- Runtime 8–10 h
- Certified: CE, UL & CSA Certified
- 15-sensor safety system (6 lidar + 4 ToF fusion)
- Dual positioning detection system
- Front/rear, offset and presence pallet detection
- 20-wheel drive: about 30% less rail stress
- Works with ZS lifts, conveyors and the ZSmart platform
- Heavy-Duty Handling
技术规格
已验证| 物理参数 | |
| 重量 | 400 kg |
|---|---|
| 外形尺寸 | L 1.31 m × H 180 mm |
| 负载 | 2500 kg |
| 移动能力 | |
| 运动类型 | 带轮的 |
| 速度 | 2.9 km/h |
| 作业环境 | Inside pallet racking in automated warehouses; ZS-H125 rated -25 to 50 C. |
| 电源与续航 | |
| 续航时间 | 8–10 h |
| 感知与计算 | |
| 传感器 | 6 x LiDAR, 4 x time-of-flight sensors, Pallet detection sensors, Dual positioning detection |
| 软件 / AI | ZSmart intelligent platform |
技术规格
已验证| 物理参数 | |
| 重量 | 400 kg |
|---|---|
| 外形尺寸 | L 1.31 m × H 180 mm |
| 负载 | 2500 kg |
| 移动能力 | |
| 运动类型 | 带轮的 |
| 速度 | 2.9 km/h |
| 作业环境 | Inside pallet racking in automated warehouses; ZS-H125 rated -25 to 50 C. |
| 电源与续航 | |
| 续航时间 | 8–10 h |
| 感知与计算 | |
| 传感器 | 6 x LiDAR, 4 x time-of-flight sensors, Pallet detection sensors, Dual positioning detection |
| 软件 / AI | ZSmart intelligent platform |
图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the ZS Robotics ZS-L2500?
The ZS-L2500 is a four-way pallet shuttle from ZS ROBOTICS, a battery-powered robot that runs inside pallet racking and travels in all four directions to store and retrieve pallets in high-density automated warehouses.
Who makes the ZS Robotics ZS-L2500?
The ZS Robotics ZS-L2500 is made by Shanghai ZS Robotics Co., Ltd, a robotics company based in China.
How much does the ZS Robotics ZS-L2500 cost?
Shanghai ZS Robotics Co., Ltd has not publicly announced pricing for the ZS Robotics ZS-L2500. You can enquire through RobotAIGeek for current pricing.
What is the ZS Robotics ZS-L2500 used for?
The ZS Robotics ZS-L2500 is designed for 物料搬运, 码垛, and 运输. It is used in 物流, 制造业, and 零售 settings.
What is the payload capacity of the ZS Robotics ZS-L2500?
The ZS Robotics ZS-L2500 has a payload capacity of 2,500 kg.
How much does the ZS Robotics ZS-L2500 weigh?
The ZS Robotics ZS-L2500 weighs 400 kg.
How fast is the ZS Robotics ZS-L2500?
The ZS Robotics ZS-L2500 can move at speeds of up to 2.9 km/h.
What is the battery life of the ZS Robotics ZS-L2500?
The ZS Robotics ZS-L2500 runs for 8–10 h on a charge.
