描述

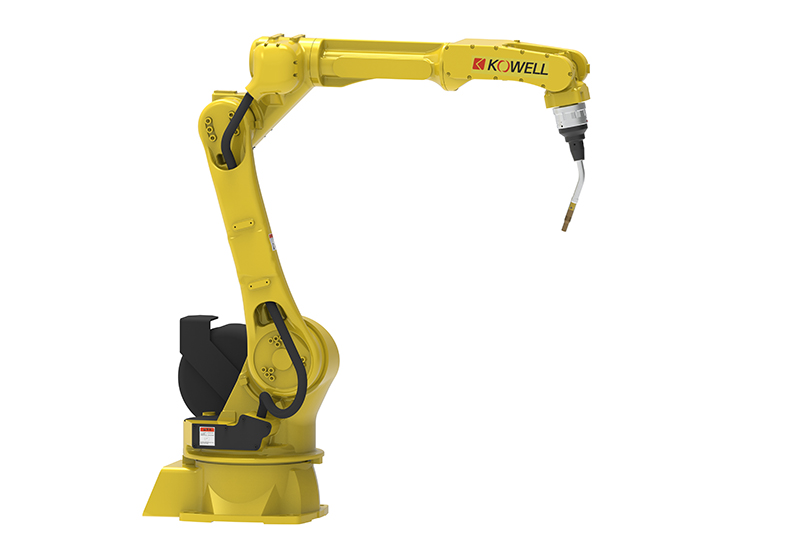

A 12 kg, 2,010 mm six-axis arm sold specifically for welding, pairing the arm with Kewei's own intelligent welding control system and digital welding power source as one integrated package rather than a robot plus a bought-in welder. Repeatability is ±0.05 mm and the body weighs 313 kg. It mounts floor-standing, on a bracket or inverted from a gantry, and is rated to IP56/IP67, so it can sit inside a working weld cell. Kewei positions it for both arc and spot welding duty.
功能特点
- Vertically articulated six-axis arm rated 12 kg payload with a 2,010 mm working radius.
- Position repetition accuracy of ±0.05 mm
- body weight 313 kg.
- Supplied with an integrated intelligent welding control system and digital welding equipment.
- Protection rated equivalent to IP56/IP67.
- Mounts floor standing, bracket standing or inverted (hanging).
- Power capacity 4.5 kVA.

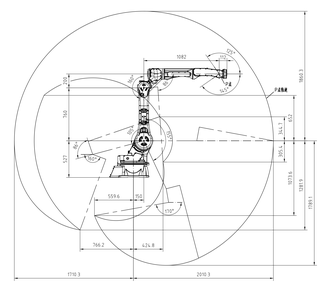

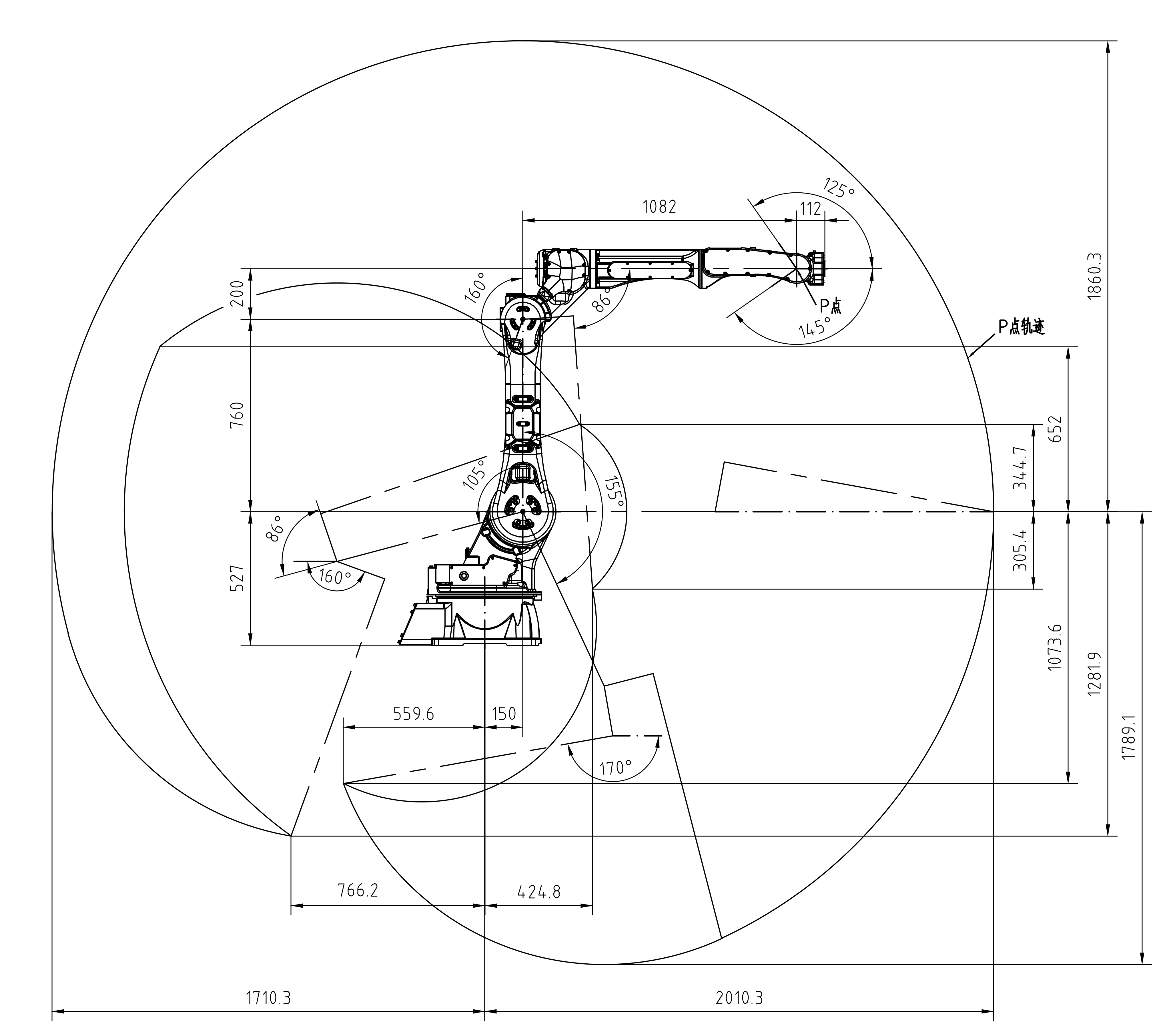

- Axis travel: J1 ±165°, J2 +80/-145°, J3 +145/-75°, J4 ±190°, J5 +50/-210°, J6 ±220°.
- Maximum axis speeds: J1 203°/s, J2 203°/s, J3 214°/s, J4 392°/s, J5 276°/s, J6 1356°/s.
- Rated for 0-45 °C and 20-80% RH, non-condensing.

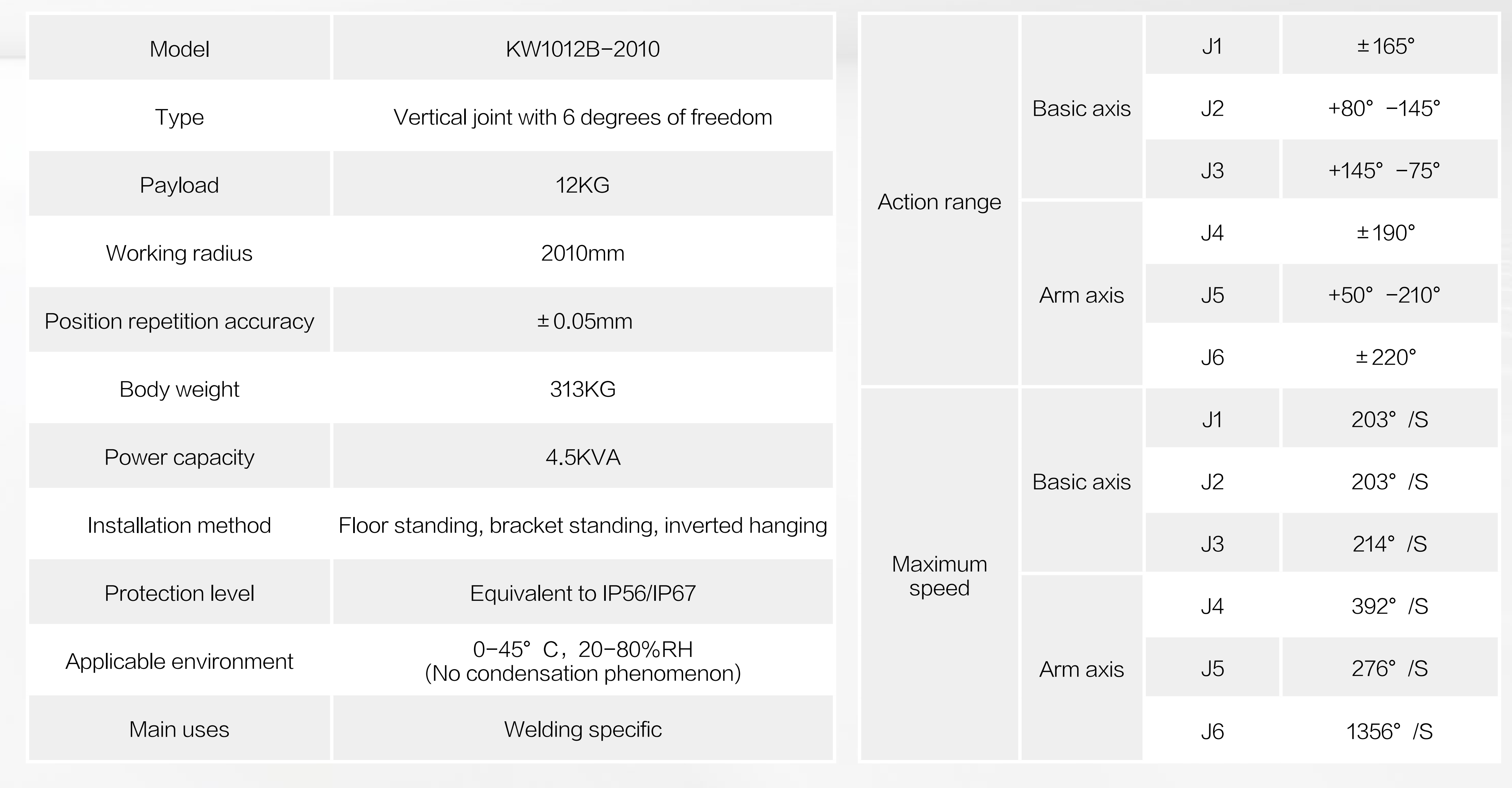

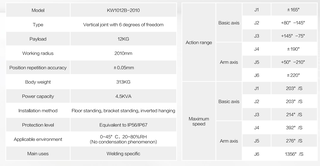

技术规格
已验证| 物理参数 | |
| 重量 | 313 kg |
|---|---|
| 负载 | 12 kg |
| 臂展 | 2.01 m |
| 重复定位精度 | ±0.05 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 作业环境 | Indoor industrial weld cells; 0-45 °C, 20-80% RH, non-condensing. |
技术规格
已验证| 物理参数 | |
| 重量 | 313 kg |
|---|---|
| 负载 | 12 kg |
| 臂展 | 2.01 m |
| 重复定位精度 | ±0.05 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 作业环境 | Indoor industrial weld cells; 0-45 °C, 20-80% RH, non-condensing. |
martti
martti
martti图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the Welding robot KW1012B-2010?
A 12 kg, 2,010 mm six-axis arm sold specifically for welding, pairing the arm with Kewei's own intelligent welding control system and digital welding power source as one integrated package rather than a robot plus a bought-in welder. Repeatability is ±0.05 mm and the body weighs 313 kg.
Who makes the Welding robot KW1012B-2010?
The Welding robot KW1012B-2010 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Welding robot KW1012B-2010 cost?
Shandong Kewei Robot has not publicly announced pricing for the Welding robot KW1012B-2010. You can enquire through RobotAIGeek for current pricing.
What is the Welding robot KW1012B-2010 used for?
The Welding robot KW1012B-2010 is designed for 组装, 物料搬运, and 焊接. It is used in 汽车 and 制造业 settings.
What is the payload capacity of the Welding robot KW1012B-2010?
The Welding robot KW1012B-2010 has a payload capacity of 12 kg and a reach of 2.01 m.
How much does the Welding robot KW1012B-2010 weigh?
The Welding robot KW1012B-2010 weighs 313 kg.
How many degrees of freedom does the Welding robot KW1012B-2010 have?
The Welding robot KW1012B-2010 has 6 degrees of freedom.
