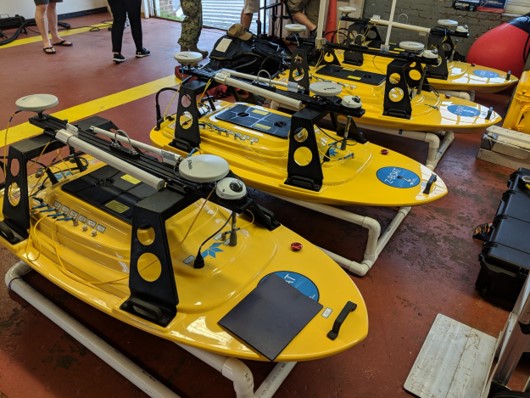

The Z-Boat 1800-T - guided by Trimble, powered by Teledyne - is a high-resolution shallow-water hydrographic uncrewed survey vehicle designed and built by Teledyne Oceanscience. It pairs a Teledyne Odom Echotrac E20 single-beam echosounder with a dual-antenna Trimble BX992 GNSS heading receiver in a compact, portable, cost-effective package, and both sensors can be removed and mounted on other vessels. Trimble supplies precise, RTK-capable heading and positioning and guidance, and the dual-channel E20 surveys from very shallow to deep water across 10 to 250 kHz, reading 0.5 to 250 m at 200 kHz. The result is real-time 2D survey for inspecting and identifying obstructions, replacing dangerous diver inspection and expensive survey-boat time, with optional Trimble Marine Construction software for remote viewing. The 1.8 m boat weighs 27 kg and carries 9 kg, driven by dual brushless 24 V outdrives at a typical 3 to 3.5 knots and up to 4.5 knots, for up to 4 hours at survey speed on NiMH batteries. It is controlled by a 2.4 GHz remote with 1,200 m range and sends data over 5 GHz (up to 1,200 m) or 4G LTE. It is two-person portable.
功能特点
- Guided by Trimble, powered by Teledyne
- Teledyne Odom Echotrac E20 dual-channel single-beam echosounder (10-250 kHz)
- Trimble BX992 dual-antenna GNSS heading receiver, RTK capable
- Real-time 2D survey for obstruction inspection
- Length 1.8 m
- width 1 m
- height 1.1 m
- Base boat 27 kg
- payload 9 kg
- Dual brushless 24 V DC outdrives
- Survey speed 3-3.5 knots
- top speed 4.5 knots
- Up to 4 h at survey speed (NiMH)
- 2.4 GHz remote, 1200 m range
- Data telemetry: 5 GHz up to 1200 m, 4G LTE worldwide
- Optional Trimble Marine Construction software
技术规格
已验证| 物理参数 | |
| 重量 | 27 kg (base boat) |
|---|---|
| 外形尺寸 | L 1.8 m |
| 负载 | 9 kg |
| 移动能力 | |
| 运动类型 | 水生 |
| 速度 | 8.3 km/h |
| 作业环境 | Water surface: rivers, lakes, reservoirs, harbours and coastal waters |
| 电源与续航 | |
| 续航时间 | Up to 4 hours at survey speed |
技术规格
已验证| 物理参数 | |
| 重量 | 27 kg (base boat) |
|---|---|
| 外形尺寸 | L 1.8 m |
| 负载 | 9 kg |
| 移动能力 | |
| 运动类型 | 水生 |
| 速度 | 8.3 km/h |
| 作业环境 | Water surface: rivers, lakes, reservoirs, harbours and coastal waters |
| 电源与续航 | |
| 续航时间 | Up to 4 hours at survey speed |
图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the Teledyne Z-Boat 1800-T?
The Z-Boat 1800-T - guided by Trimble, powered by Teledyne - is a high-resolution shallow-water hydrographic uncrewed survey vehicle designed and built by Teledyne Oceanscience.
Who makes the Teledyne Z-Boat 1800-T?
The Teledyne Z-Boat 1800-T is made by Teledyne Marine, a robotics company based in United States.
How much does the Teledyne Z-Boat 1800-T cost?
Teledyne Marine has not publicly announced pricing for the Teledyne Z-Boat 1800-T. You can enquire through RobotAIGeek for current pricing.
What is the Teledyne Z-Boat 1800-T used for?
The Teledyne Z-Boat 1800-T is designed for 制图, 测量, 检查, and 远程. It is used in 能源, 政府, and 建筑 settings.
What is the payload capacity of the Teledyne Z-Boat 1800-T?
The Teledyne Z-Boat 1800-T has a payload capacity of 9 kg.
How much does the Teledyne Z-Boat 1800-T weigh?
The Teledyne Z-Boat 1800-T weighs 27 kg.
How fast is the Teledyne Z-Boat 1800-T?
The Teledyne Z-Boat 1800-T can move at speeds of up to 8.3 km/h.
What is the battery life of the Teledyne Z-Boat 1800-T?
The Teledyne Z-Boat 1800-T runs for Up to 4 hours at survey speed on a charge.
