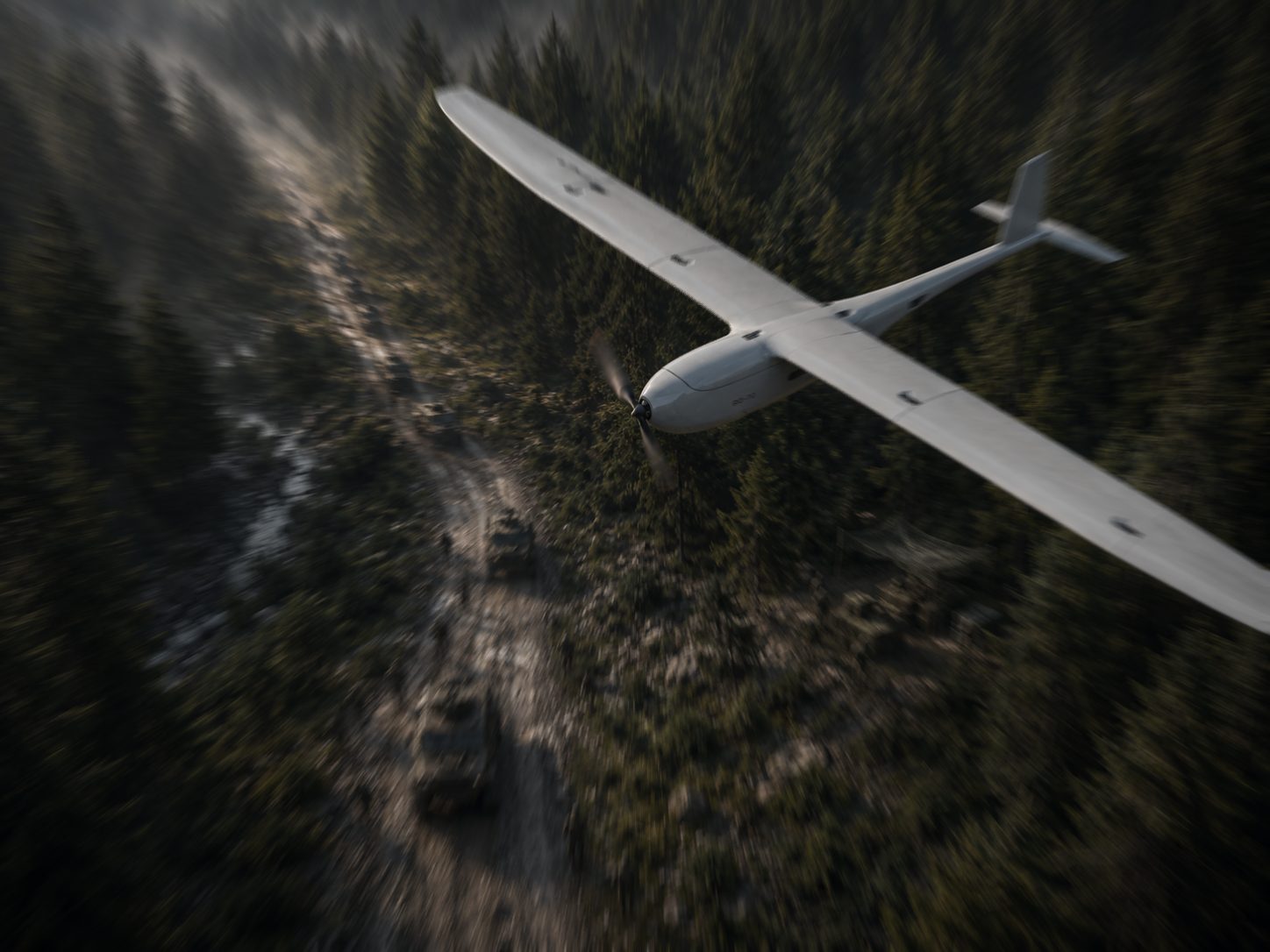

The RQ-70 Dainn is the longer-reaching half of Sky-Watch's RQ pair, built to operate beyond the immediate tactical frontline and stay there. Where the Heidrun gets close quickly, the Dainn trades that for endurance: up to eight hours aloft and a 100 km transmission range, enough to hold persistent awareness over a large area across a long reconnaissance window. It is configurable rather than fixed. Operators can set it up for fixed-wing range, for long-range endurance with a wider 4.5 m wing, or for VTOL when launch and recovery space is constrained — the case that usually decides whether a fixed-wing aircraft can be used at all. Onboard edge compute runs mission applications directly on the aircraft, including detection-recognition-identification, visual navigation for GNSS-denied flight, and Call for Fire workflows. It launches from the hand by a single operator with deep-stall recovery, and deploys in under fifteen minutes. It shares the Zentra payloads, ground control station and mission software with the RQ-35, so operators move between the two with little retraining.
功能特点
- Up to 8 hours flight time
- Up to 100 km transmission range
- 9.2 kg take-off weight standard, 10.0 kg long-range configuration
- 3.1 m wingspan standard, 4.5 m long-range configuration
- Configurable for fixed-wing range, long-range endurance or VTOL
- Single-operator hand launch with deep-stall recovery
- Deployment time under 15 minutes
- Onboard edge compute for detection, recognition and identification
- Visual navigation for GNSS-denied environments
- Supports Call for Fire workflows
- Shares Zentra payloads, GCS and mission software with the RQ-35
- Operating temperature −20 °C to +50 °C
- Interoperable with ATAK, DELTA, SitaWare
- STANAG 2934
技术规格
已验证| 物理参数 | |
| 重量 | 9.2 kg |
|---|---|
| 外形尺寸 | W 3.1 m wingspan standard, 4.5 m long-range |
| 移动能力 | |
| 运动类型 | 航拍 |
| 作业环境 | -20°C to 50°C |
| 电源与续航 | |
| 续航时间 | 480 min |
| 感知与计算 | |
| 传感器 | EO/IR camera, Thermal imaging |
| 连接方式 | ATAK, DELTA, SitaWare and other C4I systems; STANAG 2934 |
| 软件 / AI | Sky-Watch Mission Software; shared Ground Control Station |
技术规格
已验证| 物理参数 | |
| 重量 | 9.2 kg |
|---|---|
| 外形尺寸 | W 3.1 m wingspan standard, 4.5 m long-range |
| 移动能力 | |
| 运动类型 | 航拍 |
| 作业环境 | -20°C to 50°C |
| 电源与续航 | |
| 续航时间 | 480 min |
| 感知与计算 | |
| 传感器 | EO/IR camera, Thermal imaging |
| 连接方式 | ATAK, DELTA, SitaWare and other C4I systems; STANAG 2934 |
| 软件 / AI | Sky-Watch Mission Software; shared Ground Control Station |


图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the Sky-Watch RQ-70 Dainn?
The RQ-70 Dainn is the longer-reaching half of Sky-Watch's RQ pair, built to operate beyond the immediate tactical frontline and stay there.
Who makes the Sky-Watch RQ-70 Dainn?
The Sky-Watch RQ-70 Dainn is made by Sky-Watch, a robotics company based in Denmark.
How much does the Sky-Watch RQ-70 Dainn cost?
Sky-Watch has not publicly announced pricing for the Sky-Watch RQ-70 Dainn. You can enquire through RobotAIGeek for current pricing.
What is the Sky-Watch RQ-70 Dainn used for?
The Sky-Watch RQ-70 Dainn is designed for 侦察 and 监测. It is used in 国防 and defence and security settings.
How much does the Sky-Watch RQ-70 Dainn weigh?
The Sky-Watch RQ-70 Dainn weighs 9.2 kg.
What is the battery life of the Sky-Watch RQ-70 Dainn?
The Sky-Watch RQ-70 Dainn runs for about 480 minutes on a charge.
