KW1070B-2100

Shandong Kewei Robot
Industrial-RobotChinaChina已发布

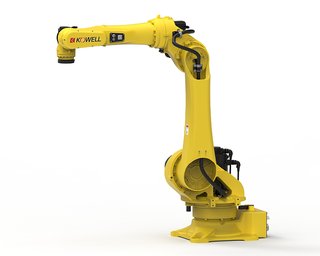

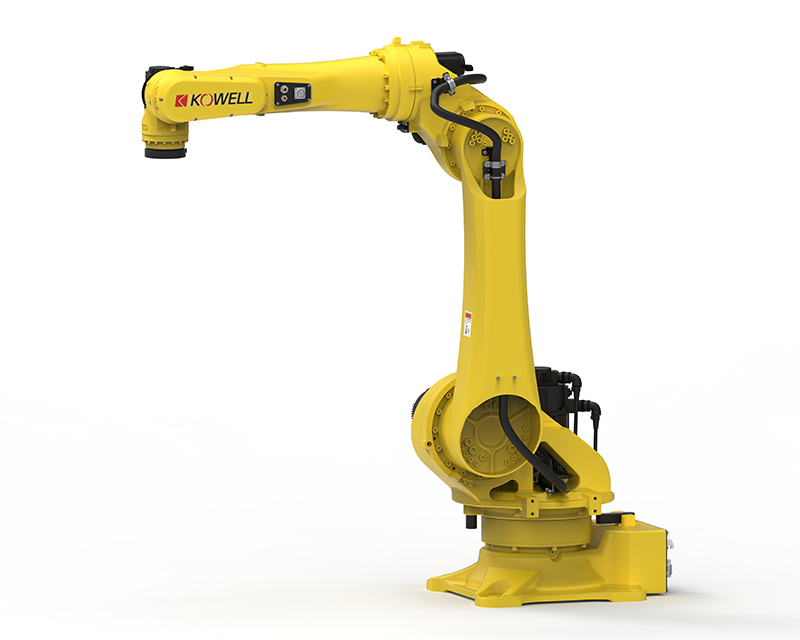

KW1070B-2100
对比
来源：
keweirobot.com
行业：
物流制造业
用途：
物料搬运码垛
价格：
未公布

描述

Six axis industrial robot specially designed for medium load scenarios, with a working radius of up to 2100mm and an effective payload of up to 70kg. Advantage features: Able to perform complex and precise tasks excellently in many industries such as automotive, electronics, and precision manufacturing. It integrates cutting-edge servo drive technology and high-precision control system, effectively ensuring stability and precise positioning during high-speed operation.

功能特点

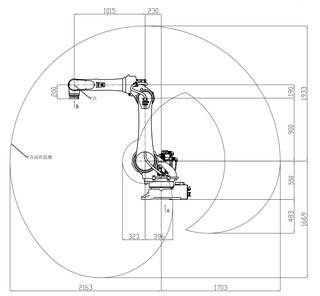

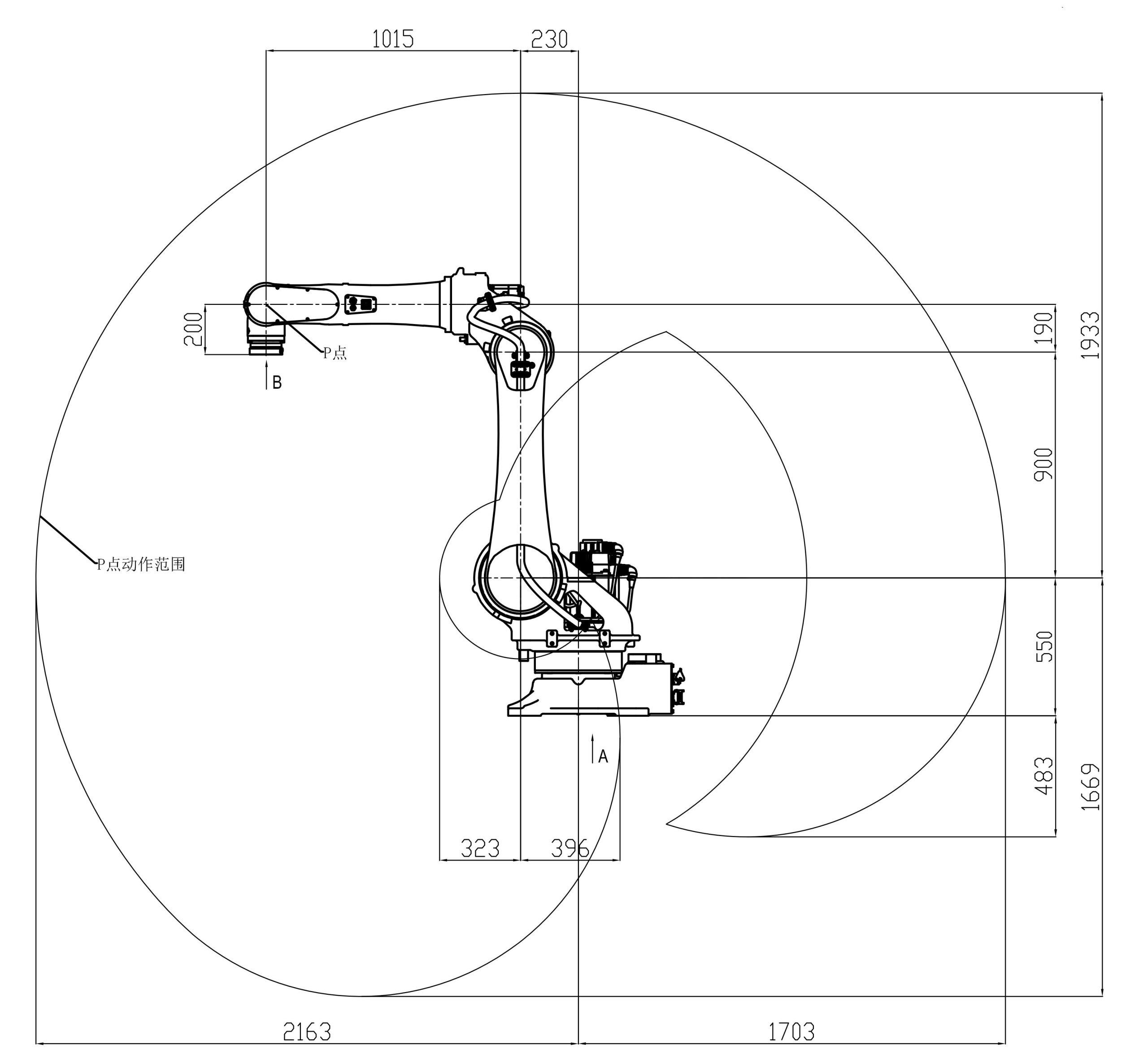

  • Vertically articulated six-axis arm rated 70 kg payload with a 2,100 mm working radius.
  • Position repetition accuracy of ±0.05 mm
  • body weight 540 kg.
  • Power capacity 5.0 kVA
  • protection rated equivalent to IP54.
  • Ground (floor) mounted installation.
  • Rated for 0-45 °C and 20-80% RH, non-condensing.
  • It is a six axis industrial robot specially designed for medium load scenarios, with a working radius of up to 2100mm and an effective payload of up to 70kg. Advantage features: Able to perform complex and precise tasks excellently in many industries such as automotive, electronics, and...

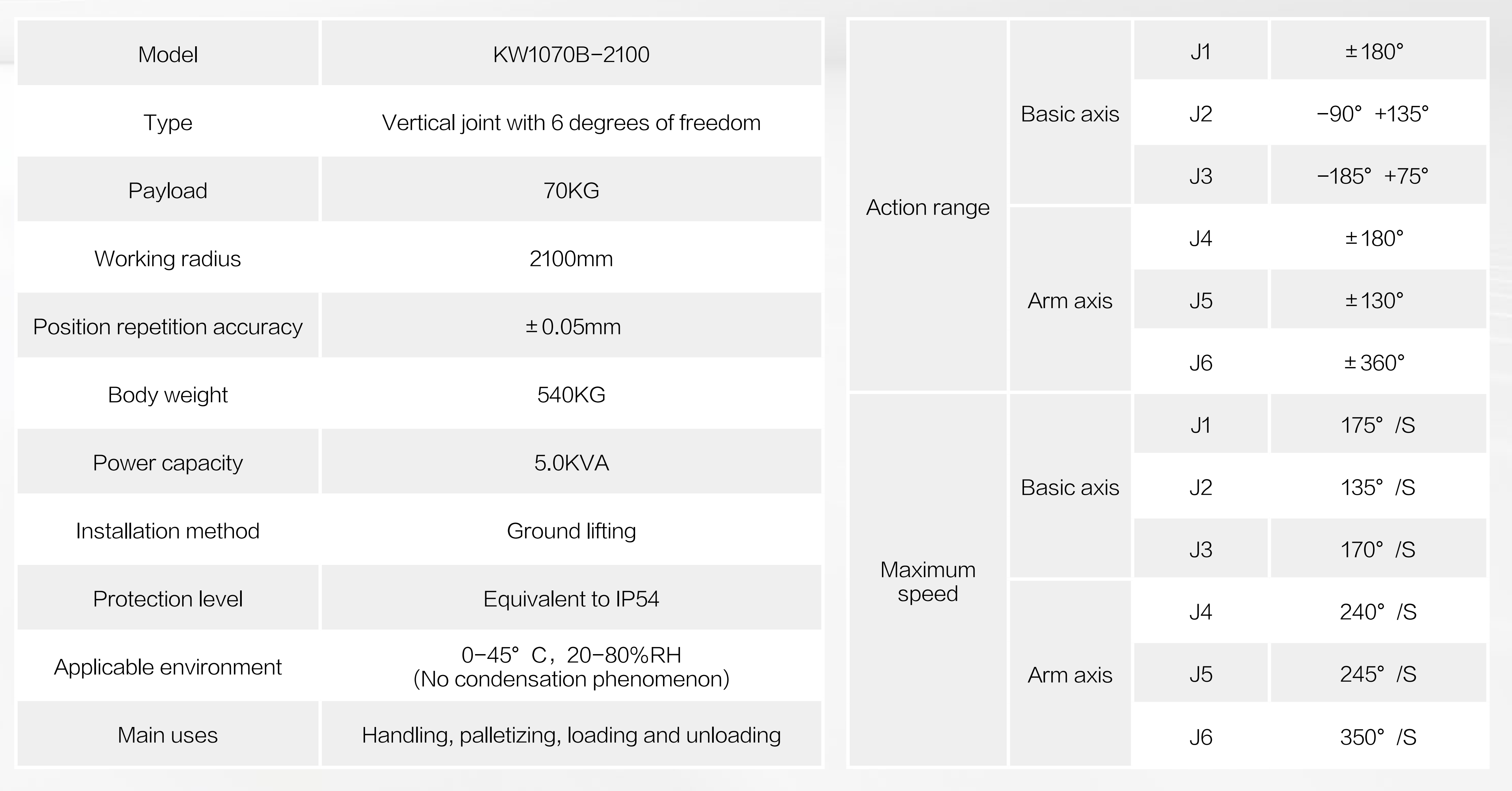

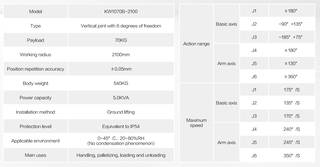

技术规格

已验证
物理参数
重量540 kg
负载70 kg
臂展2.1 m
重复定位精度±0.05 mm
移动能力
运动类型文具
自由度6
作业环境Indoor industrial; 0-45 °C, 20-80% RH, non-condensing.
来源：制造商官网来源：第三方暂无来源来源状态基于该机器人已登记的资料来源。

常见问题

What is the KW1070B-2100?

Six axis industrial robot specially designed for medium load scenarios, with a working radius of up to 2100mm and an effective payload of up to 70kg. Advantage features: Able to perform complex and precise tasks excellently in many industries such as automotive, electronics, and precision manufacturing.

Who makes the KW1070B-2100?

The KW1070B-2100 is made by Shandong Kewei Robot, a robotics company based in China.

How much does the KW1070B-2100 cost?

Shandong Kewei Robot has not publicly announced pricing for the KW1070B-2100. You can enquire through RobotAIGeek for current pricing.

What is the KW1070B-2100 used for?

The KW1070B-2100 is designed for 物料搬运 and 码垛. It is used in 物流 and 制造业 settings.

What is the payload capacity of the KW1070B-2100?

The KW1070B-2100 has a payload capacity of 70 kg and a reach of 2.1 m.

How much does the KW1070B-2100 weigh?

The KW1070B-2100 weighs 540 kg.

How many degrees of freedom does the KW1070B-2100 have?

The KW1070B-2100 has 6 degrees of freedom.
