描述

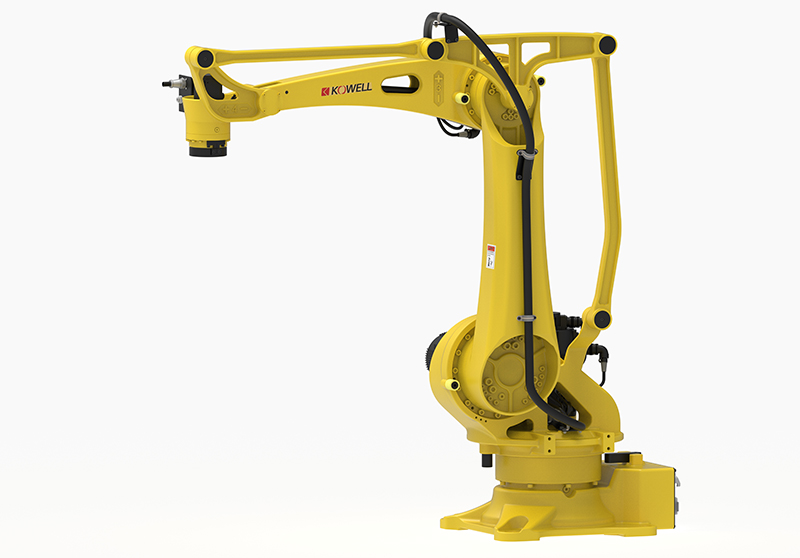

A four axis robot palletizer capable of grasping 60KG items with a working radius of 2100mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, and can be used in various industries such as food, beverage, building materials, logistics, and warehousing. Advantages and features: high precision, fast speed, simple and convenient operation; Fully automated operation saves labor costs; Equipped with a safe and reliable emergency stop button; Lightweight design, small footprint.
功能特点
- Vertically articulated four-axis arm rated 60 kg payload with a 2,100 mm working radius.
- Position repetition accuracy of ±0.2 mm
- body weight 500 kg.
- Power capacity 5.0 kVA
- protection rated equivalent to IP54.
- Ground (floor) mounted installation.
- Rated for 0-45 °C and 20-80% RH, non-condensing.
- A four axis robot palletizer capable of grasping 60KG items with a working radius of 2100mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, and can be used in various industries such as food, beverage, building...

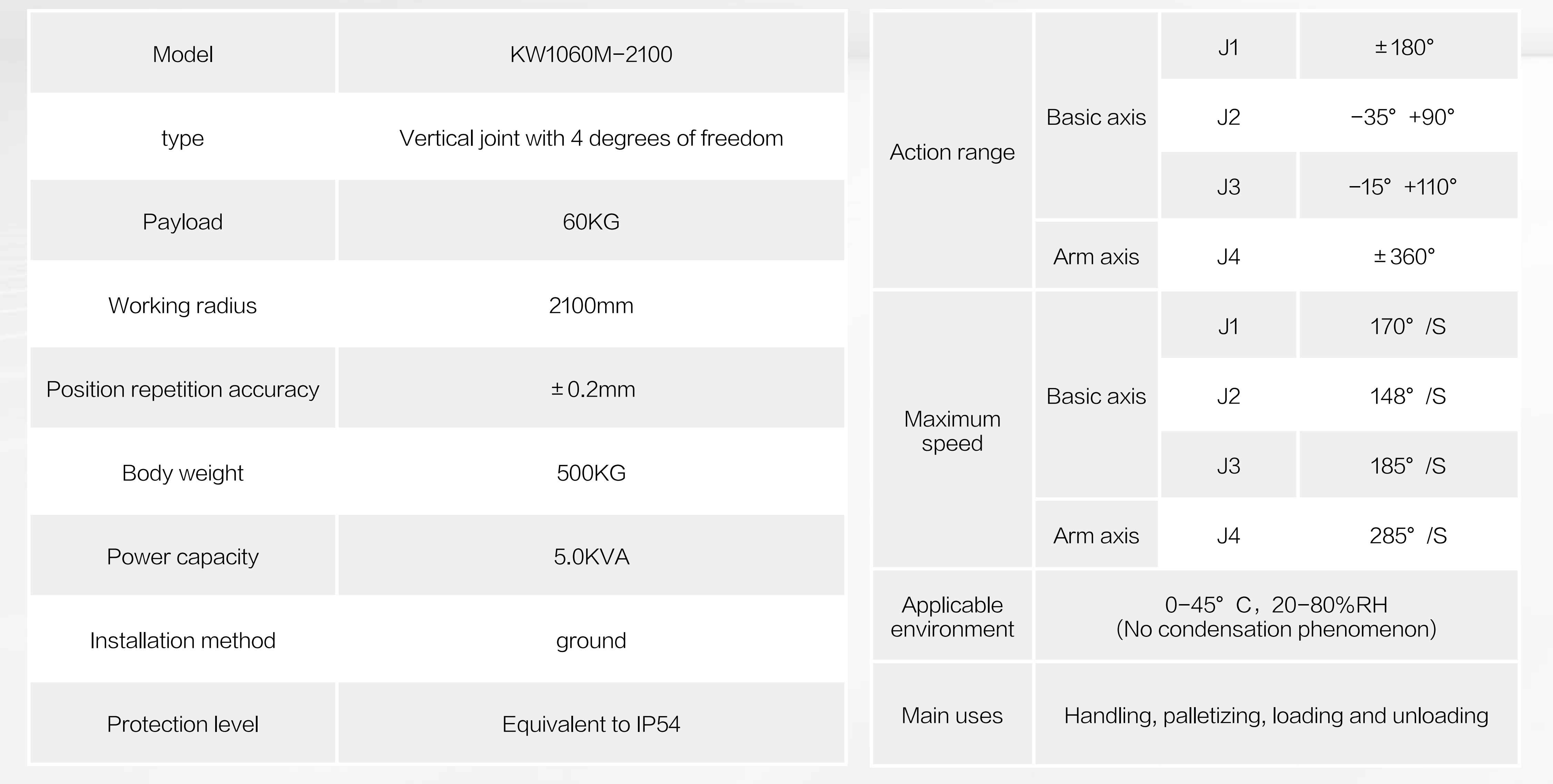

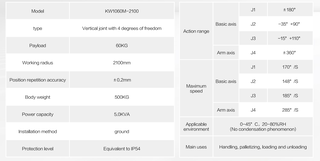

技术规格
已验证| 物理参数 | |
| 重量 | 500 kg |
|---|---|
| 负载 | 60 kg |
| 臂展 | 2.1 m |
| 重复定位精度 | ±0.2 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 4 |
| 作业环境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
技术规格
已验证| 物理参数 | |
| 重量 | 500 kg |
|---|---|
| 负载 | 60 kg |
| 臂展 | 2.1 m |
| 重复定位精度 | ±0.2 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 4 |
| 作业环境 | Indoor industrial; 0-45 °C, 20-80% RH, non-condensing. |
martti
martti
martti图片贡献
视频
机器人论坛
正在加载论坛...
评分
常见问题
What is the Robot palletizer KW1060M-2100?
A four axis robot palletizer capable of grasping 60KG items with a working radius of 2100mm. It can be applied to various work scenarios such as handling, picking and placing, palletizing, loading and unloading, and packing, and can be used in various industries such as food, beverage, building materials, logistics, an…
Who makes the Robot palletizer KW1060M-2100?
The Robot palletizer KW1060M-2100 is made by Shandong Kewei Robot, a robotics company based in China.
How much does the Robot palletizer KW1060M-2100 cost?
Shandong Kewei Robot has not publicly announced pricing for the Robot palletizer KW1060M-2100. You can enquire through RobotAIGeek for current pricing.
What is the Robot palletizer KW1060M-2100 used for?
The Robot palletizer KW1060M-2100 is designed for 物料搬运 and 码垛. It is used in 物流 and 制造业 settings.
What is the payload capacity of the Robot palletizer KW1060M-2100?
The Robot palletizer KW1060M-2100 has a payload capacity of 60 kg and a reach of 2.1 m.
How much does the Robot palletizer KW1060M-2100 weigh?
The Robot palletizer KW1060M-2100 weighs 500 kg.
How many degrees of freedom does the Robot palletizer KW1060M-2100 have?
The Robot palletizer KW1060M-2100 has 4 degrees of freedom.
