KW1030B-1850

Shandong Kewei Robot
Industrial-RobotChinaChina已发布
KW1030B-1850
对比
来源：
keweirobot.com
行业：
物流制造业
用途：
物料搬运码垛
价格：
未公布

描述

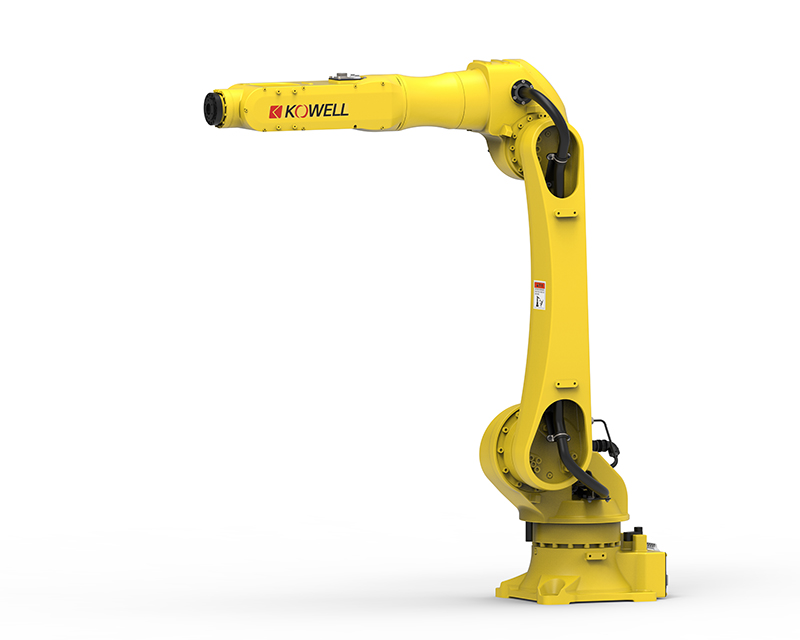

6-axis industrial robot arm with a payload of 30KG and a working radius of 1850. Widely applicable to working environments such as handling, picking and placing, palletizing, packing, loading and unloading materials. It can be applied to various industries such as photovoltaics, lithium batteries, automotive parts, food, beverages, and sheet metal. Advantage features: Compact appearance, able to operate flexibly in narrow spaces. High repeatability accuracy, stable performance, fast speed, support for multiple bus communications, built-in IO and trachea, convenient for fixture installation.

功能特点

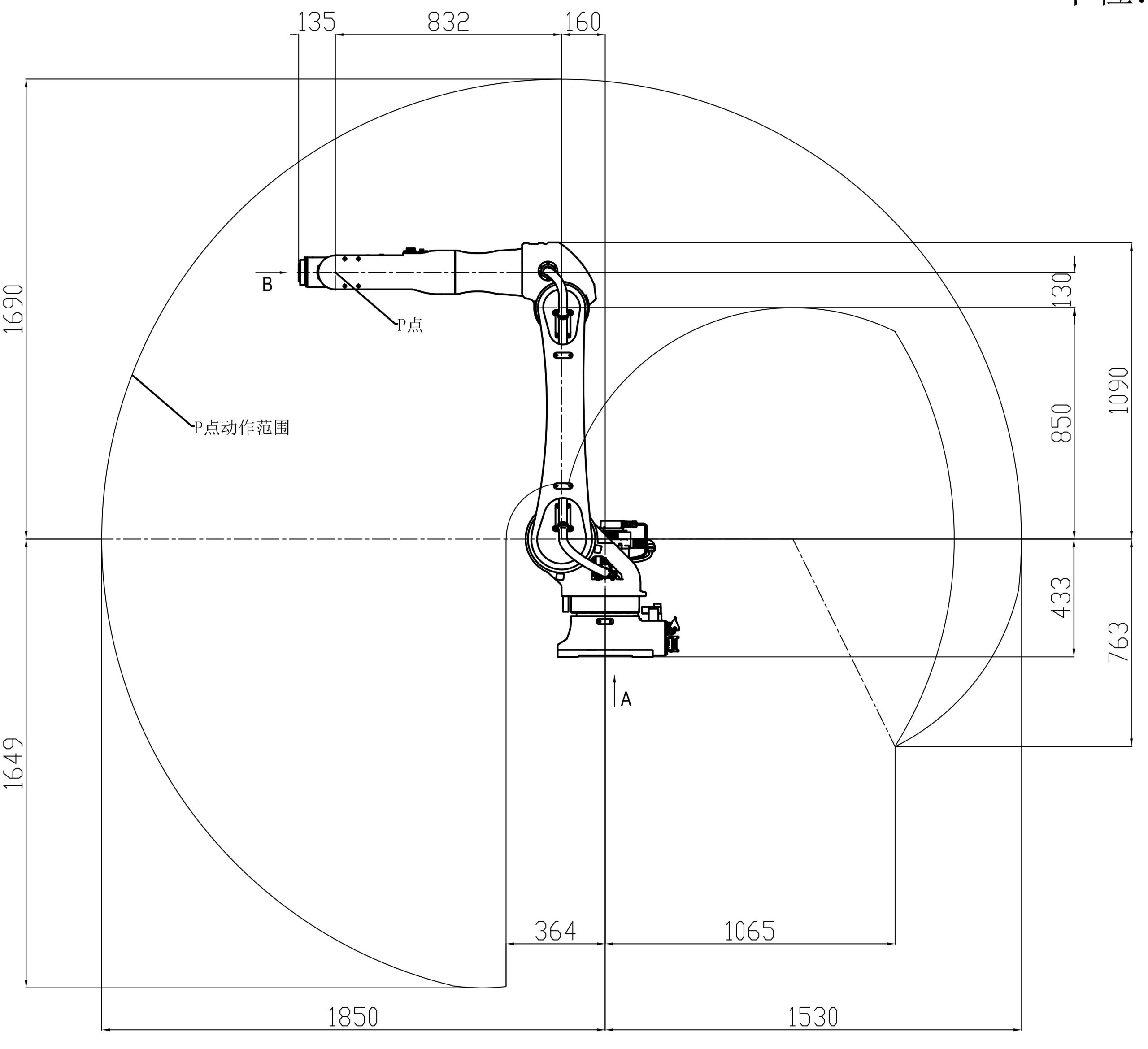

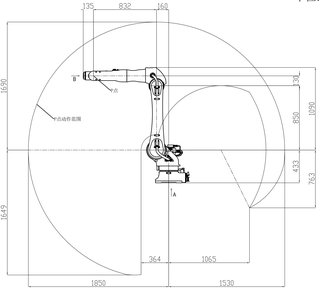

  • Vertically articulated six-axis arm rated 30 kg payload with a 1,850 mm working radius.
  • Position repetition accuracy of ±0.05 mm
  • body weight 190 kg.
  • Power capacity 3.0 kVA
  • protection rated equivalent to IP54.
  • Ground (floor) mounted installation.
  • Rated for 0-45 °C and 20-80% RH, non-condensing.
  • It is a 6-axis industrial robot arm with a payload of 30KG and a working radius of 1850. Widely applicable to working environments such as handling, picking and placing, palletizing, packing, loading and unloading materials. It can be applied to various industries such as photovoltaics, lithium...

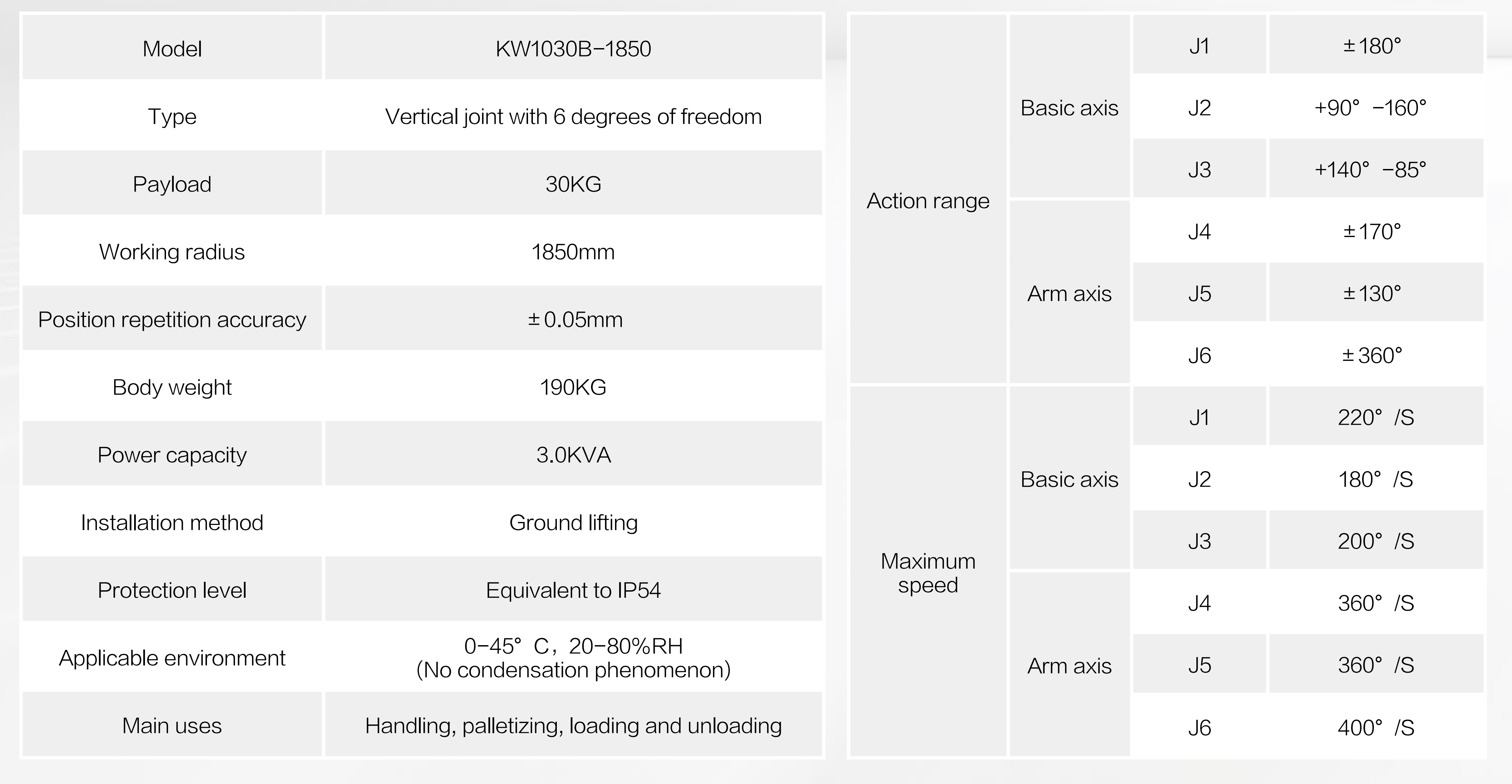

技术规格

已验证
物理参数
重量190 kg
负载30 kg
臂展1.85 m
重复定位精度±0.05 mm
移动能力
运动类型文具
自由度6
作业环境Indoor industrial; 0-45 °C, 20-80% RH, non-condensing.
来源：制造商官网来源：第三方暂无来源来源状态基于该机器人已登记的资料来源。

常见问题

What is the KW1030B-1850?

6-axis industrial robot arm with a payload of 30KG and a working radius of 1850. Widely applicable to working environments such as handling, picking and placing, palletizing, packing, loading and unloading materials.

Who makes the KW1030B-1850?

The KW1030B-1850 is made by Shandong Kewei Robot, a robotics company based in China.

How much does the KW1030B-1850 cost?

Shandong Kewei Robot has not publicly announced pricing for the KW1030B-1850. You can enquire through RobotAIGeek for current pricing.

What is the KW1030B-1850 used for?

The KW1030B-1850 is designed for 物料搬运 and 码垛. It is used in 物流 and 制造业 settings.

What is the payload capacity of the KW1030B-1850?

The KW1030B-1850 has a payload capacity of 30 kg and a reach of 1.85 m.

How much does the KW1030B-1850 weigh?

The KW1030B-1850 weighs 190 kg.

How many degrees of freedom does the KW1030B-1850 have?

The KW1030B-1850 has 6 degrees of freedom.
