描述

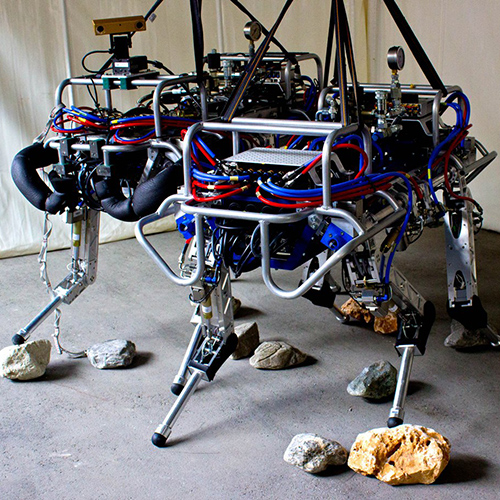

HyQ (Hydraulically actuated Quadruped) is IIT's fully torque-controlled hydraulic quadruped research platform for versatile rough-terrain locomotion, compliance, and energy-efficient gaits — the foundation of the HyQ robot series since ~2007–2011.
功能特点
- Fully torque-controlled hydraulically actuated quadruped (12 active DOF)

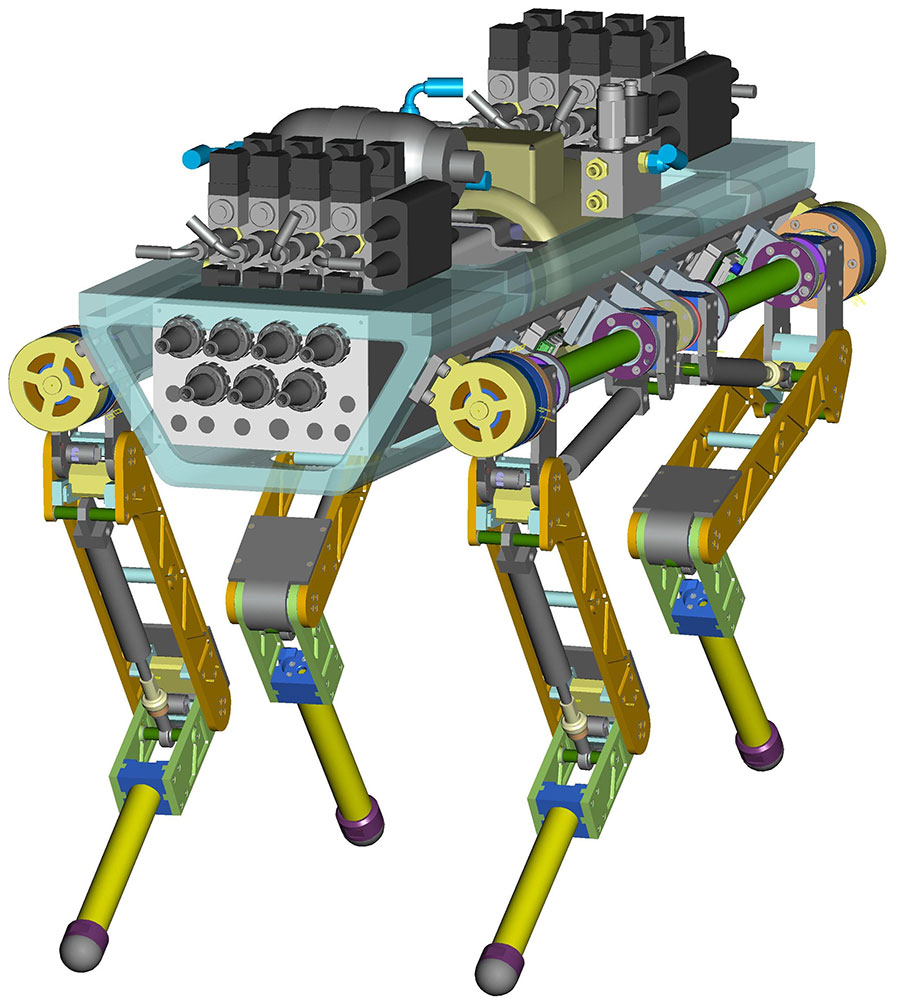

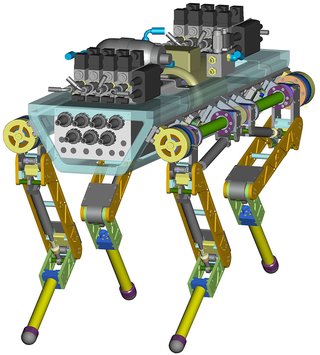

- 8 hydraulic cylinders (hip/knee flexion-extension) + 4 rotary hip abduction/adduction actuators
- Peak cylinder torque ~181 Nm and rotary actuator ~120 Nm at 200 bar
- Onboard joint position/torque sensing, IMU, hydraulic pressure sensing, stereo vision
- Lab treadmill and outdoor rough-terrain testing since 2011
- Applications researched: disaster response, hazardous inspection, rough outdoor mobility
技术规格
| 物理参数 | |
| 重量 | 80 kg (external hydraulic supply); 100 kg (onboard supply) |
|---|---|
| 移动能力 | |
| 运动类型 | 四足动物 |
| 自由度 | 12 |
技术规格
| 物理参数 | |
| 重量 | 80 kg (external hydraulic supply); 100 kg (onboard supply) |
|---|---|
| 移动能力 | |
| 运动类型 | 四足动物 |
| 自由度 | 12 |
martti
martti图片贡献
机器人论坛
正在加载论坛...
评分
常见问题
What is the HyQ?
HyQ (Hydraulically actuated Quadruped) is IIT's fully torque-controlled hydraulic quadruped research platform for versatile rough-terrain locomotion, compliance, and energy-efficient gaits — the foundation of the HyQ robot series since ~2007–2011.
Who makes the HyQ?
The HyQ is made by IIT (Italian Institute of Technology), a robotics company based in Italy.
How much does the HyQ cost?
IIT (Italian Institute of Technology) has not publicly announced pricing for the HyQ. You can enquire through RobotAIGeek for current pricing.
What is the HyQ used for?
The HyQ is designed for 研究. It is used in 研究 settings.
How much does the HyQ weigh?
The HyQ weighs 80 kg.
How many degrees of freedom does the HyQ have?
The HyQ has 12 degrees of freedom.
