DESCRIPTION
TRID is a Mobile-Robots from Muvro. It is built for Intralogistics, Material-Handling, Sorting. Key figures: 10 kg payload.

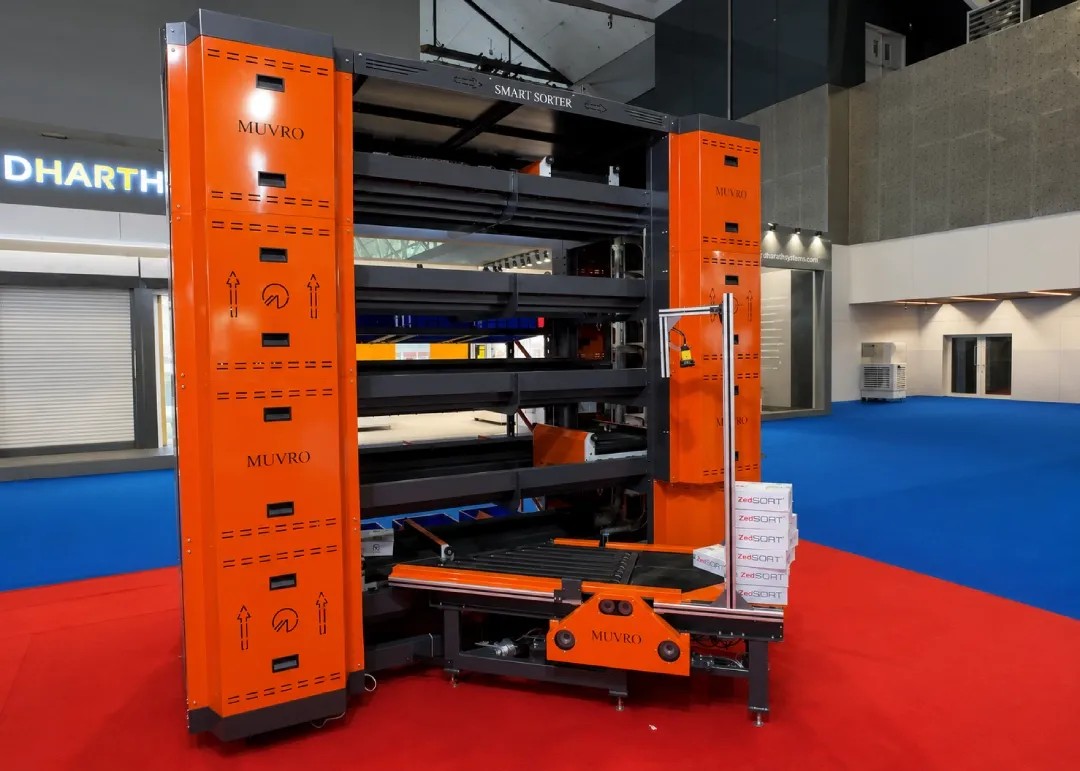

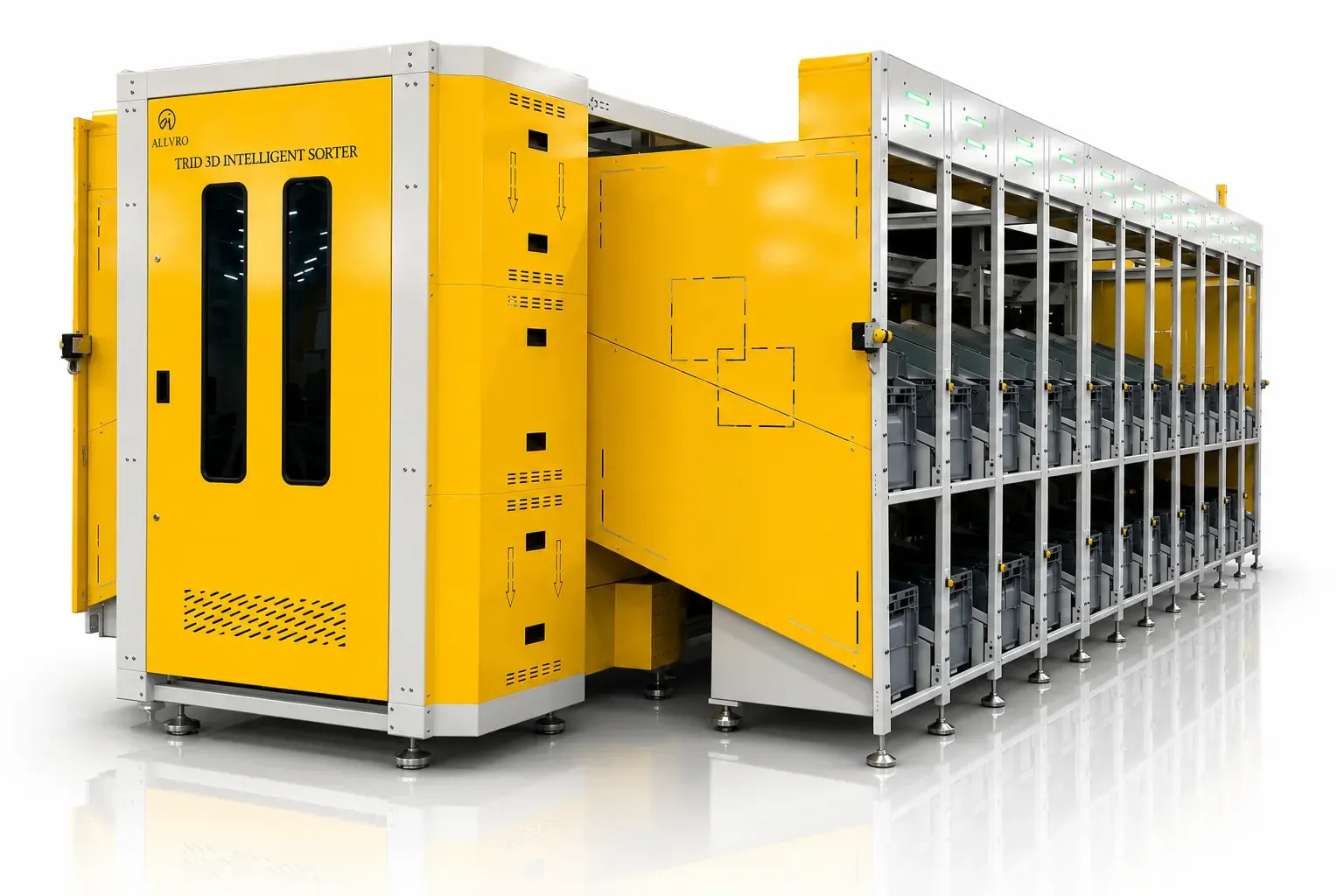

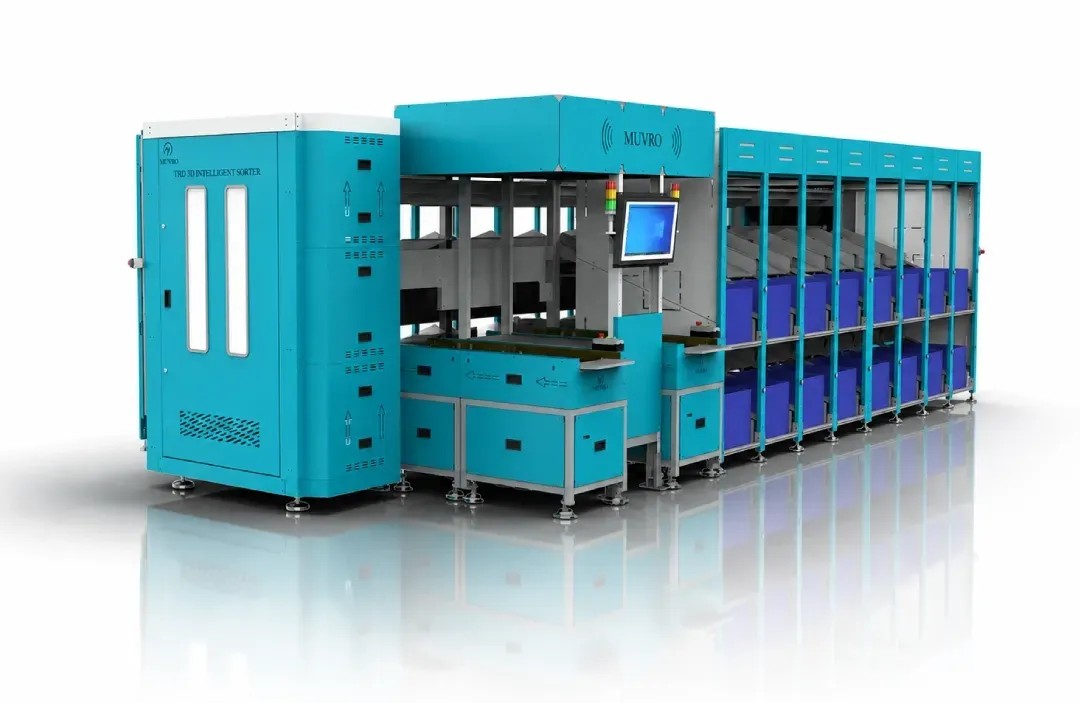

TRID is Muvro's multi-tier 3D smart sorter, in which autonomous carriers called Zed-Bots ride guided tracks horizontally along aisles and vertically between levels to drop parcels into chutes. It is built for re-binning, dark stores, micro-fulfilment, returns and order consolidation where floor space is limited. Parcels enter on an infeed conveyor, pass a barcode scanner, 3D dimensioning profiler and inline scale, and are assigned to a free Zed-Bot. Each bot carries an embedded single-board computer, a servo-driven bi-directional cross-belt and a Wi-Fi link to the master controller, keeps a 500 mm gap to other bots, and tips its parcel left or right into the destination chute. Bots recharge on a rail contact, about 40 minutes for more than 6 hours of running. The sorter handles parcels from 50 g to 10 kg and from 50 x 100 x 5 mm to 400 x 500 x 250 mm. One module sorts up to 1,800 parcels per hour and four modules 7,200. Bots travel at 0.8 to 1.2 m/s. Standard units have five sorting layers and are 5 to 50 m long, 1.2 m wide and 1.8 to 6 m high, with noise under 65 dBA.
FEATURES
- Multi-tier 3D sorter with autonomous Zed-Bot carriers moving horizontally and vertically on guided tracks

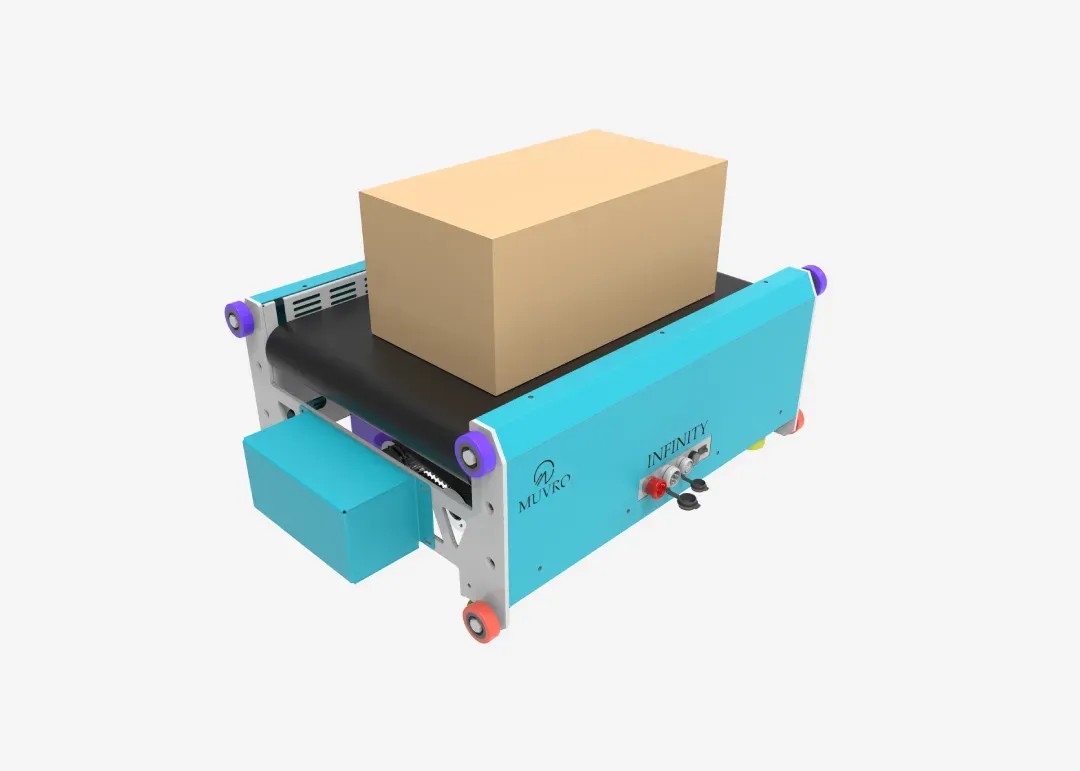

- Zed-Bot: embedded PC (SBC), servo-driven bi-directional cross-belt, servo motors, Wi-Fi link to master controller
- Bot speed 0.8-1.2 m/s
- acceleration 0.5 m/s2
- Inter-bot safety gap 500 mm
- On-the-move rail charging: about 40 min for more than 6 h running
- Throughput 1,800 parcels per hour per module
- 7,200 with four modules
- Parcel weight 50 g to 10 kg
- Parcel size 50 x 100 x 5 mm to 400 x 500 x 250 mm (jiffy bags, flat parcels, poly mailers, boxes)
- Sorter length 5-50 m, width 1.2 m, height 1.8-6 m
- 5 sorting layers standard (customisable)
- Induction with barcode reader (1D, 2D, OCR), inline weighing and 3D profiler
- Chute options: straight, spiral, gravity roller, bagging and reject chutes on mobile racks
- Single or dual infeed
- L-type and T-type layouts
- multi-cube deployment
- PLC-based master control with SCADA/HMI dashboard
- EtherCAT / Ethernet / Modbus
- WMS/WCS/SAP/ERP/MES integration via API
- Drive power 48-60 V DC
- control box 3-phase 360-440 V AC
- Operating 10 to 40 C, 10-95% RH non-condensing
- Noise below 65 dBA
- Bots can be added or removed live without downtime
- CE, ISO 9001, OSHA and UL compliance claimed
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | W 1.2 m |
|---|---|
| Payload | 10 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor fulfilment centres, courier depots and dark stores, 10°C to 40°C |
| Sensing & Compute | |
| Sensors | Encoders, Chute drop-confirmation sensors, Barcode reader, 3D profiler, Inline weighing |
| Connectivity | Wi-Fi to master controller; EtherCAT / Ethernet / Modbus |
| Software / AI | SCADA/HMI dashboard; Muvro WCS/WMS |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | W 1.2 m |
|---|---|
| Payload | 10 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor fulfilment centres, courier depots and dark stores, 10°C to 40°C |
| Sensing & Compute | |
| Sensors | Encoders, Chute drop-confirmation sensors, Barcode reader, 3D profiler, Inline weighing |
| Connectivity | Wi-Fi to master controller; EtherCAT / Ethernet / Modbus |
| Software / AI | SCADA/HMI dashboard; Muvro WCS/WMS |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TRID?
TRID is Muvro's multi-tier 3D smart sorter, in which autonomous carriers called Zed-Bots ride guided tracks horizontally along aisles and vertically between levels to drop parcels into chutes. It is built for re-binning, dark stores, micro-fulfilment, returns and order consolidation where floor space is limited.
Who makes the TRID?
The TRID is made by Muvro, a robotics company based in India.
How much does the TRID cost?
Muvro has not publicly announced pricing for the TRID. You can enquire through RobotAIGeek for current pricing.
What is the TRID used for?
The TRID is designed for intralogistics, material-handling, sorting, and delivery. It is used in healthcare, warehouse & logistics, and retail settings.
What is the payload capacity of the TRID?
The TRID has a payload capacity of 10 kg.
How fast is the TRID?
The TRID can move at speeds of up to 4.32 km/h.
