Techno IML Robot

Technorobotic Machines

Industrial-Robot India

IndiaReleased

★Not rated yet

Compare

Sources:

technoroboticmachines.com

Industries:

Manufacturing

Uses:

Machine-Tending Packaging Pick-and-place

Price:

Not announced

DESCRIPTION

Techno IML Robot is an Industrial-Robot from Technorobotic Machines. It is built for Machine-Tending, Packaging, Pick-and-place.

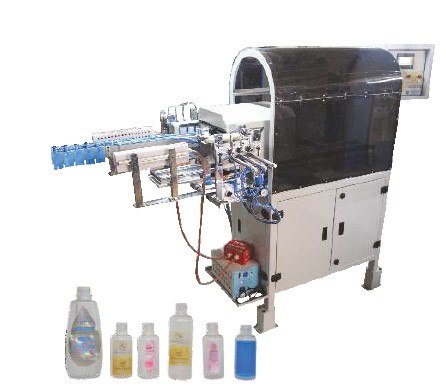

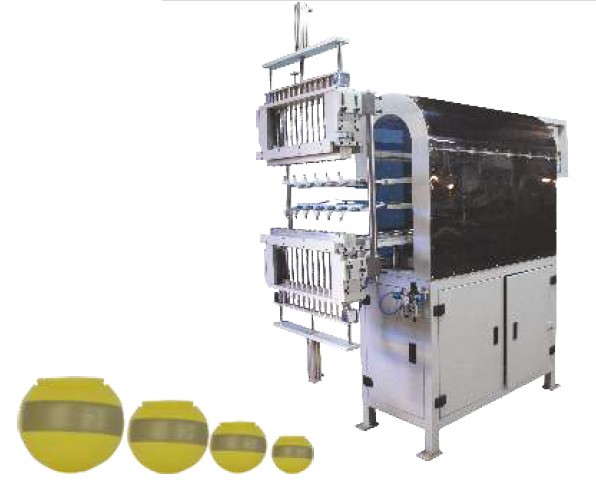

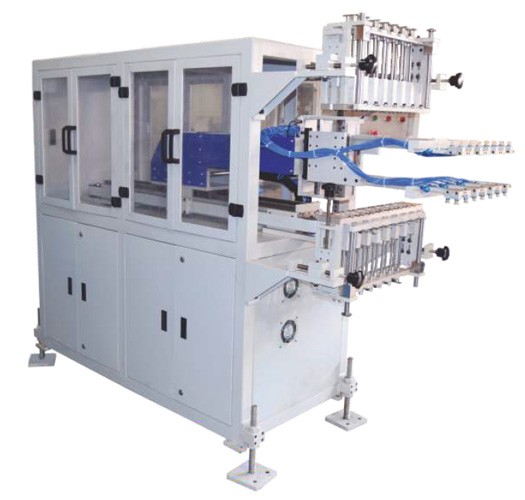

The Techno IML Robot series from Technorobotic Machines places printed labels inside plastic moulds before the container is blown or injected, so the label fuses into the finished bottle, jerry can or pail (in-mould labelling). Separate models suit injection blow moulding (IBM), extrusion blow moulding (EBM), injection stretch blow moulding (ISBM) and injection moulding (IMM) machines. Labels are stacked in a magazine. Servo-driven X and Y axes move the arms forward, a vacuum plucker picks the labels, and the arms wait for the machine's mould-open signal before entering the mould and placing them, held by vacuum pins or static charge. The carriage runs on a rack and pinion with tie-rod support, the end-of-arm tool is an aluminium monoblock, and sensors confirm the home, place and wait positions. Listed models include the IBM IML 6C and 8C (front and side entry), EBM IML 2C, EBM IML 2C JM25 for 10 to 25 litre jerry cans, ISBM IML 6C and 6C 70H, and side-entry IMM robots for paint and lube-oil pails. The EBM IML 2C measures 2,100 x 1,300 x 1,500 mm and weighs about 600 kg. The maker offers interfaces for Ferromatic Milacron (Uniloy), ASB, Central Machinery and Lianxin moulding machines.

FEATURES

In-mould labelling robot for blow moulding and injection moulding machines
Servo-controlled X and Y axis movement
Easy-to-use interface for setting parameters
Label magazine with reduced refill time
size depends on number of cavities
Vacuum plucker picks labels from the magazine
Labels held in the mould by vacuum pins or static charge (static charger unit supplied separately)
Robot enters the mould on the mould-open signal
Aluminium monoblock end-of-arm tool
Heavy machine frame for sturdiness and stability
Rack and pinion drive with tie-rod supported carriage
Home, place and wait positions cross-checked by sensors
Rotating control panel

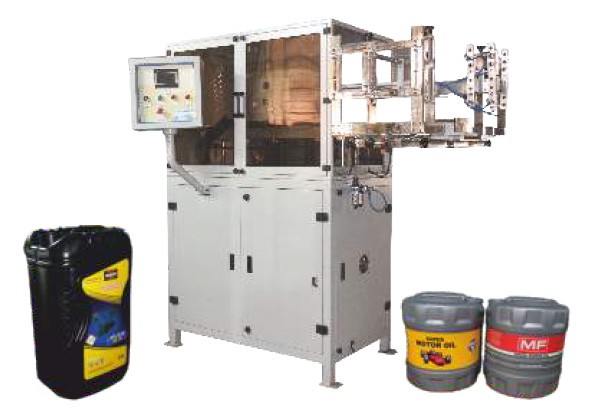

Models: IBM IML 6C, IBM IML 8C (front entry and side entry), EBM IML 2C, EBM IML 2C JM25 (10-25 L containers), ISBM IML 6C, ISBM IML 6C 70H, IMM series (side entry, pails for paint and lube oil)
EBM IML 2C: 2,100 x 1,300 x 1,500 mm, about 600 kg, up to 6 cavities, 220 V AC single phase, 1.5 kW, 6 bar air
ISBM IML 6C 70H: 2,000 x 850 x 1,700 mm, about 600 kg, 6 cavities, 220 V AC single phase, 1.5 kW
OEM interfaces for Ferromatic Milacron India (Uniloy), ASB International, Central Machinery & Plastic Products and Lianxin machines
