DESCRIPTION
SS-01 is a Cleaning-Robots from Skilancer Solar. It is built for Cleaning, Scheduling, Monitoring.

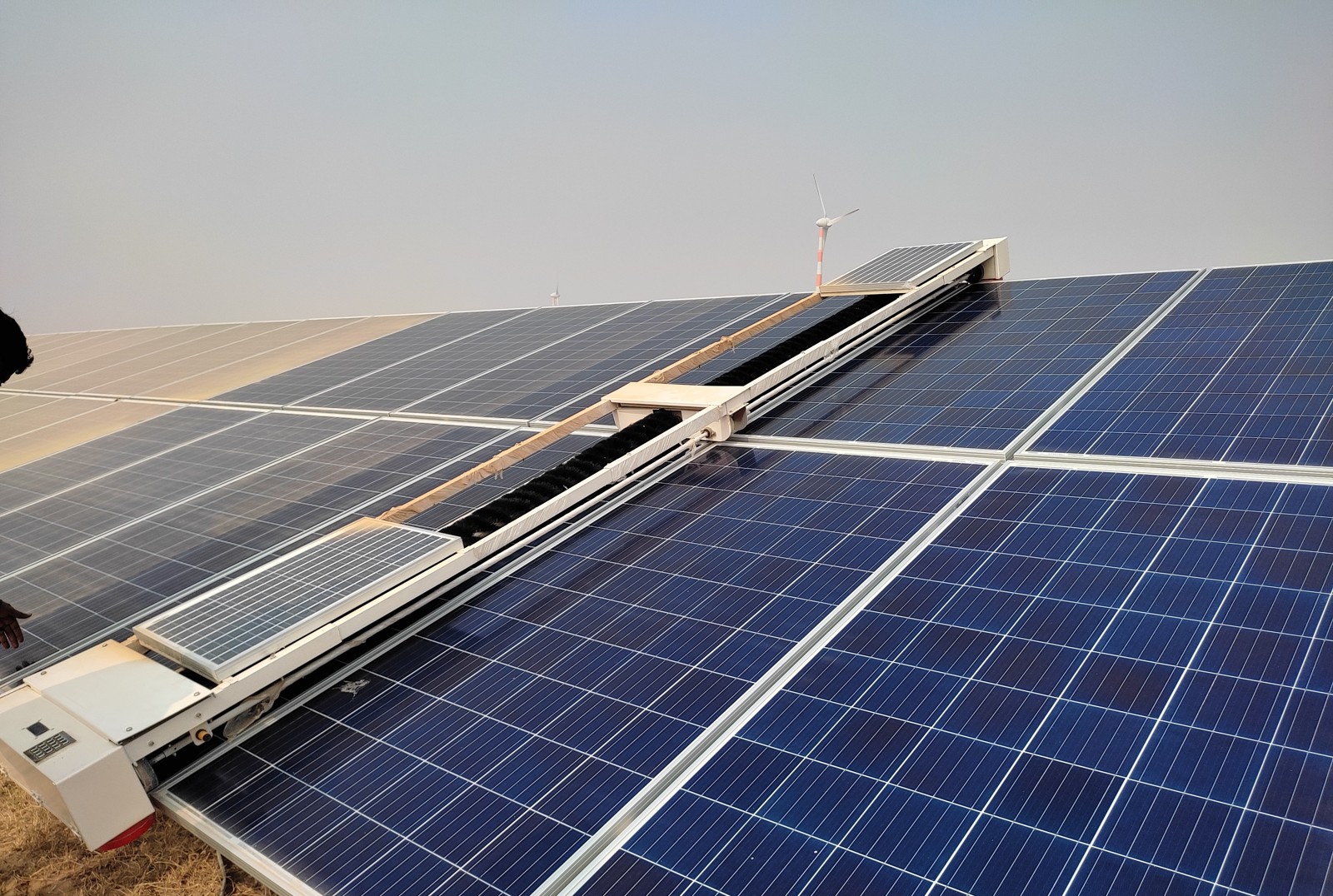

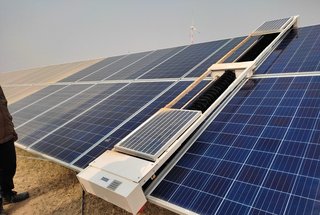

The SS-01 is a fully automatic, waterless solar panel cleaning robot from Skilancer Solar for utility-scale ground-mounted and tracker solar plants. It is the company's flagship model and is designed to clean each row of modules every day without water or site staff. The robot travels along the length of a module row and sweeps dust off the glass with a soft PBT helical brush. After each run it returns to its dock and recharges from its own 120 Wp solar panel and LFP battery, so it needs no power supply from the plant. It reports status to the plant SCADA system and supports LoRaWAN communication for scheduling and remote monitoring. Skilancer Solar states a cleaning speed of up to 25 m per minute, a range of up to 2,500 m per run and the ability to climb slopes of up to 20 degrees. The company lists utility installations at ReNew Power's Patan (105 MW) and Bikaner (250 MW) sites, Avaada's 100 MW tracker and fixed-tilt plant at Yavatmal and O2 Power's 25 MW plant at Georai.
FEATURES
- Fully autonomous daily cleaning cycle
- 100% waterless cleaning with a customised ultra-soft PBT helical brush
- Integrated 120 Wp solar panel and LFP battery for self-charging
- Docks and charges itself at the row end
- Cleaning speed up to 25 m/min
- Range up to 2,500 m per run
- Climbs slopes up to 20 degrees
- SCADA integration for status reports, scheduling and remote monitoring
- LoRaWAN connectivity
- Rail-guided
- no dead load on the panels
- IP65 water and dust protected casing (company-wide feature)
- C4-class anti-corrosion rating (company-wide feature)
- Rated for operating temperatures up to 70 C (company-wide feature)
- For ground-mounted fixed-tilt and single-axis tracker plants
- Built at an ISO 9001:2015 certified factory in Faridabad, India
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Materials | PBT brush bristles |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.51 km/h |
| Environment | Outdoor utility-scale solar plants, including dusty desert sites; slopes up to 20 degrees, IP65, ?°C to 70°C |
| Power | |
| Battery Life | LFP (LiFePO4) battery charged by an integrated 120 Wp solar panel |
| Sensing & Compute | |
| Connectivity | SCADA integration; LoRaWAN |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Materials | PBT brush bristles |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.51 km/h |
| Environment | Outdoor utility-scale solar plants, including dusty desert sites; slopes up to 20 degrees, IP65, ?°C to 70°C |
| Power | |
| Battery Life | LFP (LiFePO4) battery charged by an integrated 120 Wp solar panel |
| Sensing & Compute | |
| Connectivity | SCADA integration; LoRaWAN |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SS-01?
The SS-01 is a fully automatic, waterless solar panel cleaning robot from Skilancer Solar for utility-scale ground-mounted and tracker solar plants. It is the company's flagship model and is designed to clean each row of modules every day without water or site staff.
Who makes the SS-01?
The SS-01 is made by Skilancer Solar, a robotics company based in India.
How much does the SS-01 cost?
Skilancer Solar has not publicly announced pricing for the SS-01. You can enquire through RobotAIGeek for current pricing.
What is the SS-01 used for?
The SS-01 is designed for cleaning, scheduling, and monitoring. It is used in energy and cleaning & facilities settings.
How fast is the SS-01?
The SS-01 can move at speeds of up to 1.51 km/h.
