Spinnaker 3 Microplate Mover
DESCRIPTION
Spinnaker 3 Microplate Mover is an Industrial-Robot from Thermo Fisher Scientific. It is built for Material-Handling, Pick-and-place, Research. Key figures: 0.3 kg payload, 597 mm reach, 4 degrees of freedom.

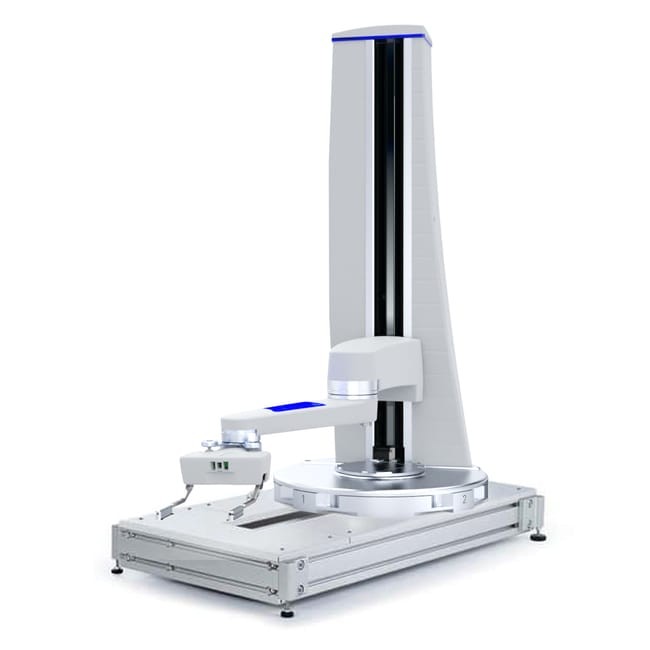

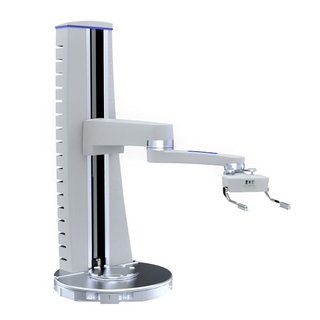

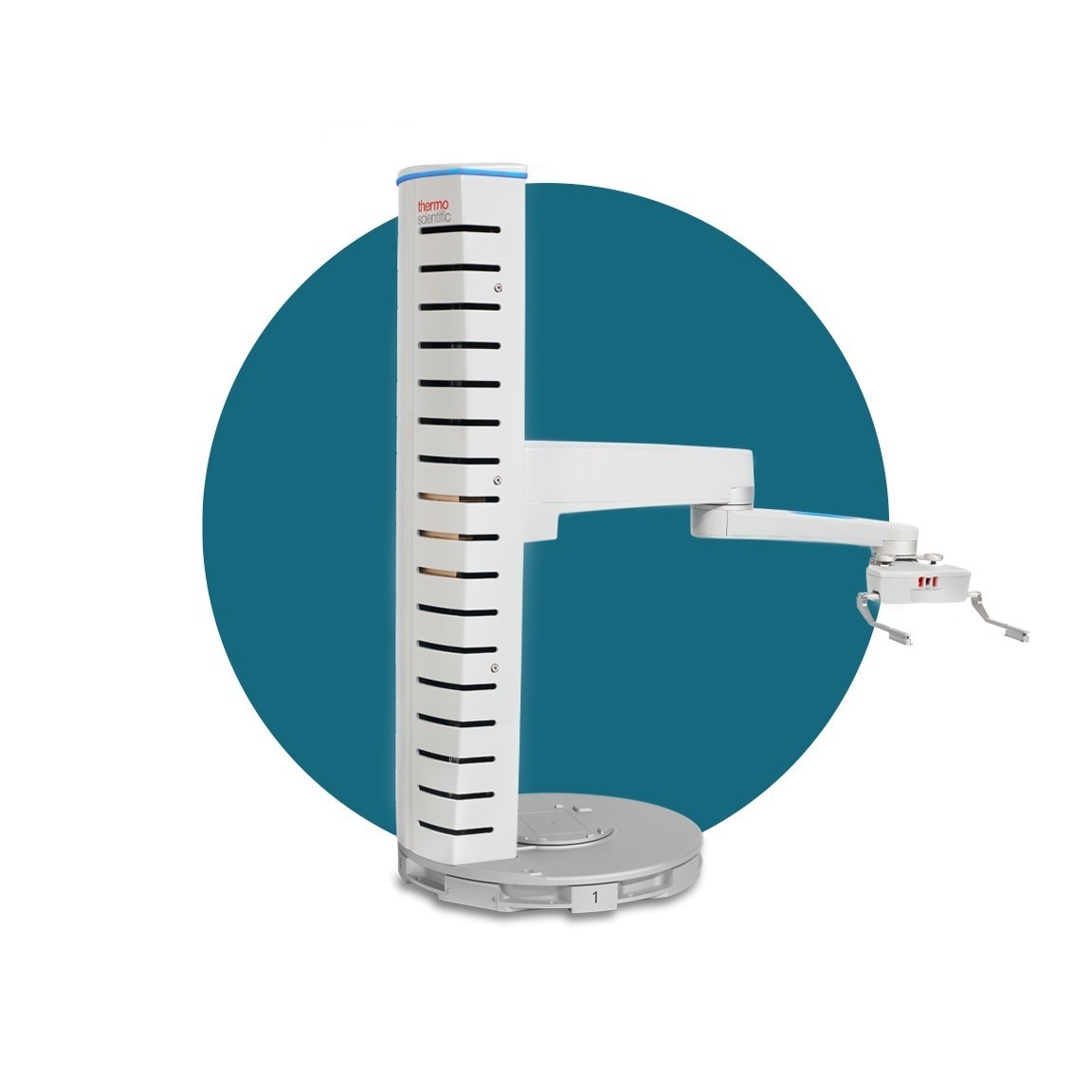

The Thermo Scientific Spinnaker 3 is a collaborative SCARA-type robot for fast, flexible microplate handling with minimal setup, aimed at add-and-go automation of lab workflows. Vision-based position teaching allows touchless calibration, and its patented auto-levelling gripper corrects for instruments or benches that are not perfectly level, so transfers stay reliable across a wide range of labware. Thermo Fisher specifies a reach of 597 mm, a height of 800 mm, a nominal payload of 250 g (320 g maximum) and +/-0.25 mm repeatability, with four axes of motion and integrated barcode reading. It operates at 19 to 25 C nominally (4 to 40 C) and 20 to 80% non-condensing humidity, mounts on the bench or on a track, and works with Thermo Fisher's Momentum software or third-party scheduling software. Typical uses include screening, compound management, cell maintenance, small- and large-molecule work, biologics and synthetic biology; it is also the arm on Thermo Fisher's lab autonomous mobile robot.
FEATURES
- Collaborative SCARA-type (4-axis) microplate robot
- Vision-based position teaching (touchless calibration)

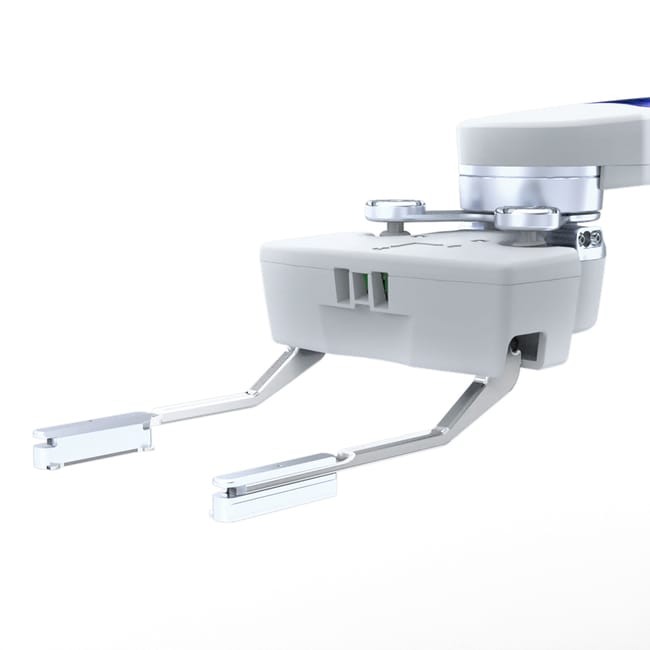

- Patented auto-levelling gripper corrects for non-level instruments and benches
- Reach 597 mm
- height 800 mm
- payload 250 g nominal, 320 g max
- repeatability +/-0.25 mm
- Integrated barcode reading
- Operating 19-25 C nominal (4-40 C)
- humidity 20-80% non-condensing
- Momentum software or third-party schedulers

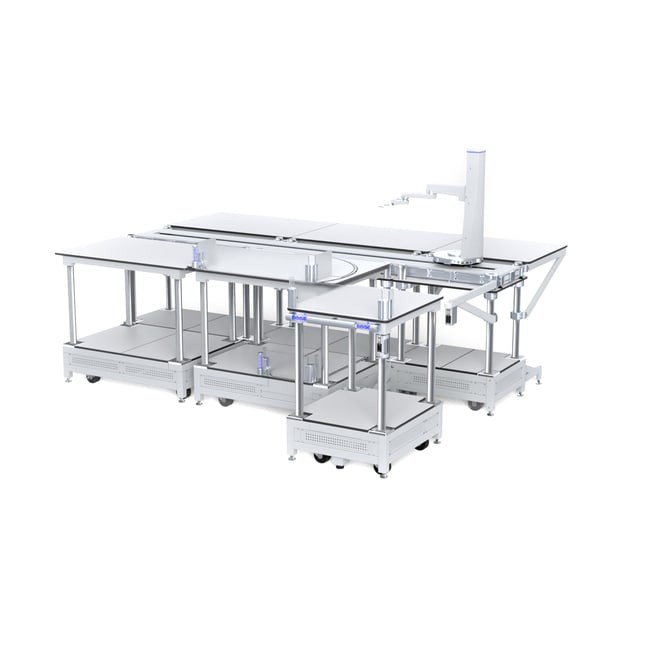

- benchtop or track mounting
- Screening, compound management, cell maintenance, biologics, synthetic biology
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | H 800 mm |
|---|---|
| Payload | 0.32 kg |
| Reach | 597 mm |
| Repeatability | ±0.25 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | Indoor life-science laboratories (benchtop / lab floors) |
| Actuators | 4-axis SCARA arm with auto-levelling gripper |
| Sensing & Compute | |
| Sensors | vision camera (position teaching), barcode reader |
| Software / AI | Thermo Scientific Momentum workflow scheduling software |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | H 800 mm |
|---|---|
| Payload | 0.32 kg |
| Reach | 597 mm |
| Repeatability | ±0.25 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | Indoor life-science laboratories (benchtop / lab floors) |
| Actuators | 4-axis SCARA arm with auto-levelling gripper |
| Sensing & Compute | |
| Sensors | vision camera (position teaching), barcode reader |
| Software / AI | Thermo Scientific Momentum workflow scheduling software |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Spinnaker 3 Microplate Mover?
The Thermo Scientific Spinnaker 3 is a collaborative SCARA-type robot for fast, flexible microplate handling with minimal setup, aimed at add-and-go automation of lab workflows.
Who makes the Spinnaker 3 Microplate Mover?
The Spinnaker 3 Microplate Mover is made by Thermo Fisher Scientific, a robotics company based in United States.
How much does the Spinnaker 3 Microplate Mover cost?
Thermo Fisher Scientific has not publicly announced pricing for the Spinnaker 3 Microplate Mover. You can enquire through RobotAIGeek for current pricing.
What is the Spinnaker 3 Microplate Mover used for?
The Spinnaker 3 Microplate Mover is designed for material-handling, pick-and-place, research, and automated microplate handling between lab instruments. It is used in research and healthcare settings.
What is the payload capacity of the Spinnaker 3 Microplate Mover?
The Spinnaker 3 Microplate Mover has a payload capacity of 0.32 kg and a reach of 597 mm.
How many degrees of freedom does the Spinnaker 3 Microplate Mover have?
The Spinnaker 3 Microplate Mover has 4 degrees of freedom.
