SIRIUS

NIDO

Mobile-Robots India

IndiaReleased

★Not rated yet

Compare

Sources:

nidoworld.com

Industries:

Warehouse & Logistics Manufacturing Retail

Uses:

Intralogistics Lifting Material-Handling Delivery Transport

Price:

Not announced

DESCRIPTION

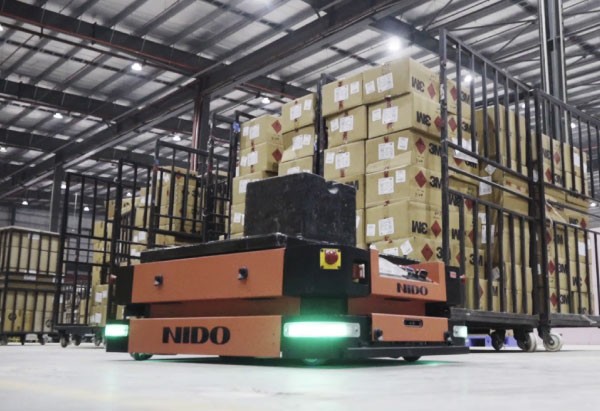

SIRIUS is a Mobile-Robots from NIDO. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 480 min runtime, 1500 kg payload.

SIRIUS is NIDO's family of natural-navigation autonomous mobile robots for unit-load carrying, lifting, conveyor transfer and tugging in distribution centres, warehouses and plants. NIDO says the robots are made in India and manufactured in-house. Three models share a 350 mm-high chassis. SIRIUS 100 carries 100 kg and tows 300 kg, SIRIUS 500 carries 500 kg and tows 750 kg, and SIRIUS 1500 carries 1,500 kg and tows 2,000 kg; lifter, conveyor and tug tops are fitted per application. All run at up to 1.5 m/s forwards or backwards, climb a 5 percent incline and work about 8 hours per charge, with battery swap or auto-docking. Positioning is within +/-50 mm, and docking to a marker within 20 to 30 mm. The robots navigate with 2D LiDAR and are protected by 2D safety laser scanners, contact bumpers, a safety PLC on the larger models and two or four emergency stops. They are rated IP21 for +5 to 50 C indoor use and communicate over dual-band Wi-Fi. The NIDONav and NIDOFleet software monitors the fleet and syncs with WMS or ERP systems.

FEATURES

Models: SIRIUS 100, SIRIUS 500, SIRIUS 1500
Payload 100 / 500 / 1,500 kg
Towing capacity 300 / 750 / 2,000 kg (spec table)
Dimensions (L x W x H): 900 x 600 x 350 mm / 1,200 x 800 x 350 mm / 1,750 x 1,150 x 350 mm
Weight without load 100 / 250 / 410 kg
with lifter 150 / 330 / 510 kg
Load surface 600 x 800 / 600 x 830 / 1,270 x 770 mm
Ground clearance 30 mm
Applications: lifting, tugging, conveyor top transfer and unit load
Max speed 1.5 m/s forwards and backwards
acceleration 0.2 m/s2
Maximum incline 5% with payload
On-the-spot turning circle 1,020 / 1,400 / 2,050 mm
Positioning accuracy +/-50 mm
docking +/-20 mm (100) / +/-30 mm (500, 1500)
Traversable gap and sill 30 mm
Battery running time 8 h
Batteries: Li-ion 24 V 55 Ah / LiFePO4 24 V 80 Ah / Li-ion 48 V 80 Ah
minimum 1,500 cycles
Charging up to 3.5 / 4 / 5 h
battery swap or auto-dock charging
Navigation: 2D LiDAR natural navigation
Safety: 2D safety laser scanners, ultrasonic sensor (100), contact safety bumpers, safety PLC (500, 1500), 2 or 4 emergency stops
IP21
+5 to 50 C, 10-95% humidity non-condensing
Dual-band Wi-Fi
Ethernet and USB I/O
NIDONav and NIDOFleet software with WMS/ERP sync
NIDO orange (RAL 2012) and black colour scheme

TECHNICAL SPECIFICATIONS

Verified

Physical
Dimensions	H 350 mm
Payload	1500 kg
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor distribution centres, warehouses and plants, IP21, 5°C to 50°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2D LiDAR, 2D safety laser scanners, Ultrasonic sensor, Contact safety bumper
Connectivity	Dual-band Wi-Fi (AC/G/N/B); Ethernet and USB
Software / AI	NIDONav, NIDOFleet

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Dimensions	H 350 mm
Payload	1500 kg
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor distribution centres, warehouses and plants, IP21, 5°C to 50°C
Power
Battery Life	480 min
Sensing & Compute
Sensors	2D LiDAR, 2D safety laser scanners, Ultrasonic sensor, Contact safety bumper
Connectivity	Dual-band Wi-Fi (AC/G/N/B); Ethernet and USB
Software / AI	NIDONav, NIDOFleet

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the SIRIUS?

Who makes the SIRIUS?

The SIRIUS is made by NIDO, a robotics company based in India.

How much does the SIRIUS cost?

NIDO has not publicly announced pricing for the SIRIUS. You can enquire through RobotAIGeek for current pricing.

What is the SIRIUS used for?

The SIRIUS is designed for intralogistics, lifting, material-handling, and delivery. It is used in warehouse & logistics, manufacturing, and retail settings.
